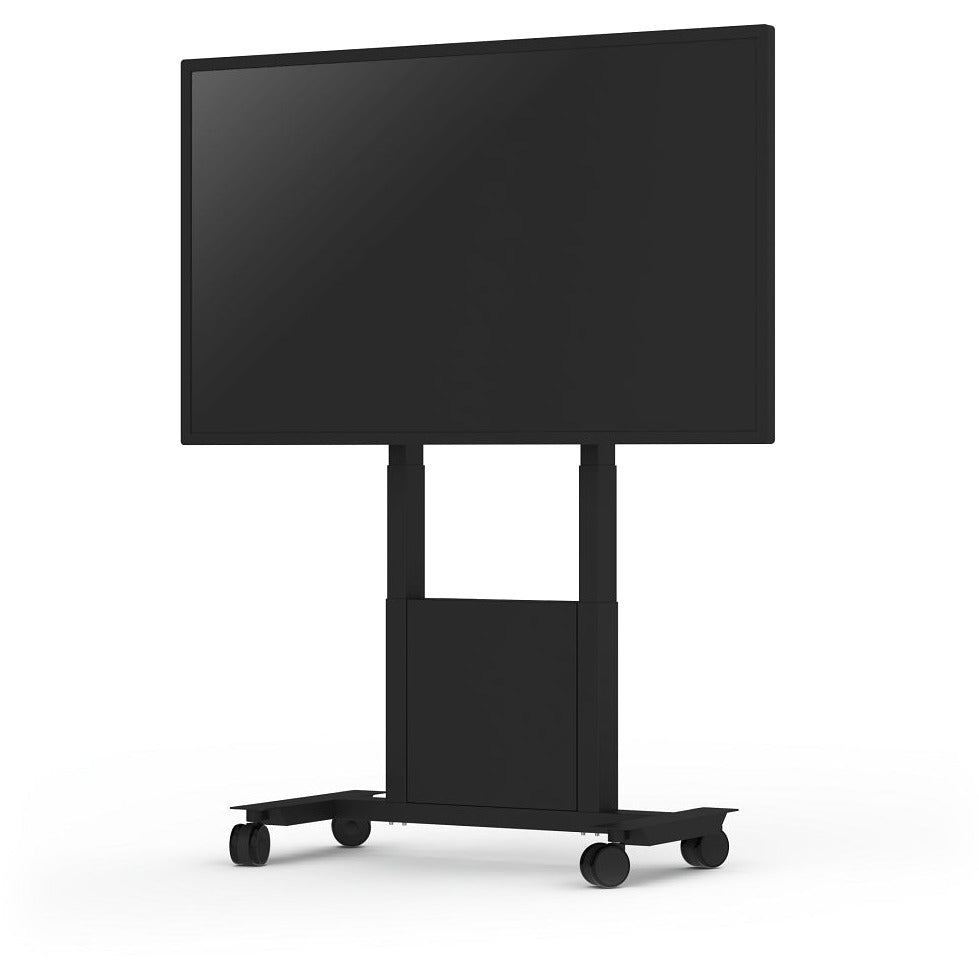

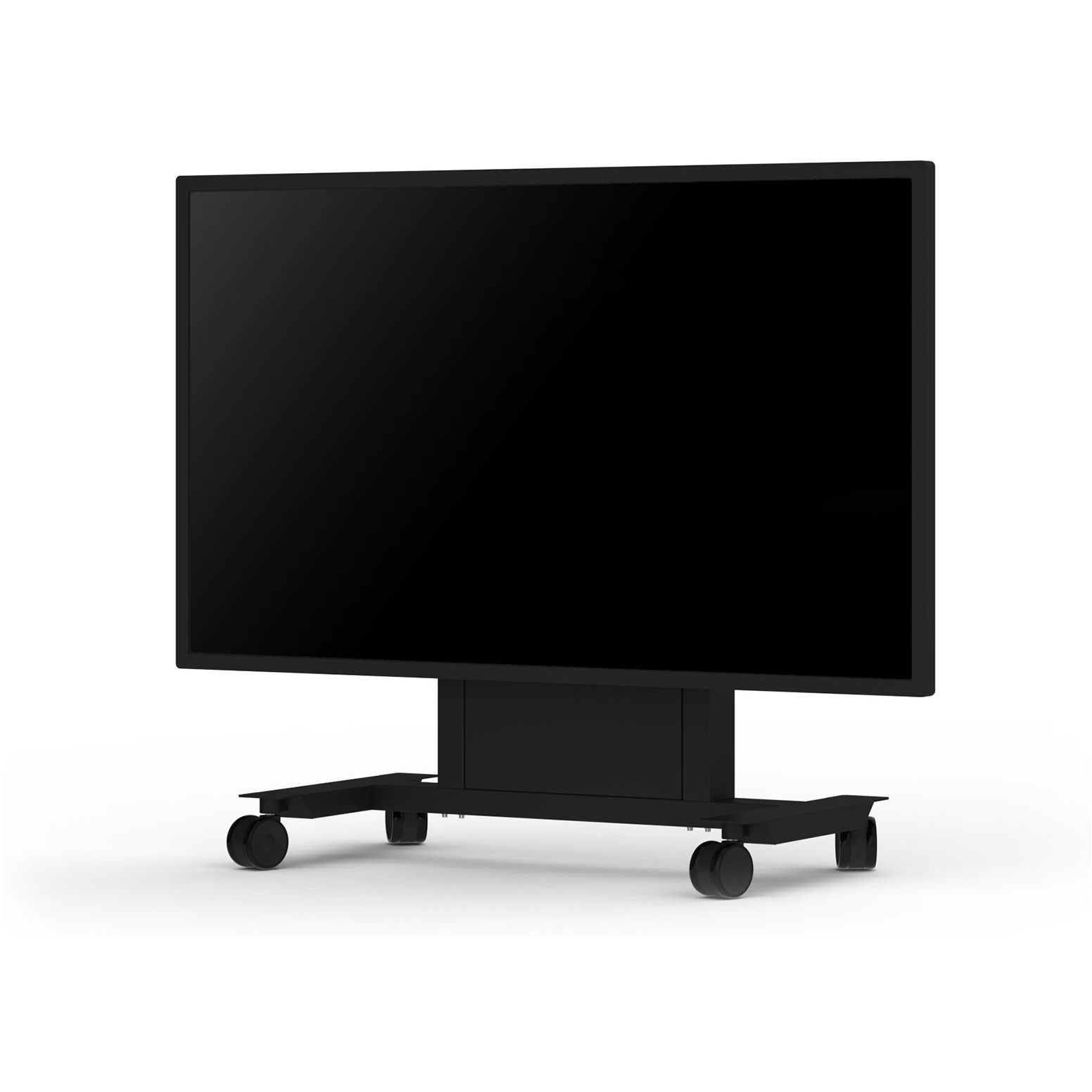

Sharp / NEC PD02MHA-CB86 Entry Level Automatic Height Adjustable Trolley for CB861Q Touch Display

The very stable design is perfect for large heavy displays and touch-sensitive displays. The motorised height-adjustment ensures the user to present or interact with the display in an ergonomic position, whether very tall, short, standing up or sitting down. Thanks to the wheels, it is easy to move the unit between different rooms. The design includes a storage box for e.g. mini PC, codec ot laptop, easily accessed from the front.

• Motorised height-adjustment
• Especially designed for usage with touch displays
• Professional cable management inside the main body
• Storage space for equipment
• Easy to move (large handles are standard)
• Lockable 100 mm casters enable safe and easy maneuverability over various flooring surfaces
• Highly preassembled to make installation quick and easy

MOUNT

Mount Type	Mobile Mount
Installation	Single
Orientation	Landscape
Max. Load Capacity [kg]	120
Recommended Display Size [inch]	46 to 98

MECHANICAL

Height Adjustment [mm]

500; motorised

WEIGHT AND DIMENSIONS

Weight [kg]	51
Shipping Weight [kg]	52
Shipping Dimensions (W x H x D) [mm]	1,120 x 790 x 205
Storage Box Dimensions (W x H x D) [mm]	496 x 472 x 96

VESA

VESA Pattern [mm]

200 x 200 to 800 x 400

ADDITIONAL FEATURES

Colour Versions	Black
Warranty	2 years
Shipping Content	100 mm Casters; Cart Legs; Handles; Remote Control with Cable; Trolley incl. Electric Motor; VESA Mounting Rails
