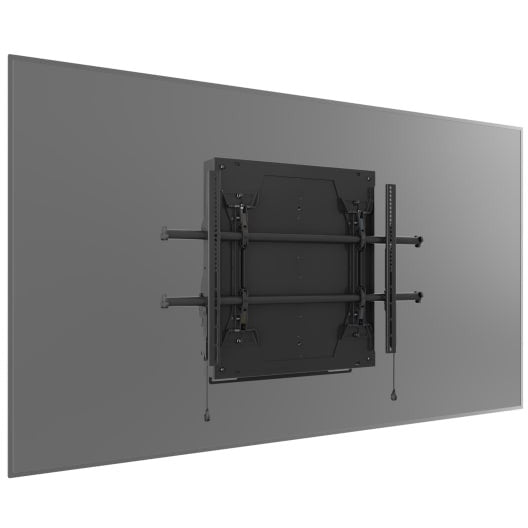

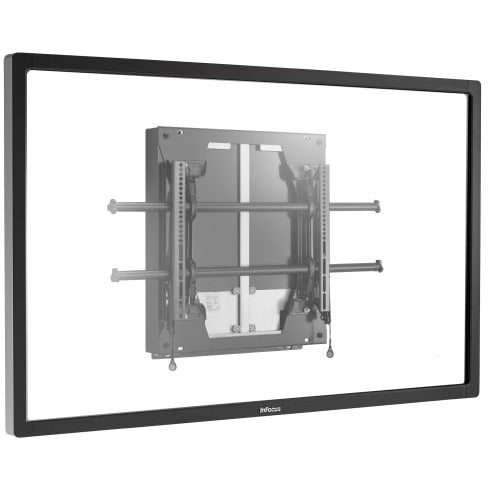

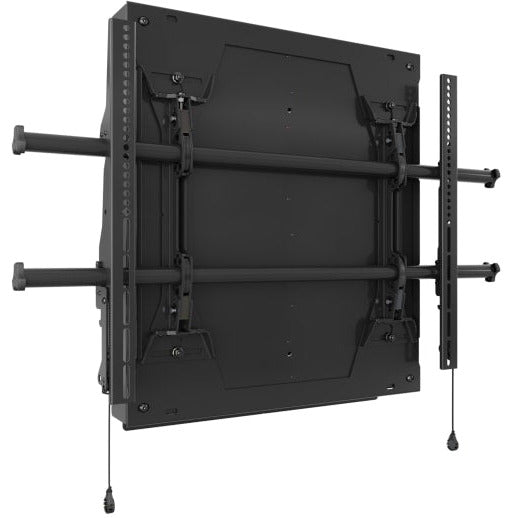

Chief FUSION DYNAMIC HEIGHT ADJUSTABLE WALL MOUNT - MEDIUM
Chief FUSION DYNAMIC HEIGHT ADJUSTABLE WALL MOUNT - MEDIUM
SKU:MSD1U
Low stock
Ideal for interactive applications, Fusion® mounts with dynamic height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable solution provides ultra-smooth and fast vertical travel with almost no effort. Ships fully assembled with the LSM1U mount to make this a complete aesthetic solution.
Easy to install. Easy to adjust.

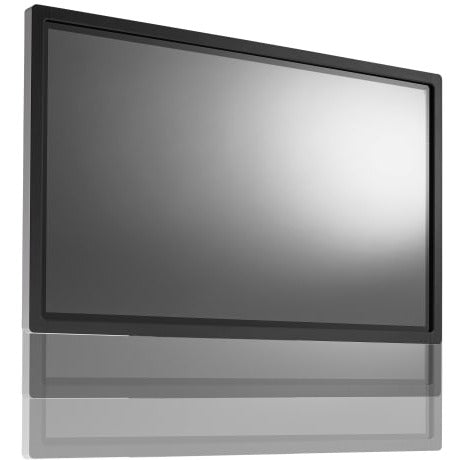

- Height adjustable box allows up to 15.75” (400 mm) of vertical adjustment instantly
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Built in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Spring system tested to 60,000 cycles and 10 years of use
- Integrated security flag
Dimensions & Measurements
Depth
13 cm (5.1 in)
Dynamic Height Adjustment
15.75” (400 mm)
Height
63.5 cm (25 in)
Lateral Shift
No
Overall Dimensions
25" x 34.8" x 5.1" (635 x 884 x 130 mm)
Weight Capacity
67 - 125 lbs (30.4 - 57 kg)
Width
88.4 cm (34.8 in)
Characteristics & Features
Adjustability
- Height Adjustable
- Micro-Adjustable
Application
Wall
Color
Black
Number of Displays
1
Orientation
Landscape
Solution Type
Universal
Special Features
Height Assist
TAA Compliant
No
VESA Mounting Pattern
100 x 100 - 800 x 500 mm
Certifications & Warranties
Certifications
UL Listed
