Legrand AV

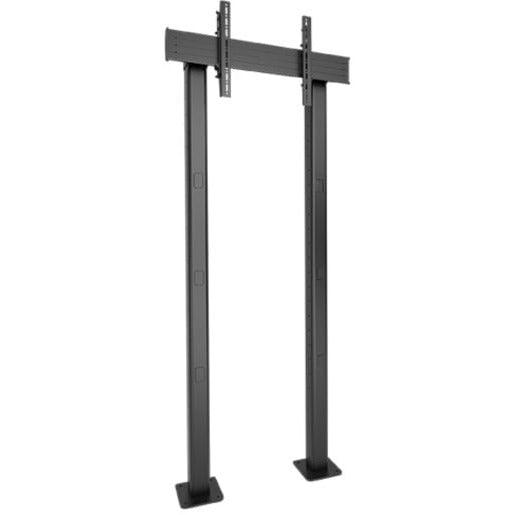

Chief FUSION XL SINGLE BOLT-DOWN VIDEO WALL
Chief FUSION XL SINGLE BOLT-DOWN VIDEO WALL
SKU:XBM1U
Out of stock
Couldn't load pickup availability
Chief's Fusion® Bolt-Down freestanding solution makes it possible to install extra large displays in prominent locations.
Screen array configuration: 1 screen.
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion® Universal Back Covers.
- Works with displays 42 - 80" and up to 250 lbs (113.4 kg)
- Bolt-down solution allows for a permanent install
- Easily align displays with independent height, plumb and lateral shift adjustment
- Integrated cable management for a clean installation
- TAA Compliant
Dimensions & Measurements
Center of Display To Floor Table Range
82.38" (2092 mm) (maximum top) - 16.38" (416 mm) (minimum bottom)
Depth
19.1 cm (7.5 in)
Height
214.3 cm (84.4 in)
Lateral Shift
Yes
Manual Height Adjustment
Micro-adjustment up to 0.75" (19 mm) per screen
Overall Dimensions
84.38" x 36" x 7.5" (2143 x 914 x 191 mm)
Plumb Adjustment
Micro-adjustment up to 0.75" (19 mm)
Shipping Weight
81.7 kg (180 lbs)
Typical Screen Size
55-100" (1397mm - 2540mm)
Weight Capacity
113.4 kg (250 lbs)
Width
91.4 cm (36 in)
Characteristics & Features
Adjustability
Micro-Adjustable
Application
Bolt-Down
Array Configuration
1
Color
Black
Number of Displays
1
Orientation
Landscape
Solution Type
Universal
Special Features
Multi-Display
TAA Compliant
Yes
VESA Mounting Pattern
100 mm x 100 mm – 900 mm x 400 mm
Certifications & Warranties
Certifications
- TAA
- UL Listed
