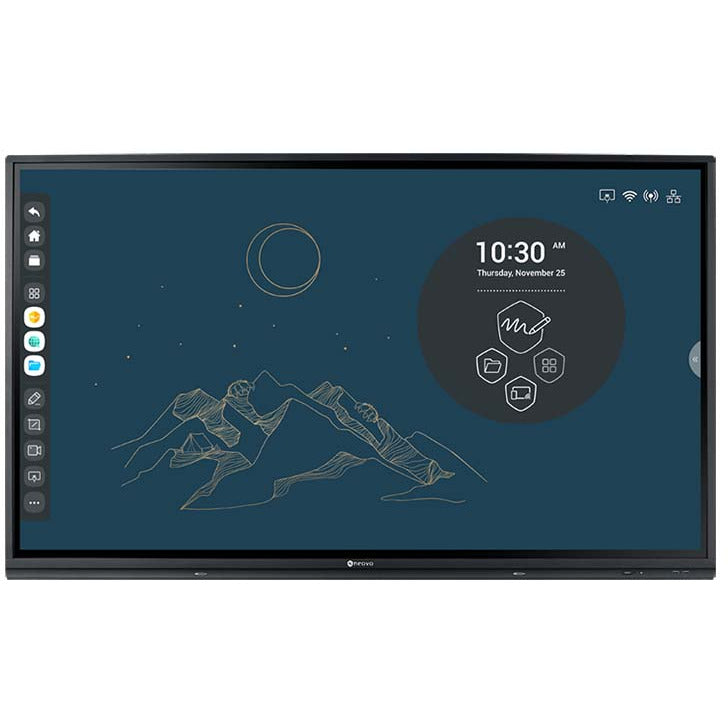

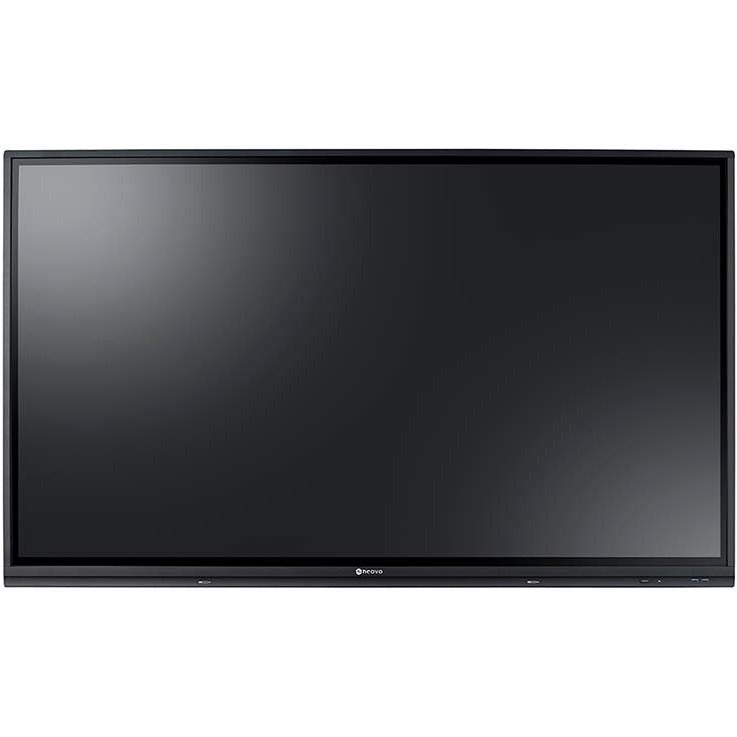

AG Neovo IFP-6503 65-Inch 4K Interactive Flat Panel Display With USB-C
AG Neovo IFP-6503 65-Inch 4K Interactive Flat Panel Display With USB-C
SKU:IFP-6503
Out of stock
Features:
- 4K UHD 3840 x 2160 resolution
- 20-point multi-touch capability & dual styluses
- Built-in Android OS 9.0 platform
- Multi-touch plug and play for Windows/Android/Linux/Chrome/macOS
- A USB-C port for digital signal, data and 65W power delivery
In a rapidly changing environment, Meetboard IFP-6503 interactive displays offer user-centric and hybrid-ready teaching and meeting technology. Meetboard 3 can improve classroom and meeting room participation with easy-to-use apps and tools, wireless screen sharing, and USB-C connectivity. Meetboard IFP-6503 successfully transforms a traditional classroom and meeting room into an immersive learning and sharing hub.
4K UHD RESOLUTION WITH ANTI-GLARE TREATMENT
Meetboard 3 interactive display delivers visual content with 4K UHD clarity and a special anti-glare coating for improved eye comfort. The embedded EcoSmart Sensor auto-adjusts the display’s backlight brightness to match indoor light conditions.
20-POINT MULTI-TOUCH & DUAL PENS
Using fingers or double-headed touch pens, multiple participants can simultaneously draw and annotate on the 20-point touch-enabled screen. This makes mind-mapping and brainstorming as intuitive as using a whiteboard.
INTUITIVE USER INTERFACE WITH EASY-TO-USE TOOLS
Meetboard’s fresh new interface and simplified icons are user-friendly and intuitive. Essential apps and helpful tools such as Browser, WPS Office, ScreenLock and Timer, are preloaded to aid productivity in meeting and classroom settings.
INTELLIGENT DIGITAL WHITEBOARD APP
Writing on Meetboard Whiteboard App is natural and user-friendly, with various brush colors or thicknesses. The Smart Detection tool can recommend a drawing, while tools like “Table” and “Sticky-Notes” keep discussions organized.
POWERFUL USB-C CONNECTIVITY
A USB-C cable connection facilitates teaching and team collaboration. Connect your PC or laptop to Meetboard 3 via a USB-C cable to quickly transfer data and video/audio signals, access touch functions and up to 65W power charging, using the peripherals on Meetboard 3.
*Disclaimer: When charging a connected device via a USB Type-C connector, check if the device is equipped with a USB Type-C Connector that supports the charging function via USB Power Delivery.
INTEGRATED FILE MANAGEMENT FOR SIMPLIFIED COLLABORATION
Meetboard Finder, a file management app, allows you to easily access, save, and share files via USB drive, Cloud storage, Samba service, and FTP portal shortcuts.
SPLIT SCREEN FOR ENHANCED MULTI-TASKING
Select multi-window mode to utilize different apps simultaneously. Dragging items from one window to another, Meetboard 3 allows you to multi-task efficiently, speeding up collaborations.
WIRELESS SCREEN MIRRORING AND CONTROL
Meetboard 3 supports AirPlay, Miracast, and Chromecast wireless mirroring technology and embeds a powerful screen-sharing app. Wirelessly present, share multi-media content, interact with and control Meetboard or multiple Meetboards from iOS or Android devices in real-time on-site or remotely.
VIDEO CONFERENCING READY
Meetboard 3 can easily be adapted for video conferencing by connecting an all-in-one webcam* via a USB cable. Compatible with mainstream video conferencing apps*, such as Zoom, Google Meet, Teams, Webex, and GoToMeeting, this facilitates remote or hybrid collaborations.
* Suggested Camera: Logitech StreamCam / Logitech Meetup / Logitech C930E / Logitech C525 / Logitech BCC950 / AVer 342 / 342+
*Disclaimer: AG Neovo cannot guarantee the functionality or compatibility of third-party applications. For installation issues, contact our sales team.
ADVANCED MOBILITY
AG Neovo’s FMC-06 floor mounting cart offers advanced mobility to fulfil the needs of on-site and virtual collaborations in a changing world. Installing Meetboard 3 on FMC-06 requires minimal effort and brings all your accessories together. Lockable casters keep the display secure and in place once in position.
Specifications:
Panel
- Panel Type
- IPS
- Panel Size
- 64.5"
- Max. Resolution
- UHD 3840 x 2160
- Pixel Pitch
- 0.373 mm
- Brightness
- 400 cd/m²
- Contrast Ratio
- 1200:1
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 1.07B
- Response Time
- 5 ms
- Surface Treatment
- Haze 25%
- 3H
- Anti-glare treatment
Frequency
- Frequency (H)
- 30 kHz-80 kHz
- Frequency (V)
- 50 Hz-76 Hz

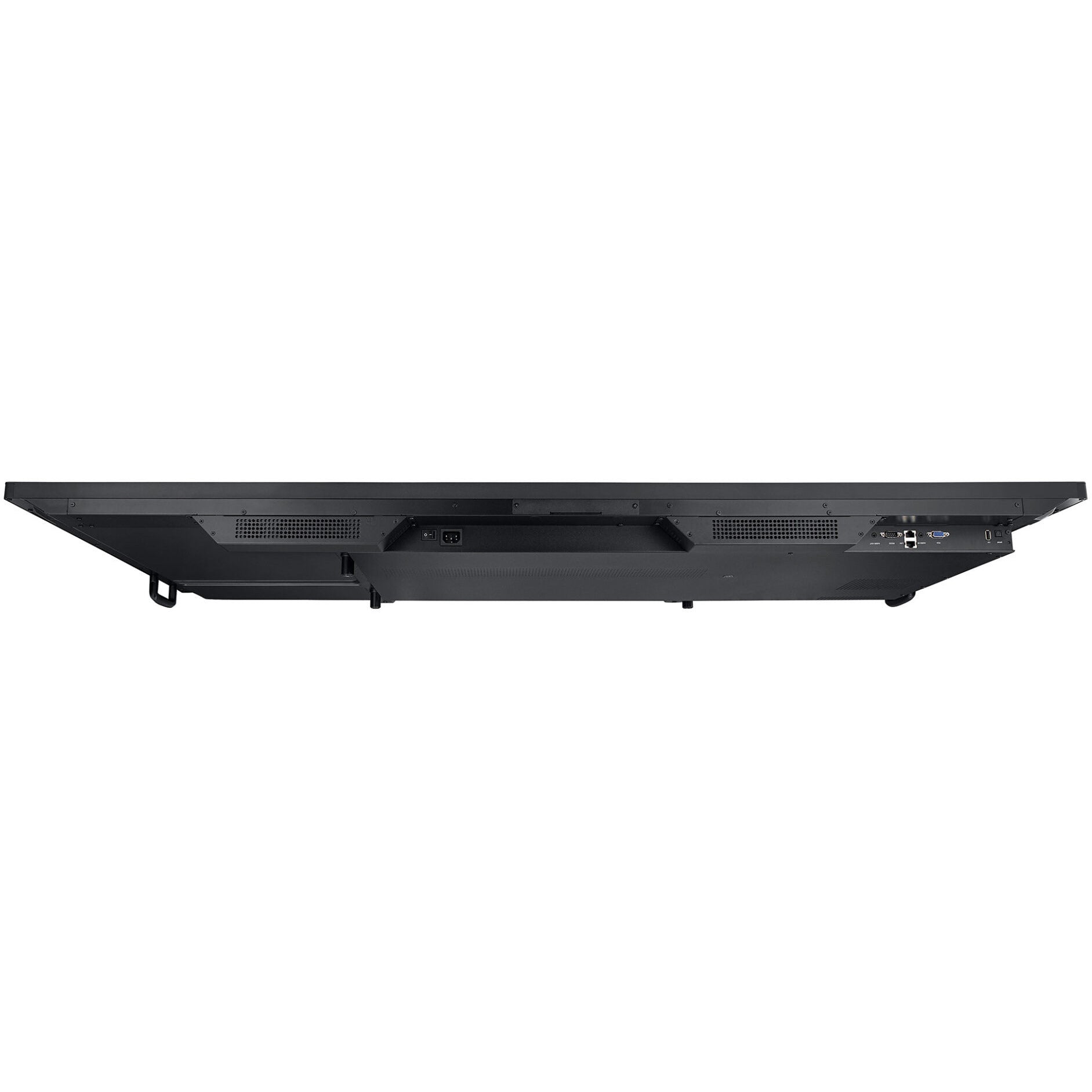

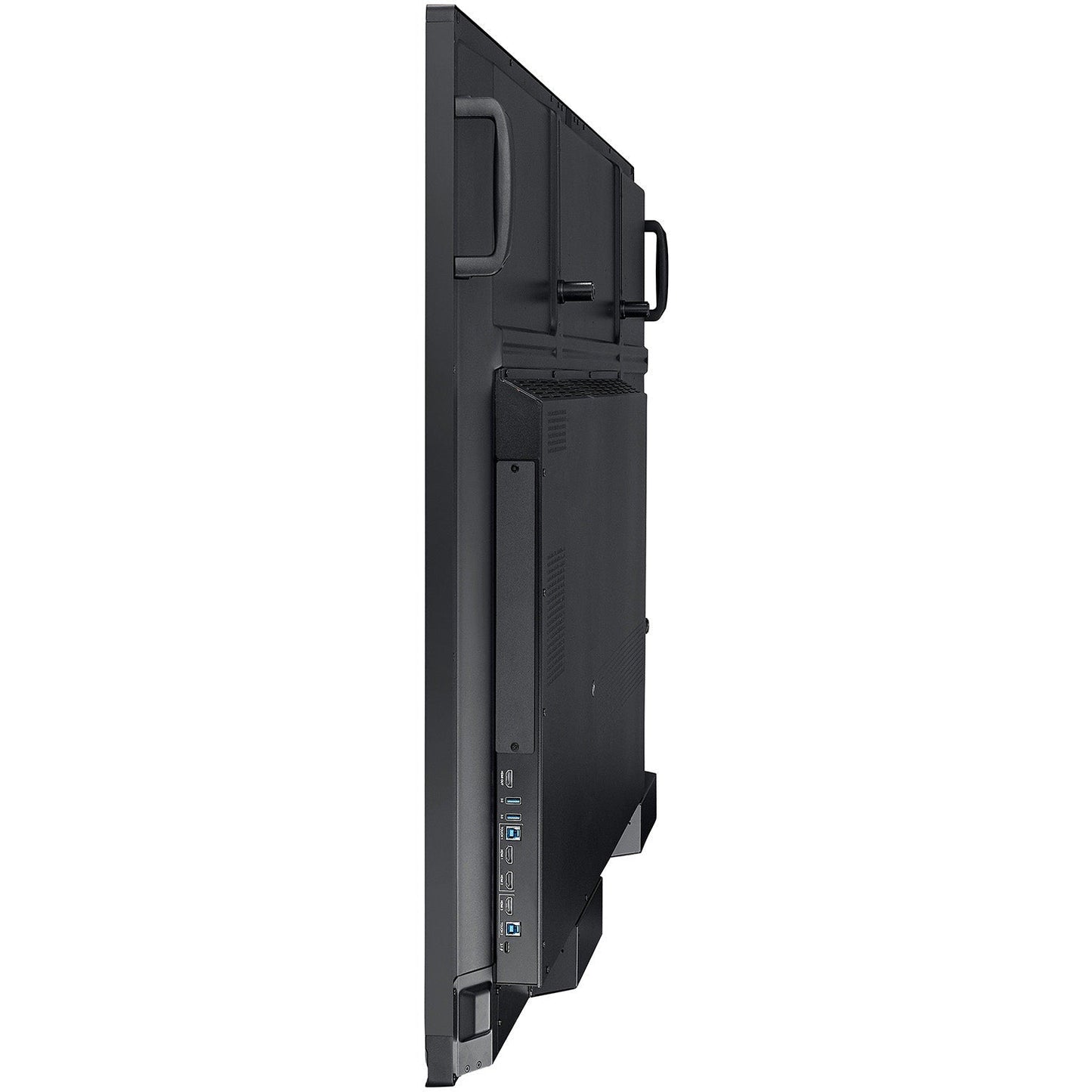

Signal Input
- HDMI
- 2.0 x 3
- VGA
- 15-Pin D-Sub x 1
Signal Output
- HDMI
- 2.0 x 1
External Control
- RS232 In
- 9-Pin D-Sub
- LAN
- RJ45 x 2
Embedded Player
- OS
- Android 9.0
- CPU
- Quad core A73
- Memory
- 4G
- Storage
- 32G

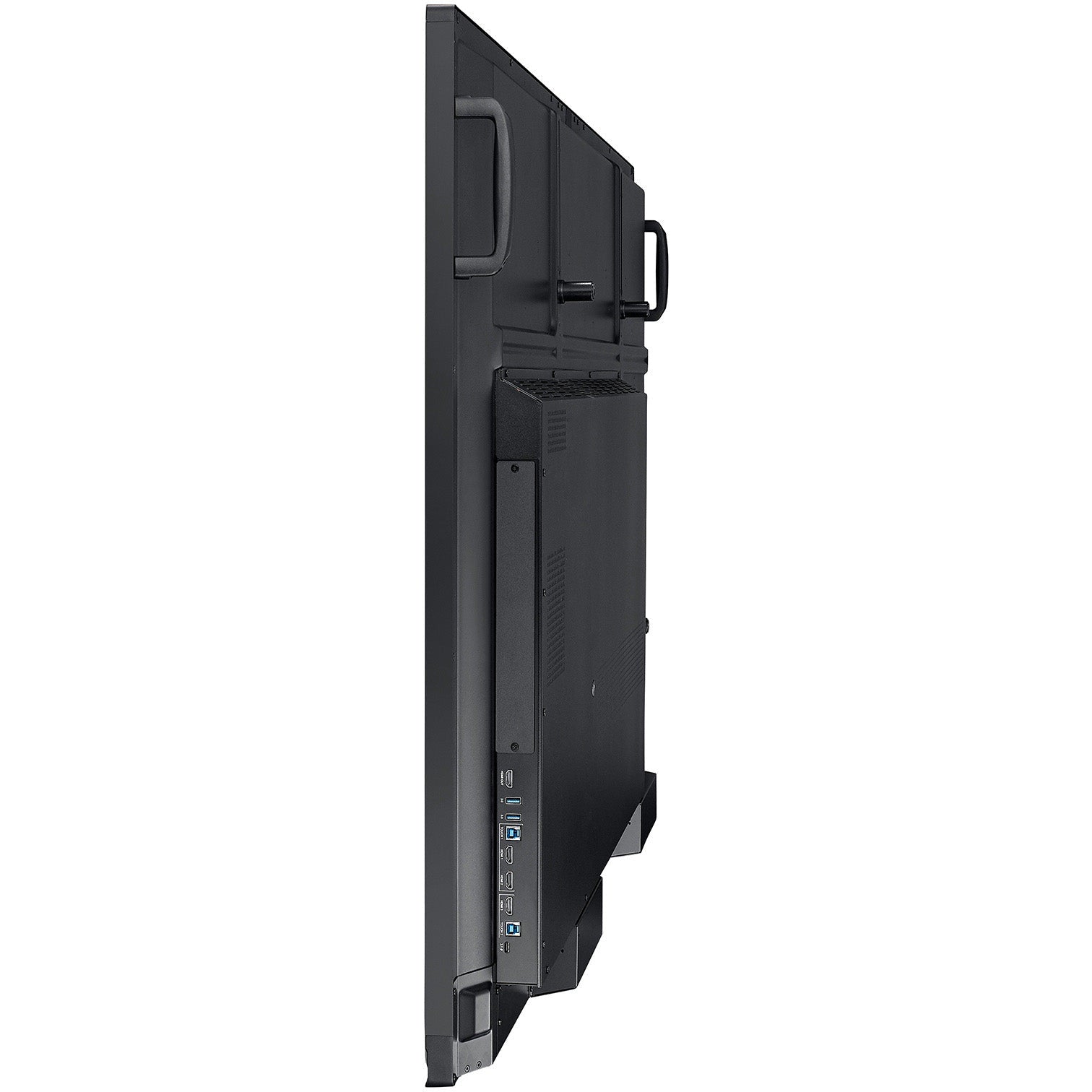

Other Connectivity
- USB
- 2.0 x 1 / 3.0 x 4 / Type-C (DP 1.4 / Data 3.0 / PD:65W)
- OPS Slot
- Yes
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Audio Out
- S/PDIF
- Stereo Audio Jack (3.5 mm)
- Internal Speakers
- 16W x 2
Touch Screen
- Technology
- Infrared Touch Frame
- Positional Accuracy
- ±1.0 mm
- Panel Interface
- USB 2.0 x 2 (Type-B)
- Single Touch Plug & Play
- Windows 2000/XP/Vista/CE 6.0 macOS
- Multi-touch Plug & Play
- Windows 7/8/10/11 Android/Linux (kernel version 3.5+) Chrome OS (39 or above)
- Multi-touch Support by Driver
- macOS (supported by UPDD driver)
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 175W
- Standby Mode
- < 0.5W
- Off Mode
- 0W
Glass
- Thickness
- 3.2 mm (0.13")
- Transmission Rate
- ≥ 88%
- Hardness
- ≥ 8H
- Gloss
- 75±5 GU
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 10%-90% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 10%-90% (non-condensing)

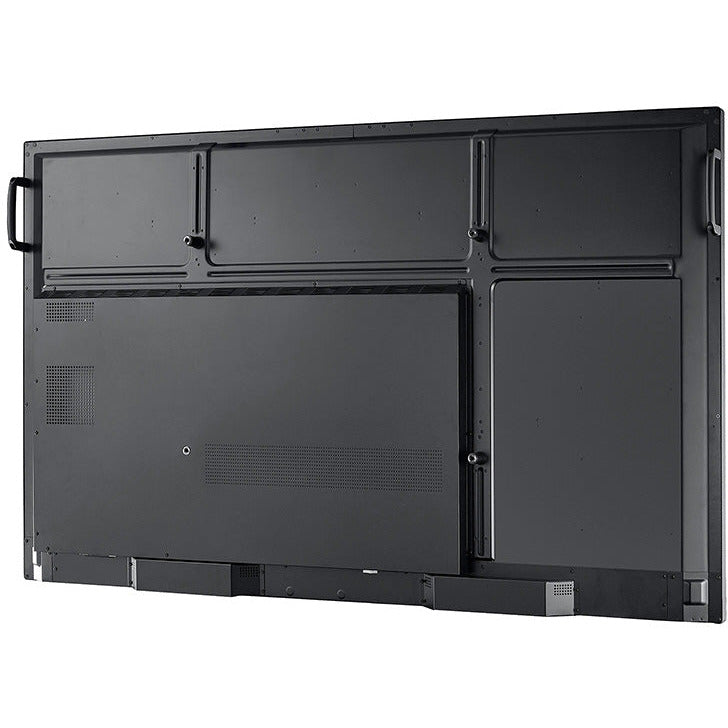

Mounting
- VESA FPMPMI
- Yes (600 x 400 mm)
Dimensions
- Product with Base (W x H x D)
- 1488.4 x 896.6 x 108.4 mm (58.6" x 35.3" x 4.3")
- Product w/o Base (W x H x D)
- 1488.4 x 896.6 x 85.5 mm (58.6" x 35.3" x 3.4")
- Packaging (W x H x D)
- 1628.0 x 1050.0 x 208.0 mm (64.1" x 41.3" x 8.2")
Weight
- Product with Base
- 37.5Kg (82.7 lb)
- Product w/o Base
- 36.0 kg (79.4 lb)
- Packaging
- 49.5Kg (109.1 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- WEEE
- RoHS
- REACH
- EAC
- FCC
- ICES-003 (Issue 7)
- BSMI
Accessories
- Supplied
- Batteries
- HDMI Cable
- Power Cord
- Quick Start Guide
- Remote Control
- Touch Pen
- USB Cable

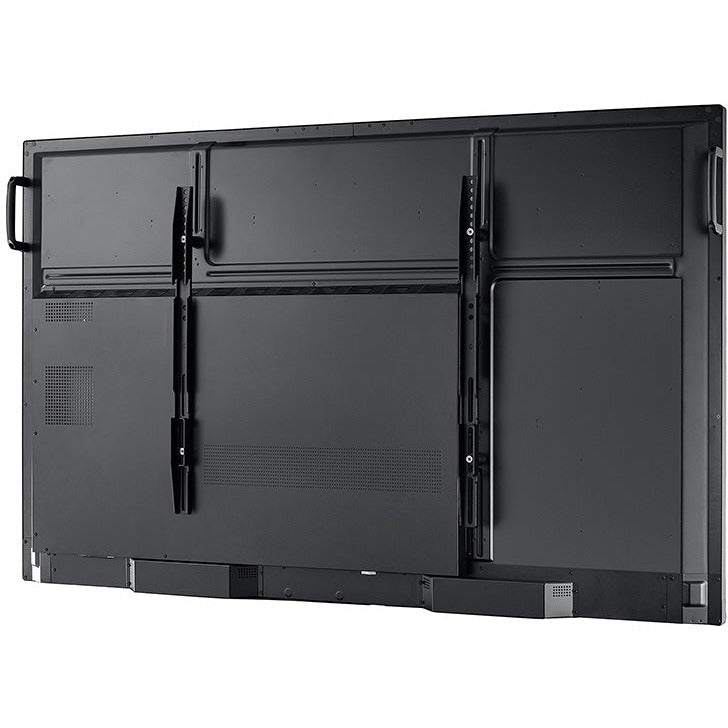

- Wall Mount

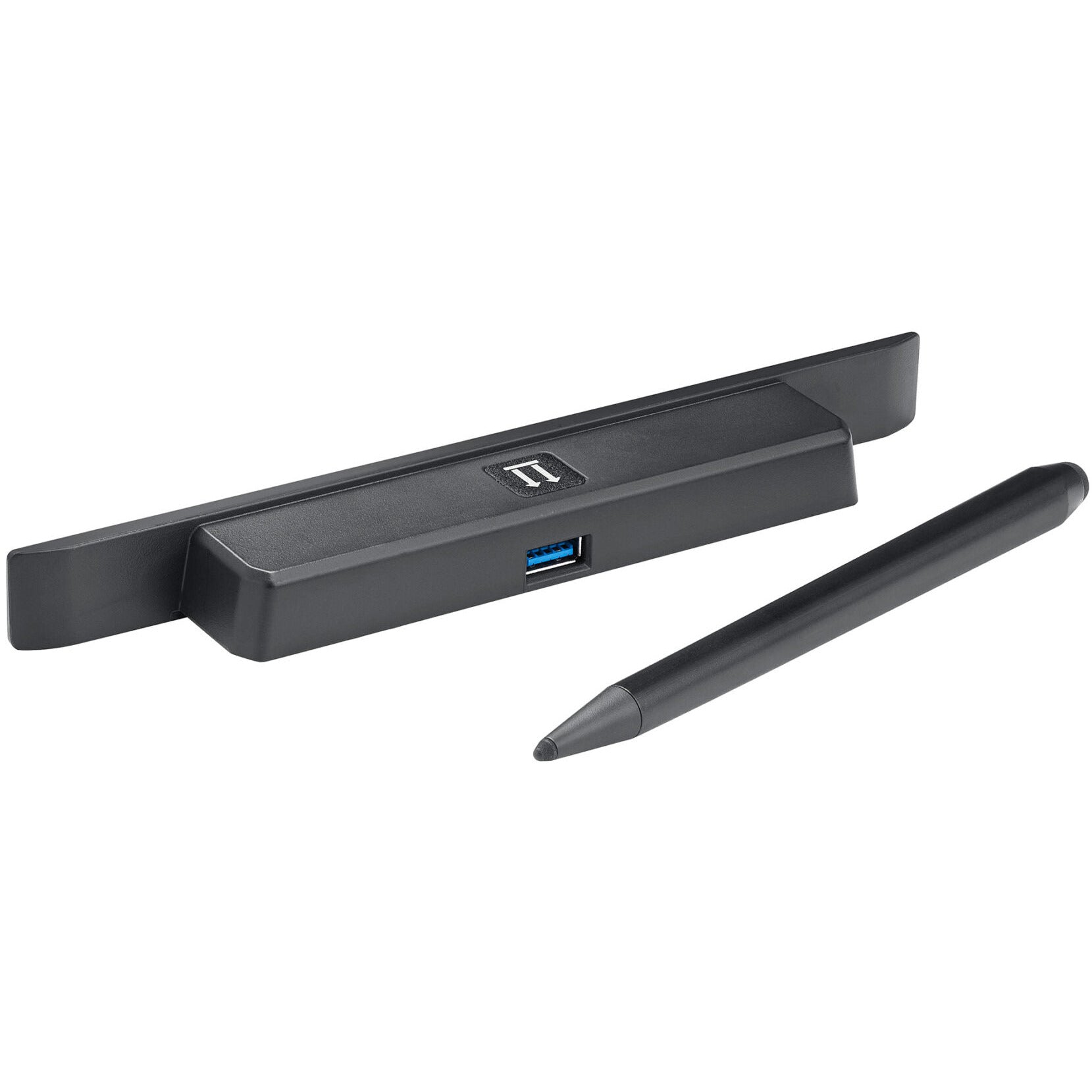

- Wi-Fi / Bluetooth Module
Optional Accessories
- Ceiling Mount (Landscape only)
- CMP-01 + LMK-01
- Wall Mount (Landscape only)
- LMK-01
- LMK-03
- Floor Mount (Landscape only)
- FMC-03 + LMK-04
- FMC-04 + LMK-04
- FMC-06
