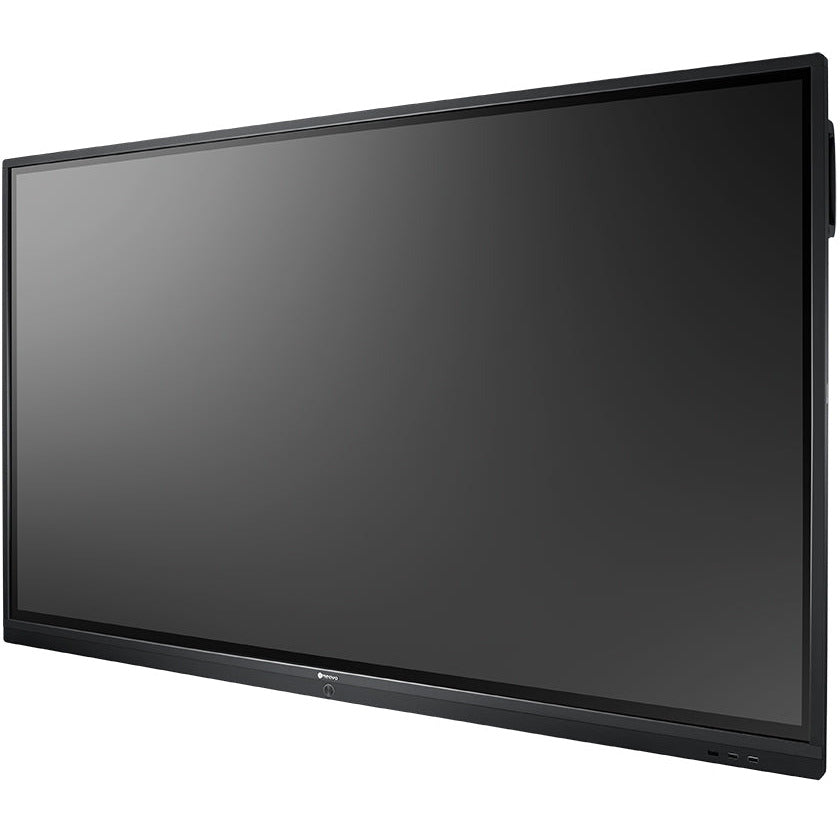

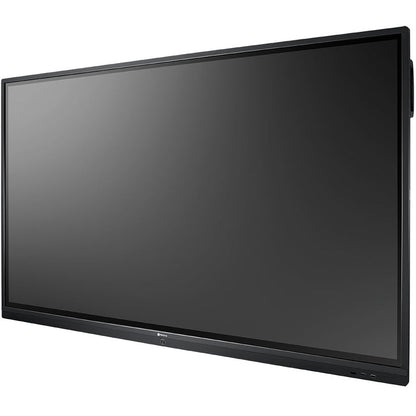

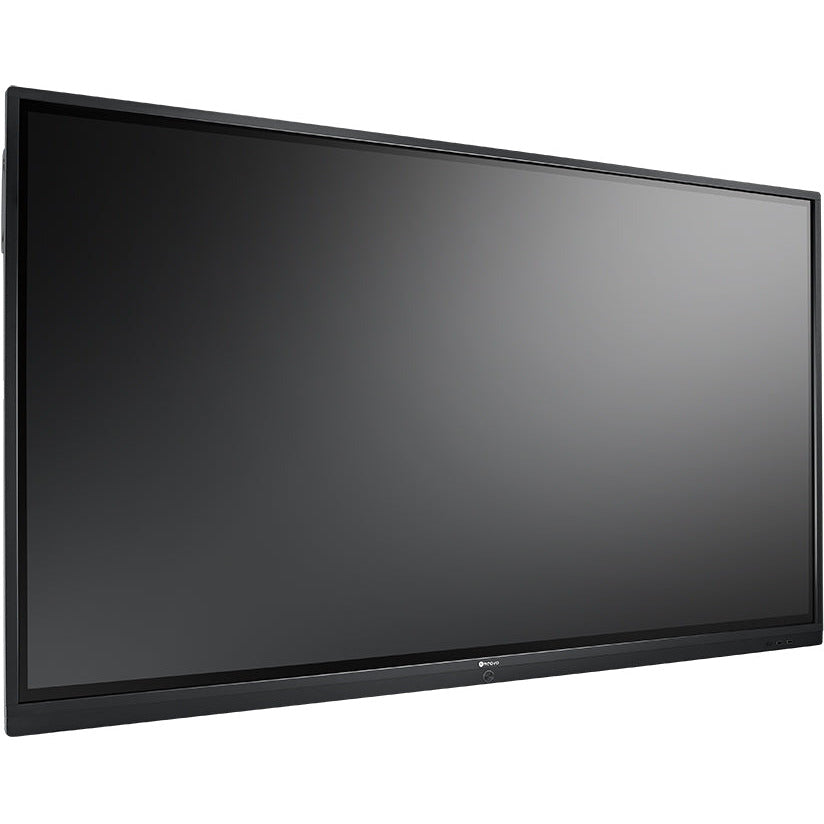

AG Neovo IFP-8602 86-Inch 4K Interactive Flat Panel Display
AG Neovo IFP-8602 86-Inch 4K Interactive Flat Panel Display
SKU:IFP-8602
Out of stock
Couldn't load pickup availability
Features:
- 4K UHD 3840 x 2160 resolution
- 20-point multi-touch capability & dual styluses
- Built-in Android OS 8.0 platform
- Multi-touch plug and play for Windows/Android/Linux/Chrome/macOS
- User-friendly whiteboard app for collaborative meetings
Built on the Android OS, AG Neovo Meetboard™ IFP-8602 86-inch 4K interactive flat panel display is designed to get meetings going right away, without the need for projectors, whiteboards, or additional software. It integrates a digital whiteboard application to present, annotate and share your files via email or save them to cloud drives. It also supports wireless presentation to mirror photos, video, files directly from mobile devices or notebooks. With IFP-8602 interactive display, you can enjoy a clean and organised meeting room without cable clutters.
4K RESOLUTION WITH IPS TECHNOLOGY
Meetboard IFP-8602 interactive flat panel display delivers visual content to be compelling and sharp on the 4K UHD resolution with IPS panel technology and ensures that colour is consistent and accurate from 178-degree wide viewing angles.
20-POINT MULTI-TOUCH & DUAL PENS
Multiple participants, using fingers or included styluses, can simultaneously draw and annotate on the 20-point touch-enabled screen, making mind-mapping and brainstorming as intuitive as using a whiteboard.
ANDROID OS PLATFORM
Android OS, the most widely-used OS around the globe, provides a steady and intelligent open-source platform that gives you a robust user experience and flexible third-party installation options.
INTUITIVE USER INTERFACE & USEFUL APPS

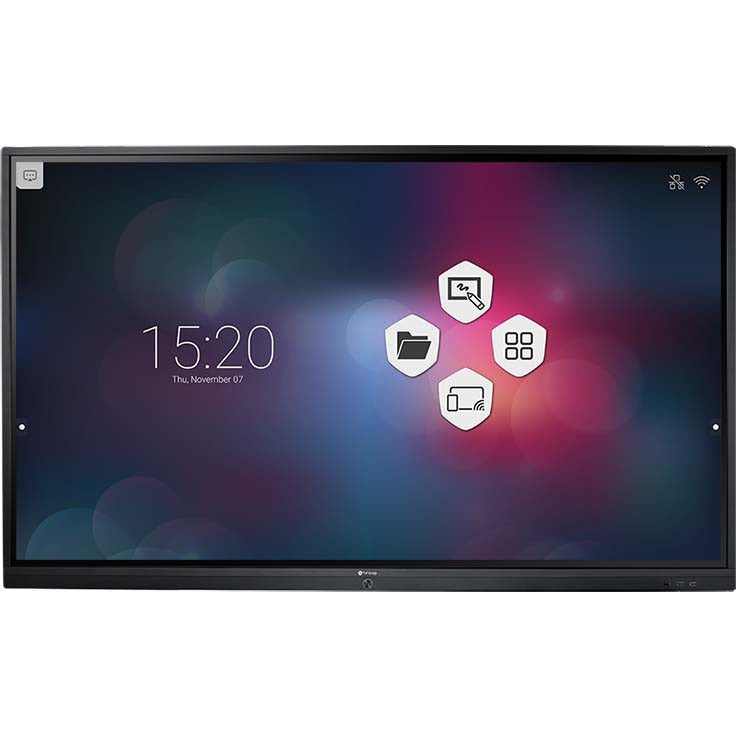

Simplified and aesthetic Android UI design makes Meetboard more user-friendly and intuitive. Meetboard offers useful applications you needed most for productive meetings, such as browser, file manager app, WPS office, Meetboard whiteboard app, etc.
CLOUD STORAGE ACCESSIBILITY
You can easily access, upload, and download folders and files with a finger of touch on Meetboard cloud storage via Google Drive and Microsoft OneDrive configuration.
SCREEN MIRRORING VIA AIRPLAY, MIRACAST, CHROMECAST AND MORE
Meetboard IFP-8602 supports AirPlay, Miracast, Chromecast and also embeds ScreenShare Pro screen mirroring app. You can wireless present, share and control multi-media content from either iOS or Android devices on the screen.
AN ALL-IN-ONE VIDEO CONFERENCING SOLUTION
Meetboard IFP-8602 can be easily connected to an all-in-one webcam* via a USB cable and is also compatible with preferable mainstream video conferencing apps*, like Zoom, Google Meet, Teams, Webex, GoToMeeting, etc.
* Suggested Camera: Logitech StreamCam / Logitech Meetup / Logitech C930E / Logitech C525 / Logitech BCC950 / AVer 342 / 342+
* Disclaimer: AG Neovo cannot guarantee the functionality or compatibility of third-party applications.
VERSATILE CONNECTIVITY
This 86-inch interactive flat panel display supports 802.11ac Wi-Fi, Bluetooth, HDMI, USB, VGA and RS232 for fast and seamless connections among the keyboards, webcams, and all the devices your team needs to get their ideas across.
Specifications:
Panel
- Panel Type
- IPS
- Panel Size
- 85.6"
- Max. Resolution
- UHD 3840 x 2160
- Pixel Pitch
- 0.494 mm
- Brightness
- 350 cd/m²
- Contrast Ratio
- 1200:1
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 1.07B
- Colour Gamut
- NTSC 72%
- Response Time
- 5 ms
- Surface Treatment
- Anti-Glare Treatment (Haze 28%)
- 2H Hard Coating
Frequency
- Frequency (H)
- 30 kHz-80 kHz
- Frequency (V)
- 50 Hz-76 Hz
Signal Input
- HDMI
- 2.0 x 3
- VGA
- 15-Pin D-Sub x 1
Signal Output
- HDMI
- 2.0 x 1
External Control
- RS232 In
- 9-Pin D-Sub
- LAN
- RJ45 x 1
Embedded Player
- OS
- Android 8.0
- CPU
- Dual core A73+Dual core A53
- Memory
- 3 GB
- Storage
- 16 GB
Other Connectivity
- USB
- 2.0 x 3 / 3.0 x 3
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Audio Out
- S/PDIF
- Stereo Audio Jack (3.5 mm)
- Internal Speakers
- 16W x 2
Touch Screen
- Technology
- Infrared Touch Frame
- Positional Accuracy
- ±1.5 mm
- Panel Interface
- USB 2.0 x 2 (Type-B)
- Multi-touch Support by Driver
- macOS (supported by UPDD driver)
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 294W
- Standby Mode
- < 0.5W
- Off Mode
- < 0.3W
Glass
- Thickness
- 4.0 mm (0.16")
- Reflection Rate
- < 10%
- Transmission Rate
- ≥ 88%
- Hardness
- ≥ 8H
- Gloss
- 75±5 GU
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 10%-90% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 10%-90%(non-condensing)
Mounting
- VESA FPMPMI
- Yes (800 x 600 mm)
Dimensions
- Product w/o Base (W x H x D)
- 1957.2 x 1160.0 x 86.0 mm (77.1" x 45.6" x 3.4")
- Packaging (W x H x D)
- 2211.0 x 1370.0 x 280.0 mm (87.1" x 53.9" x 11.0")
Weight
- Product w/o Base
- 66.0kg (145.5 lb)
- Packaging
- 98.8kg (217.8 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- FCC
- WEEE
- REACH
- RoHS
Accessories
- Supplied
- Batteries
- HDMI Cable
- Power Cord
- Quick Start Guide
- Remote Control
- Touch Pen
- USB Cable
- Wall Mount
- Wi-Fi / Bluetooth Module
Optional Accessories
- Floor Mount (Landscape only)
- FMC-03 + LMK-04
- FMC-04 + LMK-04
- FMC-06
