Chief LARGE DUAL ARM W/ UNIVERSAL
Chief LARGE DUAL ARM W/ UNIVERSAL
SKU:PDRUB
Low stock

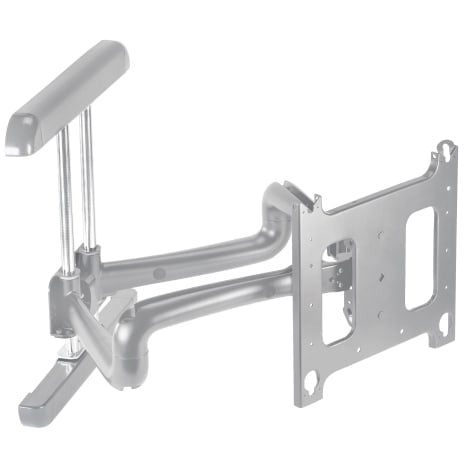

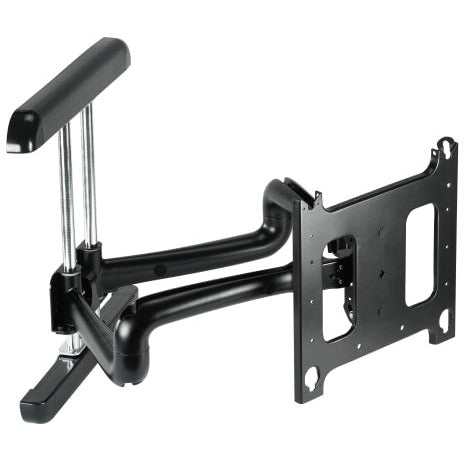

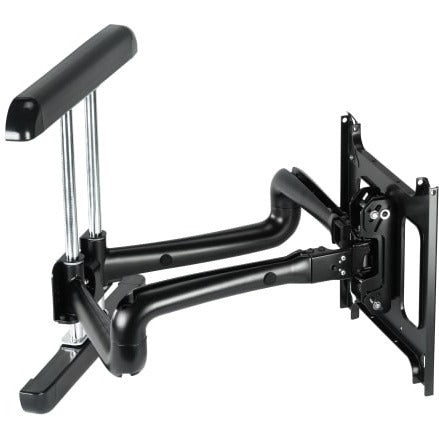

This swing arm mount allows for perfect flat panel display placement and ensures ideal viewing from any angle.
All PDR2XXX custom versions discontinued June 1, 2014.
PDRUB, PDRUS, PDR2000B and PDR2000S (PDR2000 mounts require PSB custom or universal interfaces purchased separately) still available.
- Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
- Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Extends 37" (93.98 cm) for viewing from any angle, and remains low-profile in home position
- CableTrac System provides built-in cable management channels inside the arms for a clean installation
- Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Dimensions & Measurements
Depth
8.6 cm (3.4 in)
Height
55.9 cm (22 in)
Overall Dimensions
22.0" x 39.5" x 3.4" (560 x 1003 x 86mm)
Shipping Weight
36.2 kg (79.7 lbs)
Tilt
+ 5° / - 16°
Typical Screen Size
42"- 86" (1067mm - 2184mm)
Wall Stud Compatibility In
16" (406mm)
Weight Capacity
90.7 kg (200 lbs)
Width
100.3 cm (39.5 in)
Characteristics & Features
Adjustability
- Extension
- Height Adjustable
- Lateral Shift
- Micro-Adjustable
- Swivel
- Tilt
Application
Wall
Color
Black
Notes
Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
Orientation
- Landscape
- Portrait
Post-Installation Leveling Roll
Yes
Solution Type
Universal
TAA Compliant
No
VESA Mounting Pattern
200 x 200mm - 862 x 517mm
Certifications & Warranties
Certifications
UL Listed
