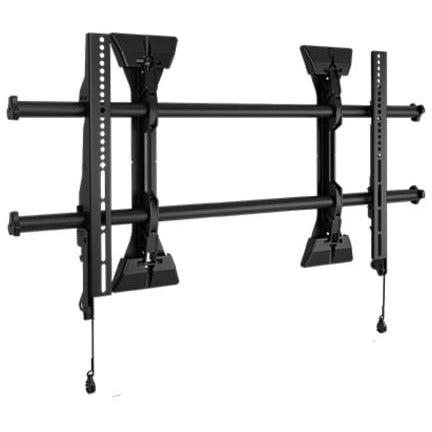

Chief Large Fusion Micro-Adjustable Fixed Wall Display Mount
Chief Large Fusion Micro-Adjustable Fixed Wall Display Mount
SKU:LSM1U
In stock
Chief's upgraded fixed wall mounts are based on installer feedback and direct observations of installers in the field. Many new features join Fusion® favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.
New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Installer-inspired, Fusion® fixed mounts solve top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- Centerless Shift provides post-installation lateral shift for limitless centering
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
Dimensions & Measurements
Depth
5.1 cm (2 in)
Height
46.4 cm (18.3 in)
Shipping Weight
8.8 kg (19.4 lbs)
Typical Screen Size
42"- 86" (1067mm - 2184mm)
Weight Capacity
90.7 kg (200 lbs)
Width
65.4 cm (25.8 in)
Characteristics & Features
Adjustability
Fixed, Micro-Adjustable, Height Adjustable, Lateral Shift
Application
Wall
Color
Black
Orientation
Landscape
Solution Type
Universal
TAA Compliant
No
VESA Mounting Pattern
100 x 100 - 800 x 500 mm
Certifications & Warranties
Certifications
- OSHPD
- TUV
- UL Listed
