AG Neovo

AG Neovo MD-2702 27-Inch 2MP Clinical Review Monitor

AG Neovo MD-2702 27-Inch 2MP Clinical Review Monitor

SKU:MD-2702

Out of stock

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out

Features

  • Full HD 1920 x 1080 resolution
  • Compatible with DICOM Part 14
  • Medical adapter certified to the IEC/EN 60601-1 medical standard
  • Tilt, Pivot, Swivel, and Height adjustment ergonomic stand design
  • VESA mounting for flexible installation in healthcare settings

MD-2702 is a 27-inch 2MP clinical review monitor designed to fit a wide range of clinical applications. In addition to 3-sided bezel-less design for multiple screens set up, the monitor supports DICOM Part 14 Calibration, ensuring correct and consistent brightness and grayscale levels of medical images in detail. Thus, it brings clinical professionals confidence in viewing with optimized medical images, documents, and image-enabled electronic medical records (EMRs) as a solid basis.

3-SIDED BEZEL LESS DESIGN WITH WIDE VIEWING ANGLE

Featuring 3-sided bezel-less design, the MD-2702 27-inch 2MP clinical review monitor delivers an immersive viewing experience at 178/178 degrees wide viewing angle, making it easy to build seamless multi-monitor workstation. All these contribute to the benefit that doctors and patients can share information, conduct clinical consultation, and patient education while viewing a display together.

2MP RESOLUTION

The MD-2702 clinical review monitor features Full HD 1080p resolution, delivering remarkably crisp images of precise colours and consistent brightness for different clinical images viewing regardless of any angles.

DICOM PART 14 COMPATIBLE

Support with DICOM Part 14 Calibration, the MD-2702 ensures correct and consistent brightness and grayscale levels of medical images in detail. It helps clinical professionals to make correct treatment decisions.

ENHANCED SAFETY WITH MEDICAL-GRADE POWER SUPPLY

Compliance with the IEC / EN 60601-1 standard power supply ensures the safety of your staff and patients in the clinical settings, preventing an electric shock, energy-related hazards, fire, and heat-related hazards.

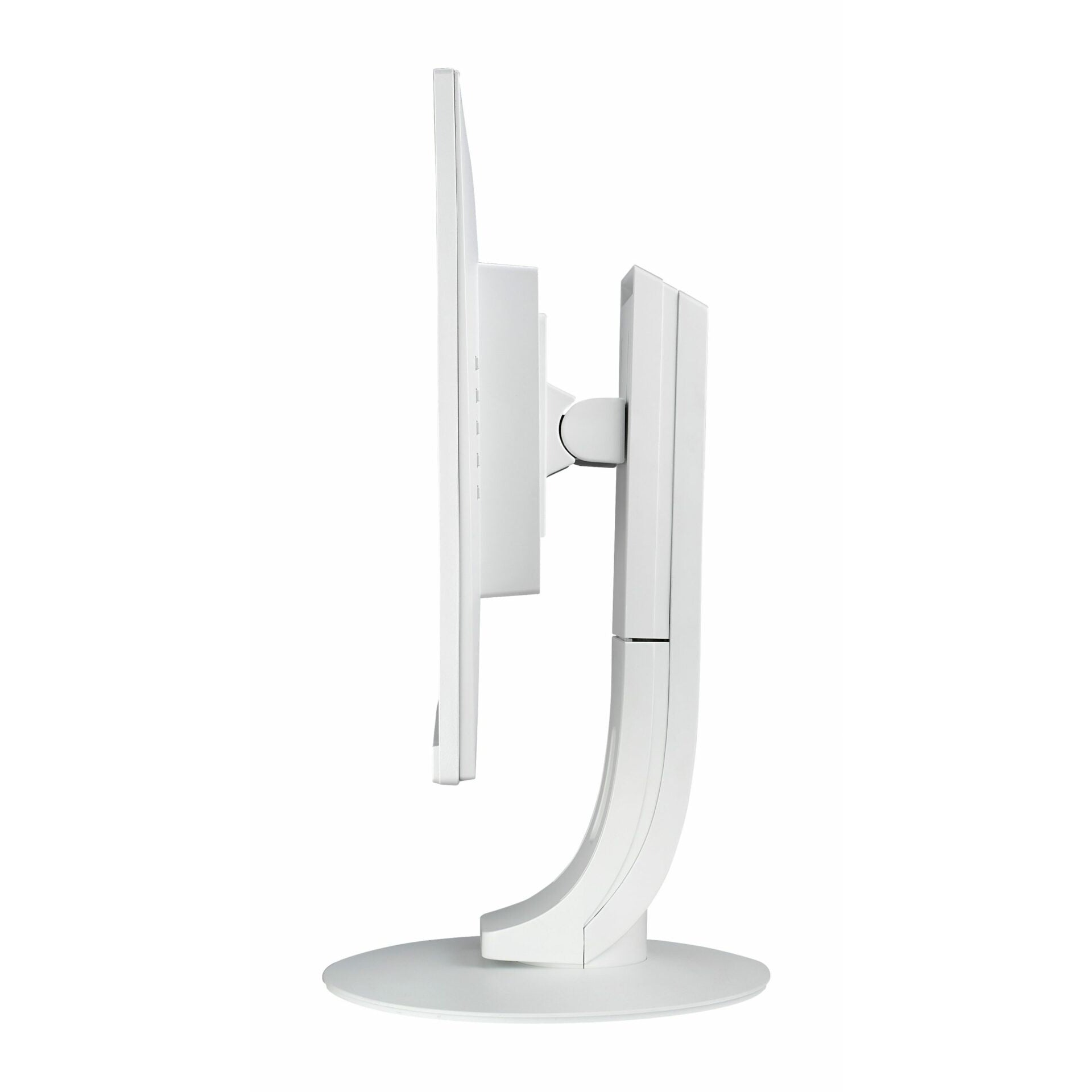

IMPROVE WORK EFFICIENCY WITH ERGONOMIC STAND

The height-adjustable stand allows effortless adjustment in any direction and easy to tilt, pivot, swivel, adjust the height, or switch to either portrait or landscape mode. This 27-inch 2MP clinical review monitor can enhance medical professionals’ work efficiency.

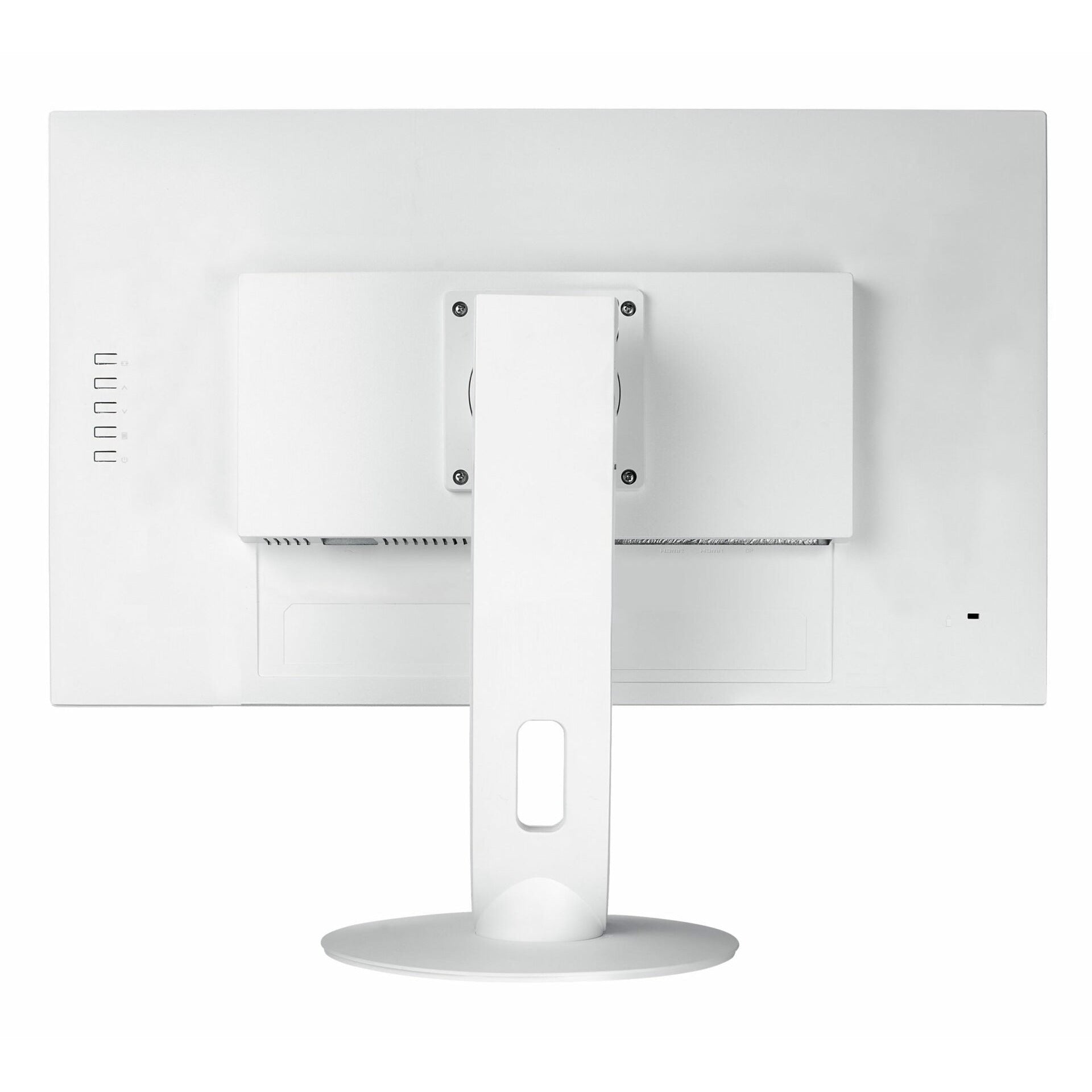

VESA-COMPATIBLE MOUNTS FOR FLEXIBLE WORKSTATION

VESA compliant monitor bracket can fit flexible installation and medical computer cart mobility. The MD-2702 clinical review monitors with a VESA-compatible solution can make it easy to set up a mobile workstation. It allows doctors, nurses, and other staff members can quickly access a patient’s medical history and enter a patient’s treatment plan, making it possible to deliver the most accurate care.

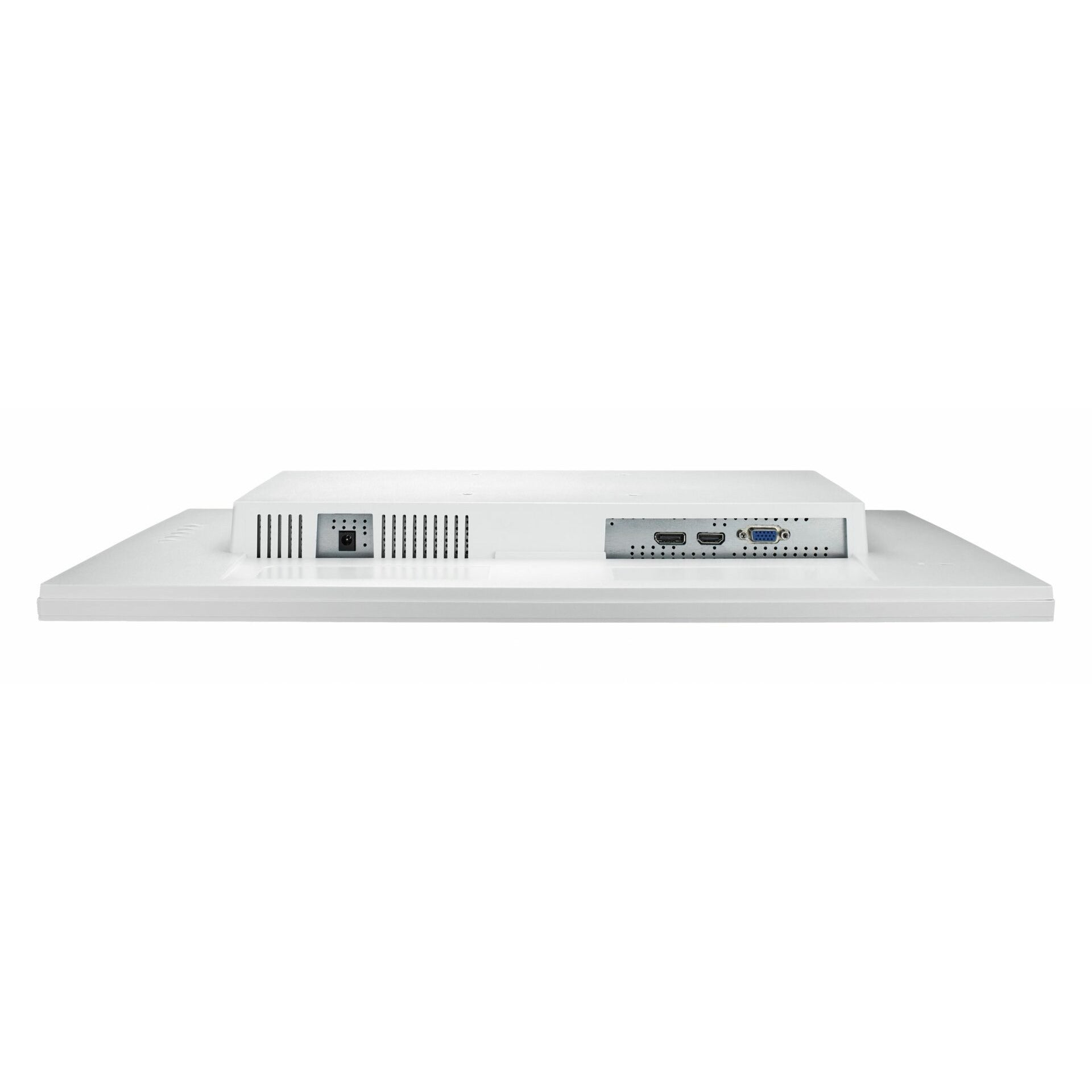

VERSATILE CONNECTIVITY

Besides multiple mounting options, the MD-2702 integrates HDMI, DisplayPort, and VGA video inputs to fit different work environments and shared workspaces.

Specification

Panel
  • Panel Type
  • VA
  • Panel Size
  • 27.0"
  • Max. Resolution
  • FHD 1920 x 1080
  • Pixel Pitch
  • 0.311 mm
  • Brightness
  • 300 cd/m²
  • Contrast Ratio
  • 20,000,000:1 (DCR)
  • Viewing Angle (H/V)
  • 178°/178°
  • Display Colour
  • 16.7M
  • Response Time
  • 5 ms
  • Surface Treatment
  • Anti-Glare Treatment (Haze25%),3H Hard Coating
Frequency
  • Frequency (H)
  • 30 kHz-83 kHz
  • Frequency (V)
  • 50 Hz-76 Hz
Signal Input
  • DisplayPort
  • x 1
  • HDMI
  • 1.4 x 1
  • VGA
  • 15-Pin D-Sub x 1
Power
  • Power Supply
  • External
  • Power Requirements
  • DC 12V
  • 2.5A
  • On Mode
  • 16W (On)
  • Standby Mode
  • < 0.3W
  • Off Mode
  • < 0.2W
Operating Conditions
  • Temperature
  • 0°C-40°C (32°F-104°F)
  • Humidity
  • 10%-85% (non-condensing)
Storage Conditions
  • Temperature
  • -25°C-55°C (-13°F-131°F)
  • Humidity
  • 5%-93% (non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (100 x 100 mm)
Stand
  • Tilt
  • -5° to 23°
  • Pivot
  • -2.5° to 92.5°
  • Swivel
  • ± 65°
  • Height Adjustment
  • 0-110 mm
Security
  • Kensington Security Slot
  • Yes
Dimensions
  • Product with Base (W x H x D)
  • 612.6 x 519.8 x 249.0 mm (24.1" x 20.5" x 9.8")
  • Product w/o Base (W x H x D)
  • 612.6 x 367.1 x 50.4 mm (24.1" x 14.6" x 2.0")
  • Packaging (W x H x D)
  • 700.0 x 456.0 x 282.0 mm (27.6" x 18.0" x 11.1")
Weight
  • Product with Base
  • 6.1 kg (14.5 lb)
  • Product w/o Base
  • 3.7 kg (8.2 lb)
  • Packaging
  • 8.8kg (19.4 lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • LVD
  • WEEE
  • RoHS
  • REACH
  • EAC
  • UKCA
  • BSMI
  • FCC
  • ICES-003 (Issue 7)
Accessories
  • Supplied
  • HDMI Cable
  • Power Adaptor
  • Power Cord
  • Quick Start Guide
Optional Accessories
  • Ceiling Mount (Landscape only)
  • CMP-01 + WMK-03
  • Wall Mount (Landscape only)
  • PMK-01
  • WMA-01
  • WMK-01
  • WMK-03
  • Desk mount (Landscape only)
  • DMC-01
  • ES-02
