Legrand AV

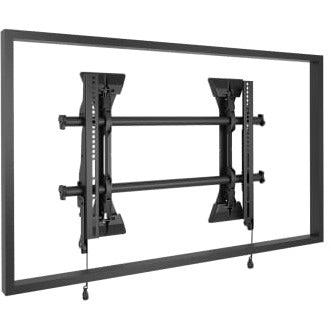

Chief MSM UNIVERSAL

Chief MSM UNIVERSAL

SKU:MSM1U

In stock

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out

Chief's upgraded fixed wall mounts are based on installer feedback and direct observations of installers in the field. Many new features join Fusion® favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.

New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

Installer-inspired, Fusion® fixed mounts solve top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • Centerless Shift provides post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away
Dimensions & Measurements
Depth
5.1 cm (2 in)
Height
46.4 cm (18.3 in)
Lateral Shift
32.8 cm (12.9 in)
Shipping Weight
3.6 kg (8 lbs)
Typical Screen Size
32" - 65" (813mm - 1651mm)
Wall Stud Compatibility In
16" - 24" (406mm - 610mm)
Weight Capacity
56.7 kg (125 lbs)
Width
65.4 cm (25.8 in)
Characteristics & Features
Adjustability
Fixed, Micro-Adjustable, Height Adjustable, Lateral Shift
Application
Wall
Color
Black
Orientation
Landscape
Solution Type
Universal
TAA Compliant
No
VESA Mounting Pattern
100 x 100 mm – 642 x 400 mm
Certifications & Warranties
Certifications
  • OSHPD
  • TUV
  • UL Listed
View full details
