NEC 55" Du-Co Room System LCD 55" Dual Collaboration Room System
NEC 55" Du-Co Room System LCD 55" Dual Collaboration Room System
SKU:40001570
Out of stock
Couldn't load pickup availability

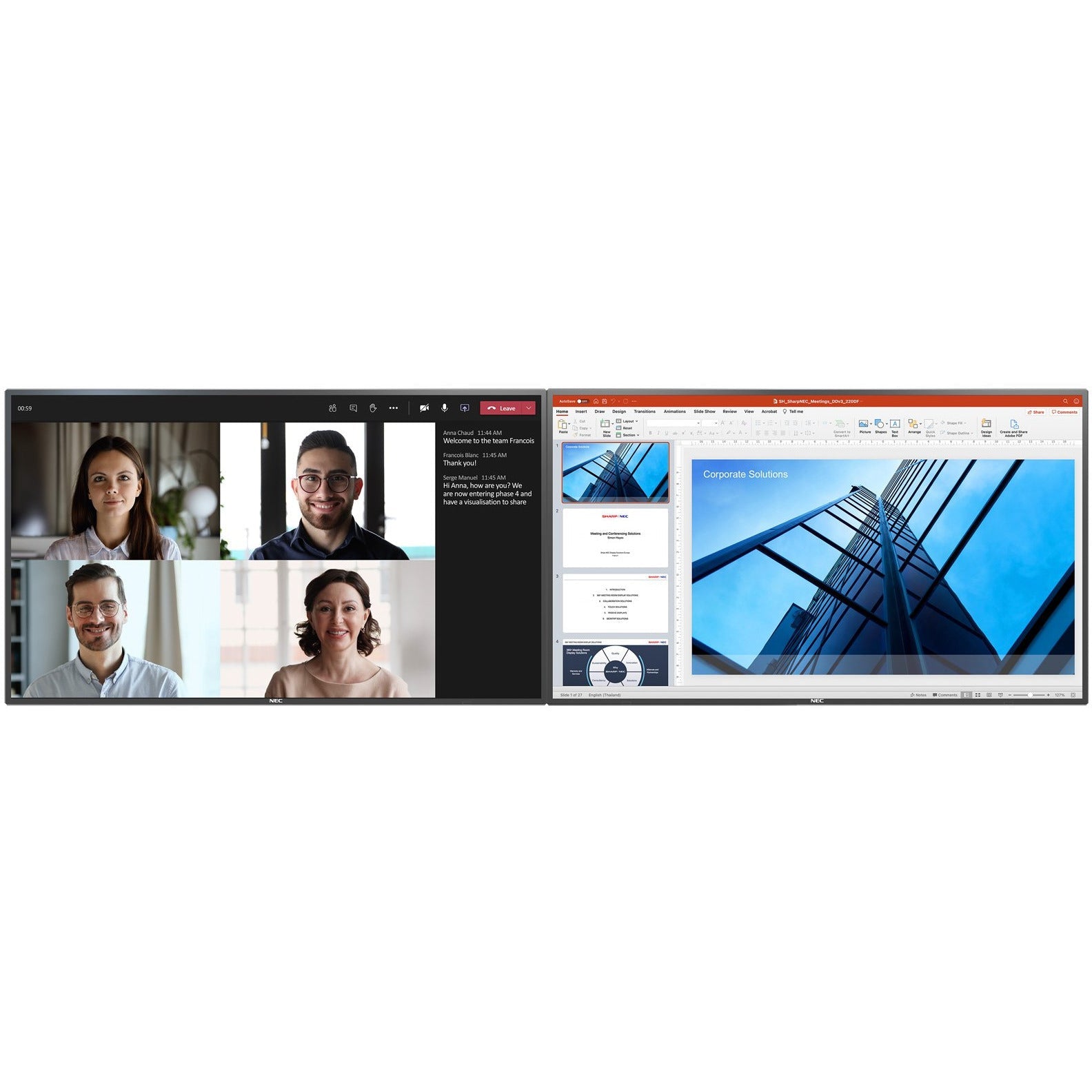

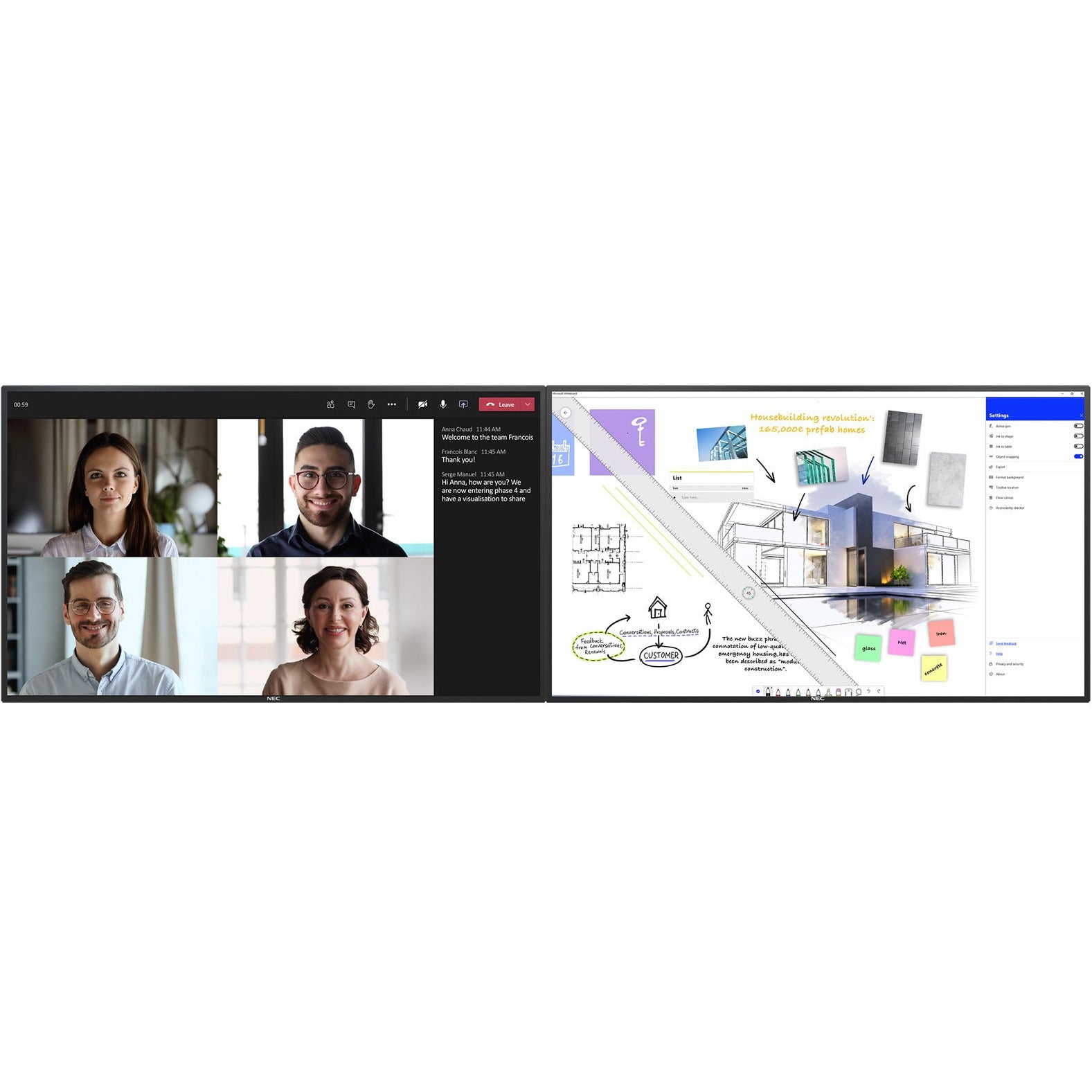

Dual-Screen Room System for creative and interactive hybrid meetings
The 55” NEC Dual-Screen Room System combines two displays, an interactive NEC MultiSync® M551 IGB and an identically designed non-interactive MultiSync® M551 IGB non-touch, into a comprehensive user-friendly system. It is ideally suited for meeting and collaboration environments, whether for fully present or hybrid team meetings. With a sleek and elegant design, the display solution seamlessly fits into modern office spaces.
When working with an interactive and a non-interactive display in a dual-screen scenario, users no longer need to compromise between design and functionality. With the 55” NEC Du-Co Room System, users not only benefit from a visually pleasing solution but also an enhanced usability. Equipped with an InGlass™ touch display, the system offers a best-in-class pen-on-paper writing experience. Optimised for video conferencing (VC) room systems, the display solution facilitates creative processes in hybrid meetings, such as in Microsoft Teams or Zoom.
Benefits
- Don't compromise on design – combining an interactive and non-interactive display with the same sleek and elegant design.
- Natural writing experience – it’s like working on paper! Whether using finger or pen, the InGlass™ touch technology provides seamless interactive touch performance including Windows Ink and palm rejection.
- Both displays featuring NEC Open Modular Intelligence (OMI) slot-in technology – choose scalable computing power with Raspberry Pi Compute Module 4 or the more powerful Intel® Smart Display Modules (Intel® SDM) for tailor-made solutions.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
- Be more productive – get a free version of FlatFrog Board for Rooms! FlatFrog Board whiteboard software makes hybrid work easy and equally productive for everyone.
Display
Panel Technology
- IPS with Edge LED backlights
- IPS with Edge LED backlights
Screen Size [inch/cm]
- 55 / 138.8
- 55 / 138.8
Aspect Ratio
- 16:9
- 16:9
Brightness (without glass) [cd/m²]
- 500
- 500
Contrast Ratio (default)
- >
- 8000:1
- >
- 8000:1
Viewing Angle [°]
- 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
- 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]
- 1,076 (10bit)
- 1,076 (10bit)
Response Time (typ.) [ms]
- 8
- 8
Panel Refresh Rate [Hz]
- 60
- 60
Supported Orientation
- Face Up 1
- Landscape
- Portrait
- Face Up 1
- Landscape
- Portrait
Touch
Touch Technology
- InGlass™
- -
Number of Touches
- Real multi-touch up to 20 touches
- -
Response Time [ms]
- ≤ 15
- -
Touch Method
- Finger
- Gloves
- Stylus (≥ 2 mm)
- -
Supported Operating System
- Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android
- Default Mouse: Windows XP, Windows Vista, Mac OS X
- Raspberry Pi
- -
Data Interface
- USB-HID
- -
Accuracy [mm]
- <
- 1
- -
Palm Rejection
- yes
- -
Windows Ink
- yes
- -
Glass
Type
- Premium toughened glass, anti-glare coating
- Premium toughened glass, anti-glare coating
Thickness [mm]
- 3
- 3
Haze Level [%]
- ≦ 5 ± 3
- ≦ 5 ± 3
Hardness [H]
- 7
- 7
Resolution
Native Resolution
- 3840 x 2160
- 3840 x 2160
Supported Resolutions
- 1024 x 768
- 1280 x 1024
- 1280 x 720
- 1360 x 768
- 1366 x 768
- 1400 x 1050
- 1440 x 900
- 1600 x 1200
- 1650 x 1050
- 1900 x 1200
- 1920 x 1080
- 1920 x 2160
- 2560 x 1440
- 2560 x 1600
- 3840 x 2160
- 4096 x 2160
- 1024 x 768
- 1280 x 1024
- 1280 x 720
- 1360 x 768
- 1366 x 768
- 1400 x 1050
- 1440 x 900
- 1600 x 1200
- 1650 x 1050
- 1900 x 1200
- 1920 x 1080
- 1920 x 2160
- 2560 x 1440
- 2560 x 1600
- 3840 x 2160
- 4096 x 2160
Synchronisation Rate
Horizontal Frequency [kHz]
- 26 - 91.1
- 26 - 91.1
Vertical Frequency [Hz]
- 23 - 86
- 23 - 86
Connectivity
Input Video Digital
- 1 x DisplayPort (with HDCP)
- 2 x HDMI (with HDCP)
- 1 x DisplayPort (with HDCP)
- 2 x HDMI (with HDCP)
Input Audio Digital
- 1 x DisplayPort
- 2 x HDMI
- 1 x DisplayPort
- 2 x HDMI
Input Control
- LAN 100Mbit
- remote control wire (3,5mm jack)
- RS232
- LAN 100Mbit
- remote control wire (3,5mm jack)
- RS232
Input Data
- 1 x USB 2.0 (MediaPlayer)
- 1 x USB 2.0 (MediaPlayer)
Output Audio Analogue
- 1 x 3,5 mm jack
- 1 x 3,5 mm jack
Input Detect
- Custom
- First
- Last
- Custom
- First
- Last
PiP/PbP
- Quad-Split
- scalable picture size
- Triple-Split
- Quad-Split
- scalable picture size
- Triple-Split
Open Modular Intelligence
Intel® SDM
- accepts Intel® Smart Display Modules Large and Small up to 66 W
- accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot
- RPi Compute Module 4
- RPi Compute Module 4
Sensors
Temperature Sensor
- Integrated, 3 sensors, triggered actions programmable
- Integrated, 3 sensors, triggered actions programmable
Electrical
Power Consumption Eco/max. [W]
- 110 shipping
- 110 shipping
Power Savings Mode [W]
- <
- 0.5
- <
- 2 (Networked Standby)
- <
- 0.5
- <
- 2 (Networked Standby)
Power Management
- VESA DPMS
- VESA DPMS
Power Supply
- 100-240 V AC
- 50/60 Hz
- internal
- 100-240 V AC
- 50/60 Hz
- internal
Environmental Conditions
Operating Temperature [°C]
- +0 to +35
- +0 to +35
Operating Humidity [%]
- 20 to 80
- 20 to 80
Storage Humidity [%]
- 10 to 90
- 10 to 90
Storage Temperature [°C]
- -20 to 60
- -20 to 60
Mechanical
Dimensions (W x H x D) [mm]
- 1,284.5 x 757.3 x 70.9
- 1,284.5 x 757.3 x 70.9
Weight [kg]
- 38.5
- 38
Bezel Width [mm]
- 18.4 (left and right)
- 18.4 (top and bottom)
- 18.4 (left and right)
- 18.4 (top and bottom)
VESA Mounting [mm]
- 300 x 300 (FDMI)
- 4 holes
- M6
- 300 x 300 (FDMI)
- 4 holes
- M6
Ingress Protection
- IP5x (front)
- IP2x (back)
- IP5x (front)
- IP2x (back)
Packaging Dimensions (W x H x D) [mm]
- Box 1: 1,430 x 920 x 250
- Box 2: 1,430 x 920 x 250
Packaging Weight [kg]
- Box 1: 47
- Box 2: 46
MediaPlayer
Supported File Storage / File System
- USB 2.0 / FAT16, FAT32
- USB 2.0 / FAT16, FAT32
Supported Image Formats
- JPG (baseline, progressive, RGB, CMYK)
- max. resolution 15360 x 8640
- JPG (baseline, progressive, RGB, CMYK)
- max. resolution 15360 x 8640
Supported Video Formats
- MPG (MPEG1/2/4, max res 1080p@30Hz)
- MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz)
- TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz)
- audio: LPCM, MP3, AAC
- WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
- MPG (MPEG1/2/4, max res 1080p@30Hz)
- MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz)
- TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz)
- audio: LPCM, MP3, AAC
- WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats
- MP3 (MP3)
- max. bit-rate 320 kBit/s
- MP3 (MP3)
- max. bit-rate 320 kBit/s
Available Options
Accessories
- Presence Sensor (KT-RC3)
- Soundbar (SP-ASCM-IQ2
- SP-ASCM-2)
- Speaker (SP-RM3a)
- Wall mount (L20PNWALL90EU)
- Soundbar (SP-ASCM-IQ2
- SP-ASCM-2)
- Speaker (SP-RM3a)
- Wall mount (L20PNWALL90EU)
Green Features
Energy Efficiency
- Energy consumption: 100 kWh/1000 h
- LED backlight
- Energy consumption: 100 kWh/1000 h
- LED backlight
Ecological Standards
- EnergyStar 8.0
- EnergyStar 8.0
Additional Features
Special Characteristics
- DICOM Simulation
- HDMI ARC
- Powered USB Port (10 W)
- DICOM Simulation
- HDMI ARC
- Powered USB Port (10 W)
Safety and Ergonomics
- CE
- EAC
- RoHS
- CE
- EAC
- RoHS
Pixel Failure Class
- ISO 9241-307, Class 1
- ISO 9241-307, Class 1
Audio
- Integrated Speakers (10 W + 10 W)
- Integrated Speakers (10 W + 10 W)
Shipping Content
- 2 x Stylus
- 2x AAA batteries
- Display
- HDMI Cable
- Power Cable
- Remote Control
- Setup Manual
- USB cable
- 2x AAA batteries
- Display
- HDMI Cable
- Power Cable
- Remote Control
- Setup Manual
Warranty
- 3 years warranty incl. backlight
- additional services available
- 3 years warranty incl. backlight
- additional services available
Operating Hours
- 24/7
- 24/7
External Control
- AMX NetLinx Support
- ASCII Control Commands
- Crestron Connected
- HDMI CEC
- HTTP Browser
- PJLink
- Scheduled Timer
- SNMP
- AMX NetLinx Support
- ASCII Control Commands
- Crestron Connected
- HDMI CEC
- HTTP Browser
- PJLink
- Scheduled Timer
- SNMP
Remote Management
- Automated Email Alerts
- NEC NaViSet Administrator 2
- Automated Email Alerts
- NEC NaViSet Administrator 2
Security
- Disable HW Buttons
- Disable IR Functionality
- Emergency Notification
- Disable HW Buttons
- Disable IR Functionality
- Emergency Notification
