NEC

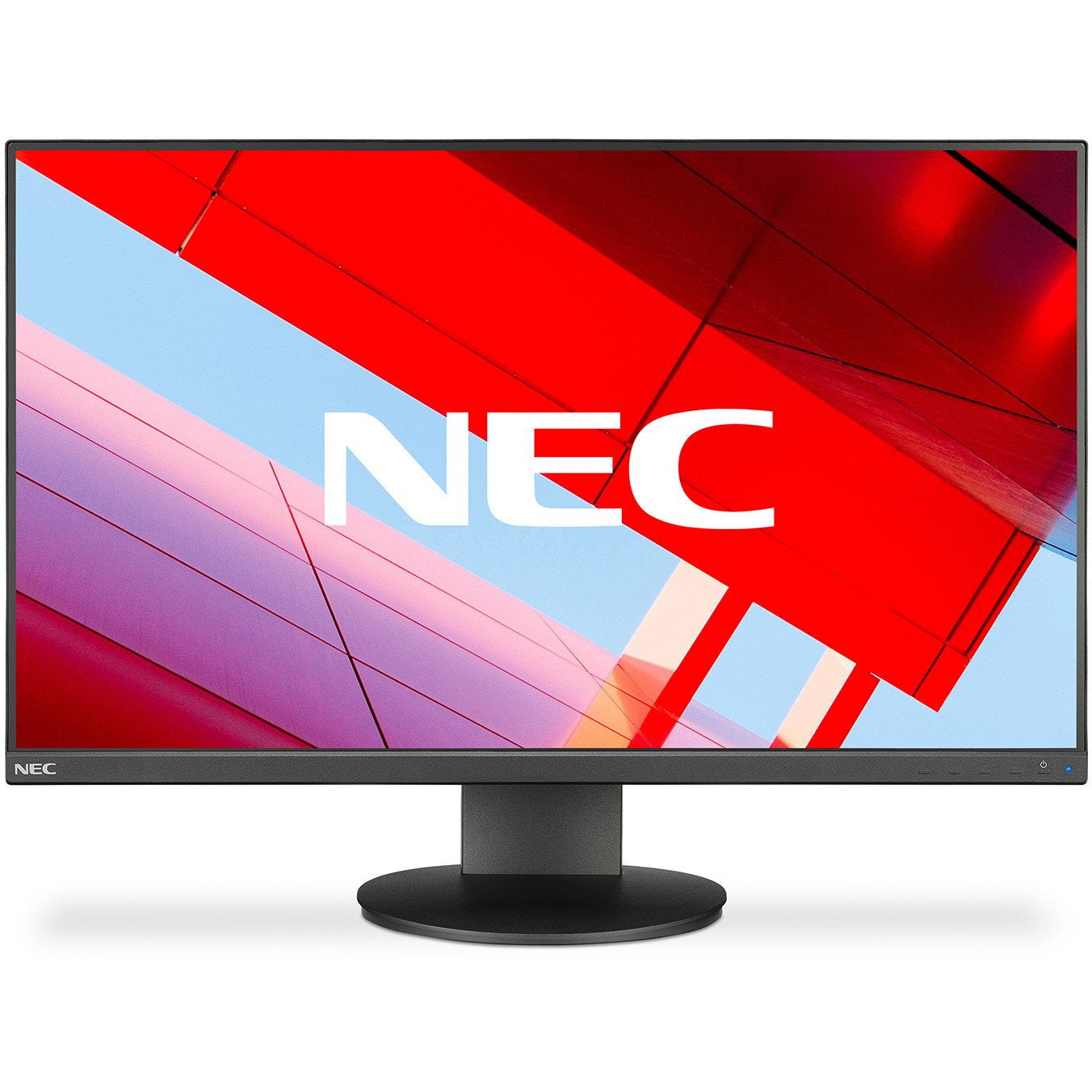

NEC MultiSync® E243F LCD 24" Enterprise Display

NEC MultiSync® E243F LCD 24" Enterprise Display

SKU:60005203

Out of stock

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Color

The ergonomic workspace communications hub

Break free of cable clutter and enjoy a single, all-encompassing communications hub via this workspace centrepiece, the MultiSync® E243F display. The 24” office workhorse featuring powerful 65W USB Type-C connectivity, manages video, audio, power and USB via a single cable. Supporting new open office standards in hot desking and ‘bring your own device’, the display is fully future-proofed with a high level of connectivity flexibility.

User wellbeing is high on the agenda with built-in Low Blue Light and Flicker-Free technology to protect the viewer’s eyes without compromise to true-to-life display colour performance. Furthermore, advanced ergonomic adjustability ensures best individual workspace set-up to support sustained productivity.

Available in black or white to suit ergonomic and aesthetic preferences in an office or home environment, plus a minimal display footprint thanks to its ultra-narrow bezel and optional VESA thin client mount, the E243F perfectly complements the modern efficient workspace.

Benefits

  • Newest USB Type-C connectivity standard – optimize connectivity and declutter your desk; replace video, audio, power and USB cabling with just a single cable to connect your notebook/tablet PC with the display.

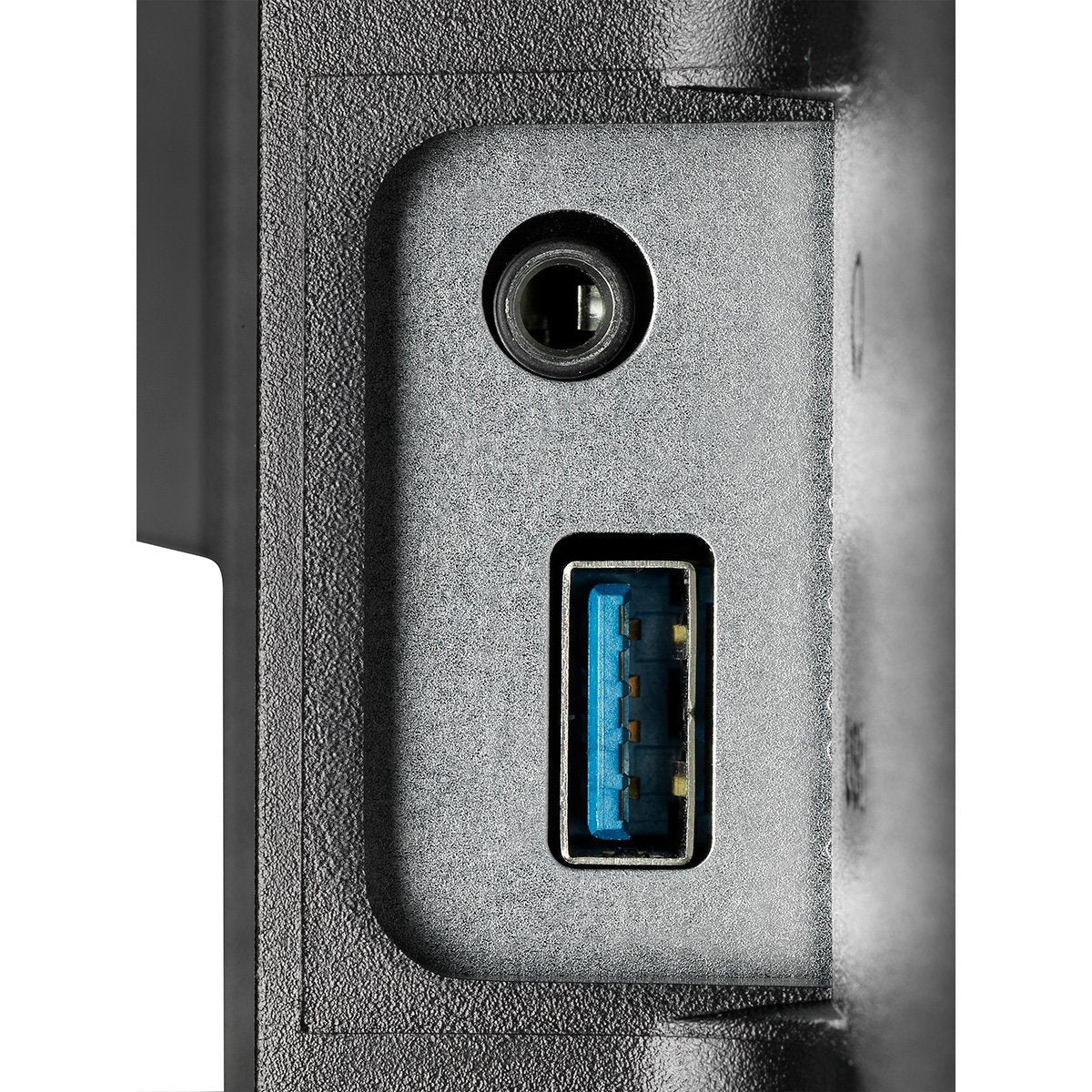

  • Future-proof flexibility – wide connectivity provides high-level flexibility with DP, HDMI, USB Type C, USB A and audio output.
  • Safeguarding user wellbeing – built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting the users’ eyes against cataracts and macular degeneration.

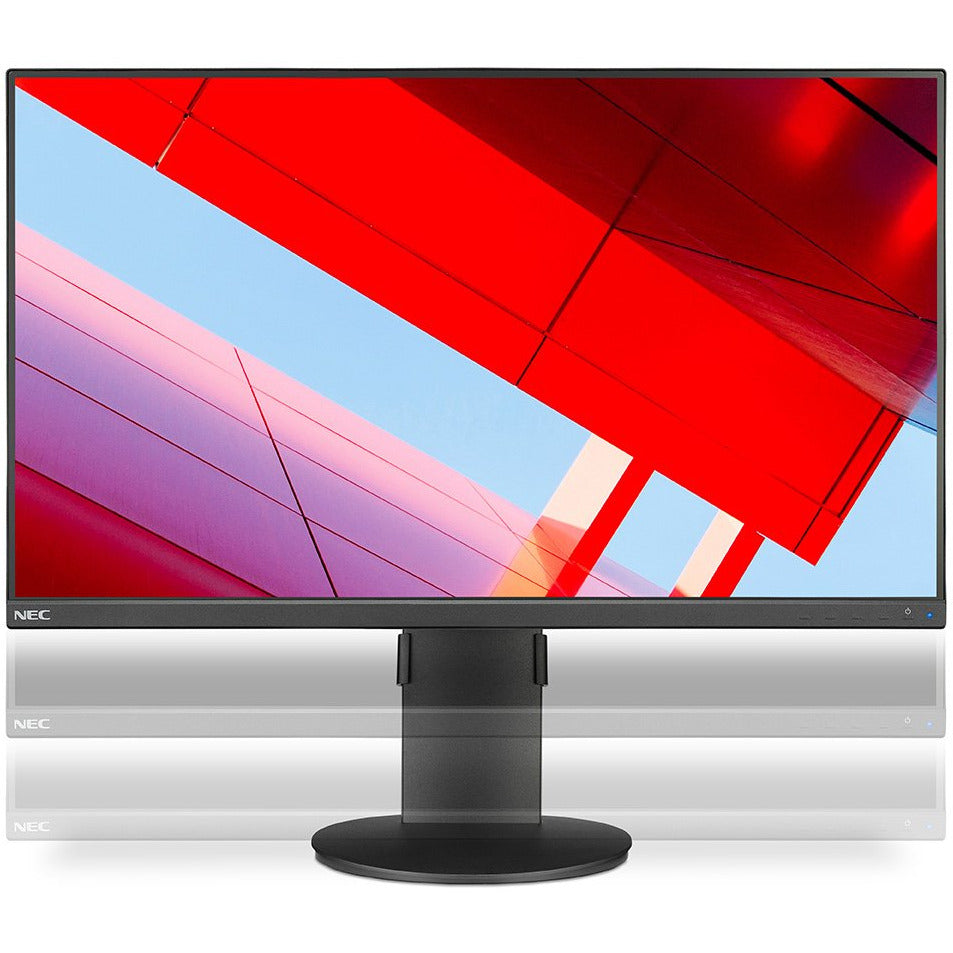

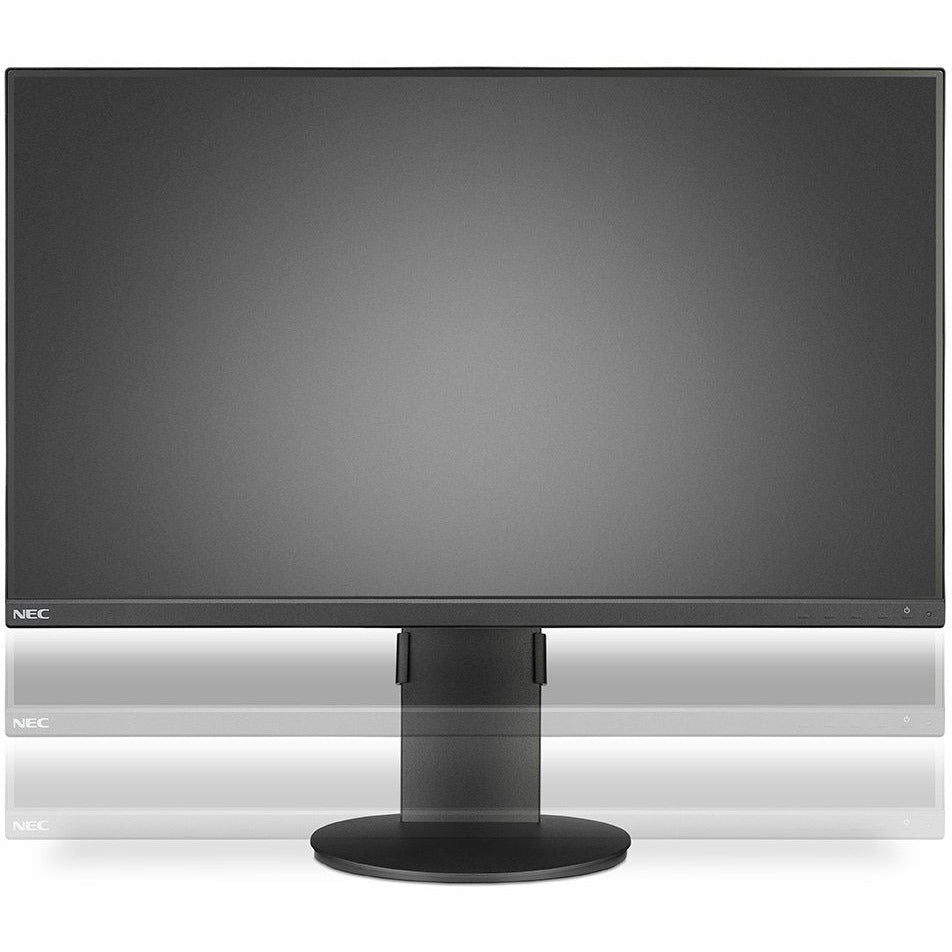

  • Ergonomic Office – full height adjustability (130 mm), swivel, tilt and pivot functionality ensures perfect individual workspace set-up.

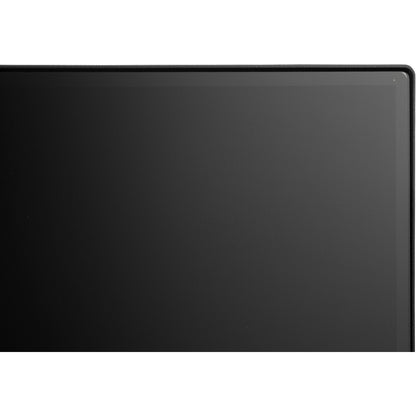

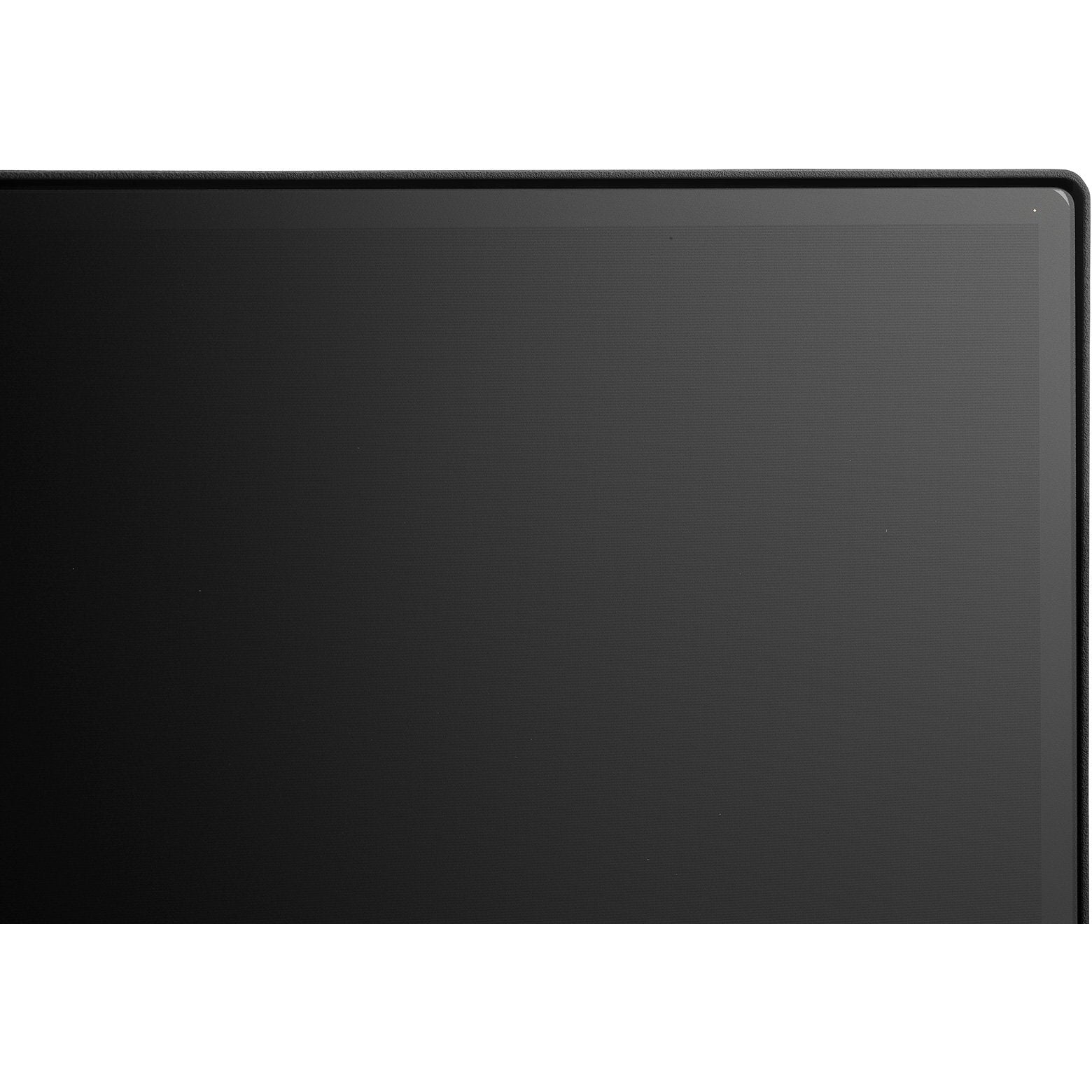

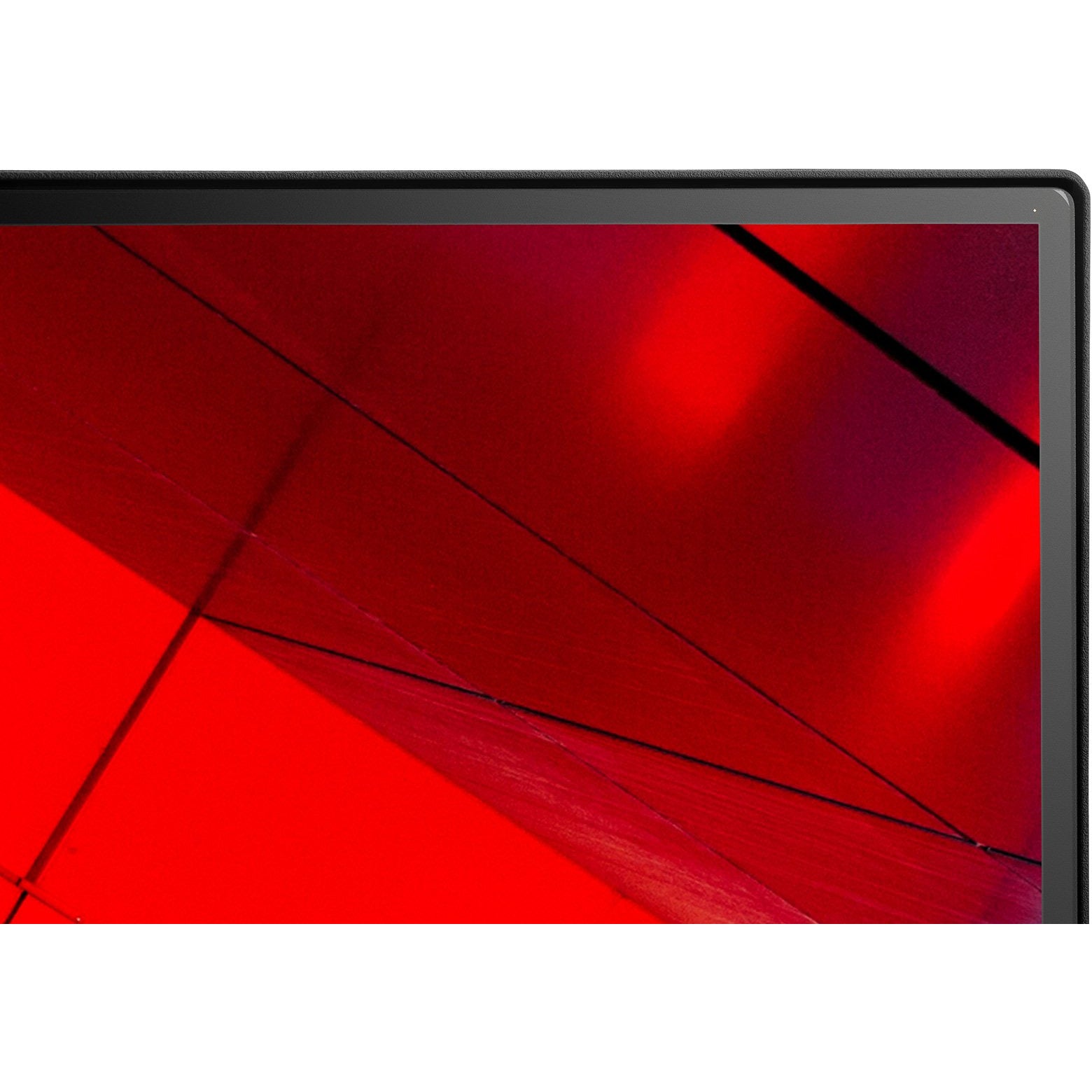

  • Best in form and function – future-ready design with 3-sided ultra-narrow bezel, available in black or white, plus optional VESA mount plate for thin client devices.

DISPLAY

Panel Technology IPS TFT with W-LED backlight
Screen Size [inch/cm] 24 / 60
Screen Aspect Ratio 16:9
Pixel Pitch [mm] 0.275
Brightness (typ.) [cd/m²] 250
Contrast Ratio (typ.) 1000:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 6
Colours [Mio.] 16.77

SYNCHRONISATION RATE

Horizontal Frequency [kHz] 31.5 - 83
Vertical Frequency [Hz] 50 - 75

RESOLUTION

Optimum Resolution
1920 x 1080 at 60 Hz

CONNECTIVITY

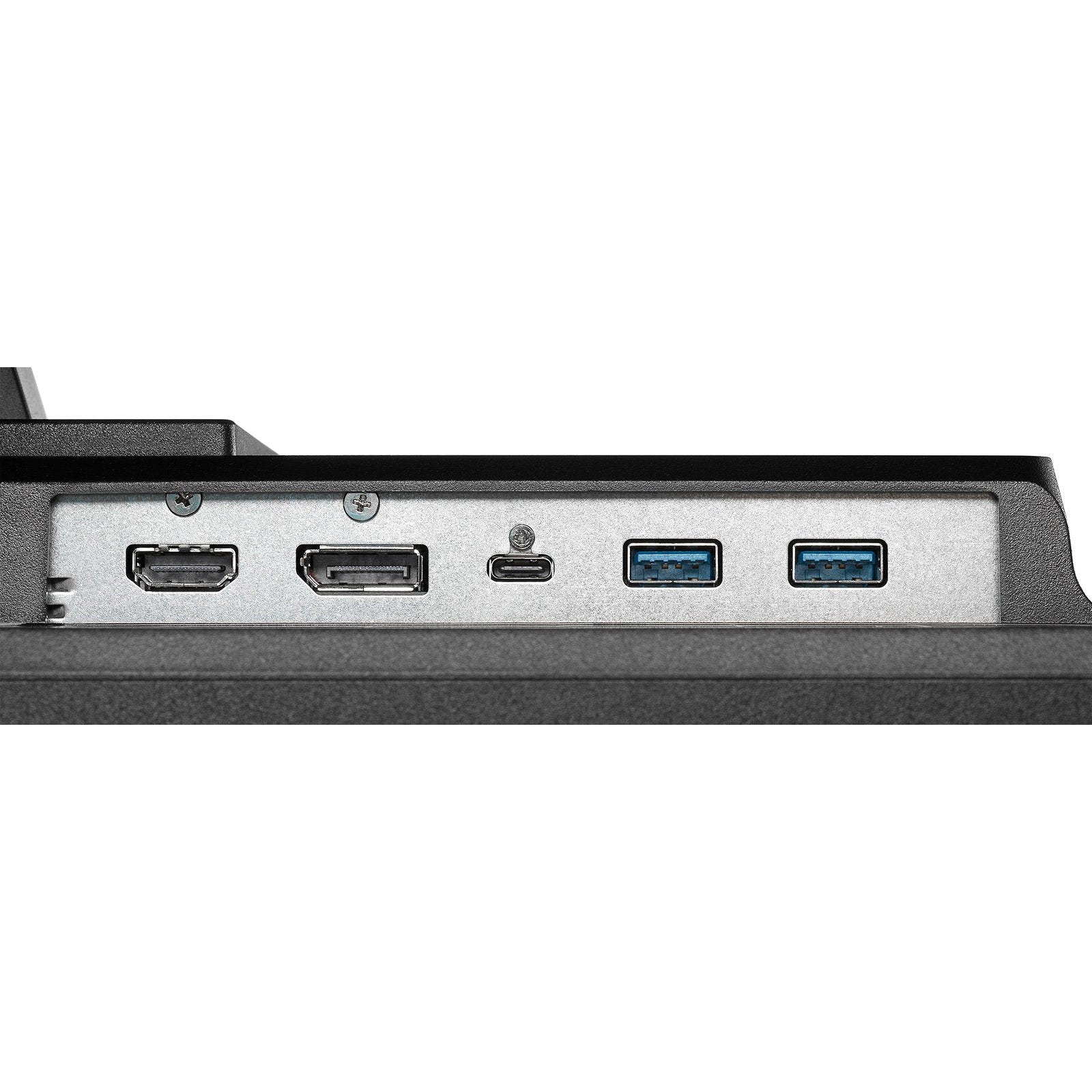

Digital 1 x DisplayPort; 1 x HDMI; 1 x USB Type C; USB ver. 3.1 (3 down / 1 up)

ELECTRICAL

Power Consumption on Mode [W] 15 (Eco Mode 1); 15 (typ.); 20 (max.)
Power Savings Mode [W] 0.4
Power Supply integrated power supply

ENVIRONMENTAL CONDITIONS

Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80
Storage Humidity [%] 85 to 10
Storage Temperature [°C] 60 to -10

ERGONOMICS

Height adjustable stand [mm] 130
Screen Tilt [°] -5 to 25
Screen Swivel [°] 170 to -170

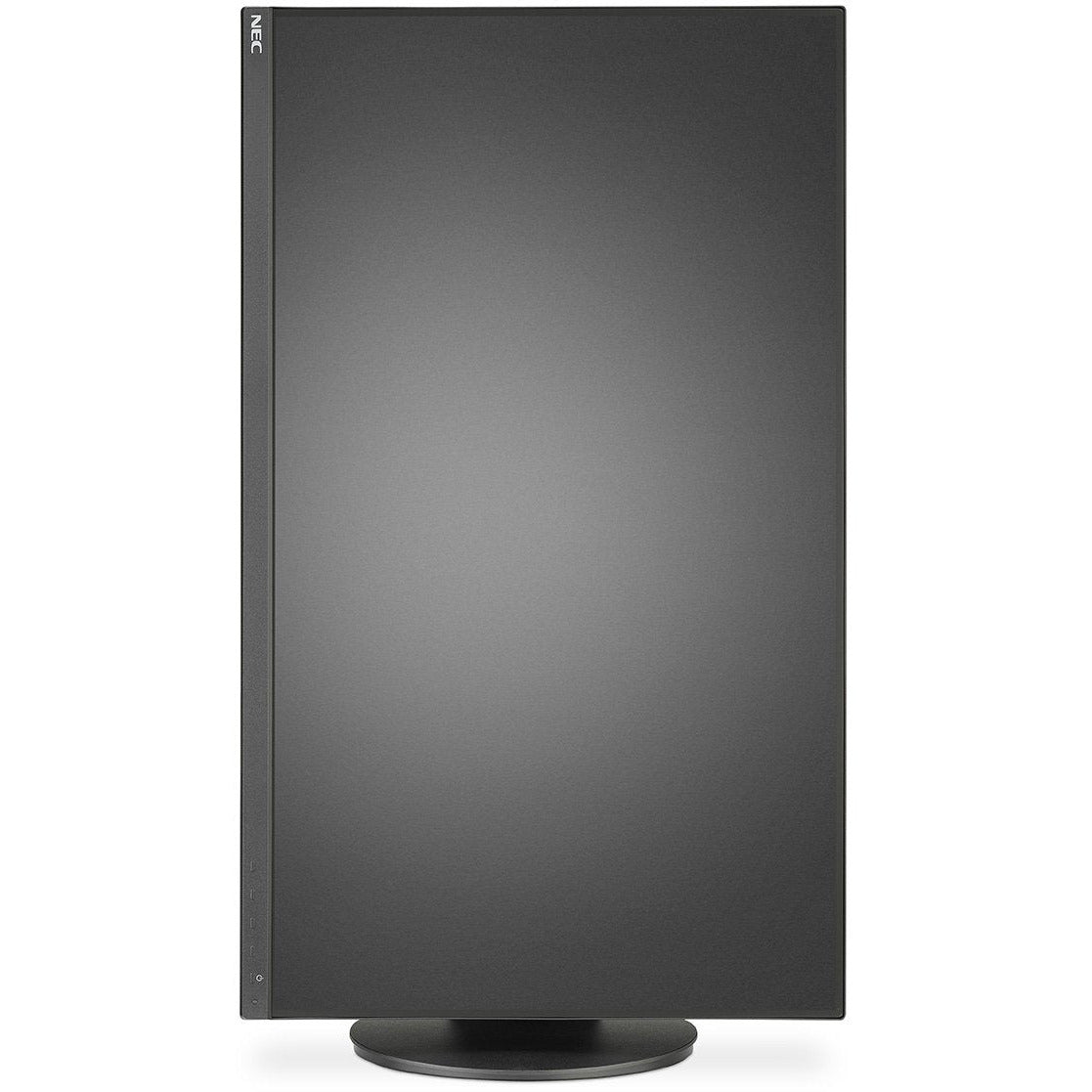

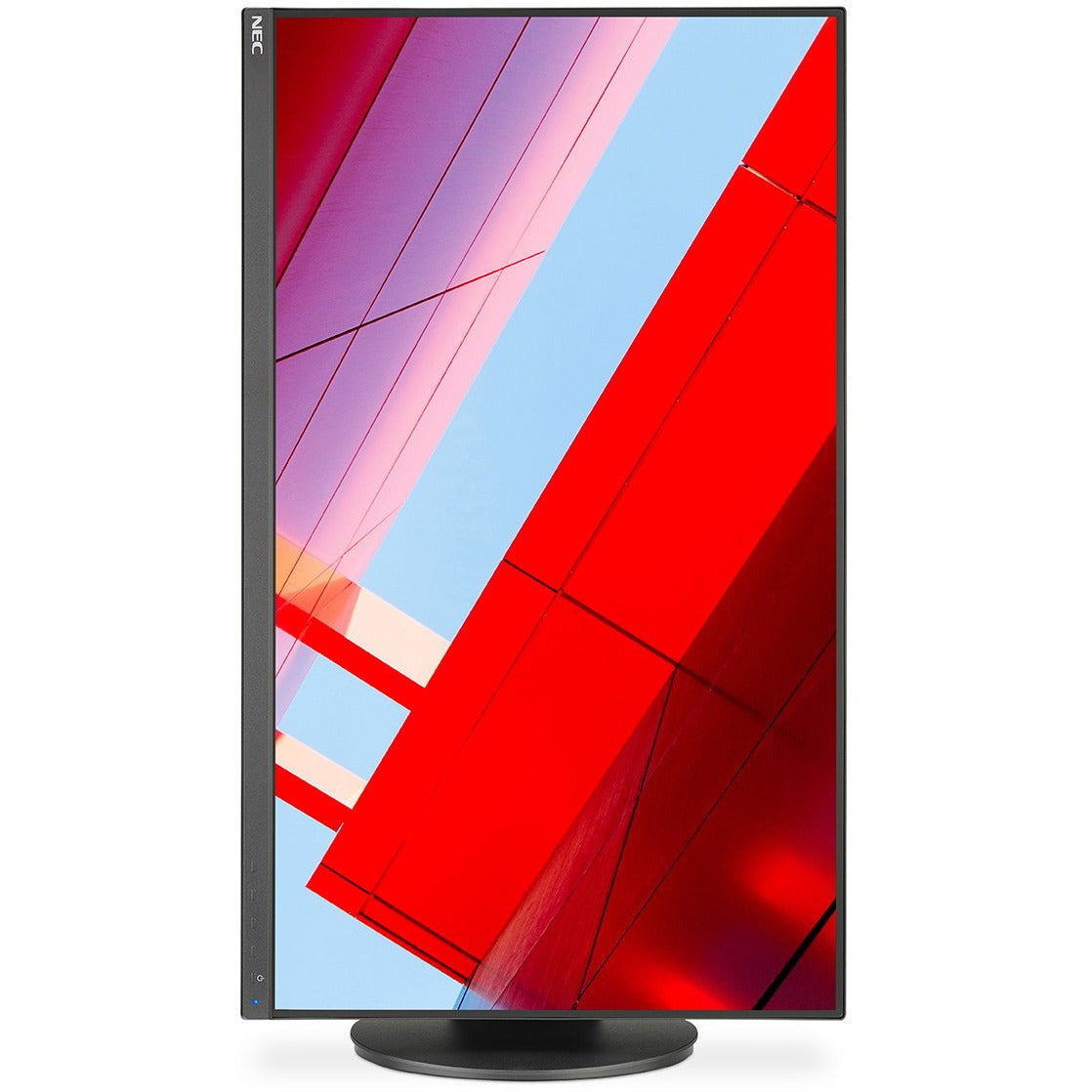

Screen Rotate [°] -90 to 90 (landscape to portrait mode)

MECHANICAL

Bezel Width [mm] 1 (left and right); 1 (top)
Dimensions (W x H x D) [mm] 538.1 x 332.6 - 462.6 x 190 (Landscape mode)
Weight [kg] With stand: 5

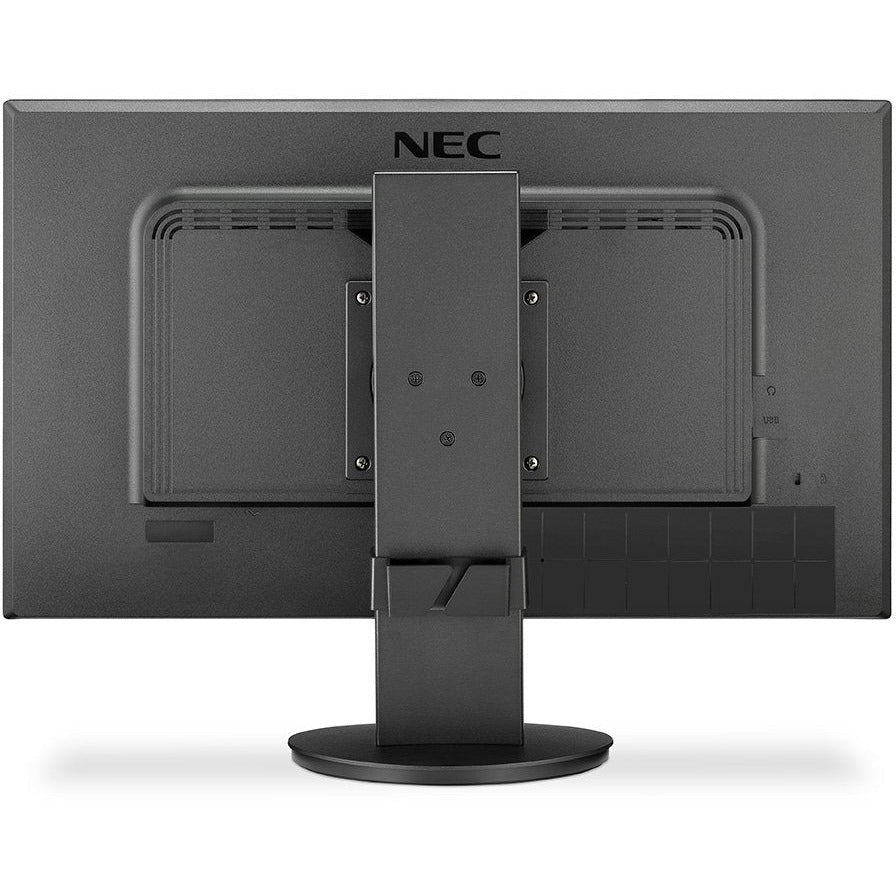

VESA Mounting [mm] 100 x 100

ADDITIONAL FEATURES

Special Characteristics Flicker Free; Low Blue Light; USB-C

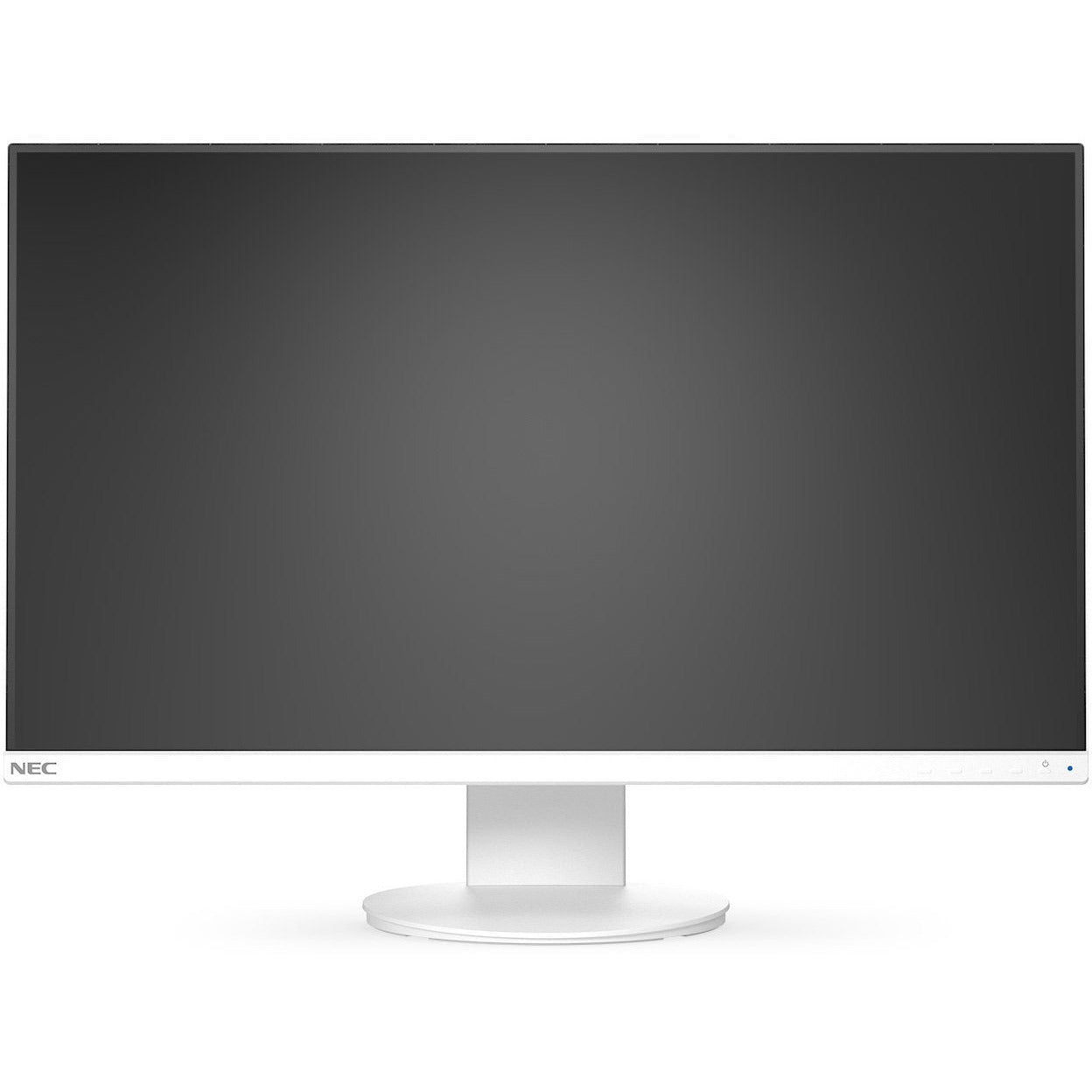

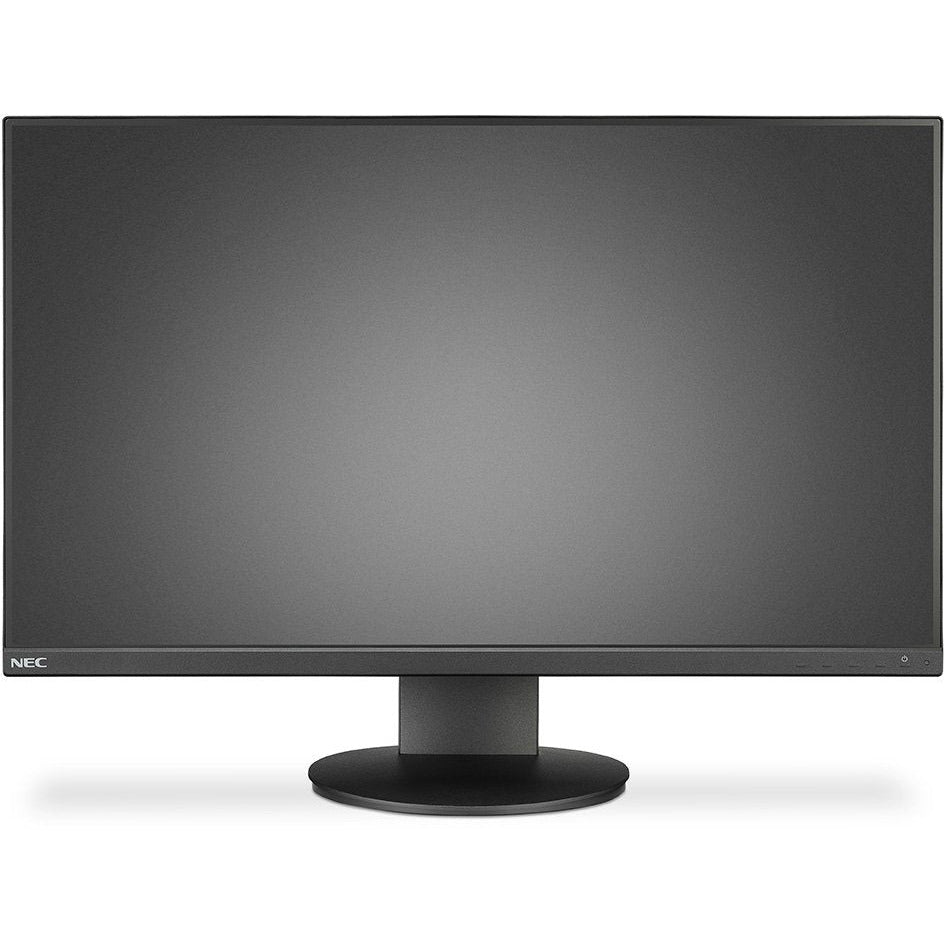

Colour Versions Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet
Cable Management yes
Kensington security slot yes
Plug and Play VESA DDC2Bi
Audio 1W + 1W (De-activateable); Headphone Jack
Adjust Functions Auto Adjust; Brightness; Carbon Footprint Meter / Carbon Savings Meter; DV Mode; EcoMode; Language Select
Shipping Content DisplayPort Cable; Power Cable; Setup Guide; USB-C Cable
Safety and Ergonomics EnergyStar 8.0; Flicker-free; ISO 9241-307 (pixel failure class I); Low Blue Light; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; WEEE

GREEN FEATURES

Energy Efficiency Carbon Footprint Meter / Carbon Savings Meter; ECOMode; Energy consumption: 18 kWh/1000 h; Energy efficiency class: E
Ecological Standards RoHS compliant; TCO 8.0
