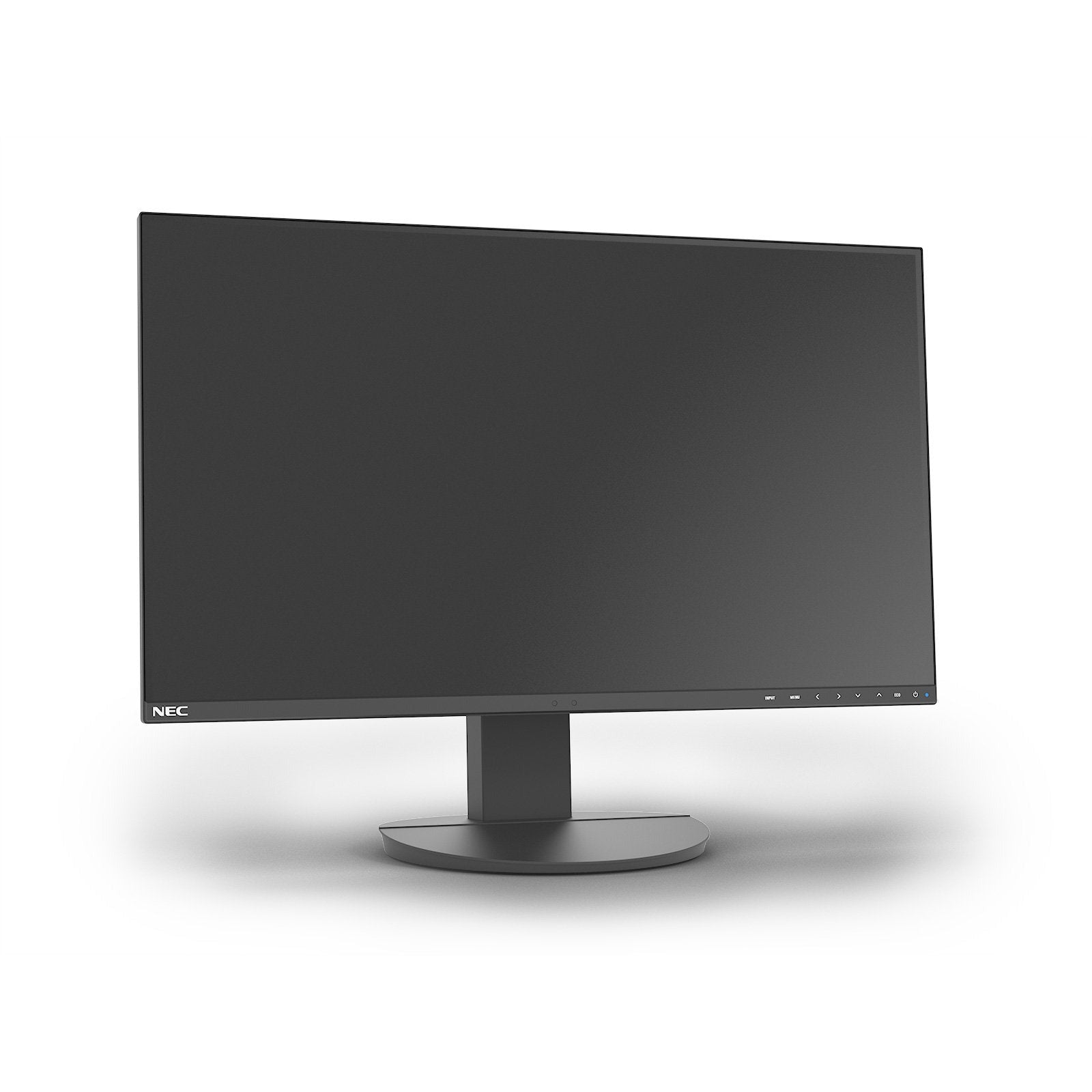

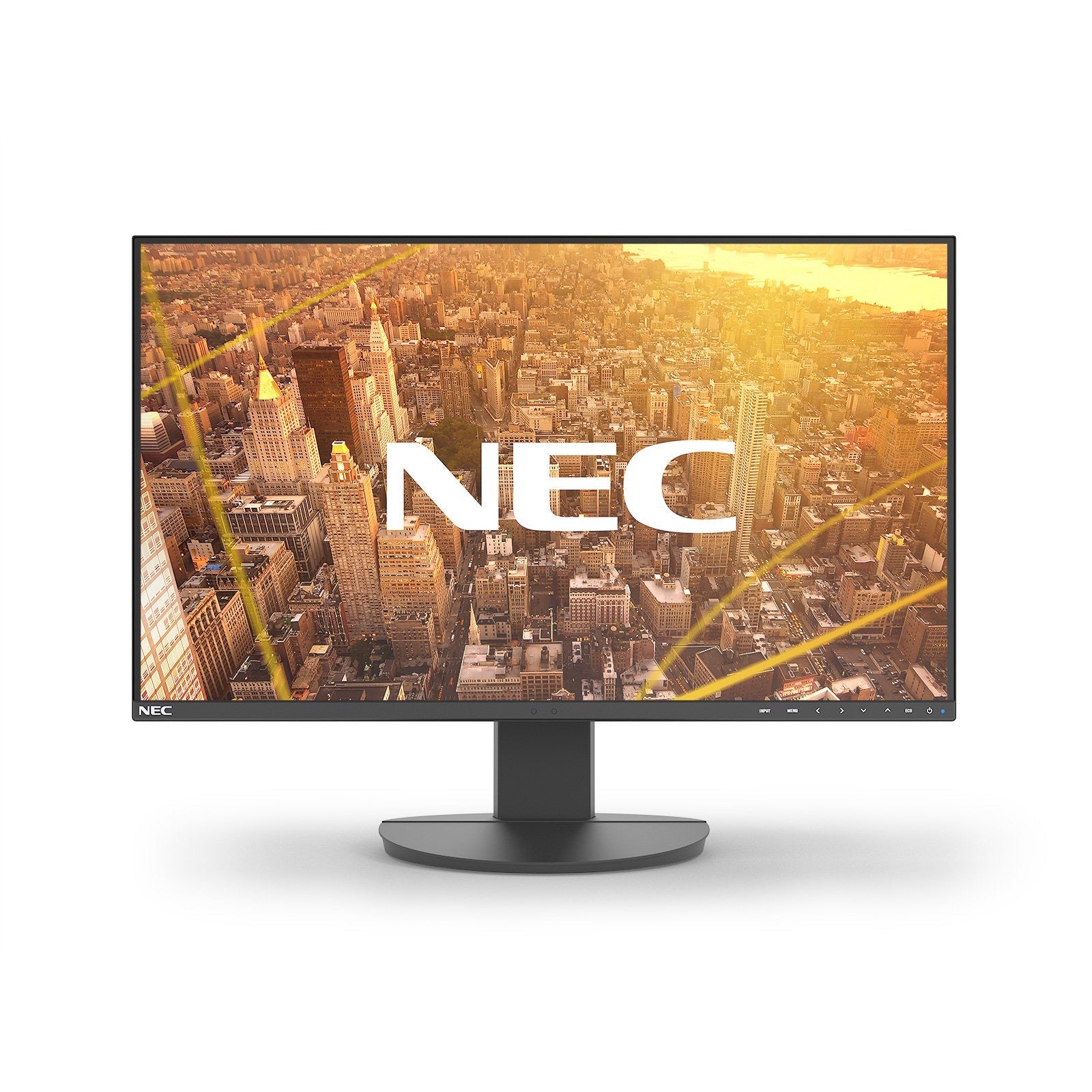

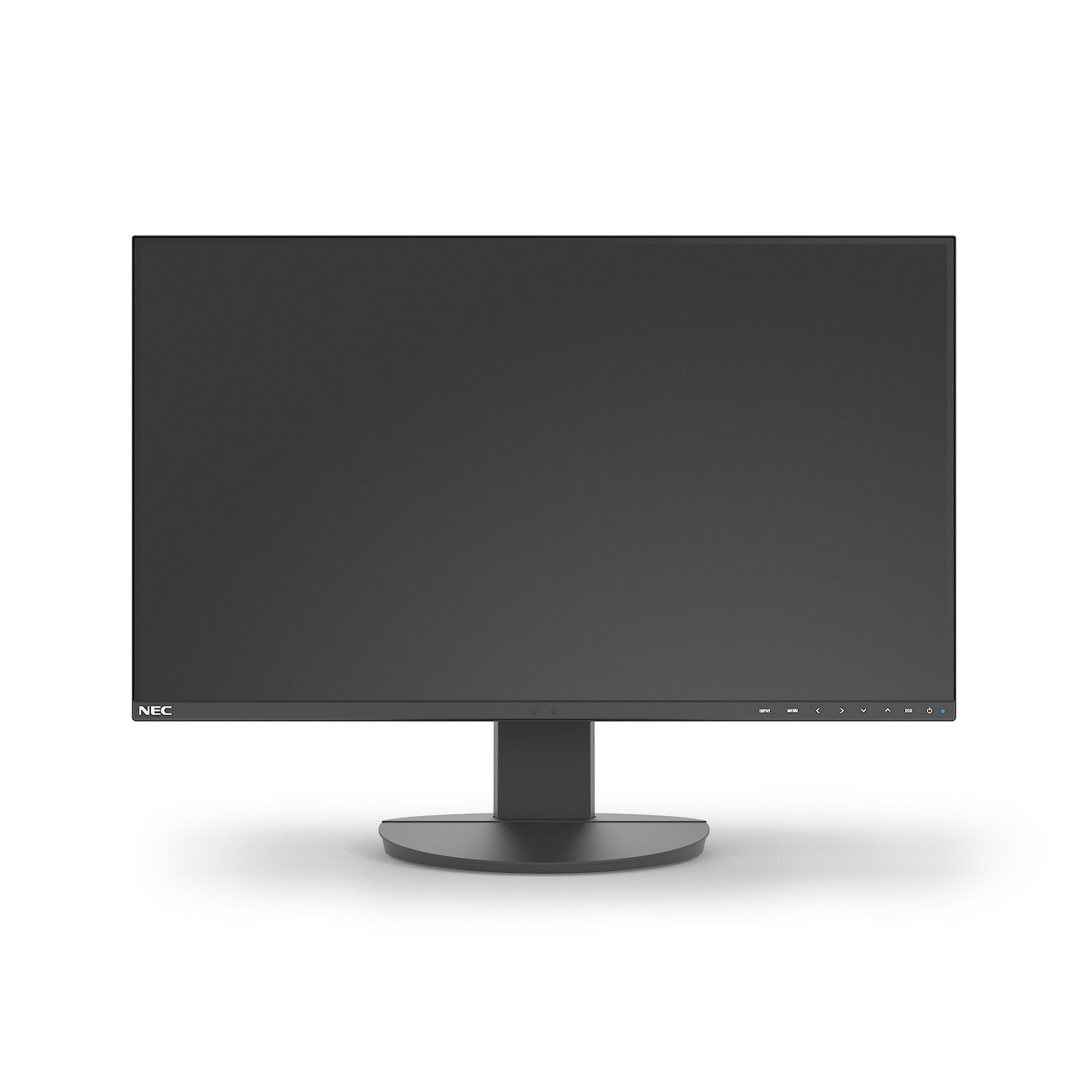

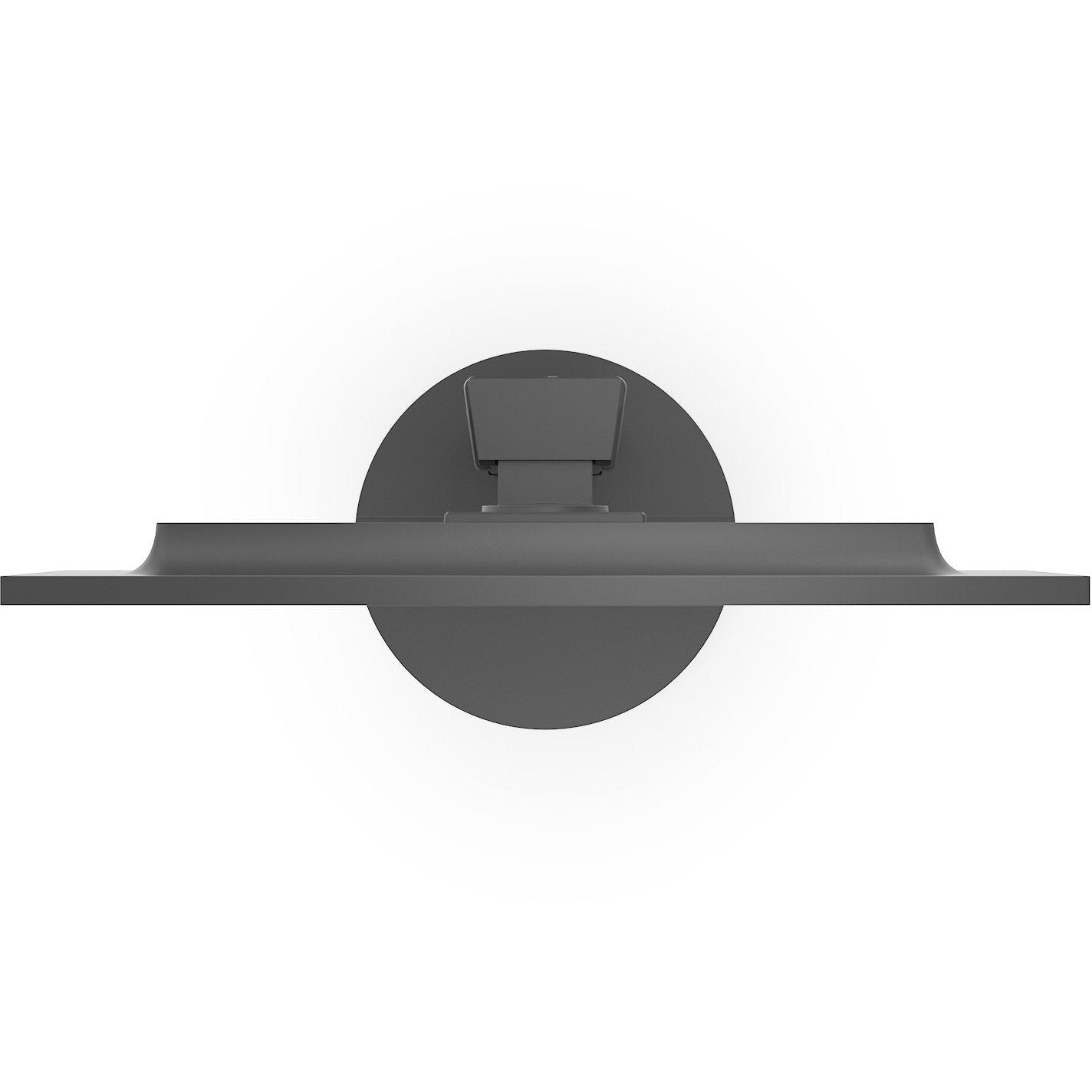

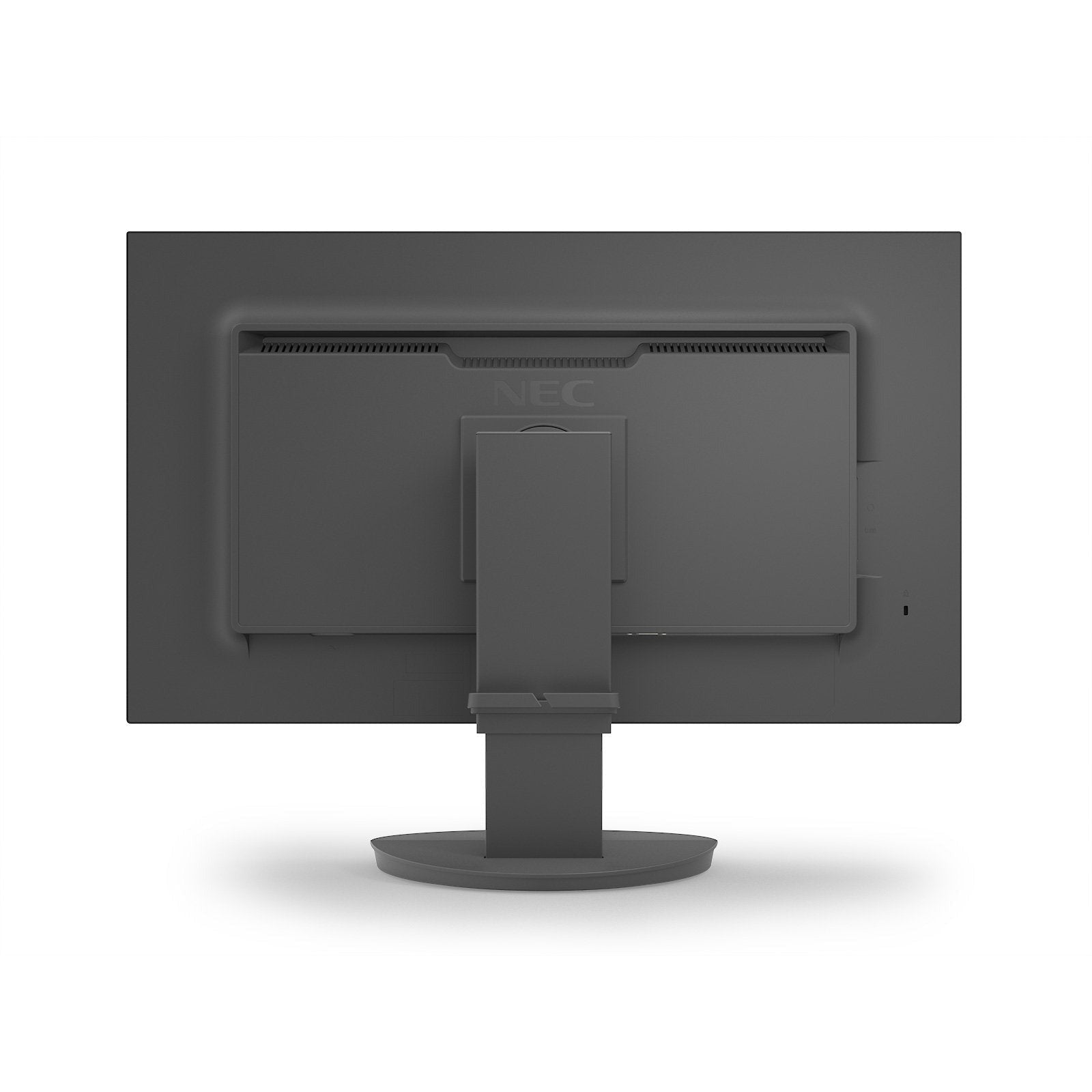

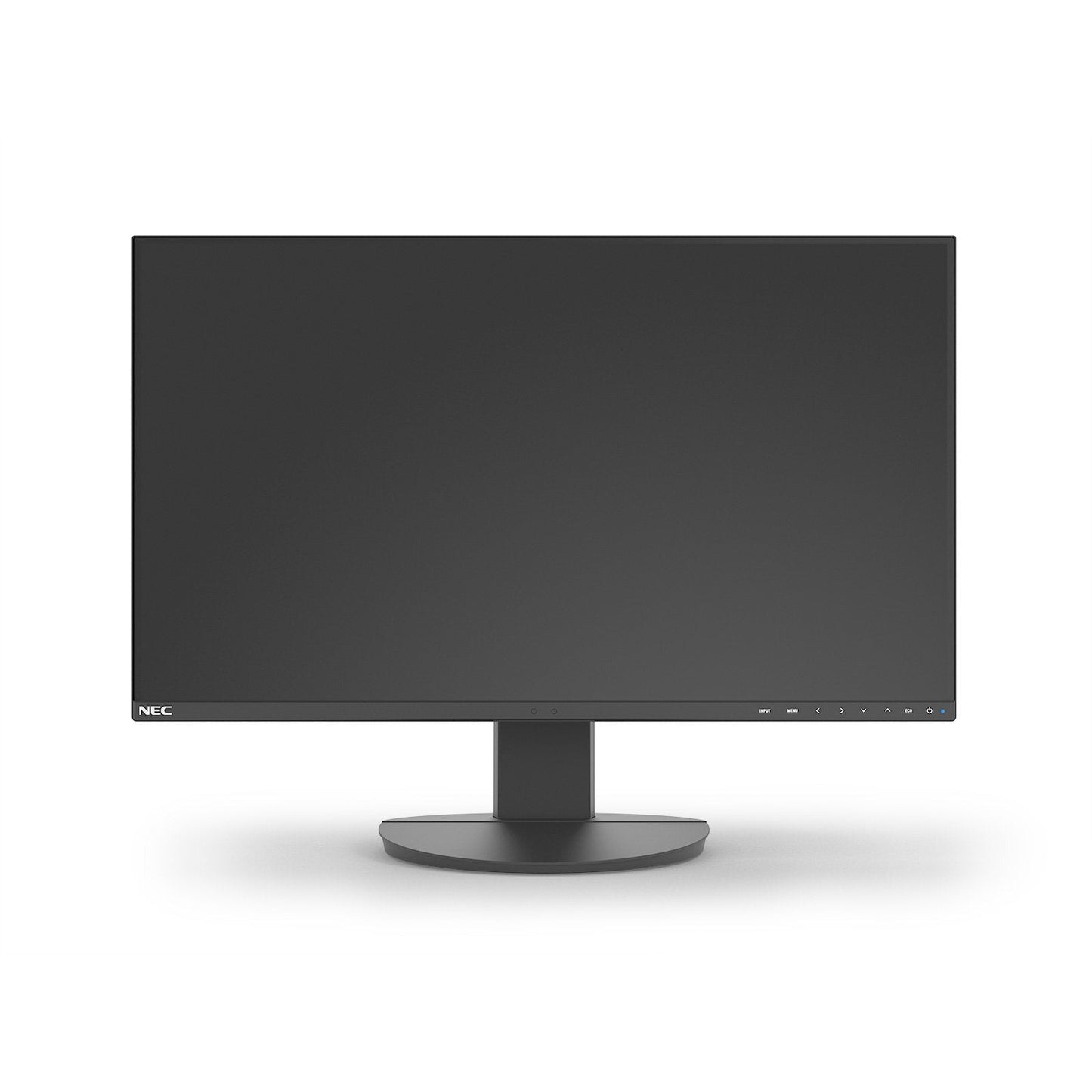

NEC MultiSync® EA242F LCD 23.8" Enterprise Display

NEC MultiSync® EA242F LCD 23.8" Enterprise Display

SKU:60005032

Out of stock

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Color

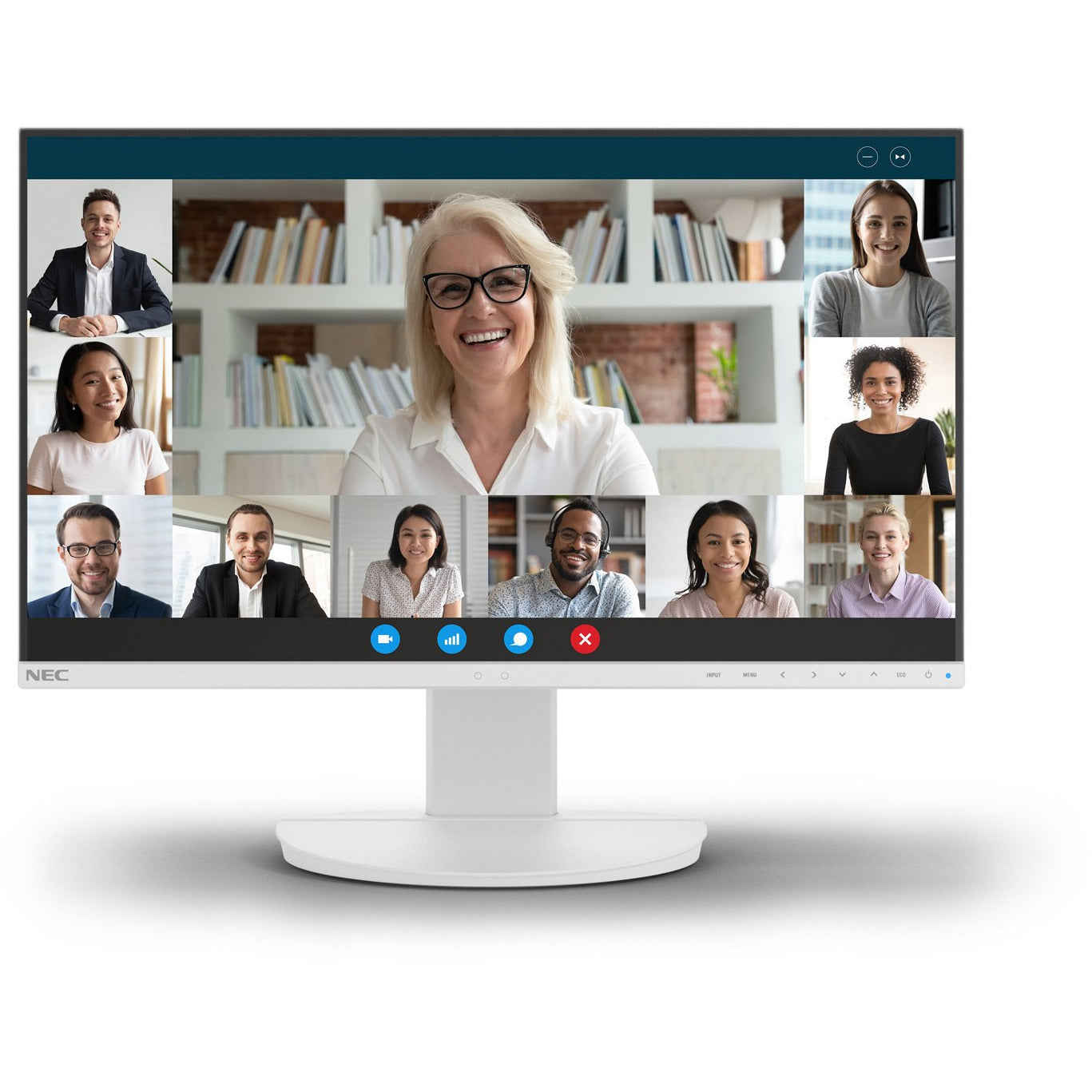

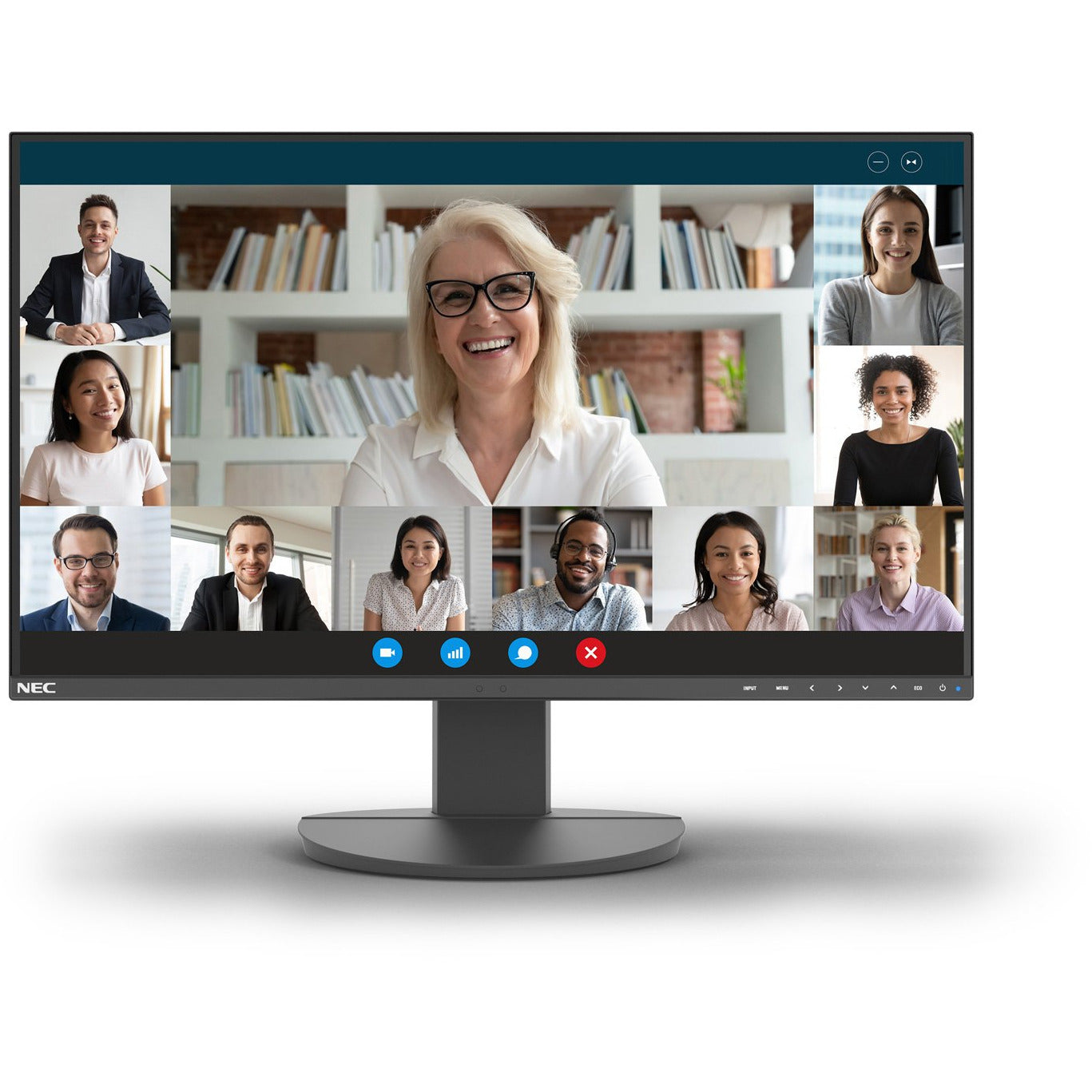

Powering workspace communications

Powering your PC/notebook and all your devices through a single cable, the MultiSync® EA242F is your workspace hub; no docking station required, the 65W USB-C connection means an efficient, clutter-free workstation from which to manage your communications. Easily increase your display area using DisplayPort-out to daisy-chain multiple displays, no additional cabling required.

User comfort is fundamental with full height adjustment, tilt, pivot and swivel supporting customised personal setup, whilst built-in low blue light technologies guard against eye fatigue without compromising true-to-life colour performance. Available in black or white, the 24” EA242F complements office interior design and ergonomics.

The connectivity advantage continues beyond USB Type-C with DisplayPort, HDMI, VGA and USB A for fully future-proof flexibility supporting new open office standards in hot desking and ‘bring your own device.’

Benefits

  • In-demand display size – the popular 23.8” display with Full HD resolution is the perfect size for busy office workspaces.
  • Future-proof flexibility – wide connectivity provides high-level flexibility with DP, HDMI, USB Type C, USB A and audio output.
  • Clutter-free workspace – Powerful 65W USB Type-C connectivity manages video, audio, power and USB via a single cable
  • Easy multi-screen set-up – Daisy-chain multiple display configurations through DisplayPort-out, no additional cables needed
  • Maximum attention to health and well-being – the outstanding ergonomic height adjustment from 0 to 150 mm; eye pleasing built-in Low Blue Light and Flicker-Free technology; plus integrated ambient light sensor all combines to tailor the perfect individual setup to boost productivity.

DISPLAY

Panel Technology IPS TFT with W-LED backlight
Screen Size [inch/cm] 24 / 60.47
Screen Aspect Ratio 16:9
Colour Gamuts 101.6 % sRGB; 75.3% AdobeRGB, 72% NTSC
Pixel Pitch [mm] 0.275
Brightness (typ.) [cd/m²] 250
Contrast Ratio (typ.) 1000:1 (5000:1 dynamic contrast ratio)
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 5 (grey-to-grey)
Colours [Mio.] 16.78 (6-bit per colour)

SYNCHRONISATION RATE
Horizontal Frequency [kHz] 31.5 - 83
Vertical Frequency [Hz] 50 - 75

RESOLUTION
Optimum Resolution
1920 x 1080 at 60 Hz
Supported
1024 x 768;1280 x 1024;1280 x 720;1280 x 960;1440 x 900;1680 x 1050;1920 x 1080;640 x 480;720 x 400;720 x 480;720 x 576;800 x 600

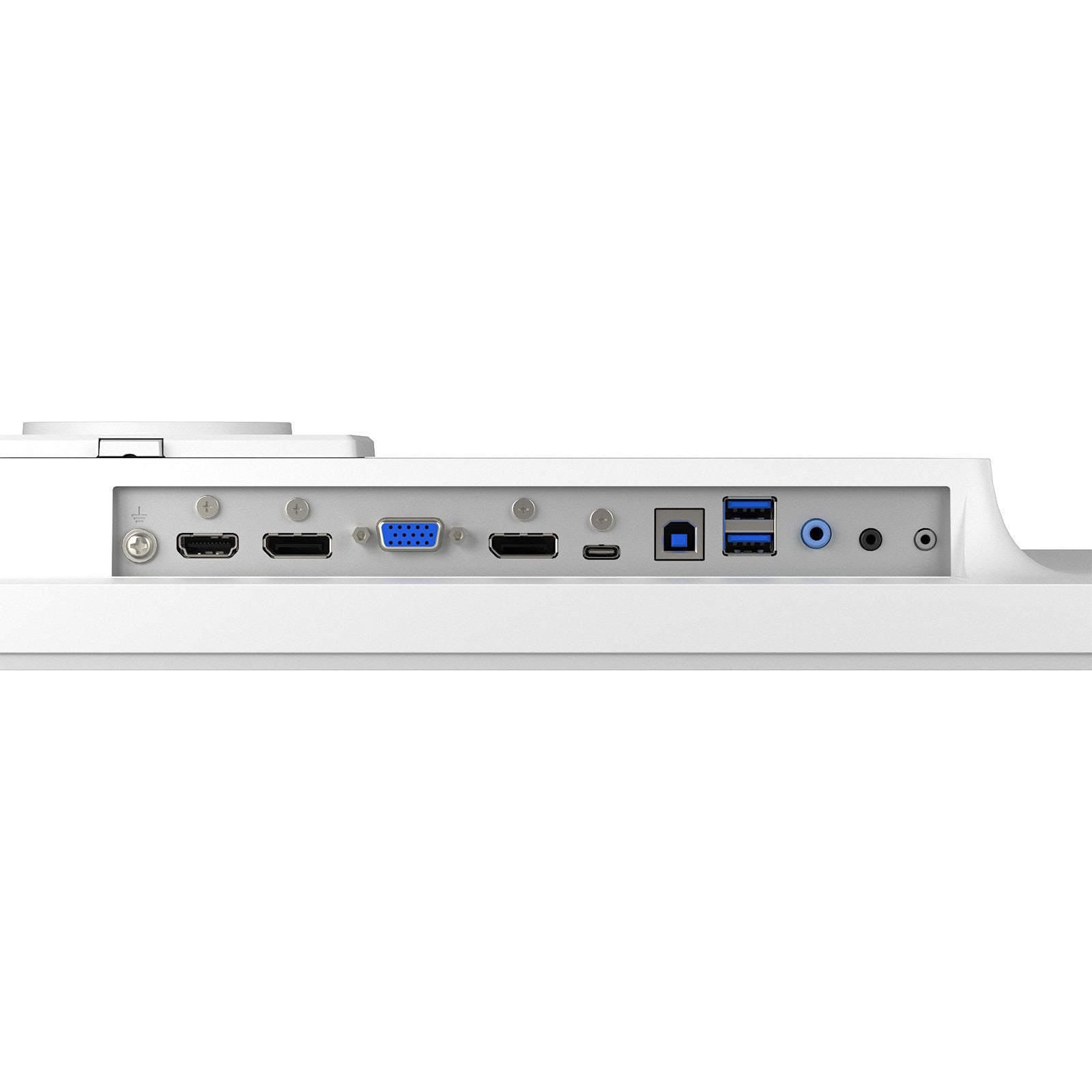

CONNECTIVITY
Digital 1 x DisplayPort; 1 x DisplayPort out; 1 x HDMI; 1 x USB Type C; USB ver. 3.1 (3 down / 1 up)
Analog 1 x D-sub 15 pin

ELECTRICAL
Power Consumption on Mode [W] 15 (Eco Mode 2); 21 (typ.)
Power Savings Mode [W] 0.3
Power Supply 0.9 A/0.5 A; 100-240 V; internal power supply

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 85
Storage Temperature [°C] -10 to 60

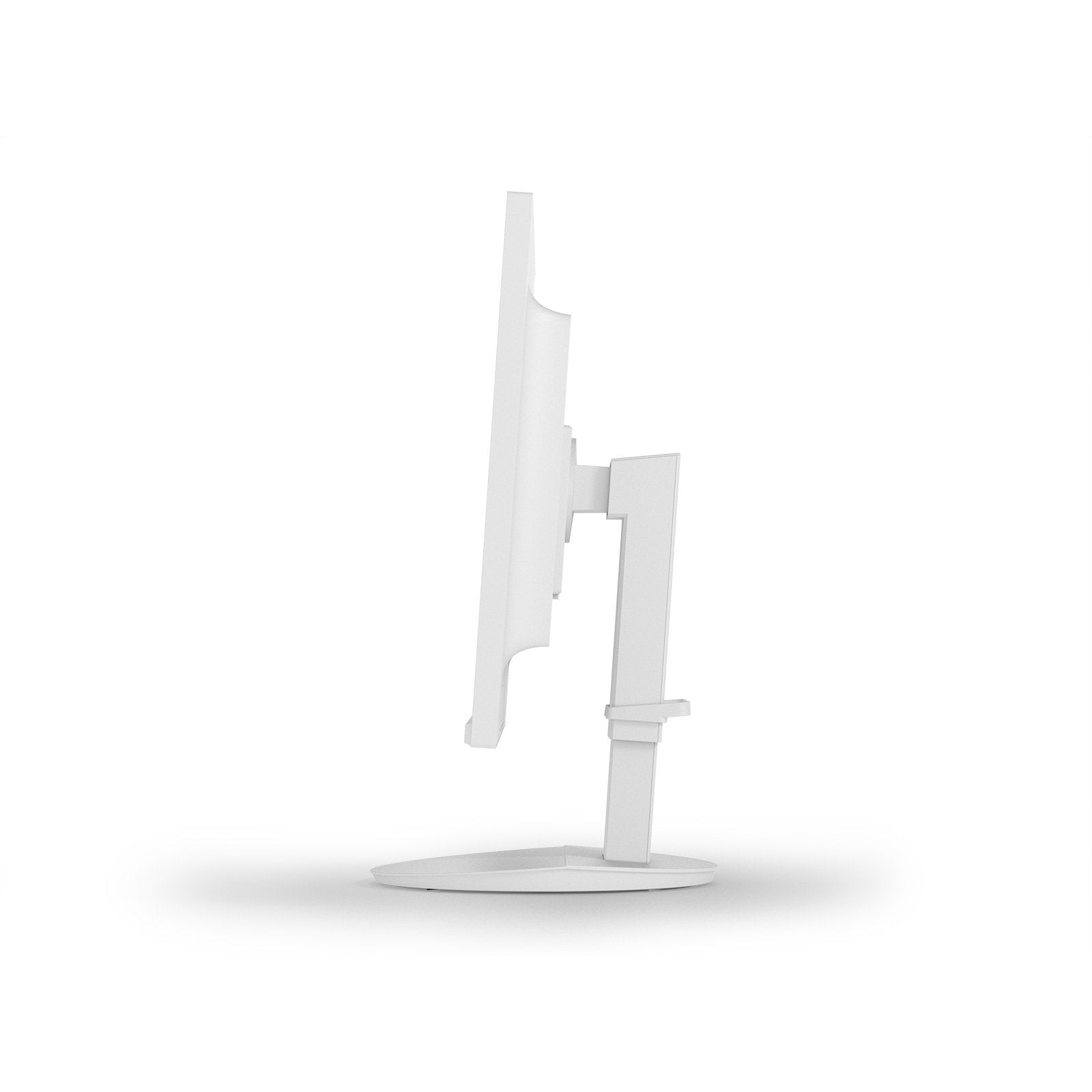

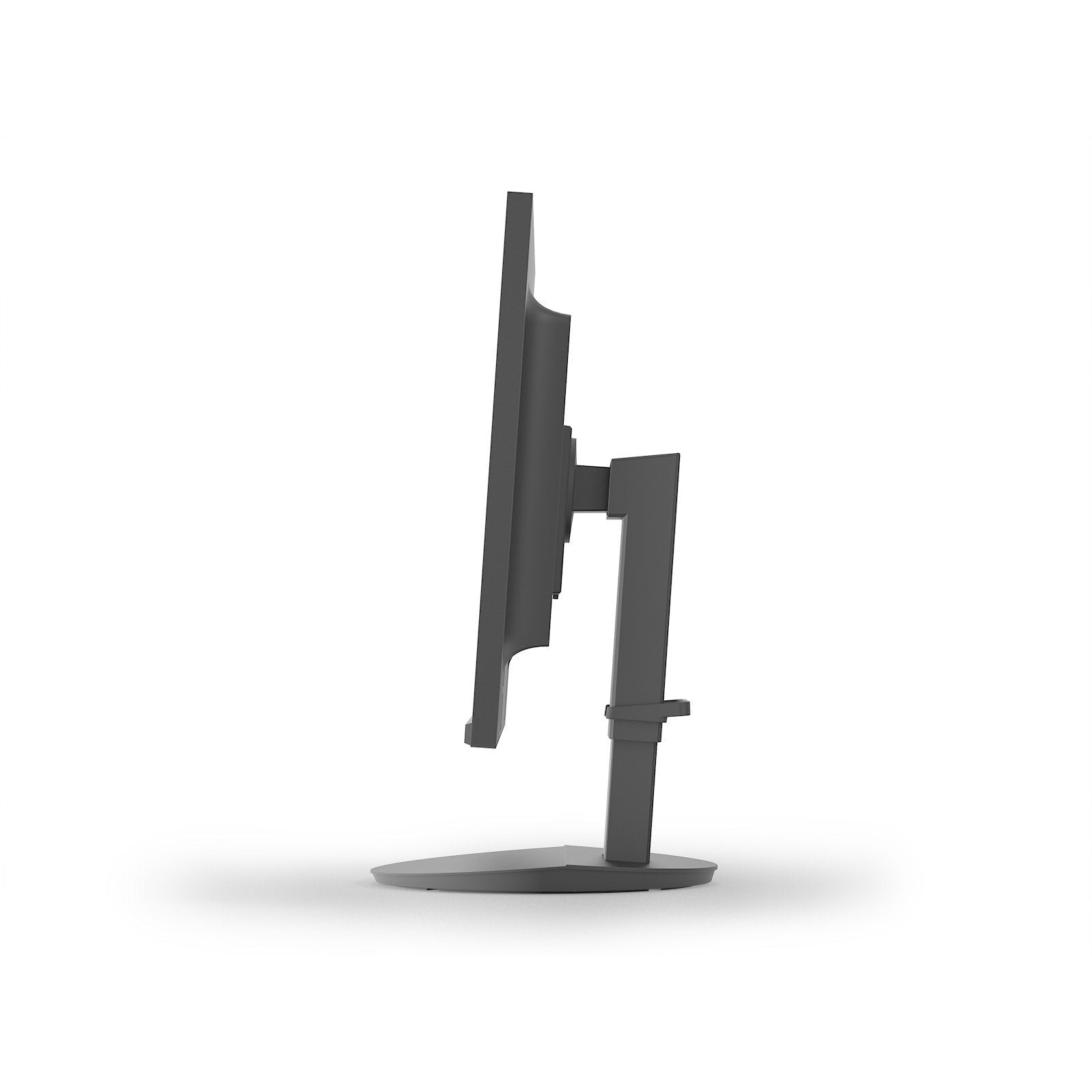

ERGONOMICS
Height adjustable stand [mm] 150 (Landscape mode)
Screen Tilt [°] -5 to 35
Screen Swivel [°] -170 to 170
Screen Rotate [°] 0 to 90 (landscape to portrait mode)

MECHANICAL
Bezel Width [mm] 0.8 (left/right/top); 15.8 (bottom)
Dimensions (W x H x D) [mm] 319.1 x 555.6 - 615.4 x 250 (Portrait mode); 537.7 x 336.6 - 486.6 x 250 (Landscape mode)
Weight [kg] With stand: 7
VESA Mounting [mm] 100 x 100 (4 points)

ADDITIONAL FEATURES
Colour Versions Black Front Bezel, Black Back Cabinet
Cable Management yes
Kensington security slot yes
Plug and Play DDC2B/2Bi; VESA DDC/CI; VESA DDC2Bi
Audio Integrated Speakers (1 W + 1 W)
Adjust Functions Advanced NTAA (Advanced Non-Touch-Auto-Adjustment)
Shipping Content Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Set-up Manual; USB Cable; USB-C Cable
Safety and Ergonomics CE; EAC; EnergyStar 8.0; ErP; Flicker-free; ISO 9241-307 (pixel failure class I); Low Blue Light; PSB; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; WEEE
Warranty 3 years warranty incl. backlight; optional 1st to 3rd year 24/7 usage warranty; optional 4th to 5th year warranty extension

GREEN FEATURES
Energy Efficiency Ambient light sensor; Energy consumption: 13 kWh/1000 h; Energy efficiency class: D; Human sensor
Ecological Standards ErP compliant; RoHS compliant; WEEE
