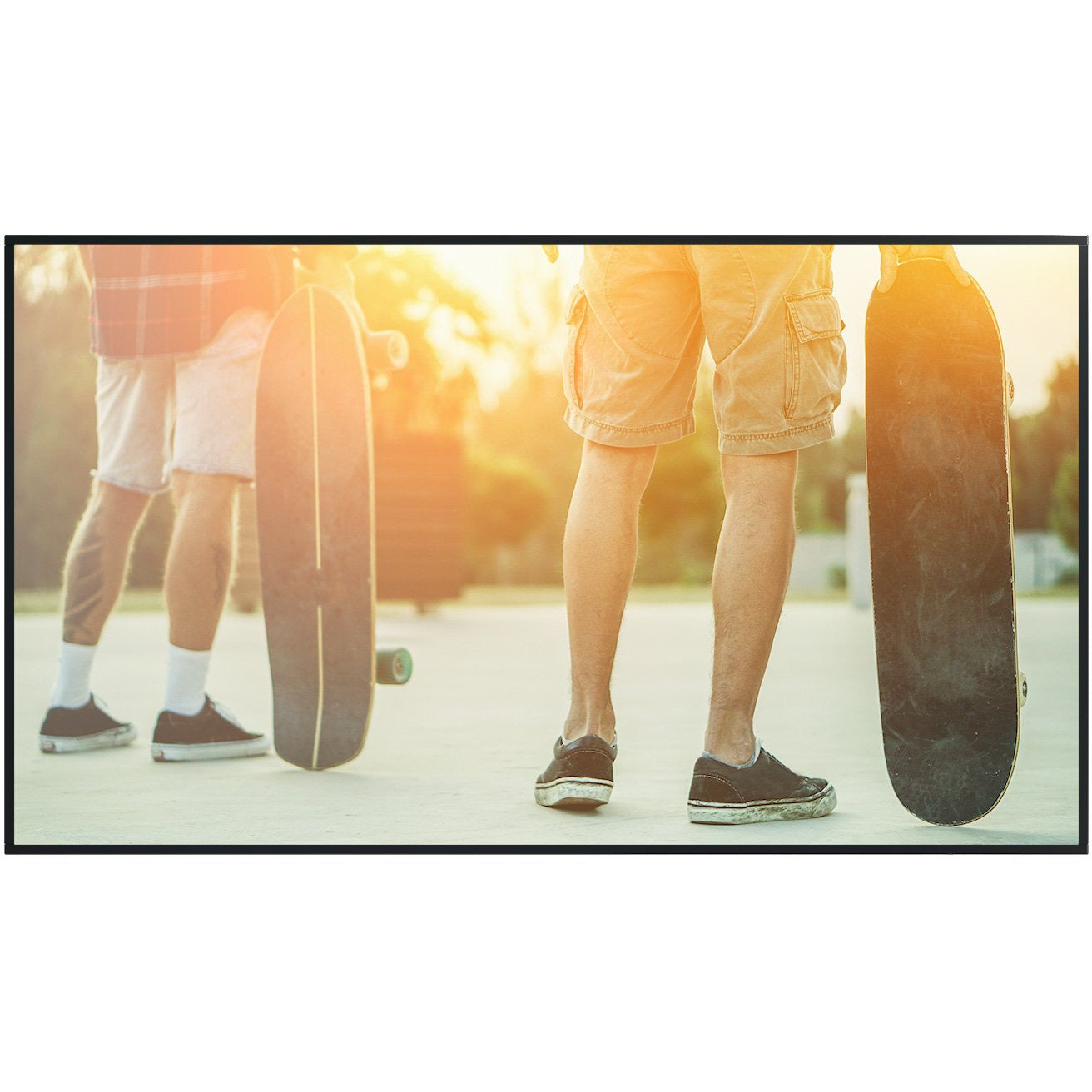

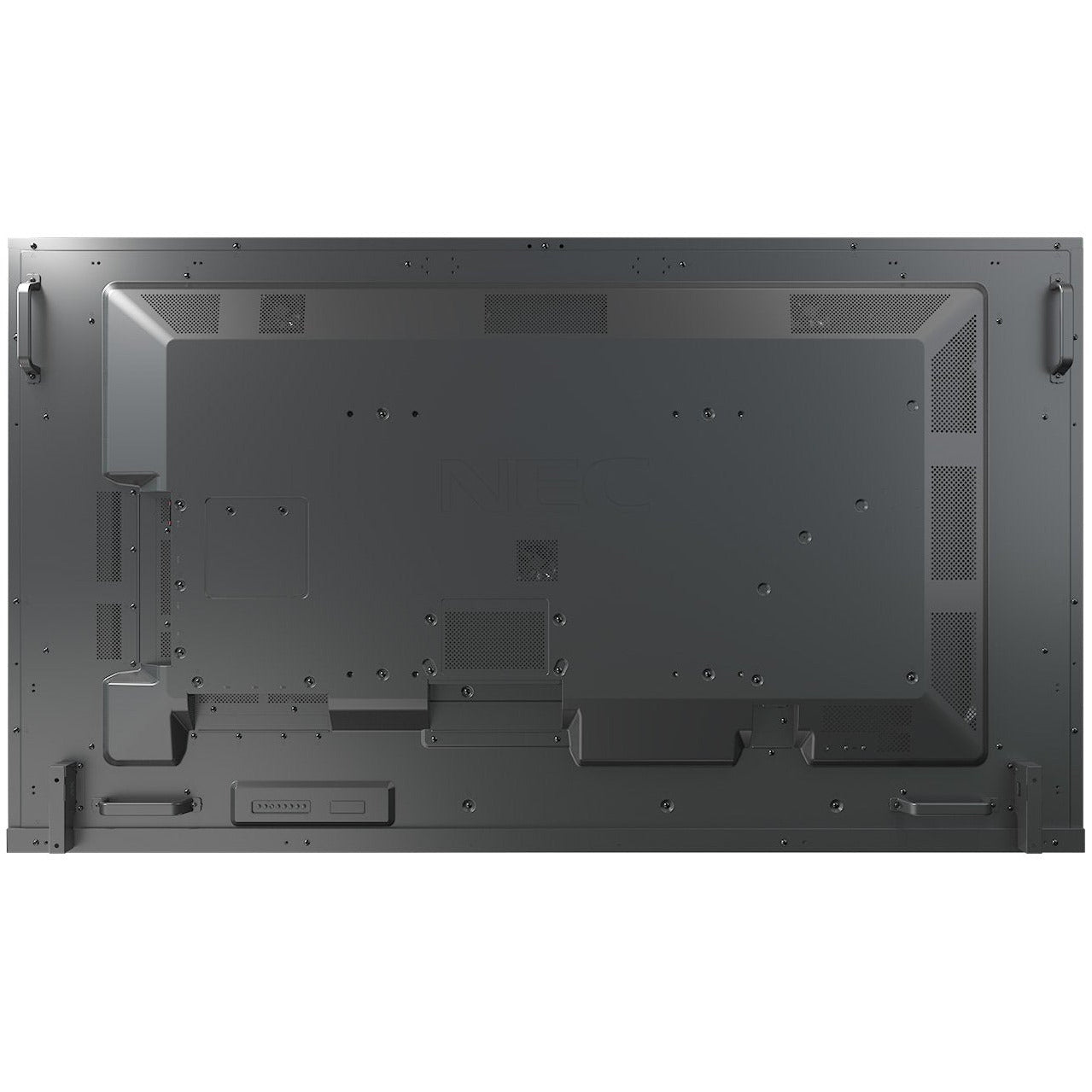

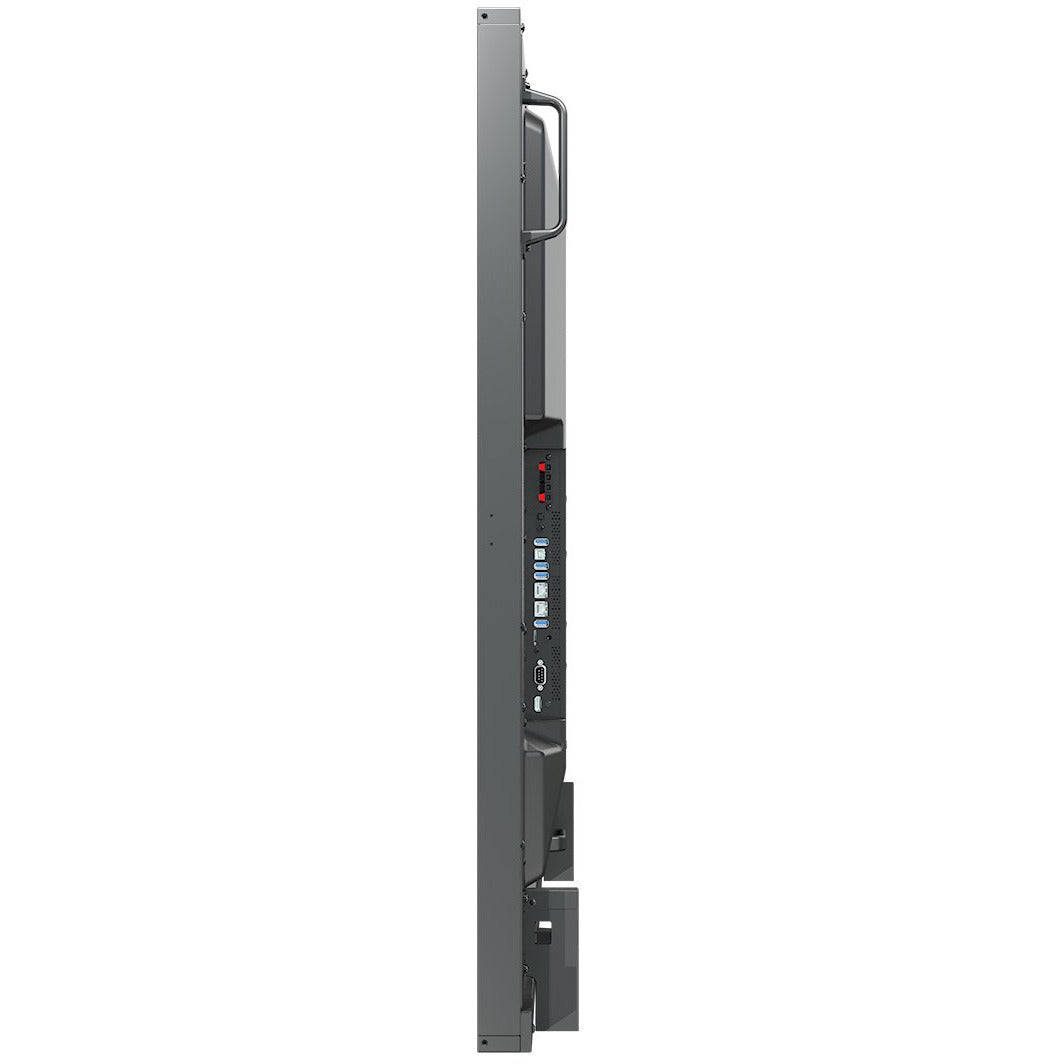

NEC MultiSync® M321 PG-2 LCD 32" Protective Glass Large Format Display
NEC MultiSync® M321 PG-2 LCD 32" Protective Glass Large Format Display
SKU:60005605
Out of stock
Couldn't load pickup availability
Meticously Powerful Signage with Professional Protection
The NEC MultiSync® M321 PG-2 combines professional protection of your investment with unparalleled display performance. Deliver your message with impact and seamless simplicity for the most convincing results.
Guaranteed reliability even under the toughest conditions is achieved with the super robust 4mm thick protective glass designed to withstanding external impacts. The anti-reflective glass surface combined with brightness levels of 450 cd/m² provides crisp and clear images and readability from different viewing angles and distances.
The MultiSync® M321 PG-2 is the perfect choice for creating a big and durable impression in public spaces with high volumes of people such as for applications in transportation, retail, hospitality and digital out of home as well as for tough environments in industrial applications.
Benefits
- Maximum investment security – assured as the display is protected against damage from external impacts such as knocks and blows.
- Superb readability – supported through the use of anti-reflective and high light-transmission Conturan® protective glass from Schott.
- Protects the public – the thermally toughened protective glass will disintegrate into small fragments reducing the risk of injury should it suffer extreme damage.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
DISPLAY
| Panel Technology | IPS with Direct LED backlights |
| Screen Size [inch/cm] | 32 / 80 |
| Aspect Ratio | 16:9 |
| Brightness [cd/m²] | 450 |
| Contrast Ratio (typ.) | 1100:1 |
| Contrast Ratio | ≥ 800:1 1 |
| Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Glass Type | Security Glass with anti-reflextion coating |
| Colour Depth [bn] | 16.7 (8bit) |
| Response Time (typ.) [ms] | 8 |
| Panel Refresh Rate [Hz] | 60 |
| Haze Level [%] | Pro (28) |
| Supported Orientation | Landscape; Portrait |
GLASS
| Type | GroGlass® Protective Glass; Premium toughened glass, anti-glare coating |
| Thickness [mm] | 4 |
| Light Transmission [%] | ≥ 97 |
| Reflection Rate [%] | 1 |
RESOLUTION
| Native Resolution |
1920 x 1080
|
| Supported Resolutions |
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1650 x 1050;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160
|
SYNCHRONISATION RATE
| Horizontal Frequency [kHz] | 26 - 91.1 |
| Vertical Frequency [Hz] | 23 - 86 |
CONNECTIVITY
| Input Video Analogue | 1 x VGA |
| Input Video Digital | 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) |
| Input Audio Digital | 1 x DisplayPort; 2 x HDMI |
| Input Control | LAN 100Mbit; remote control wire (3,5mm jack); RS232 |
| Input Data | 1 x USB 2.0 (MediaPlayer) |
| Output Audio Analogue | 1 x 3,5 mm jack |
| Input Detect | Custom; First; Last |
SENSORS
| Ambient Light Sensor | Integrated, triggered actions programmable |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
ELECTRICAL
| Power Consumption Eco/max. [W] | 40 shipping |
| Power Savings Mode [W] | < 0.5; < 2 (Networked Standby) |
| Power Management | VESA DPMS |
| Power Supply | 100-240 V AC; internal |
ENVIRONMENTAL CONDITIONS
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Humidity [%] | 10 to 90 |
| Storage Temperature [°C] | -20 to 60 |
MECHANICAL
| Dimensions (W x H x D) [mm] | Without stand: 731.5 x 438.4 x 76.5 |
| Weight [kg] | 9.1 |
| Bezel Width [mm] | 14.4 (left and right); 18.4 (top); 23.8 (bottom) |
| VESA Mounting [mm] | 100 x 100 (FDMI); 200 x 200 (FDMI); 4 holes; M4 |
| Ingress Protection | IP5x (front); IP2x (back) |
| Packaging Dimensions (W x H x D) [mm] | 870 x 527 x 160 |
| Packaging Weight [kg] | 13.2 |
| Colour Bezel | Pantone 426M (black) |
| Material | Metal |
MEDIAPLAYER
| Supported File Storage / File System | USB 2.0 / FAT16, FAT32 |
| Supported Image Formats | JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640 |
| Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s |
AVAILABLE OPTIONS
| Accessories | Feet (ST-32M); Presence Sensor (KT-RC3); Wall mount (PDW T XS) |
| External Computing | MPi4 Box; OPS/SDM standalone adapter to integrate any OPS/SDM computing or interface module |
GREEN FEATURES
| Energy Efficiency | Energy consumption: 41 kWh/1000 h; Energy efficiency class: G; LED backlight |
| Ecological Standards | EnergyStar 8.0 |
ADDITIONAL FEATURES
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo |
| Safety and Ergonomics | CE; EAC; RoHS |
| Audio | Integrated Speakers (5 W + 5 W) |
| Shipping Content | 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual |
| Warranty | 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2 |
| Operating Hours | 24/7 |
| External Control | AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP |
| Remote Management | Automated Email Alerts; NEC NaViSet Administrator 2 |
| Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification |
| Resistance to Fire | Metal backcover, plastic material certified acc. to UL94-5VB |
