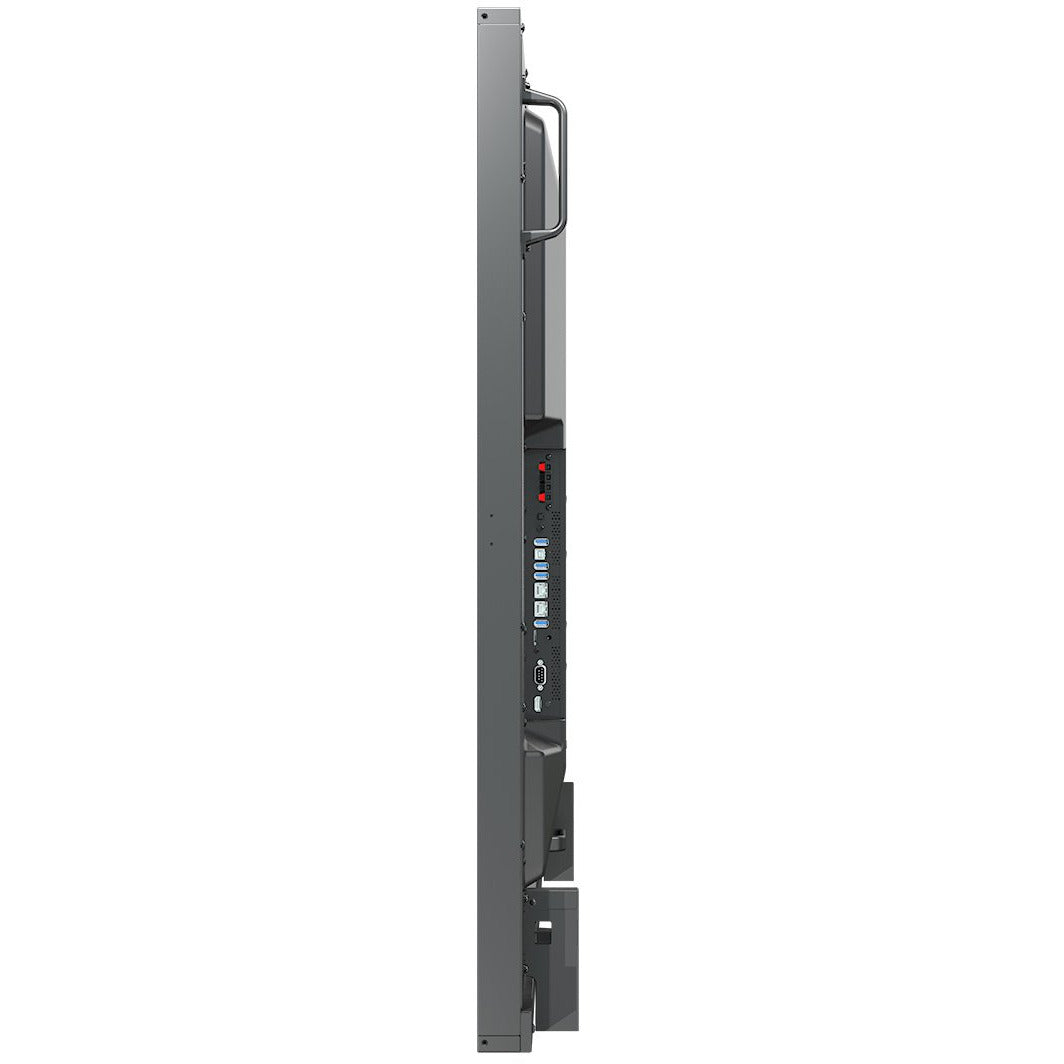

NEC MultiSync® M551 PG-2 LCD 55" Protective Glass Large Format Display
NEC MultiSync® M551 PG-2 LCD 55" Protective Glass Large Format Display
SKU:60005852
Out of stock
Couldn't load pickup availability
Meticously Powerful Signage with Professional Protection
The NEC MultiSync® M551 PG-2 combines professional protection of your investment with unparalleled display performance. Deliver your message with impact and seamless simplicity for the most convincing results.
Guaranteed reliability even under the toughest conditions is achieved with the super robust 4mm thick protective glass designed to withstanding external impacts. The anti-reflective glass surface combined with brightness levels of 500 cd/m² provides crisp and clear images and readability from different viewing angles and distances.
The MultiSync® M551 PG-2 is the perfect choice for creating a big and durable impression in public spaces with high volumes of people such as for applications in transportation, retail, hospitality and digital out of home as well as for tough environments in industrial applications.
Benefits
- Maximum investment security – assured as the display is protected against damage from external impacts such as knocks and blows.
- Protects the public – the thermally toughened protective glass will disintegrate into small fragments reducing the risk of injury should it suffer extreme damage.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
- Superb readability – supported through the use of anti-reflective and high light-transmission GroGlass® protective glass.
DISPLAY
| Panel Technology | IPS with Edge LED backlights |
| Aspect Ratio | 16:9 |
| Brightness [cd/m²] | 500 |
| Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Response Time (typ.) [ms] | 8 |
| Supported Orientation | Landscape; Portrait |
GLASS
| Type | GroGlass® Protective Glass |
| Thickness [mm] | 4 |
| Light Transmission [%] | ≥ 97 |
| Reflection Rate [%] | 1 |
RESOLUTION
| Native Resolution |
3840 x 2160
|
| Supported Resolutions |
1024 x 768;1280 x 1024;1360 x 768;1366 x 768;1440 x 900;1600 x 1200;1650 x 1050;1900 x 1200;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160
|
SYNCHRONISATION RATE
| Horizontal Frequency [kHz] | 26 - 91.1 |
CONNECTIVITY
| Input Video Digital | 1 x DisplayPort (with HDCP) |
| Input Audio Digital | 1 x DisplayPort |
| Input Control | LAN 100Mbit; remote control wire (3,5mm jack); RS232 |
| Input Data | 1 x USB 2.0 (MediaPlayer) |
| Output Audio Analogue | 1 x 3,5 mm jack |
| Input Detect | Custom; First; Last |
OPEN MODULAR INTELLIGENCE
| Intel® SDM | accepts Intel® Smart Display Modules Large and Small up to 66 W |
| Compute Module Slot | RPi Compute Module 4 |
SENSORS
| Ambient Light Sensor | Integrated, triggered actions programmable |
ELECTRICAL
| Power Consumption Eco/max. [W] | 110 shipping |
| Power Savings Mode [W] | < 0.5; < 2 (Networked Standby) |
| Power Management | VESA DPMS |
| Power Supply | internal |
ENVIRONMENTAL CONDITIONS
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Humidity [%] | 10 to 90 |
MECHANICAL
| Weight [kg] | 38.5 |
| Bezel Width [mm] | 16 (top); 19.6 (bottom); 22.1 (left and right) |
| VESA Mounting [mm] | 300 x 300 (FDMI); 4 holes |
| Packaging Dimensions (W x H x D) [mm] | 1,430 x 920 x 250 |
| Packaging Weight [kg] | 48.6 |
MEDIAPLAYER
| Supported File Storage / File System | USB 2.0 / FAT16, FAT32 |
| Supported Image Formats | JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640 |
| Supported Video Formats | MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro) |
AVAILABLE OPTIONS
| Accessories | Feet (ST-43M); Presence Sensor (KT-RC3); Soundbar (active: SP-ASCM-IQ2 / SP-ASCM-2); Speaker (SP-RM3a); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P) |
GREEN FEATURES
| Energy Efficiency | Energy efficiency class: G; LED backlight |
| Ecological Standards | EnergyStar 8.0 |
ADDITIONAL FEATURES
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo |
| Safety and Ergonomics | BSMI; CE; EAC; EMC Class B; FCC Class B; RCM; VCCI |
| Pixel Failure Class | ISO 9241-307, Class 1 |
| Shipping Content | HDMI Cable; Power Cable; Remote Control; Setup Manual |
| Warranty | additional services available; optional 4. + 5. year warranty extension 1 |
| Operating Hours | 24/7 |
| External Control | AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; PJLink; SNMP |
| Remote Management | Automated Email Alerts; NEC NaViSet Administrator 2 |
| Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification |
