NEC

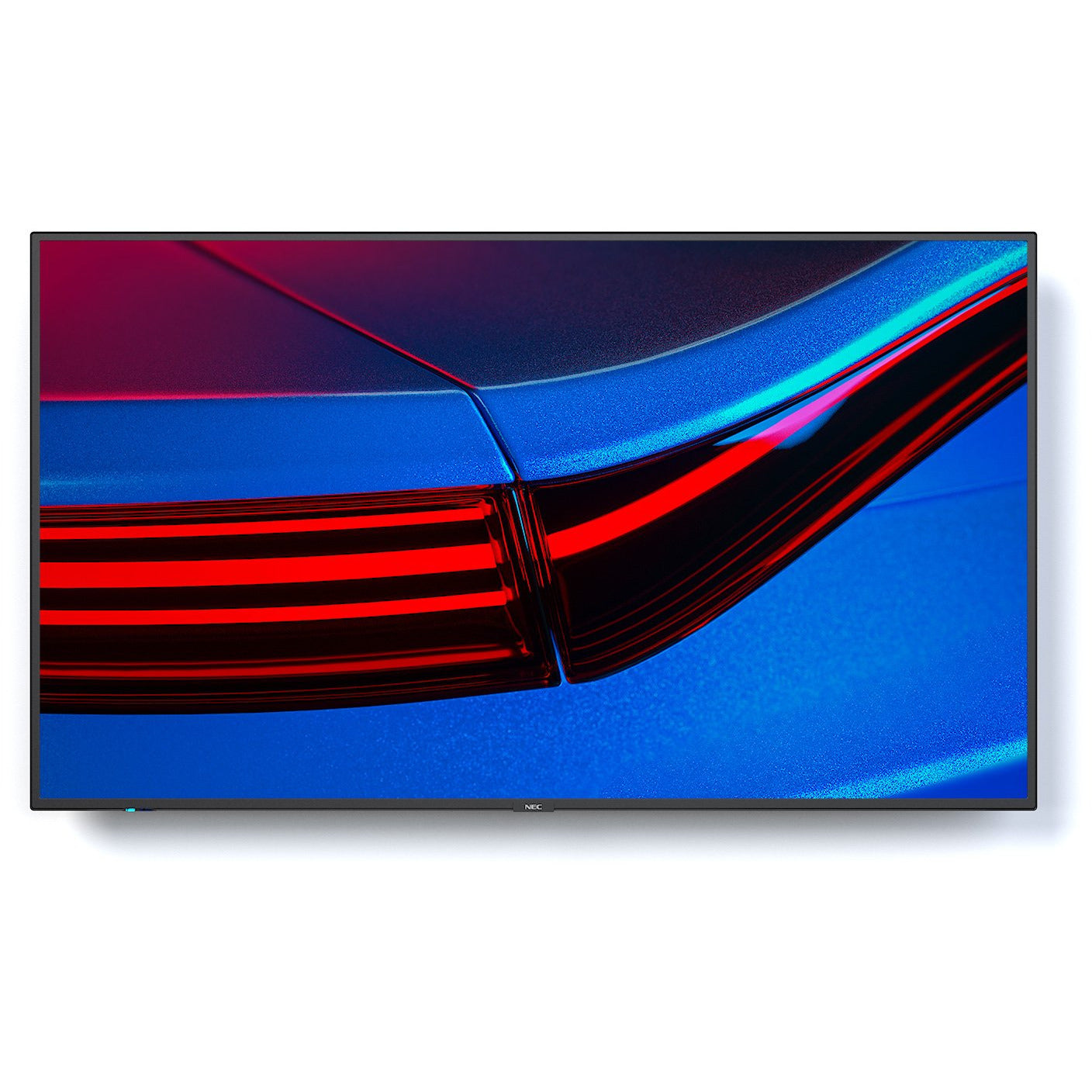

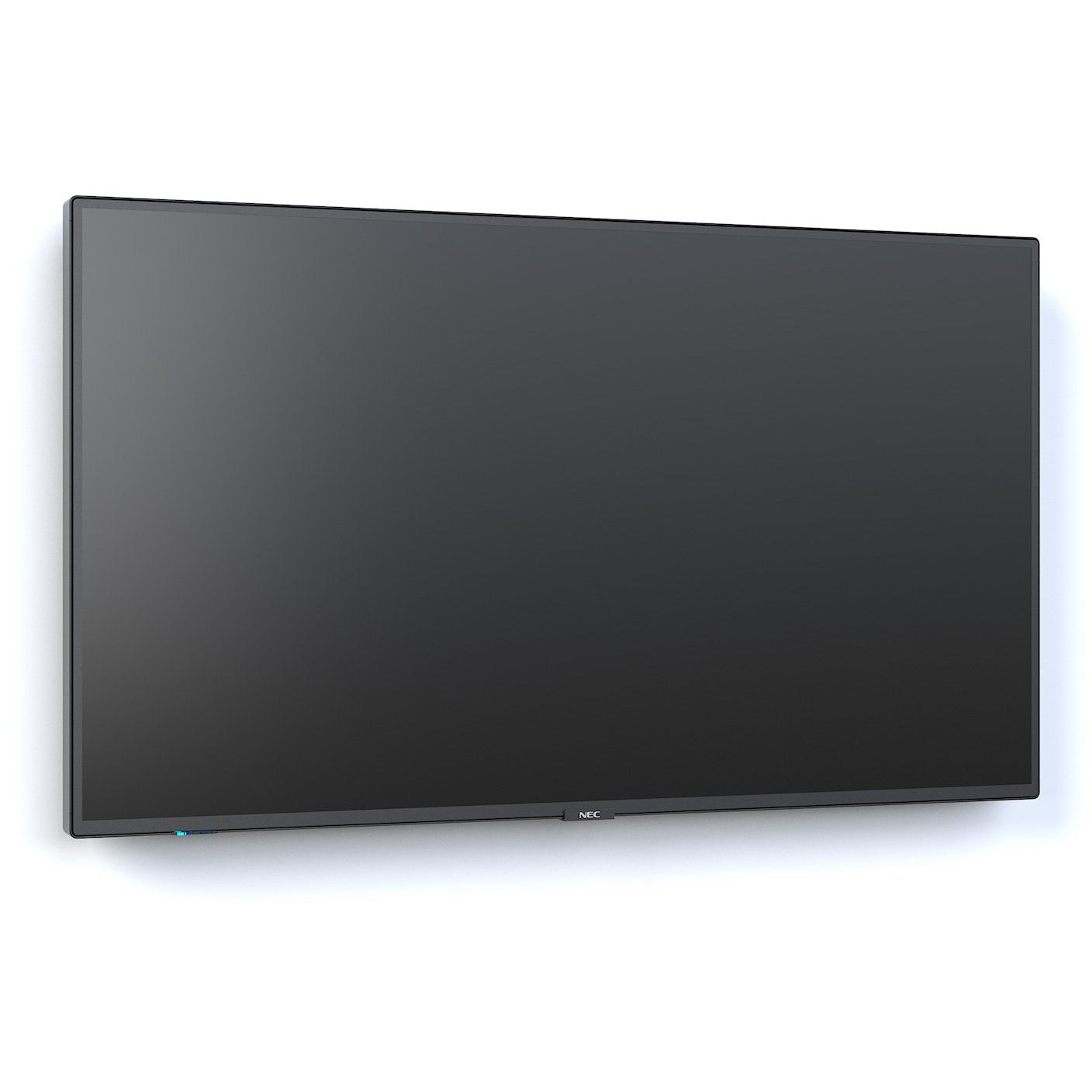

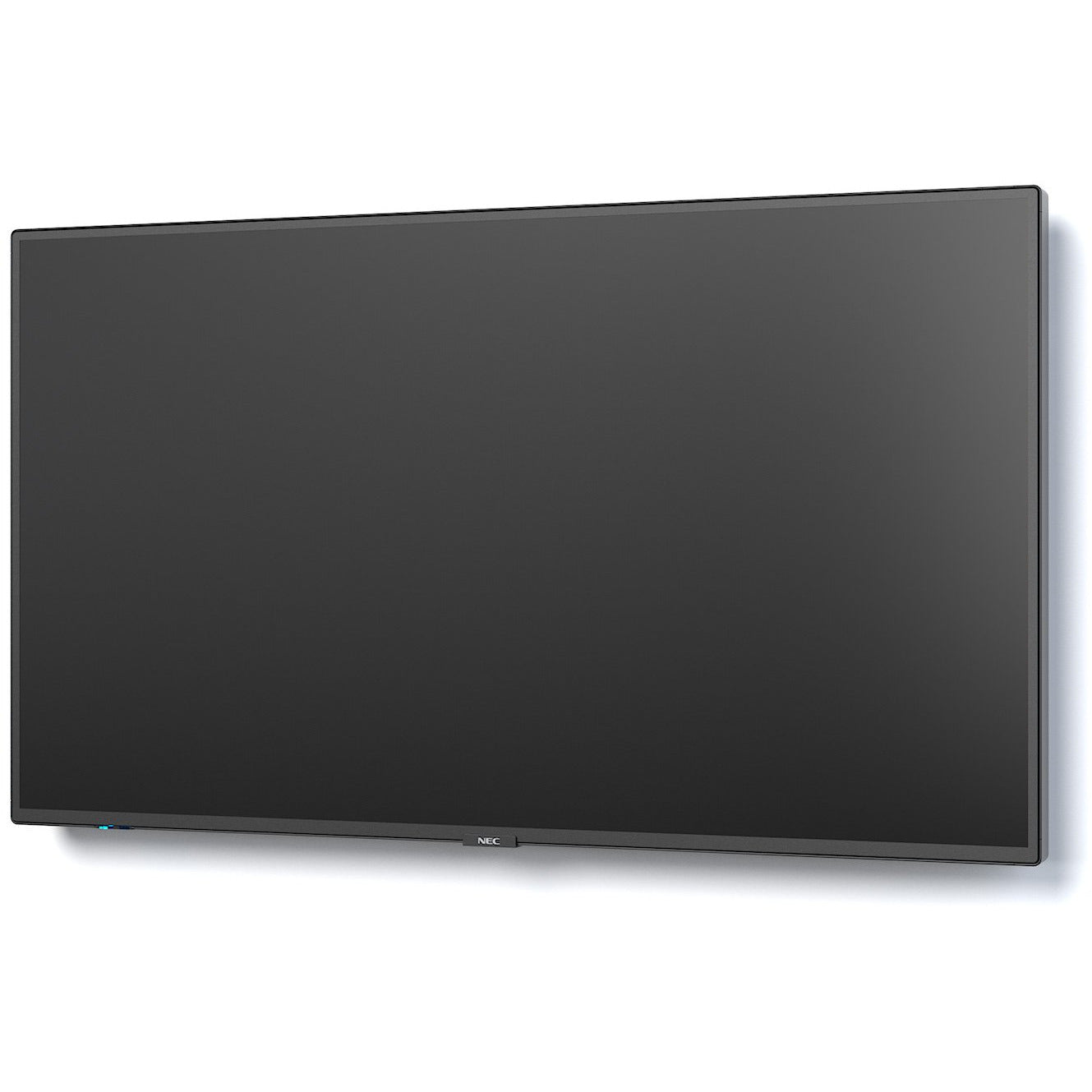

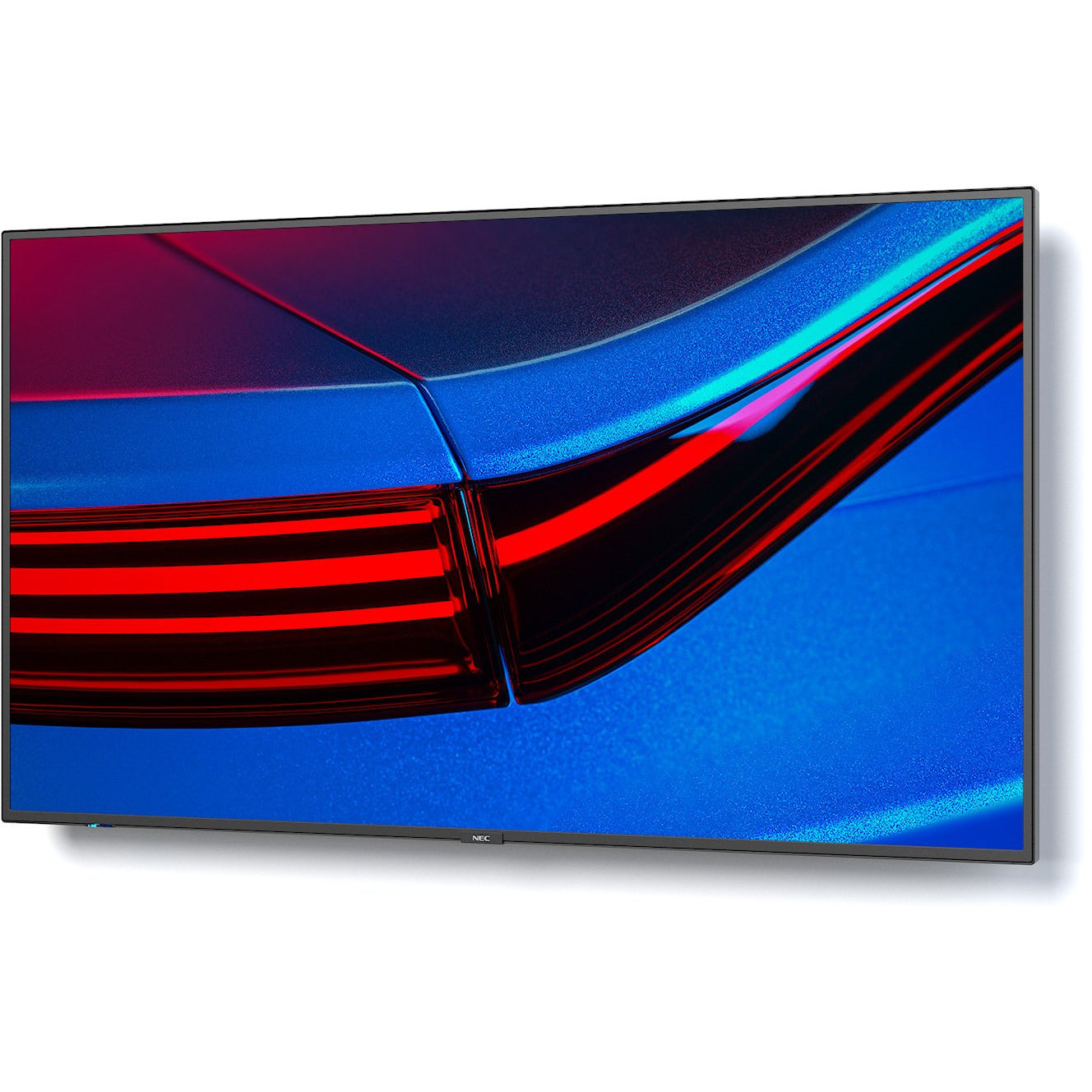

NEC MultiSync® P555 LCD 55" Professional Large Format Display

NEC MultiSync® P555 LCD 55" Professional Large Format Display

SKU:60005058

Low stock

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out

When imaging precision cannot be compromised

When imaging precision and 24/7 operational reliability cannot be compromised, the 5th generation of NEC MultiSync® P series presents best-in-class performance with an advanced feature set for mission-critical applications

Unparalleled clarity of detail and colour accuracy is achieved with 8K signal processing, wide colour gamut and the integrated NEC SpectraView® engine controlling all visual parameters. Even in bright ambient light conditions, high brightness levels of 700 cd/m² combined with a high haze filter guarantees exceptional readability with no annoying reflections. Despite its slim, elegant profile, the quality build is robust for use in public spaces, with an all-metal chassis for fire-retardancy. Featuring NEC Open Modular Intelligence (OMI) slot-in technology, choose scalable computing power with Raspberry Pi Compute Module 4 or the more powerful Intel® Smart Display Modules (Intel®SDM) for tailor-made signage solutions.

For best visualisation in control rooms and production lines, for passenger information and wayfinding signage; the NEC P Series is trusted for safety and long-life, fit-for-purpose performance.

Benefits

  • Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
  • Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
  • Safe for public environments – a metal back cover and intelligent heat management ensure safe use in public spaces where fire-retardancy is mandatory
  • Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
  • Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.

DISPLAY

Panel Technology IPS with Edge LED backlights
Screen Size [inch/cm] 55 / 138.8
Aspect Ratio 16:9
Brightness [cd/m²] 700
Contrast Ratio ≥ 8000:1 1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1.073 (10bit)
Colour Gamut 86% of DCI
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Haze Level [%] Pro (28)

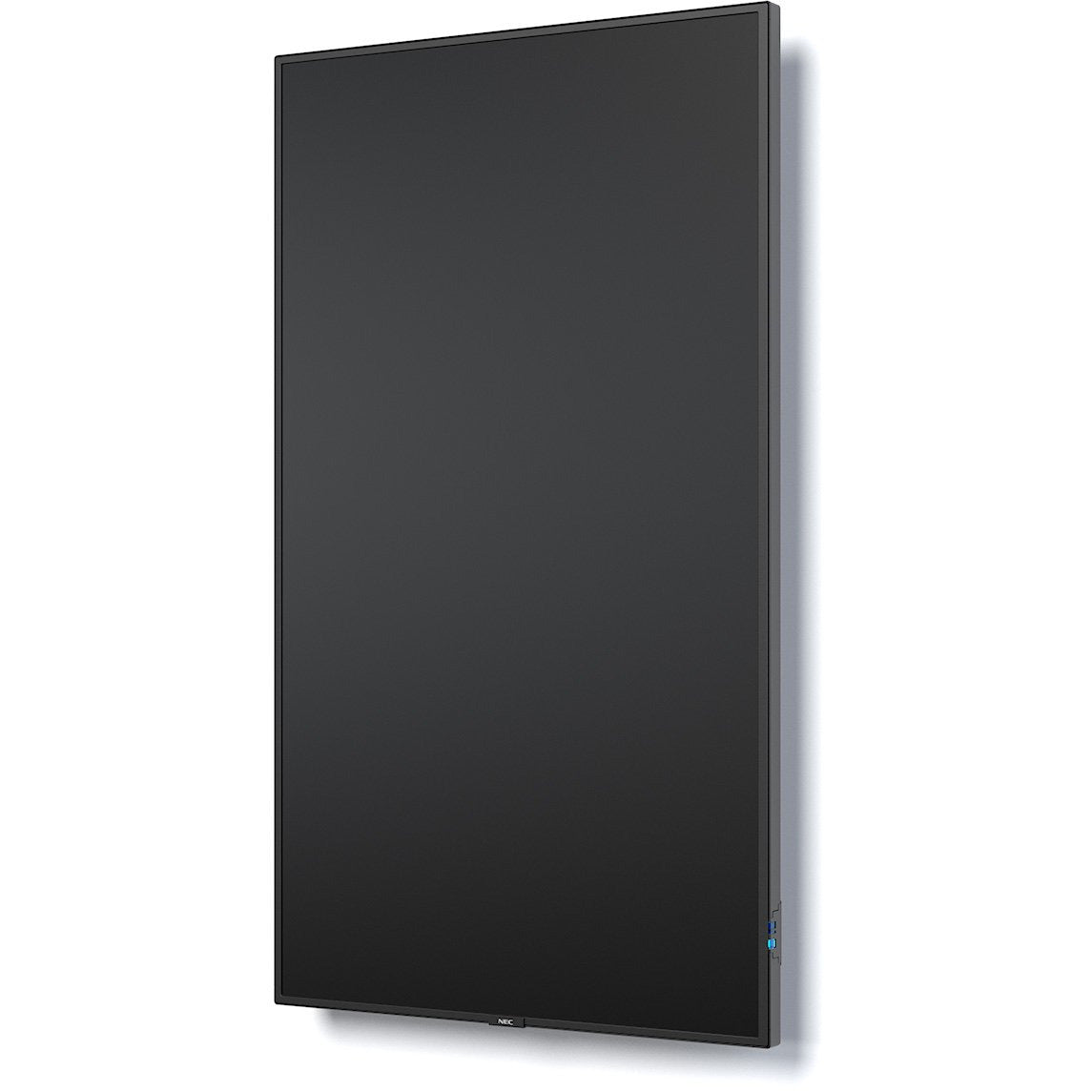

Supported Orientation Face Down; Face Up 2; Landscape; Portrait
RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160;7680 x 4320
SYNCHRONISATION RATE
Horizontal Frequency [kHz] 15 - 135
Vertical Frequency [Hz] 23 - 76

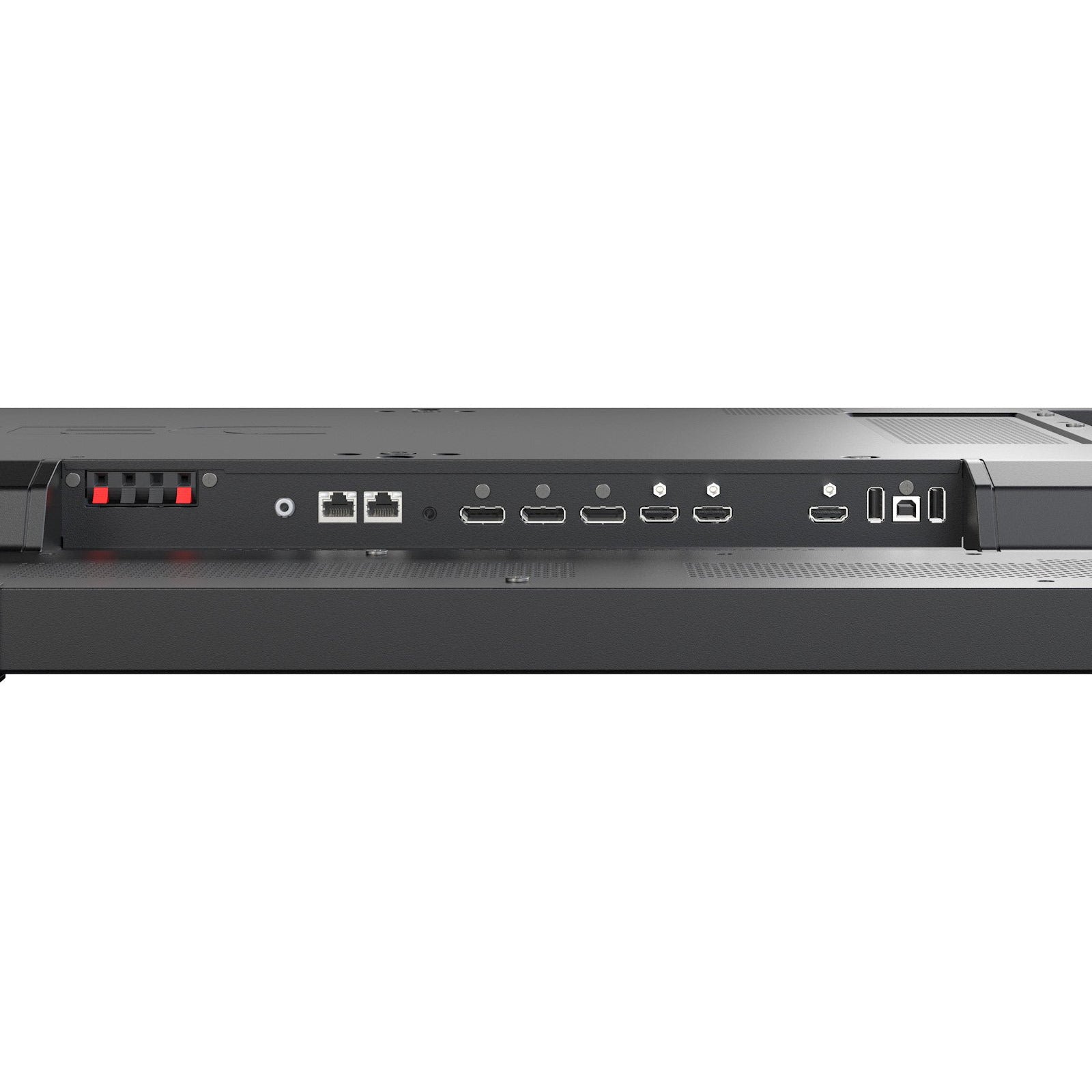

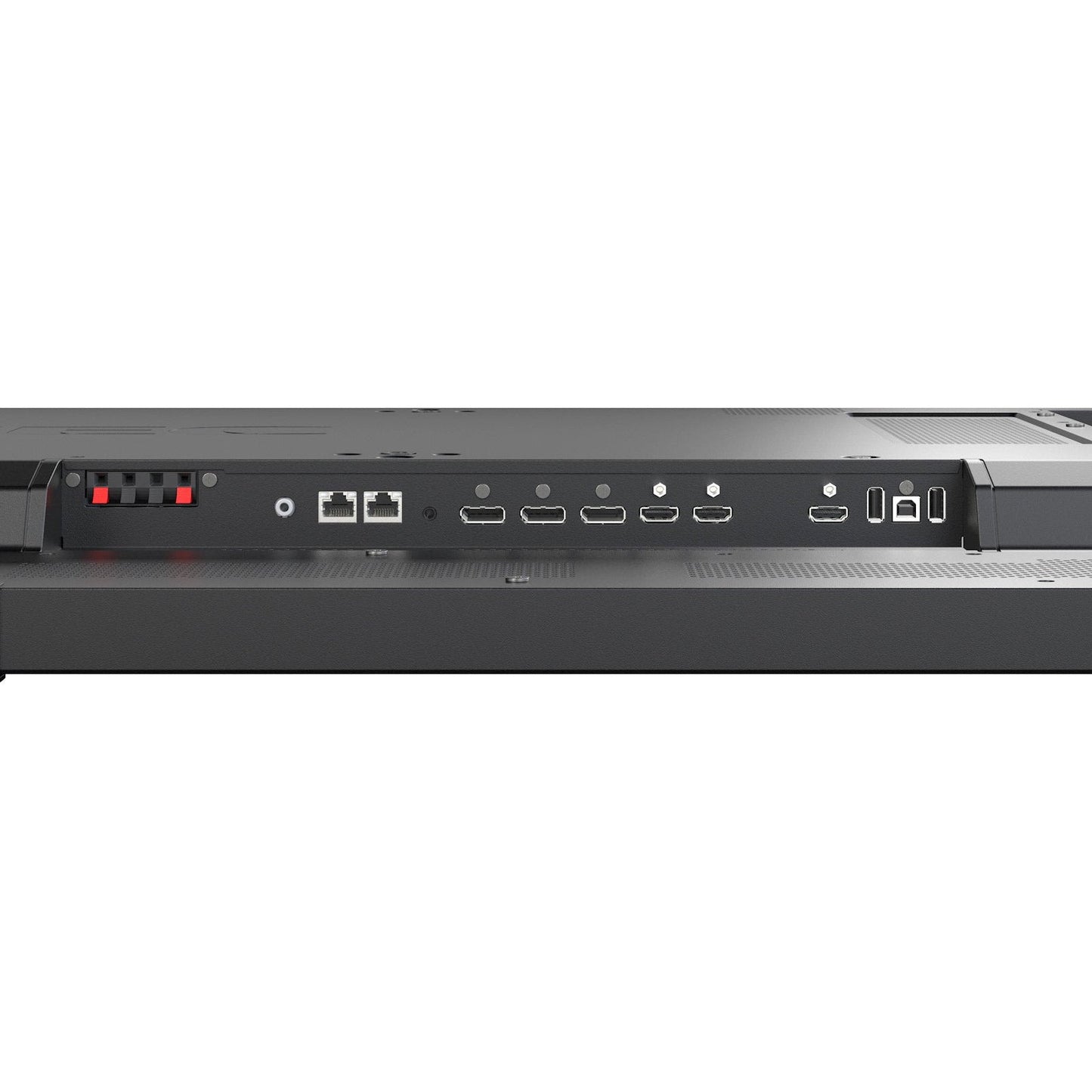

CONNECTIVITY
Input Video Digital 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital 1 x DisplayPort; 2 x HDMI

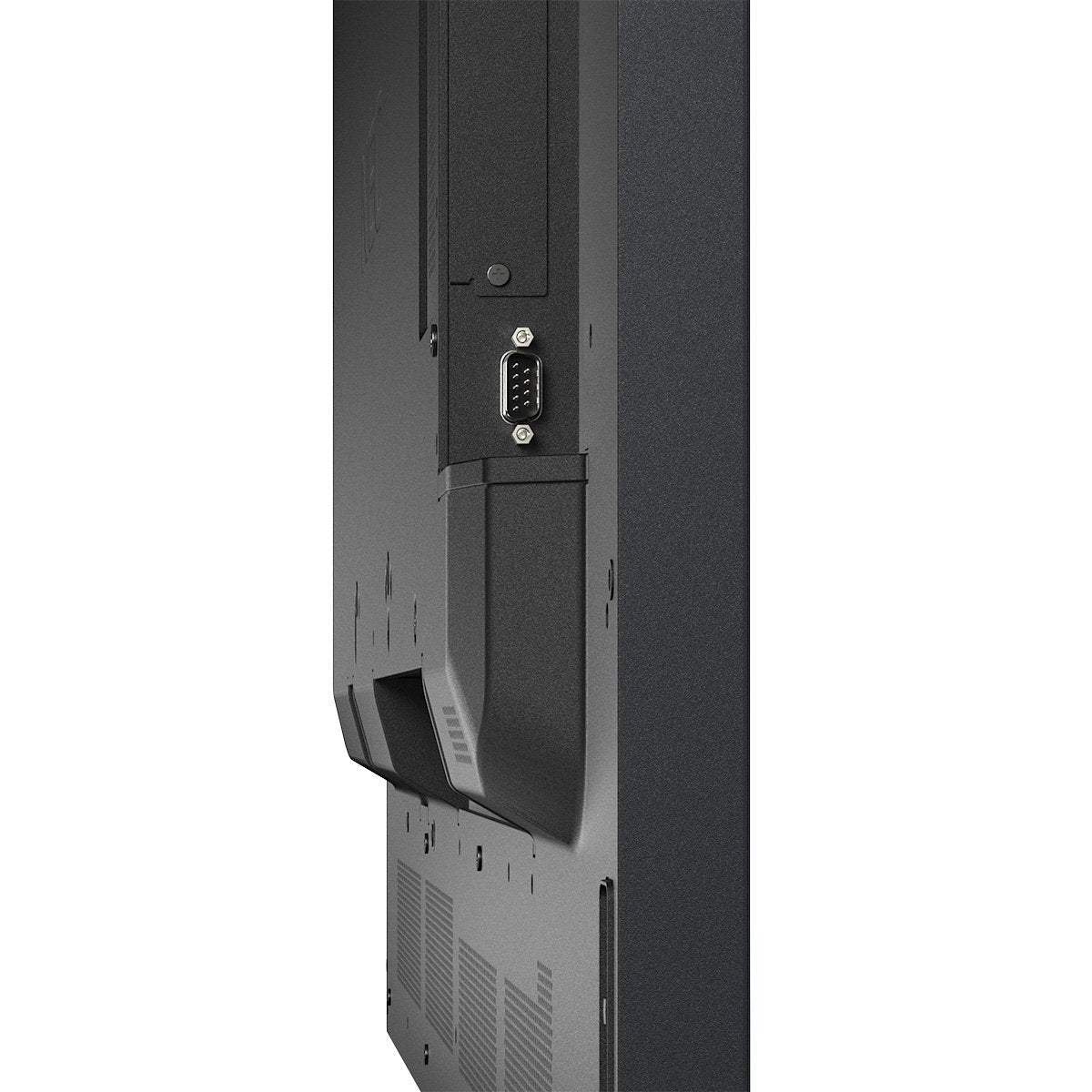

Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data 1 x USB 2.0 (Downstream); 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream)
Output Video Digital 1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC); 1 x HDMI (loop through: HDMI, SDM slot-in PC)
Output Audio Analogue 1 x 3,5 mm jack
Output Control 1 x LAN 100Mbit
Input Detect Custom; First; Last
PiP/PbP Dual-Split; Quad-Split; scalable picture size
CALIBRATION
Factory Calibration Gamma; Intensity; RGB; Uniformity; White Point
Sensor Calibration (through USB) PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
Calibration with Software Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
Calibration Software NEC Display Wall Calibrator
OPEN MODULAR INTELLIGENCE
Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot RPi Compute Module 4
SENSORS
Ambient Light Sensor Integrated, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable
ELECTRICAL
Power Consumption Eco/max. [W] 110 shipping
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS
Power Supply 100-240 V AC; 50/60 Hz; internal
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 90
Storage Temperature [°C] -20 to 60
MECHANICAL

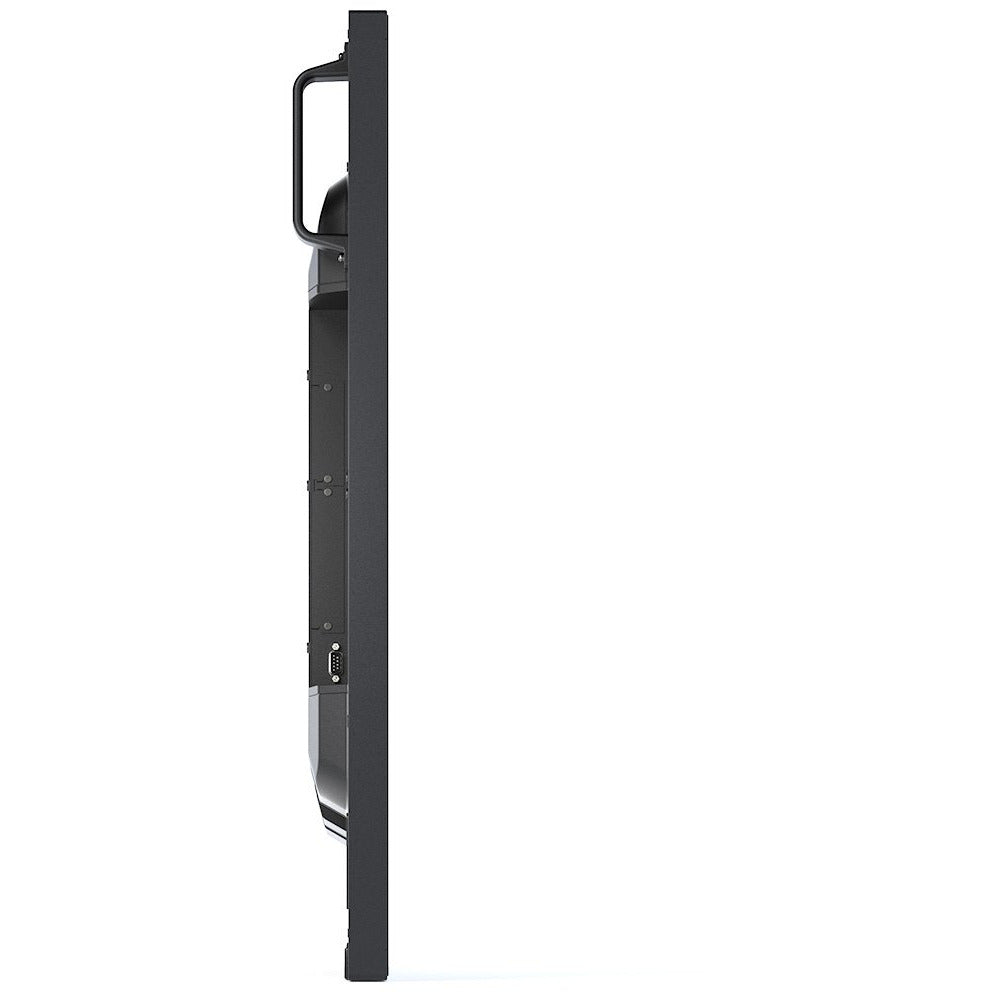

Dimensions (W x H x D) [mm] 1,239.6 x 713 x 61.1
Weight [kg] 27.6
Bezel Width [mm] 12 (top); 12.5 (left and right); 15.6 (bottom)

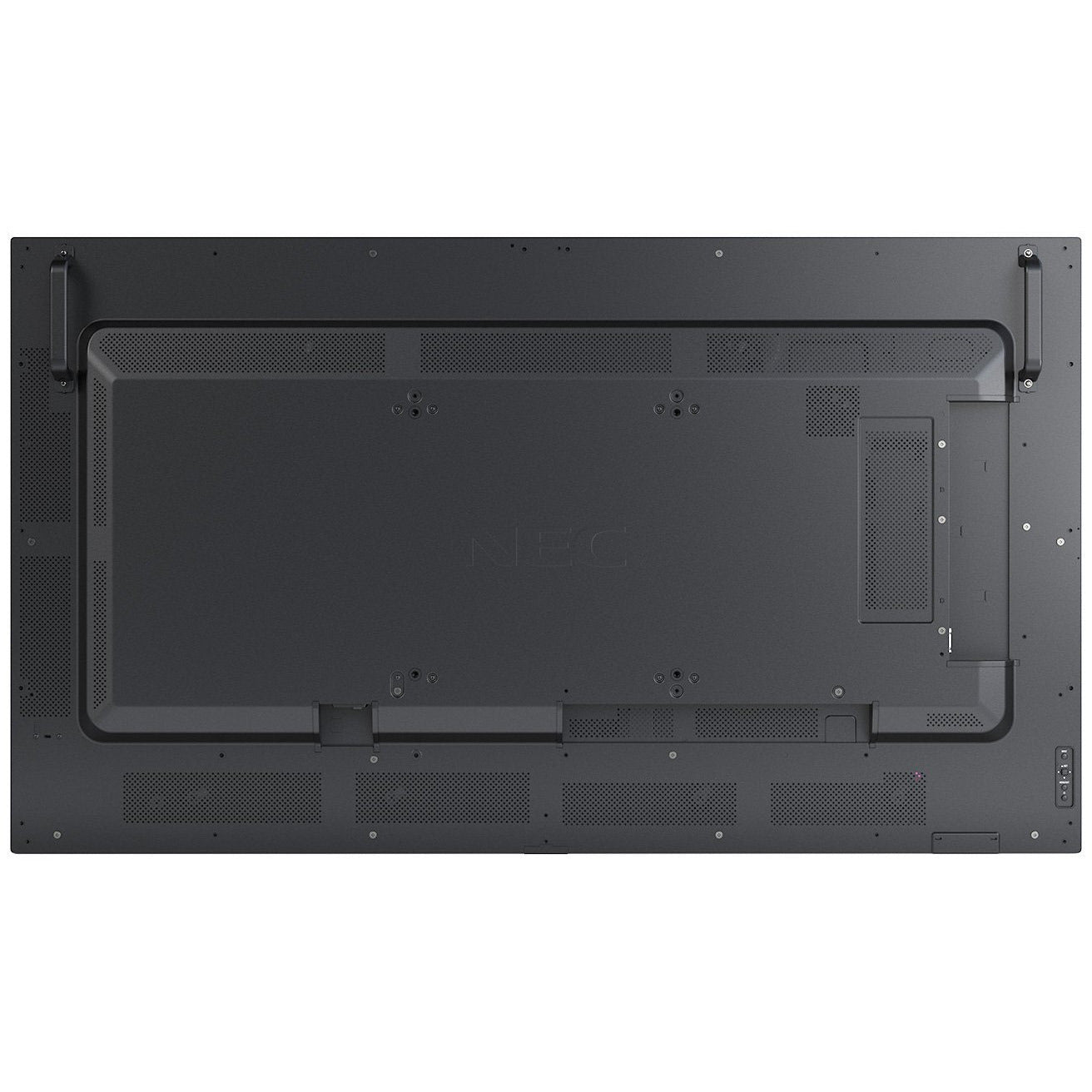

VESA Mounting [mm] 300 x 300 (FDMI); 4 holes; M6
Ingress Protection IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm] 1,430 x 920 x 250
Packaging Weight [kg] 37.7
Colour Bezel Pantone 426M (black)
Material Metal
AVAILABLE OPTIONS
Accessories Feet (ST-43M); Presence Sensor (KT-RC3); Soundbar (passive: SP-PSCM-IQ); Speaker (SP-RM3); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P)
GREEN FEATURES
Energy Efficiency Energy consumption: 109 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards EnergyStar 8.0
ADDITIONAL FEATURES
Special Characteristics DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
Safety and Ergonomics BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Pixel Failure Class ISO 9241-307, Class 1
Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 3
Operating Hours 24/7
External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management Automated Email Alerts; NEC NaViSet Administrator 2
Security Disable HW Buttons; Disable IR Functionality; Emergency Notification
Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB
