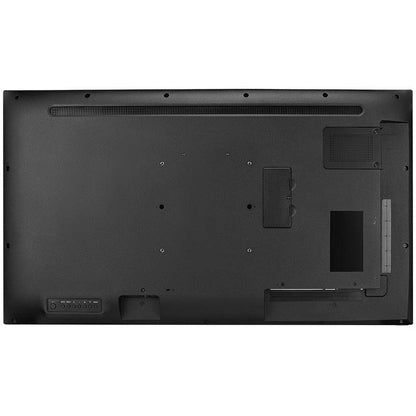

AG Neovo PD-55Q 55-Inch 4K Commercial Display
AG Neovo PD-55Q 55-Inch 4K Commercial Display
SKU:PD-55Q
Low stock
Couldn't load pickup availability
Features
- 4K UHD 3840 x 2160 resolution
- 700 nits high brightness panel offers clear images in bright areas
- Anti-Burn-in technology prevents image ghosting
- Intel SDM slot ready for easy media player/IPC integration
- IR/ RS232/ RJ45 connection for easy control and management

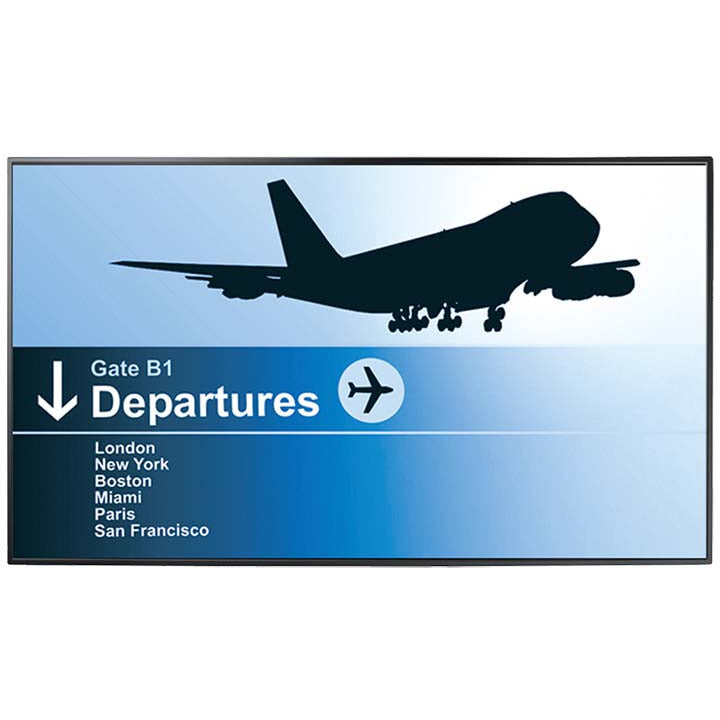

The PD-55Q 55-inch 4K commercial display features its 700 nits high brightness, suitable for use in different semi-outdoor environments, such as airport terminals, control rooms, and shopping malls. It integrates a full slate of input sources, including an embedded USB playback function, various I/O ports, and Intel® SDM slot. It allows you to broadcast multimedia content horizontally or vertically and it can meet different kinds of digital signage solutions as well as video wall installations.
700 NITS HIGH BRIGHTNESS
The PD-55Q commercial display features 4K UHD, 10-bit colour depth, and 178-degree viewing angle for brilliant colour performance. Besides that, the display adopts a 700 nits brightness commercial-grade panel to deliver clear, bright, and detailed imagery even in the daylight or bright indoor environments.
IPS PANEL FOR 24/7 USE
Designed for 24/7 operation, the PD-55Q display is produced to meet the highest standard of IPS panel technology and take advantage of superior components to ensure a long product lifetime in demanding environments.
LANDSCAPE/PORTRAIT CAPABILITY
The commercial-grade signage-friendly and can perfectly fit either in a landscape or in a portrait mode to experience complete screen orientation flexibility and fulfill the need in different scenarios.
OPTIONAL INTEL® SDM CAPABILITY
The built-in SDM slot is designed for Intel® smart display module, which is ready to create powerful smart signage for more user-friendly applications.
DISPLAYPORT/IR/RS232 DAISY CHAIN FUNCTIONALITY
With DisplayPort daisy chain functionality, the video and audio can be delivered to multiple AG Neovo’s large format displays using DisplayPort cables, and it saves a significant amount of time. IR/RS232 loop-through capability provides a convenient single point of control for multi-display installation.
EMBEDDED IMAGE ENHANCER
The embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, and Noise Reduction to solve image issues – offering crystal clarity to the most demanding environments.
INTEGRATED CONTENT SCHEDULER
The built-in integrated scheduler in the OSD menu allows you to easily broadcast content based on source, time, and day by IR remote control.
PATENTED ANTI-BURN-IN™ TECHNOLOGY
To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.
PID COMMAND & CTRL SOFTWARE
PID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on video wall displays. The software also has simple colour calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.
Specification
Panel
- Panel Type
- VA
- Panel Size
- 54.6"
- Max. Resolution
- UHD 3840 x 2160
- Pixel Pitch
- 0.315 mm
- Brightness
- 700 cd/m²
- Contrast Ratio
- 5000:1
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 1.07G
- Response Time
- 5 ms
- Surface Treatment
- Anti-glare treatment (Haze< 25%)
- 3H Hard Coating,Low Reflection 1.5%
Frequency
- Frequency (H)
- 31 kHz-92 kHz
- Frequency (V)
- 48 Hz-85 Hz

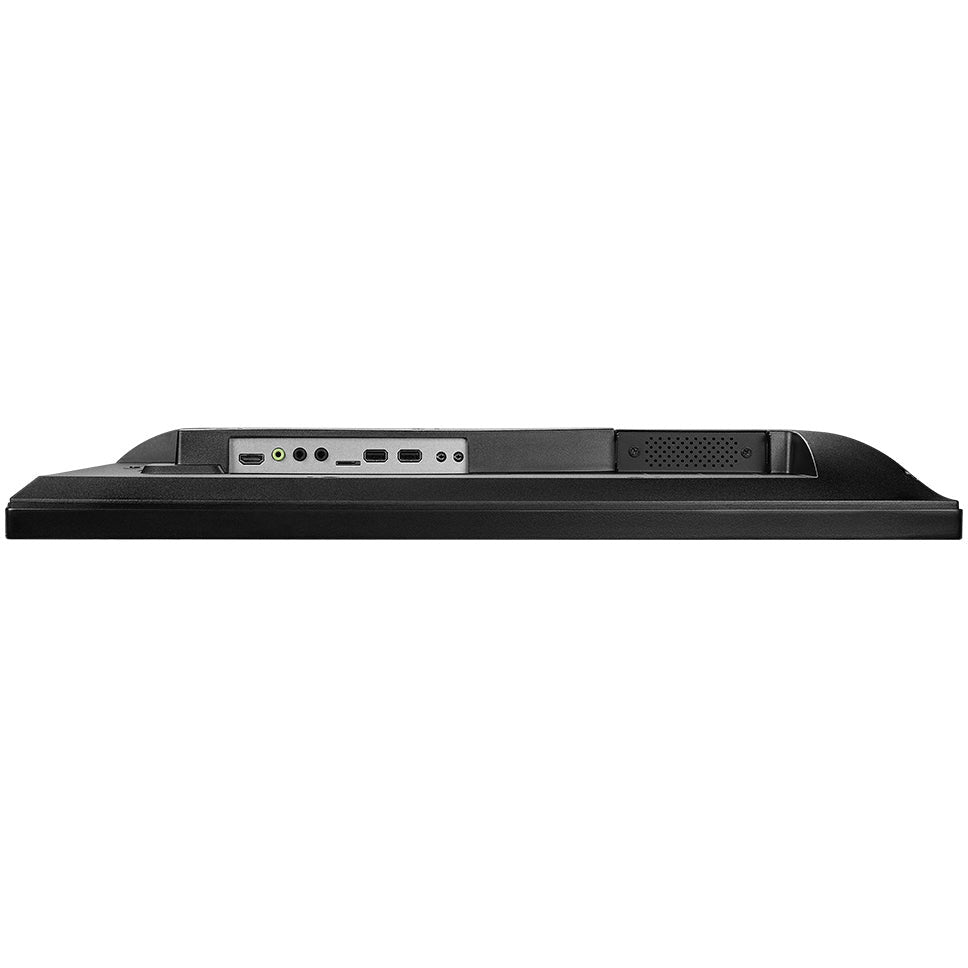

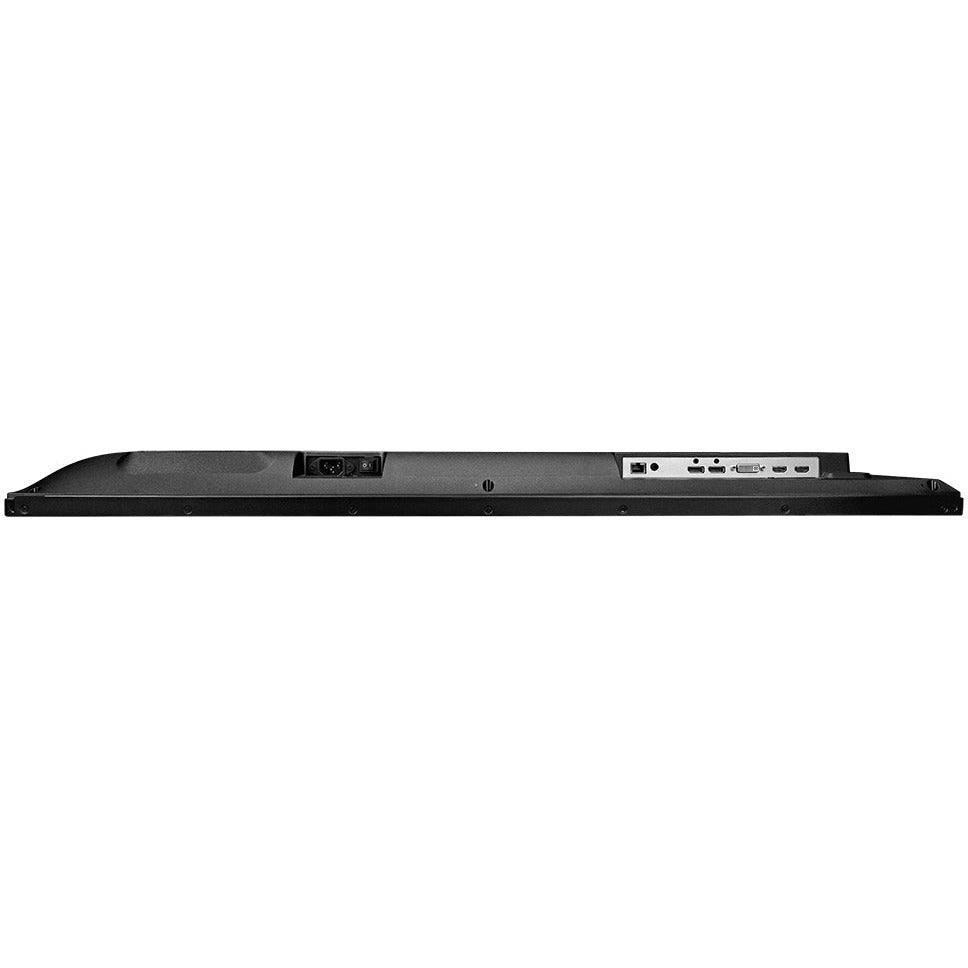

Signal Input
- DisplayPort
- x 1
- HDMI
- 2.0 x 3
- DVI
- 29-Pin DVI-I x 1 (VGA)
Signal Output
- DisplayPort
- 1
External Control
- IR In
- 3.5 mm Phone Jack
- IR Out
- 3.5 mm Phone Jack
- RS232 In
- 2.5 mm Phone Jack
- RS232 Out
- 2.5 mm Phone Jack
- LAN
- RJ45 x 1
Other Connectivity
- USB
- 2.0 x 1 (Service Port / Media Playback) / 2.0 x 1 (Media Playback)
- Micro SD Card Slot
- Yes
- SDM Slot
- SDM-L
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Audio Out
- Stereo Audio Jack (3.5 mm)
- Internal Speakers
- 10W x 2
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 177W (On)
- Standby Mode
- < 0.5W
- Off Mode
- 0W
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 20%-80% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 10%-90%(non-condensing)
Mounting
- VESA FPMPMI
- Yes (400 x 400 mm)
Security
- Kensington Security Slot
- Yes
Dimensions
- Product w/o Base (W x H x D)
- 1241.8 x 712.6 x 63.6 mm (48.9" x 28.4" x 2.5")
- Packaging (W x H x D)
- 1350.0 x 860.0 x 160.0 mm (53.2" x 33.9" x 6.3")
Weight
- Product w/o Base
- 16.6 kg (27.7 lb)
- Packaging
- 21.8 kg (48.1 lb)
Regulation Approval
- Certifications & Compliance
- FCC
- CE
- LVD
- ICES-003(Issue 7)
- WEEE
- RoHS
- REACH
Accessories
- Supplied
- Batteries
- HDMI Cable
- Power Cord
- Quick Start Guide
- Remote Control
Optional Accessories
- Floor Mount
- FMC-02
- FMC-05B
- FMS-01
- FMS-02
- FWL-01B
- Video Wall Mount
- VWM-01
- VWM-02
- Wall Mount
- LMA-01
- LMA-02
- Ceiling Mount (Landscape only)
- CMP-01 + LMK-01
- Wall Mount (Landscape only)
- LMK-01
- LMK-03
- Floor Mount (Landscape only)
- FMC-03 + LMK-04
- FMC-04 + LMK-04
- FMC-06
- Desk mount (Landscape only)
- DTS-01
