AG Neovo PO-55H 55-Inch Ultra-High Brightness Open Frame Display
AG Neovo PO-55H 55-Inch Ultra-High Brightness Open Frame Display
SKU:PO-55H
Out of stock
Features
- 2,500 nits ultra-high brightness sunlight readable panel
- Low reflection rate (≦ 1.45%) to enhance readability in bright ambient light areas
- Landscape and Portrait for flexible display orientation
- Designed and developed for continuous 24/7 operation
- EcoSmart Sensor automatically adjusts brightness level

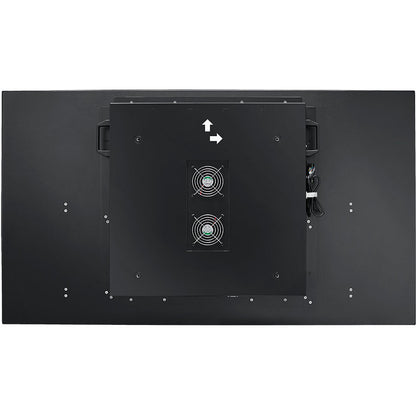

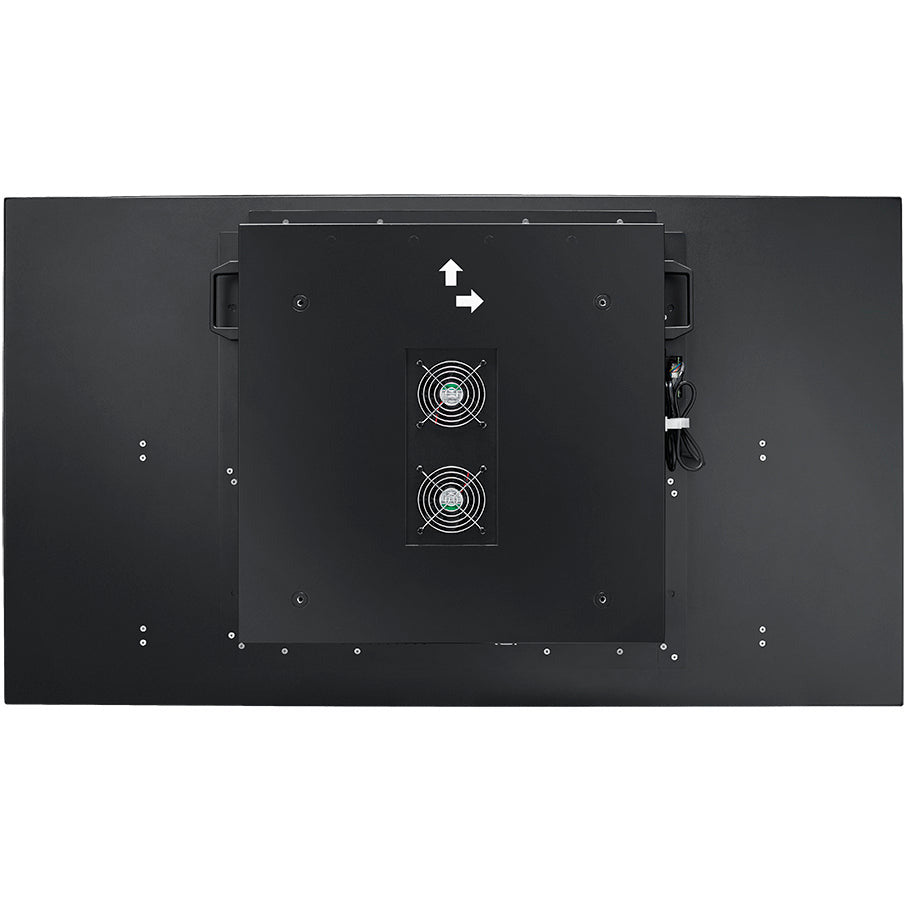

The PO-55H 55-inch 1080p open frame display is built to stand out in different outdoor environments with 2,500 nits ultra-high brightness. The LED-backlit open frame panels include brightness levels that maximise visibility, along with features such as an energy-saving EcoSmart Sensor and Anti-Burn-in technology that make the ultra-high brightness digital signage display ideal for 24/7 outdoor use. An open-frame option boosts adaptability, as it allows for easier integration into customised designs. In contrast, a dual-fan cooling design coupled with a HeatControl sensor keeps temperatures in control, further enhancing the PO-55H display’s aptitude for outdoor use.
2500 NITS ULTRA-HIGH BRIGHTNESS
With 2500 nits ultra-high brightness, the PO-55H open frame displays provide optimal readability, whether in direct or indirect sunlight conditions, while retaining the superior image quality AG Neovo large format displays are known for.
24/7 OPERATION UNDER SUNLIGHT
The PO-55H is made of a Public Information Display (PID) panel for 24/7 operation, in which the liquid crystal cell can resist heat up to 110°C / 230°F, compared to the typical TV panel, around 65-75°C (149-167°F). This unique high-temperature liquid crystal technology prevents the black spots that can develop on competing displays when subject to high heat loads from direct sunlight.
LOW REFLECTION FOR SUPERIOR READABILITY
The PO-55H displays adopt the Quarter Wave Plate (QWP) polariser with a low reflection solution (Reflectance ≤ 1.45%) to enhance the visibility and colour vibrancy of the display for outdoor applications.
BUILT-IN ECOSMART SENSOR
An embedded energy-saving EcoSmart Sensor, exclusively designed by AG Neovo, can automatically adjust display backlight brightness based on the ambient luminance, particularly in outdoor settings, which can significantly save energy.
Specification
Panel
- Panel Type
- VA
- Panel Size
- 54.6"
- Max. Resolution
- FHD 1920 x 1080
- Pixel Pitch
- 0.630 mm
- Brightness
- 2500 cd/m²
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 1.07B
- Colour Gamut
- NTSC 72%
- Response Time
- 5 ms
- Surface Treatment
- Anti-Reflection Treatment (Reflectance <2%)
- 3H Hard Coating
Frequency
- Frequency (H)
- 30 kHz-80 kHz
- Frequency (V)
- 56 Hz-76 Hz

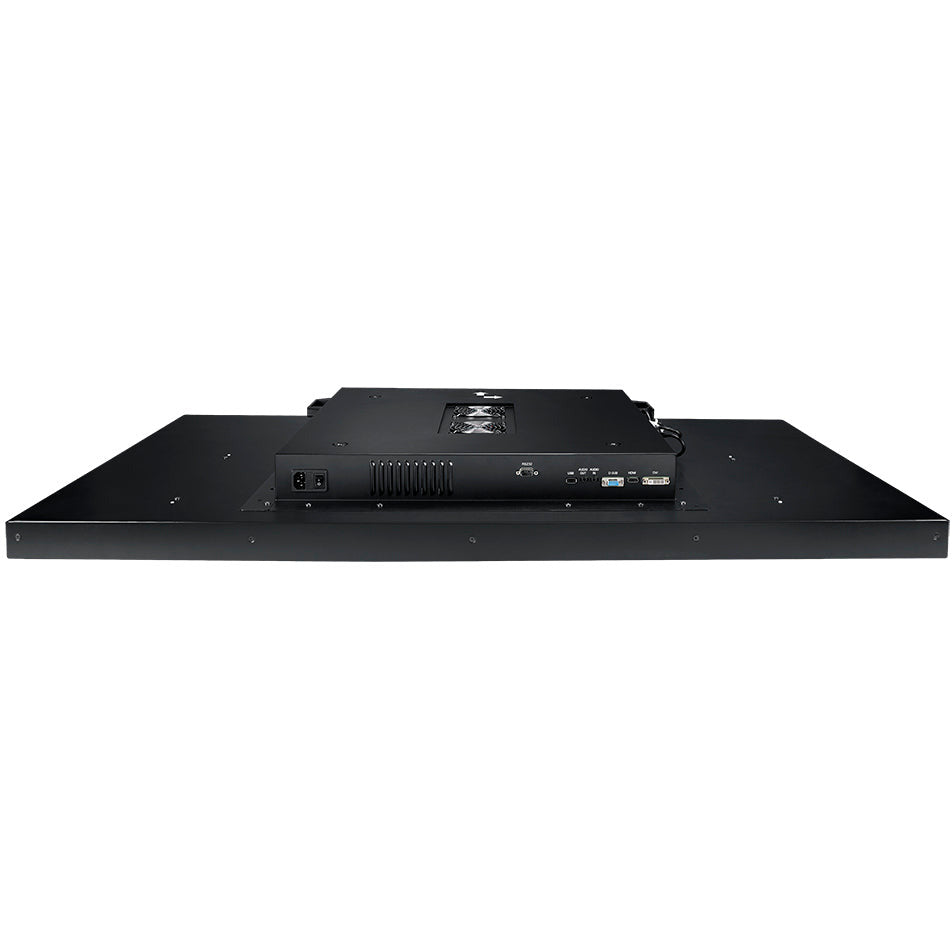

Signal Input
- DisplayPort
- x 1
- HDMI
- 1.4 x 1
- DVI
- 29-Pin DVI-I
- VGA
- 15-Pin D-Sub x 1
External Control
- RS232 In
- 9-Pin D-Sub
Other Connectivity
- USB
- 2.0 x 1 (Reserved for touch design)
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Audio Out
- Stereo Audio Jack (3.5 mm)
- Internal Speakers
- 10W x 2
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 353W (On)
- Standby Mode
- < 2W
- Off Mode
- < 1W
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 20%-80% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 20%-80% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (400 x 400 mm)
Dimensions
- Product w/o Base (W x H x D)
- 1248.2 x 719.0 x 119.0 mm (49.1" x 28.3" x 4.7")
- Packaging (W x H x D)
- 1350.0 x 852.0 x 365.0 mm (53.2" x 33.5" x 14.4")
Weight
- Product w/o Base
- 36.7 kg (80.9 lb)
- Packaging
- 46.3 kg (102.0 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- RoHS
- WEEE
- REACH
- EAC
Accessories
- Supplied
- Batteries
- Power Cord
- Quick Start Guide
- Remote Control
Optional Accessories
- Video Wall Mount
- VWM-01
- VWM-02
- Wall Mount
- LMA-02
- Ceiling Mount (Landscape only)
- CMP-01 + LMK-01
- Wall Mount (Landscape only)
- LMK-01
- LMK-03
- Floor Mount (Landscape only)
- FMC-03 + LMK-04
- FMC-04 + LMK-04
- FMC-06
- Desk mount (Landscape only)
- DTS-01
