AG Neovo
AG Neovo QD-98 98" 4K IPS Large Format Commercial Display
AG Neovo QD-98 98" 4K IPS Large Format Commercial Display
SKU:QD-98
Out of stock
Couldn't load pickup availability
Features
- 4K UHD 3840 x 2160 resolution
- DisplayPort 1.2 Multistream functionality for 4K UHD resolution across a 2×2 video wall
- Multi-screen Viewer: up to 4 split FHD screens from 4 individual input sources
- OPS slot ready for easy media player integration
- Landscape and Portrait for flexible display orientation
Render the durable metal housing, replace video walls with four FHD screens simultaneously from four different inputs, and an optional OPS slot for digital signage applications; the QD-98 98-inch 4K commercial display makes a big difference from others. The display fits digital signage and video wall solutions of all specifications tailored to user needs.
UNPARALLELED VISUAL QUALITY
Built on an IPS panel with 4 times FHD resolution, the QD-98 commercial display renders exquisite video quality with motion blur reduction at a refresh rate of up to 120Hz.
IPS PANEL FOR 24/7 USE
Designed for 24/7 operation, this commercial display is produced to meet the highest standard of IPS panel technology and take advantage of superior components to ensure a long product lifetime in demanding environments.
PORTRAIT AND LANDSCAPE CAPABILITIES
The QD-98 commercial display is signage-friendly and can perfectly fit either in a landscape or in a portrait mode to experience complete screen orientation flexibility and fulfill the need in different scenarios.
BUILT-IN HEATCONTROL SENSORS
The built-in HeatControl Sensors automatically activate the internal cooling fans when the temperature rises.
EMBEDDED IMAGE ENHANCER
The embedded image enhancer features a 3D Deinterlace and Noise Reduction to solve image issues – offering crystal clarity to the most demanding environments.
OPS SLOT READY
This commercial display is OPS slot ready connected to an external PC module for digital signage integration.
TILING READY FOR LARGE-SCALE VIDEO WALL
The tiling-ready QD-98 can either stand-alone or be arrayed in configurations of up to 10×15 video walls. The commercial-grade display can also deliver 4K at 60 Hz by a single DisplayPort 1.2 cable for the best visual quality.

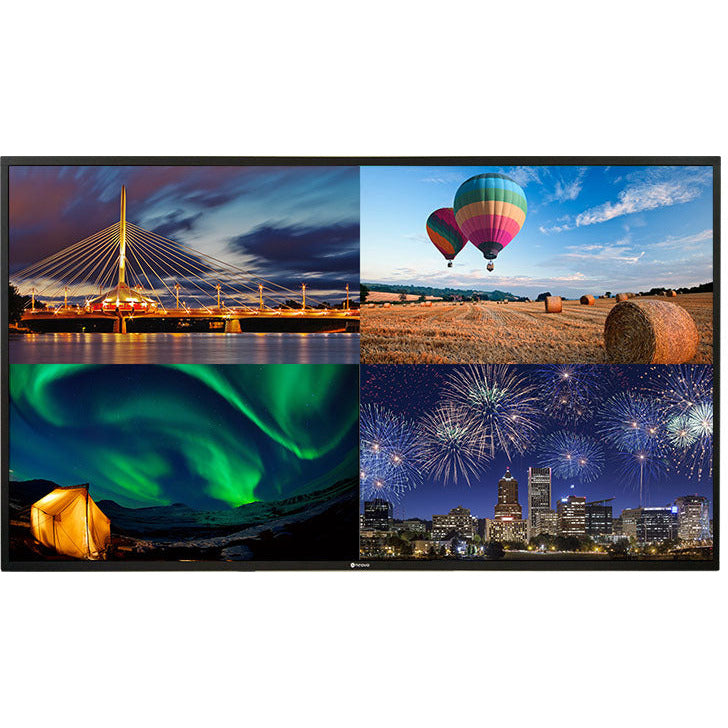

MULTI-SCREEN VIEWER: ONE DISPLAY, FOUR SCREENS
Beyond the traditional two-input Picture-in-Picture (PIP) feature, the QD-98’s multi-screen viewer can display up to four FHD screens simultaneously from four different input sources. This advanced feature allows it to replace a typical four monitor setup and delivers four-quadrant viewing at crisp and true FHD content.
PATENTED ANTI-BURN-IN™ TECHNOLOGY
Tocombat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.
PID COMMAND & CTRL SOFTWARE
PID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on video wall displays. The software also has simple colour calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.
Specification
Panel
- Panel Type
- IPS
- Panel Size
- 97.5"
- Max. Resolution
- UHD 3840 x 2160
- Pixel Pitch
- 0.562 mm
- Brightness
- 500cd/m²
- Contrast Ratio
- 1300:1
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 1.07B
- Colour Gamut
- NTSC 72%
- Response Time
- 5 ms
- Surface Treatment
- Anti-Glare Treatment (Haze 1%)
- 3H Hard Coating
Frequency
- Frequency (H)
- 31 kHz-92 kHz
- Frequency (V)
- 48 Hz-85 Hz
Signal Input
- DisplayPort
- 1.2 x 1
- HDMI
- 2.0 x 3
- DVI
- 24-Pin DVI-D
- VGA
- 15-Pin D-Sub x 1
- Component
- RCA x 1
- Composite
- RCA x 1 (Share with Component-Y )
Signal Output
- DisplayPort
- 1.2 x 1
External Control
- IR In
- 3.5 mm Phone Jack
- IR Out
- 3.5 mm Phone Jack
- RS232 In
- 2.5 mm Phone Jack
- RS232 Out
- 2.5 mm Phone Jack
- LAN
- RJ45 x 1
Other Connectivity
- USB
- 2.0 x 1 (Service Port) / 2.0 X 1 (Media Playback)
- OPS Slot
- Yes
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Stereo Audio Jack (RCA)
- Audio Out
- S/PDIF
- Stereo Audio Jack (3.5 mm)
- Internal Speakers
- 10W x 2
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 314W (On)
- Standby Mode
- < 0.5W
- Off Mode
- < 0.3W
Operating Conditions
- Temperature
- 5°C – 40°C (41°F-104°F)
- Humidity
- 20%-80%(non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 5%-95% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (800 x 500 mm)
Dimensions
- Product w/o Base (W x H x D)
- 2193.2 x 1248.2 x 89.8 mm (86.4" x 49.1" x 3.5")
- Packaging (W x H x D)
- 2503.0 x 1569.0 x 450.0 mm (98.5" x 61.8" x 17.7")
Weight
- Product w/o Base
- 92.0 kg (202.6 lb)
- Packaging
- 126.8 kg (279.4 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- WEEE
- RoHS
- REACH
- EAC
Accessories
- Supplied
- Batteries
- CD
- Power Cord
- Remote Control
- RS232 Cable
- RS232 Daisy Chain Cable
- VGA Cable
Optional Accessories
- Wall Mount (Landscape only)
- LMK-03
- Floor Mount (Landscape only)
- FMC-04 + LMK-04
