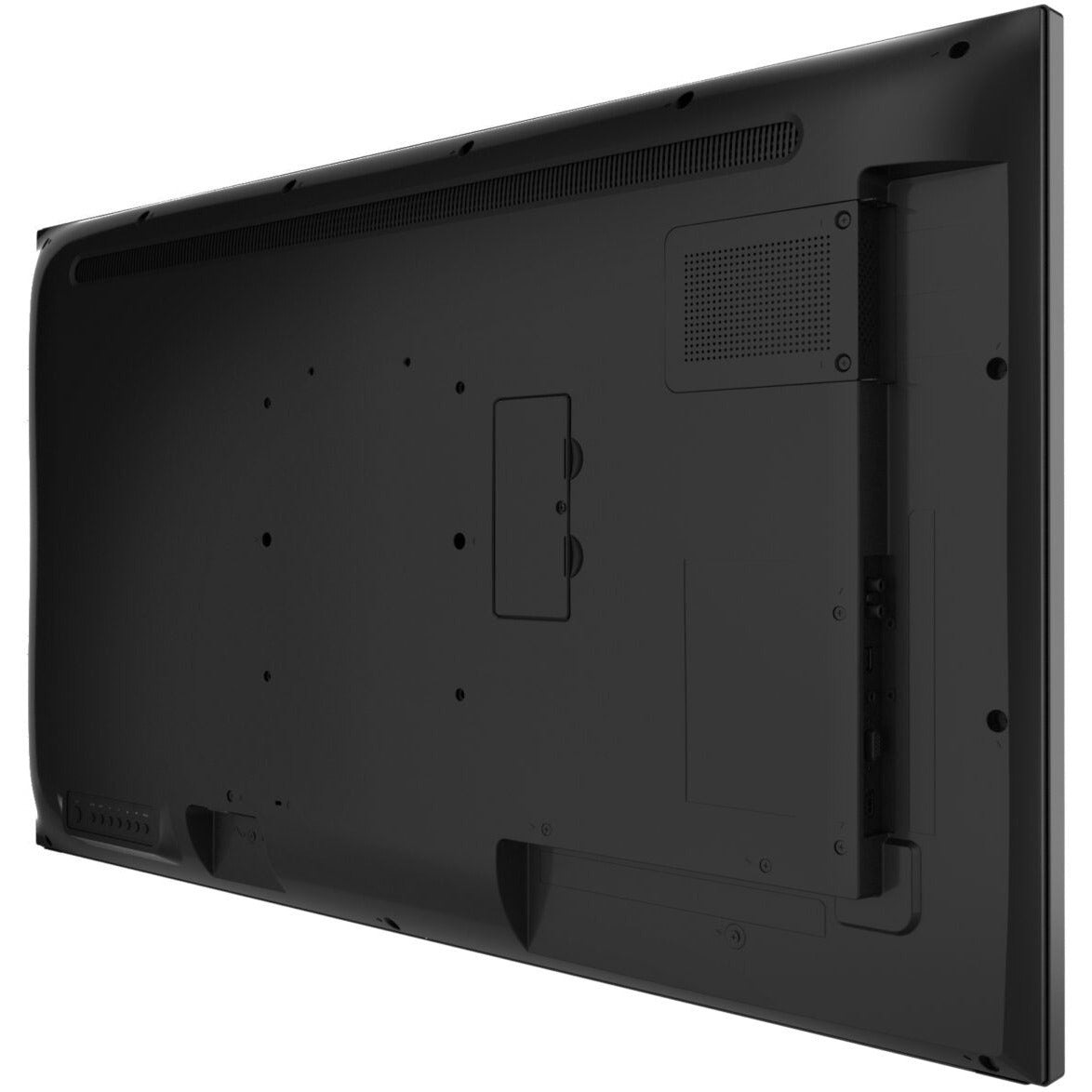

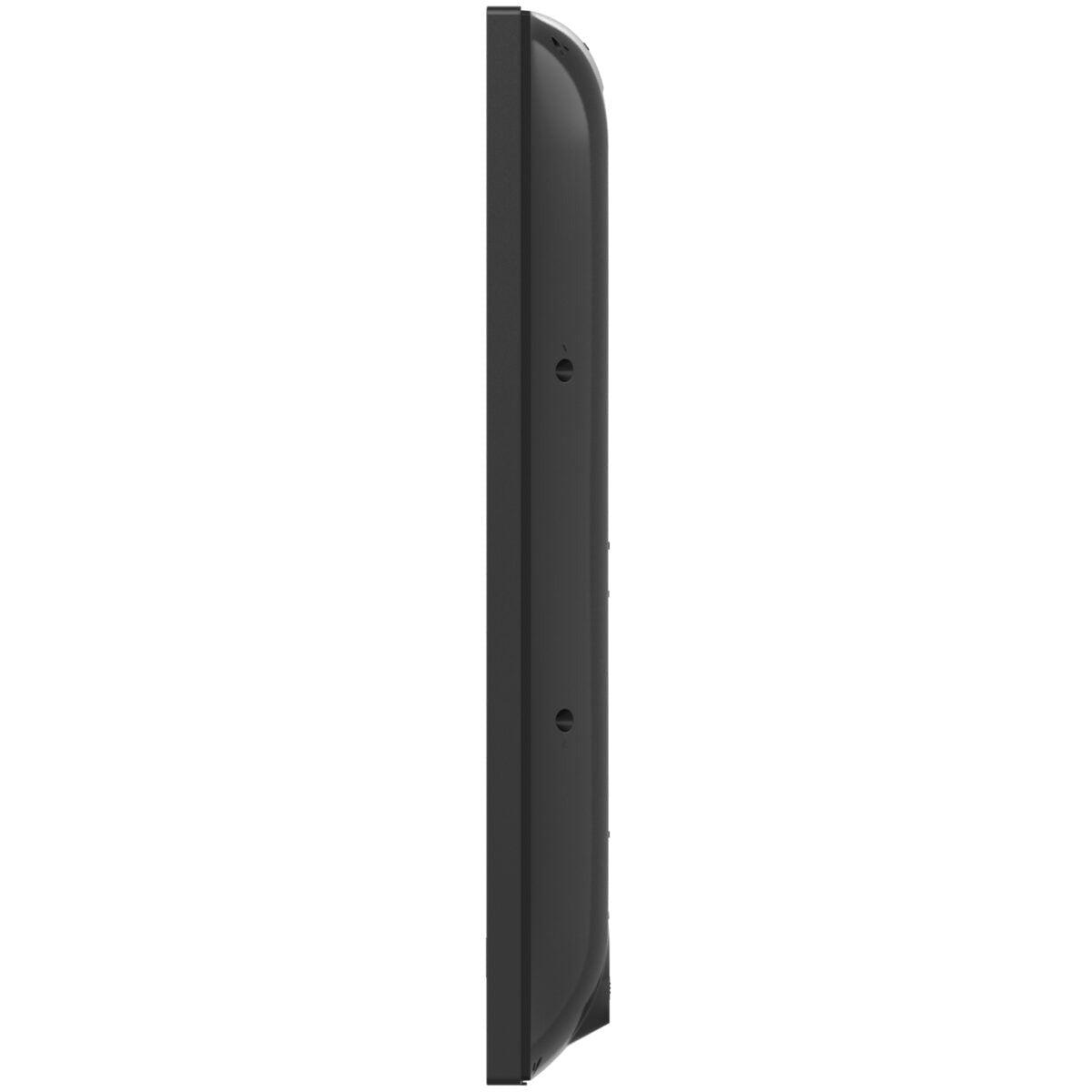

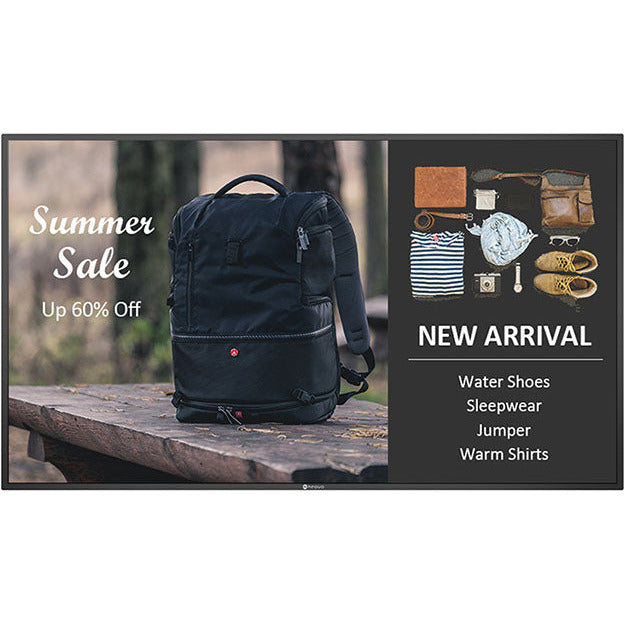

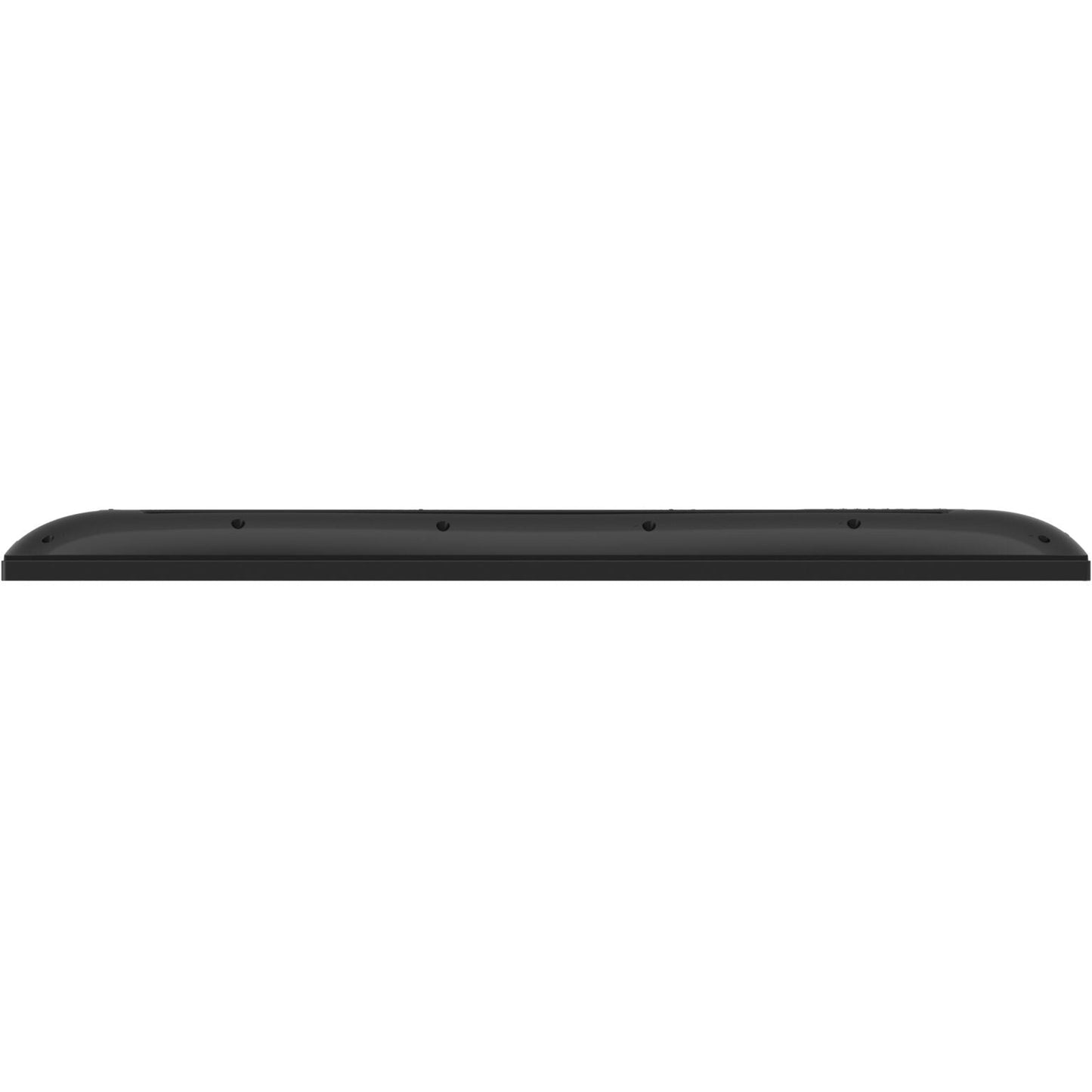

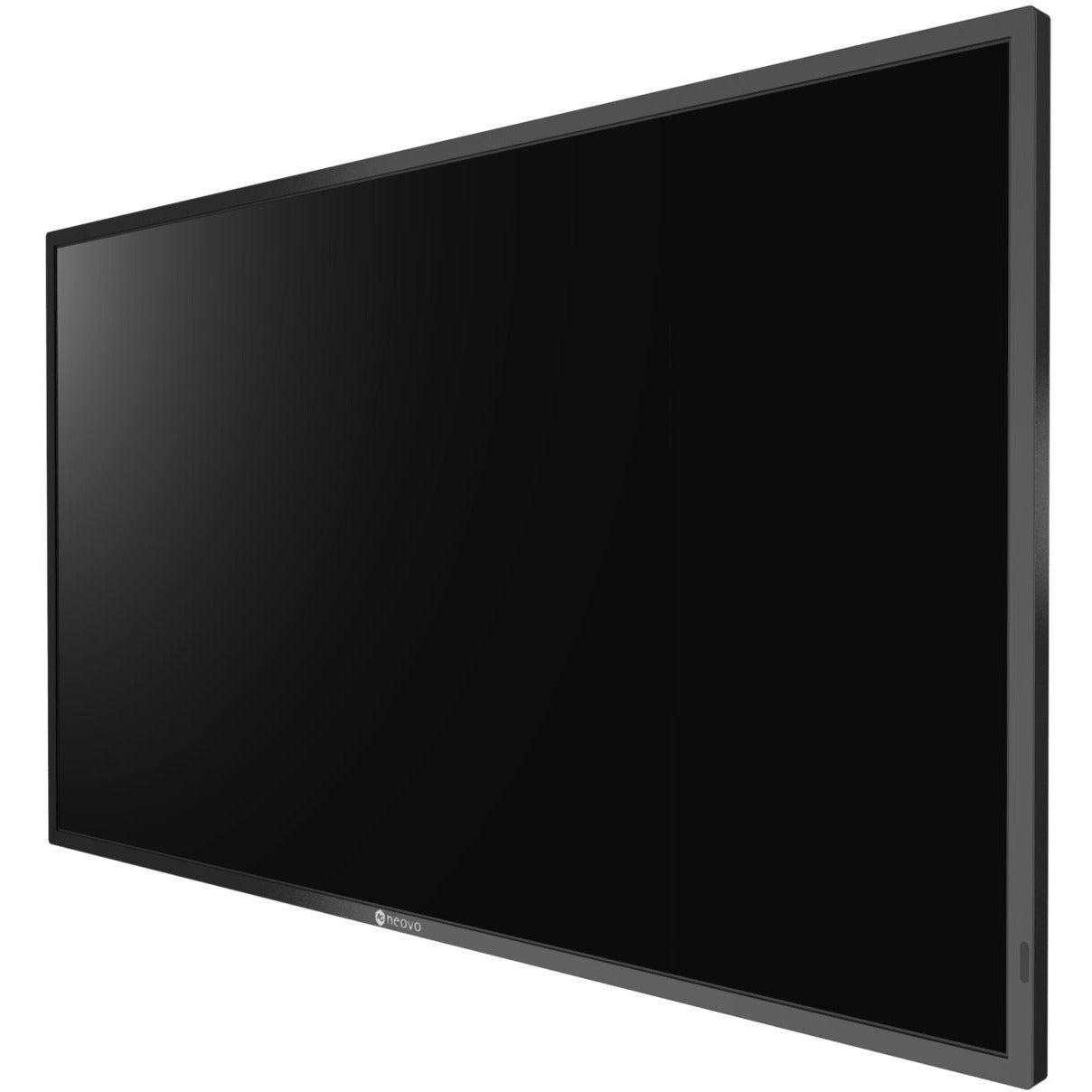

AG Neovo QM-4302 43-Inch 4K Digital Signage Display
AG Neovo QM-4302 43-Inch 4K Digital Signage Display
SKU:QM-4302
Out of stock
Couldn't load pickup availability
Features
- 4K UHD 3840 x 2160 resolution
- 400 nits brightness for indoor public use
- Built-in USB media playback signage content delivery
- Flexible display orientation: Landscape/Portrait
- Rigorous screening of the components for mission-critical 24/7 application
The new QM-4302 43-inch 4K digital signage display is designed for digital signage applications that require crisper and clearer image presentation. Featuring a premium IPS panel for 24/7 operation, 4K UHD resolution with a wide viewing angle, and easy-to-use media playback via a USB drive. The QM-4302 digital signage display is ideally used for retail stores, corporate meeting areas, hotels and other public spaces.
EXPERIENCE THE 4K DIFFERENCE
Don’t miss a single detail with the powerful 4K digital signage display. View smooth 4K video and images to the new level of detail and clarity. Offering 8.3 million pixels, the QM-4302 provides the ultimate 4K digital signage experience, delivering business messaging, and boost customer engagement.
EMBEDDED IMAGE ENHANCER
The embedded image enhancer features a 3D Deinterlace and Noise Reduction to solve image issues – offering crystal clarity to the most demanding environments.
BLACK-LEVEL ALIGNMENT
Black-level setting- easily adjust the level of brightness from the dark area of the images by remote control.
SIMPLE CONTENT PLAYBACK AND SCHEDULING
The embedded media player allows users to conveniently play content from a USB drive or micro SD card. Simply create scheduled playlists based on time and day and configure playback settings with the included remote control to display your personalised content.
PATENTED ANTI-BURN-IN™ TECHNOLOGY
To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in™ Technology to prevent image burn-in and assure the extended life span for displays.
FREE PID COMMAND & CTRL SOFTWARE
PID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on video wall displays. The software also has simple colour calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.
Specification
Panel
- Panel Type
- IPS
- Panel Size
- 42.5"
- Max. Resolution
- UHD 3840 x 2160
- Pixel Pitch
- 0.245 mm
- Brightness
- 400 cd/m²
- Contrast Ratio
- 4500:1 (DCR)
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 1.07B
- Response Time
- 5 ms
- Surface Treatment
- Anti-Glare Treatment (Haze 1%)
- 3H
Frequency
- Frequency (H)
- 15 kHz-136 kHz
- Frequency (V)
- 23 Hz-76 Hz
Signal Input
- HDMI
- 2.0 x 3
- VGA
- 15-Pin D-Sub x 1
External Control
- IR Out
- 3.5 mm Phone Jack
- RS232 In
- 9-Pin D-Sub
- LAN
- RJ45 x 1
Other Connectivity
- USB
- 2.0 x 1 (Service Port / Media Playback)
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Audio Out
- Stereo Audio Jack (RCA)
- Internal Speakers
- 10W x 2
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 102W (On)
- Standby Mode
- < 0.5W
- Off Mode
- < 0.3W
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 20%-80% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 10%-90% (non-condensing)

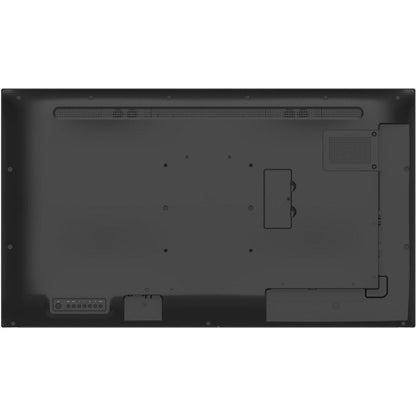

Mounting
- VESA FPMPMI
- Yes (200 x 200 mm)
Security
- Kensington Security Slot
- Yes
Dimensions
- Product w/o Base (W x H x D)
- 973.0 x 561.2 x 63.5 mm (38.3" x 22.1" x 2.5")
- Packaging (W x H x D)
- 1070.0 x 673.0 x 141.0 mm (42.1" x 26.5" x 5.5")
Weight
- Product w/o Base
- 10.8 kg ( 23.8 lb)
- Packaging
- 13.6 kg ( 30.0 lb)
Regulation Approval
- Certifications & Compliance
- FCC
- CE
- LVD
- UKCA
- WEEE
- RoHS
- REACH
- EAC
- ICES-003(Issue 7)
Accessories
- Supplied
- Batteries
- HDMI Cable
- Power Cord
- Quick Start Guide
- Remote Control
Optional Accessories
- Floor Mount
- FMC-02
- FMS-01
- FMS-02
- Ceiling Mount
- CMP-01 + WMK-03
- Video Wall Mount
- VWM-01
- VWM-02
- Wall Mount
- LMA-01
- LMK-02
- WMA-01
- WMK-03
- Ceiling Mount (Landscape only)
- CMP-01 + LMK-01
- CMP-01 + LMK-02
- Wall Mount (Landscape only)
- LMA-02
- LMK-01
- LMK-03
- Floor Mount (Landscape only)
- FMC-05B
- FWL-01B
- Desk mount (Landscape only)
- DTS-01
