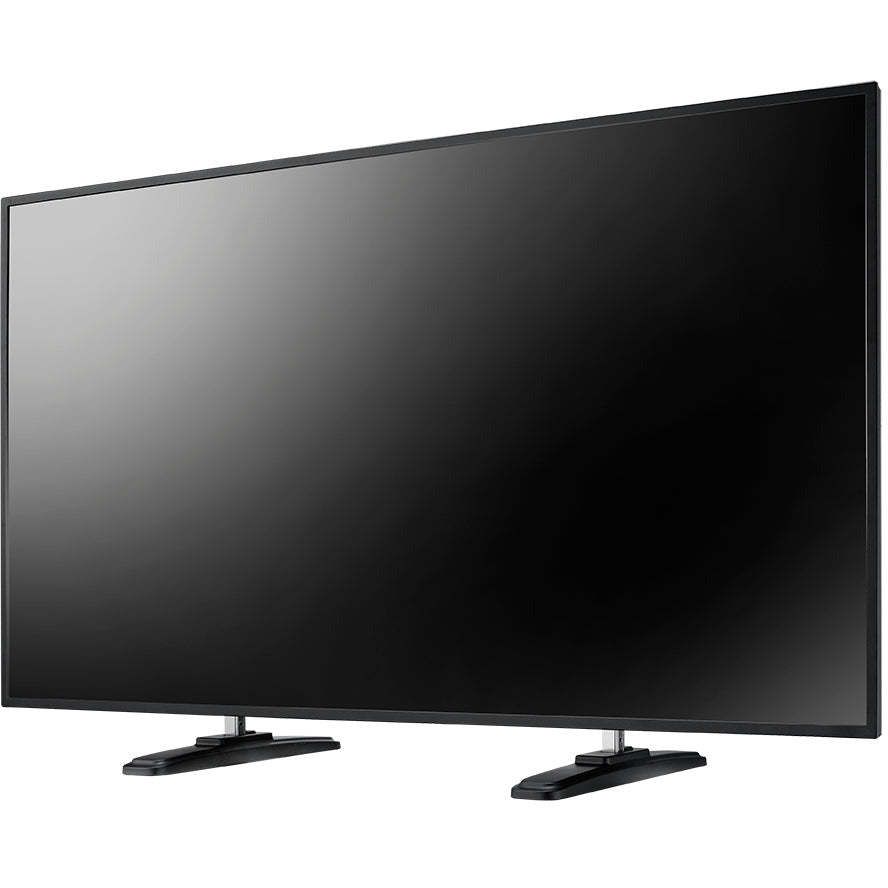

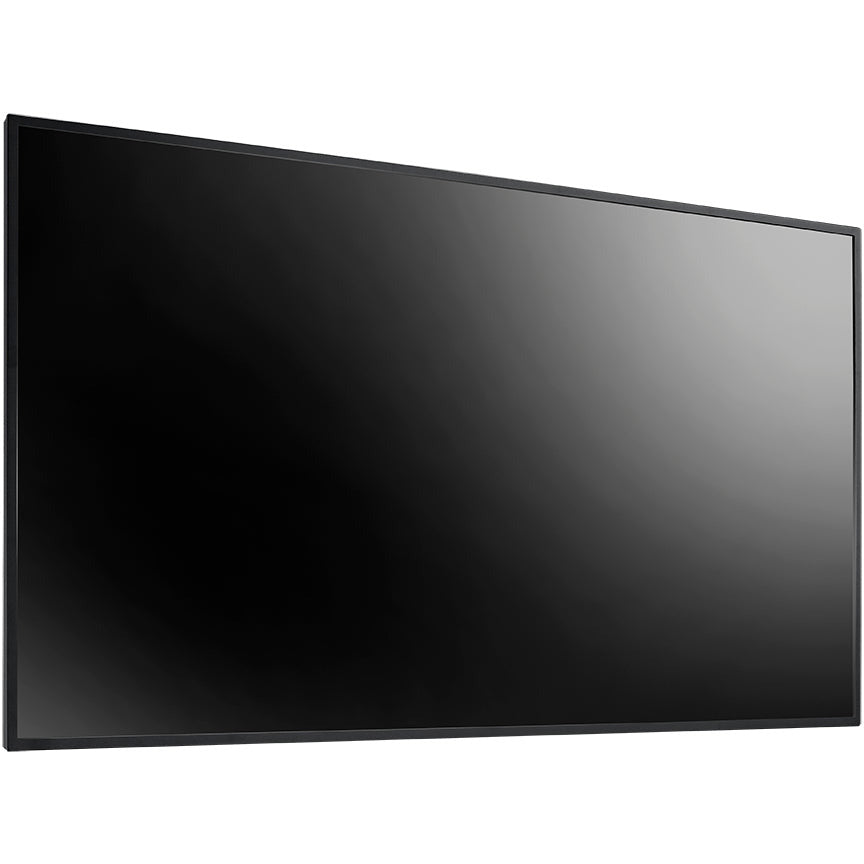

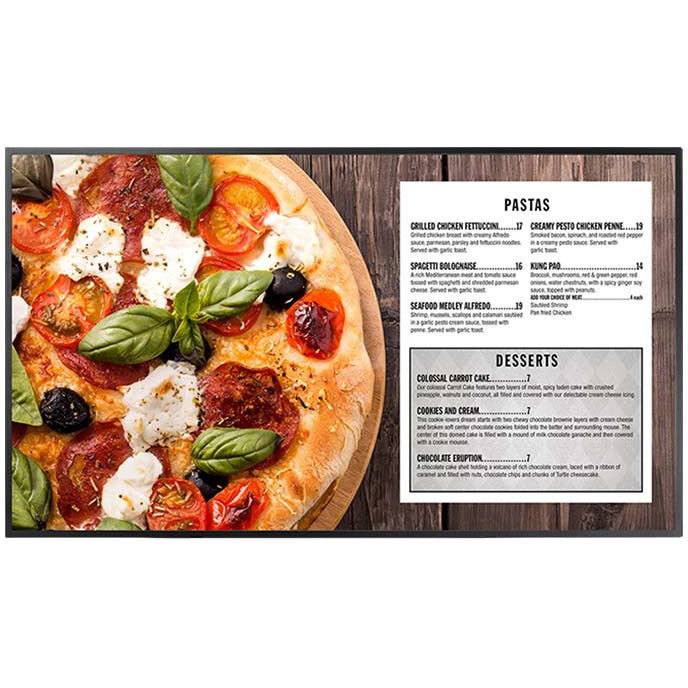

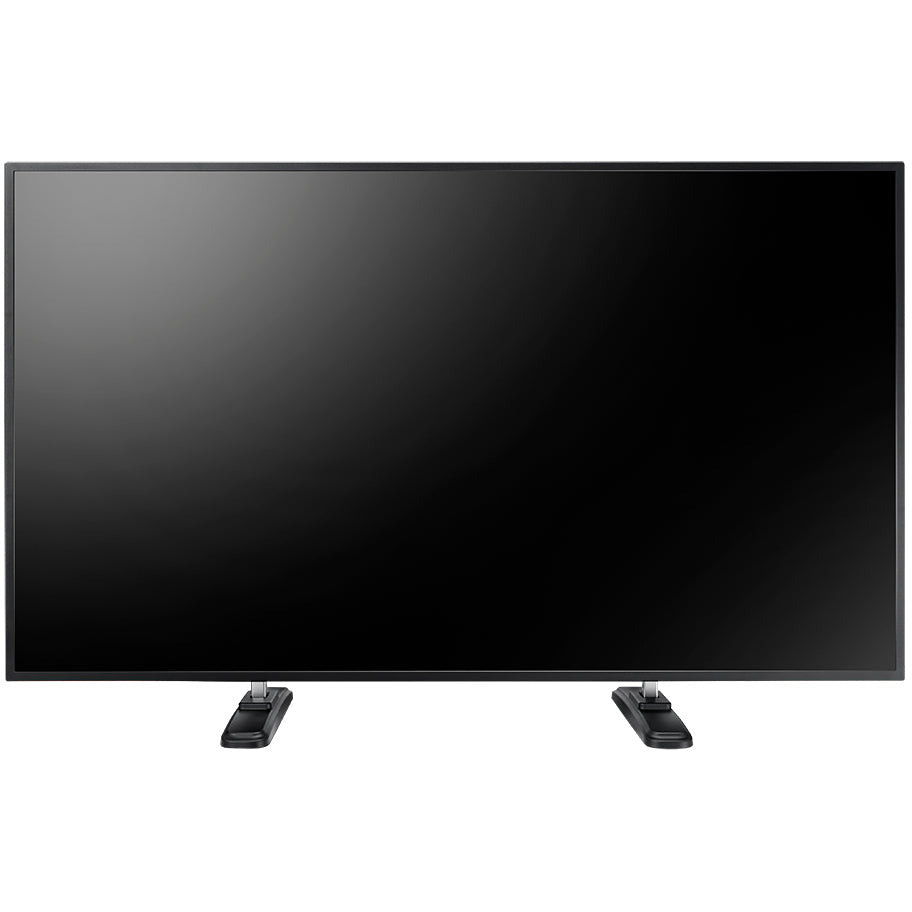

AG Neovo QM-55 55-Inch 4K Digital Signage Display
AG Neovo QM-55 55-Inch 4K Digital Signage Display
SKU:QM-55
Out of stock
Couldn't load pickup availability
Features
- 4K UHD 3840 x 2160 resolution
- Anti-Burn-in™ technology prevents image ghosting
- Versatile connectivity: HDMI, DVI, VGA, RS232, LAN, USB
- Media Playback: play photos, videos, and music from a USB drive or micro SD card
- IR/ RS232/ RJ45 connection for easy control and management
The QM-55 55-inch 4K digital signage display is used for various commercial applications that require crisper and sharper image presentations. With its 4K resolution, wide viewing angle, and easy-to-use media playback, is ideally designed for retail stores, corporate meeting areas, hotels, and other public spaces.
EXPERIENCE THE 4K DIFFERENCE
Don’t miss a single detail with the powerful 4K digital signage displays. View smooth 4K video and images to the new level of detail and clarity. Offering 8.3 million pixels, the QM-55 display provides the ultimate 4K digital signage experience, delivering business messaging, and boost customer engagement.
EMBEDDED IMAGE ENHANCER
The embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, and Noise Reduction to solve image issues – offer crystal clarity to the most demanding environments.
BUILT-IN HEATCONTROL SENSORS
The built-in HeatControl Sensors automatically activate the internal cooling fans when the temperature rises.
BLACK-LEVEL ALIGNMENT
Black-level setting- easily adjust the level of brightness from the dark area of the images by remote control.
SIMPLE CONTENT PLAYBACK AND SCHEDULING
The embedded media player allows users to conveniently play content from a USB drive or micro SD card. Simply create scheduled playlists based on time and day, and configure playback settings with the included remote control to display your personalised content.
Specification
Panel
- Panel Type
- VA
- Panel Size
- 54.6"
- Max. Resolution
- UHD 3840 x 2160
- Pixel Pitch
- 0.315 mm
- Brightness
- 350 cd/m²
- Contrast Ratio
- 4000:1
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 1.07B
- Response Time
- 5 ms
- Surface Treatment
- Anti-Glare Treatment (Haze 2%),3H Hard Coating
Frequency
- Frequency (H)
- 31 kHz-92 kHz
- Frequency (V)
- 48 Hz-85 Hz
Signal Input
- HDMI
- 2.0 x 2
- VGA
- 15-Pin D-Sub x 1
External Control
- IR In
- 3.5 mm Phone Jack
- IR Out
- 3.5 mm Phone Jack
- RS232 In
- 2.5 mm Phone Jack
- RS232 Out
- 2.5 mm Phone Jack
- LAN
- RJ45 x 1
Other Connectivity
- USB
- 2.0 x 1 (Service Port / Media Playback) / 3.0 x 1 (Media Payback)
- Micro SD Card Slot
- Yes
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Audio Out
- Stereo Audio Jack (RCA)
- Internal Speakers
- 10W x 2
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 132W (On)
- Standby Mode
- < 0.3W
- Off Mode
- 0W
Operating Conditions
- Humidity
- 20%-80% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 10%-90% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (400 x 400 mm & 400 x 200 mm)
Security
- Kensington Security Slot
- Yes
Dimensions
- Product w/o Base (W x H x D)
- 1239.2 x 711.6 x 61.7 mm (48.8" x 28.1" x 2.4")
- Packaging (W x H x D)
- 1366.0 x 864.0 x 185.0 mm (53.7” x 34.0” x 7.3”)
Weight
- Product w/o Base
- 16.0 kg (35.3 lb)
- Packaging
- 23.0 kg (50.7 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- WEEE
- RoHS
- REACH
- EAC
- FCC
- BSMI
Accessories
- Supplied
- Batteries
- HDMI Cable
- Power Cord
- Quick Start Guide
- Remote Control
- RS232 Cable
Optional Accessories
- Ceiling Mount (Landscape only)
- CMP-01 + LMK-01
- CMP-01 + LMK-02
- Wall Mount (Landscape only)
- LMA-01
- LMA-02
- LMK-01
- LMK-02
- LMK-03
- Floor Mount (Landscape only)
- FMC-02
- FMC-03 + LMK-04
- FMC-04 + LMK-04
- FMS-01
- FMS-02
- Desk mount (Landscape only)
- DTS-01
- Video Wall Mount (Landscape only)
- VWM-01
- VWM-02
