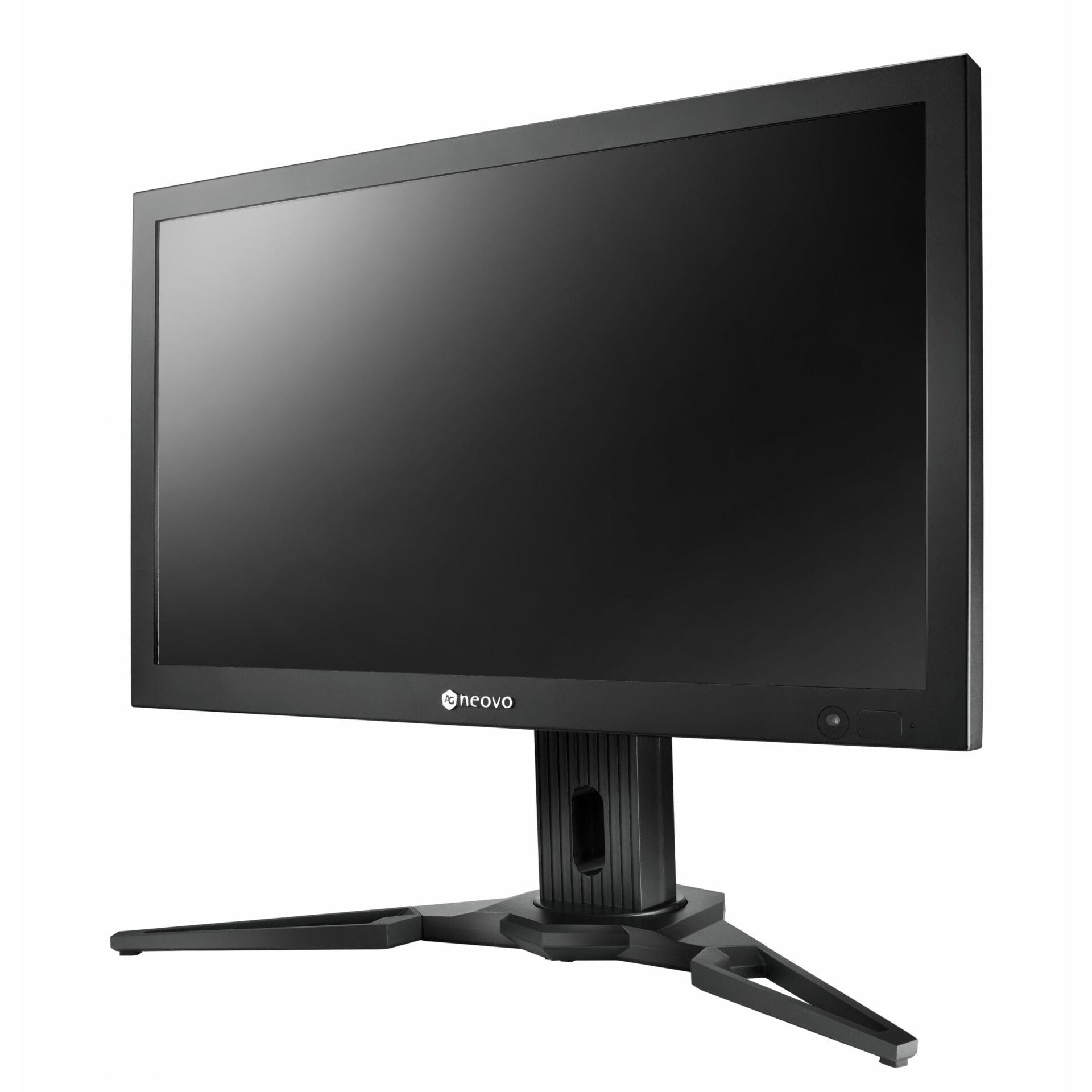

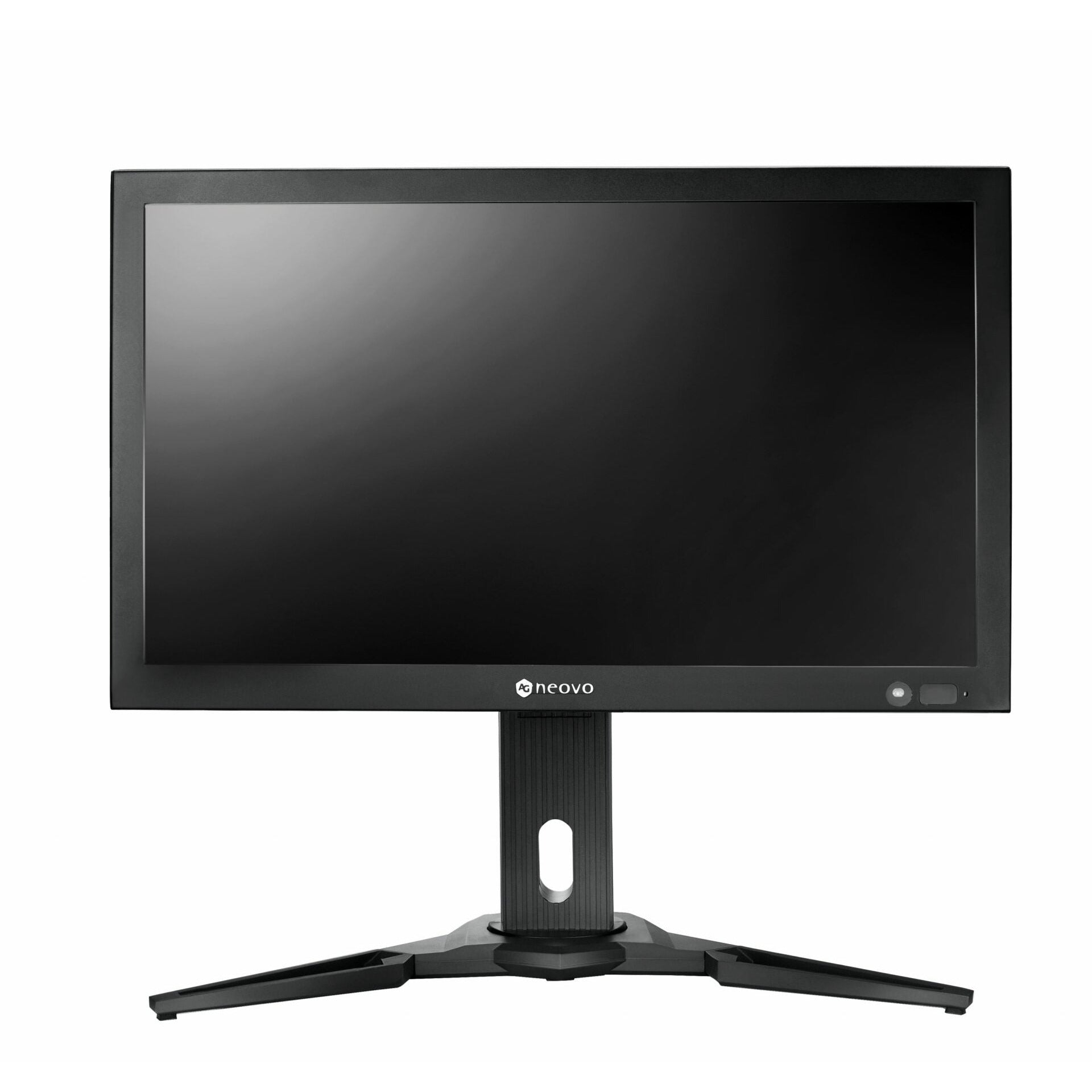

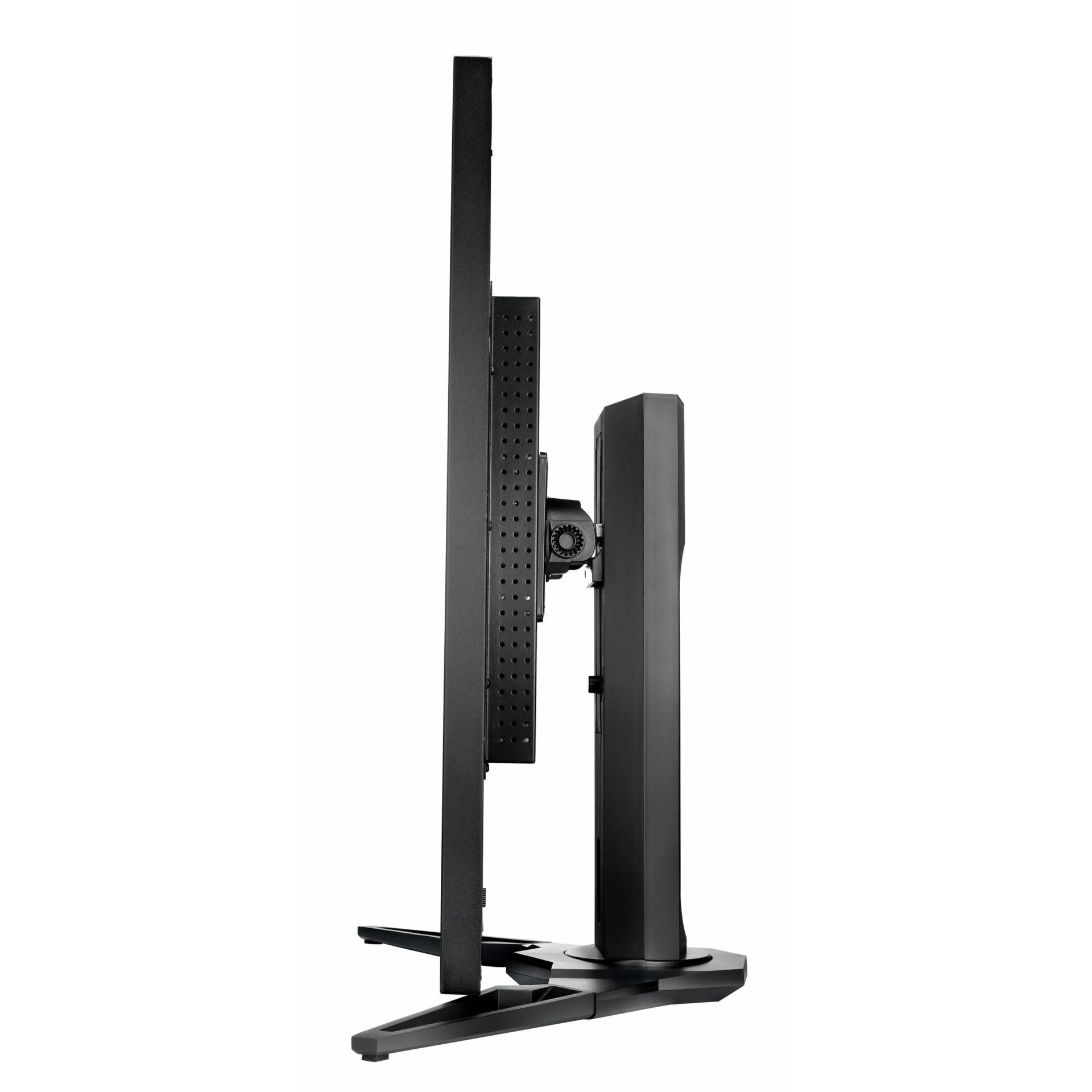

AG Neovo QX-28 28-Inch 4K Surveillance Monitor

AG Neovo QX-28 28-Inch 4K Surveillance Monitor

SKU:QX-28

Low stock

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out

Features

  • 4K UHD 3840 x 2160 resolution
  • Versatile connectivity: VGA, DVI, HDMI, DisplayPort inputs
  • Anti-Burn-in technology prevents image ghosting
  • NeoV Optical Glass screen protects the display from scratches and other damages
  • RS232/ RJ45 connection for easy control and management

The QX-28 is a 28-inch 4K surveillance monitor designed for demanding video security systems. Multi-screen viewing enables simultaneous display of multiple video footage signals with up to 4 split screens. In addition to simplifying hardware setup by enabling the use of one display in place of four 1080p monitors, the QX-28 monitor provides the gain in clarity required for real-time and up-close monitoring in control rooms, traffic management centres, casinos, emergency operations centres and other public installations.

EXPERIENCE THE 4K DIFFERENCE

Don’t miss a single detail with this powerful 4K surveillance monitor. View smooth video and graphics with a new level of detail and clarity. Offering UHD 3840 x 2160 resolution with 8.3 million pixels, this 28-inch 4K surveillance monitor provides sufficient resolution for even the most demanding video security systems.


EASY CONTROL AND INTEGRATION

Its built-in RS232 and Ethernet control capabilities make this surveillance monitor easy to control and integration a breeze. Whether it is a local serial management connection or a remote network installation, it can be managed in multiple control room scenarios.

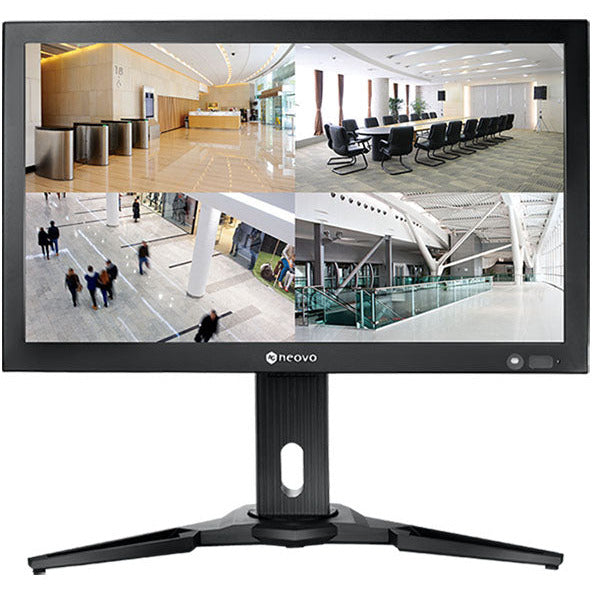

MULTI-SCREEN VIEWER; ONE DISPLAY, FOUR SCREENS

Beyond the traditional two-input Picture-by-Picture (PIP) feature, the multi-screen viewer functionality can display up to four Full HD screens simultaneously from four different input sources. This advanced feature allows it to replace a typical four monitor setup and delivers four-quadrant viewing at crisp and true 1080p content.


INDUSTRY-LEADING RELIABILITY

Designed for 24/7 operation, this durable metal-housed surveillance monitor protected with NeoV Optical Glass screen take advantage of superior components to ensure a long product lifetime.


PID COMMAND & CTRL SOFTWARE

PID Command & Ctrl software allows users to control this 28-Inch 4K surveillance monitor via LAN or RS232 connections. It provides a simple and intuitive interface for remote management, OSD-related settings, and easy control of deployed displays.

Specification

Panel
  • Panel Type
  • TN
  • Panel Size
  • 27.9"
  • Max. Resolution
  • UHD 3840 x 2160
  • Pixel Pitch
  • 0.160 mm
  • Brightness
  • 300 cd/m²
  • Contrast Ratio
  • 20,000,000:1 (DCR)
  • Viewing Angle (H/V)
  • 170°/160°
  • Display Colour
  • 1.07B
  • Response Time
  • 3 ms
  • Surface Treatment
  • Anti-Glare Treatment (Haze 25%)
  • 3H Hard Coating
Frequency
  • Frequency (H)
  • 31 kHz-92 kHz
  • Frequency (V)
  • 48 Hz-85 Hz

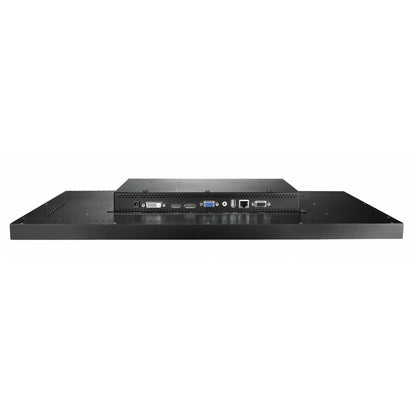

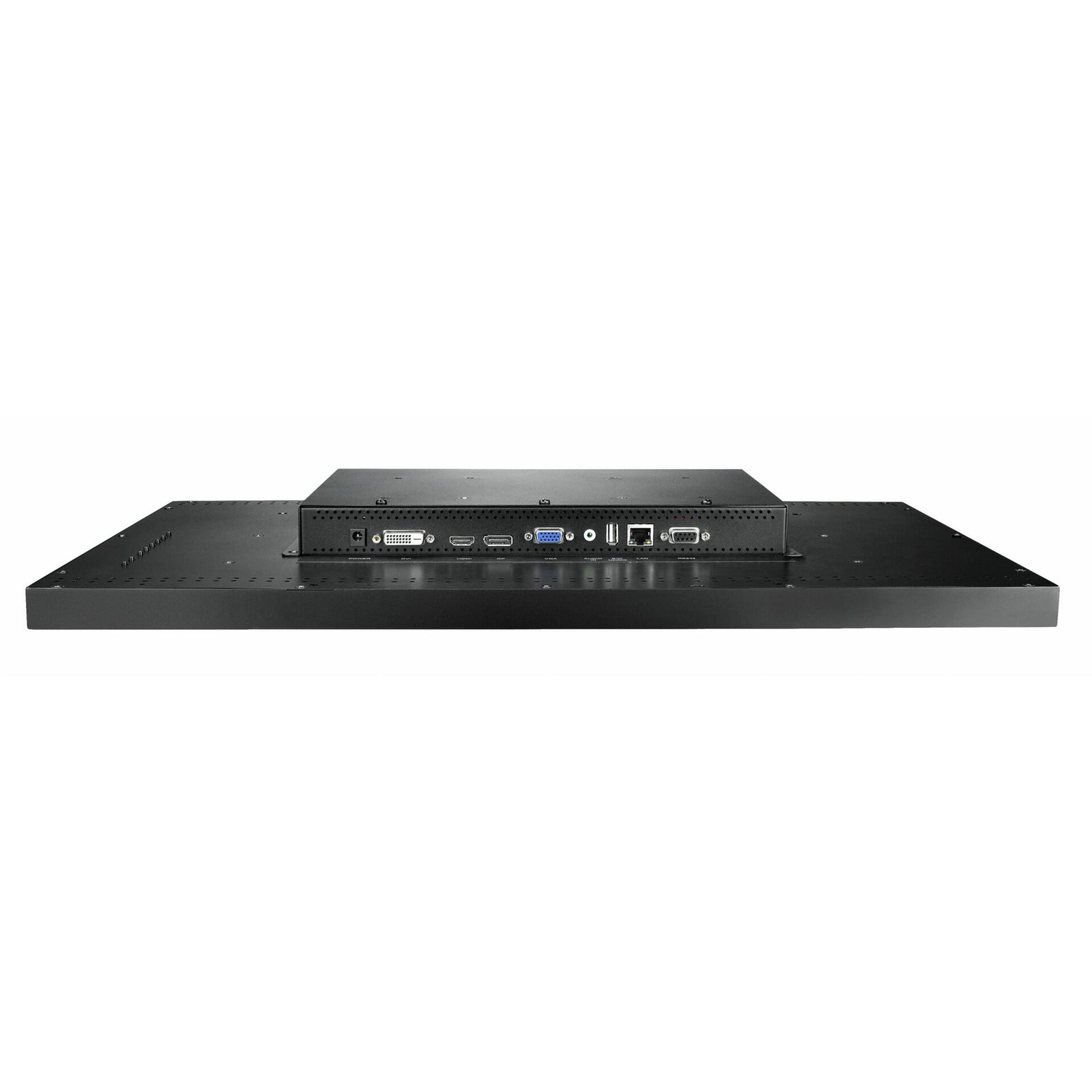

Signal Input
  • DisplayPort
  • 1.2 x 1
  • HDMI
  • 2.0 x 1
  • DVI
  • 24-Pin DVI-D
  • VGA
  • 15-Pin D-Sub x 1
External Control
  • RS232 In
  • 9-Pin D-Sub
  • LAN
  • RJ45 x 1
Other Connectivity
  • USB
  • 2.0 x 1 (Service Port)
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Internal Speakers
  • 3W x 2
Power
  • Power Supply
  • External
  • Power Requirements
  • DC 12V
  • 3.4A
  • On Mode
  • 29W (On)
  • Standby Mode
  • < 0.5W
  • Off Mode
  • < 0.3W
Glass
  • Thickness
  • 3.0 mm (0.12")
  • Reflection Rate
  • < 1%
  • Transmission Rate
  • > 97%
  • Hardness
  • > 9H
Operating Conditions
  • Temperature
  • 0°C-40°C (32°F-104°F)
  • Humidity
  • 10%-90% (non-condensing)
Storage Conditions
  • Temperature
  • -20°C-60°C (-4°F-140°F)
  • Humidity
  • 5%-95% (non-condensing)
Mounting

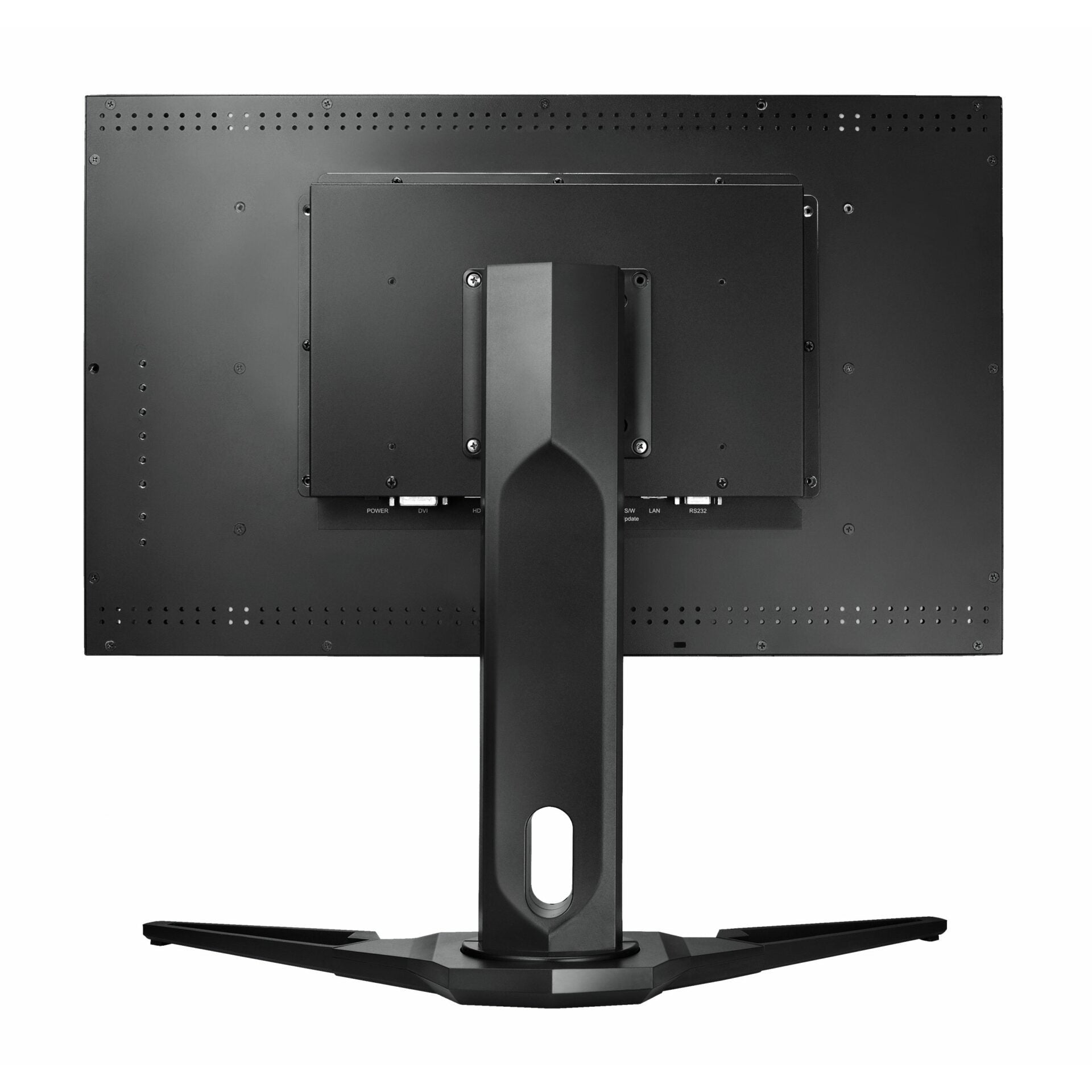

  • VESA FPMPMI
  • Yes (100 x 100 mm & 100 x 200 mm)
Stand

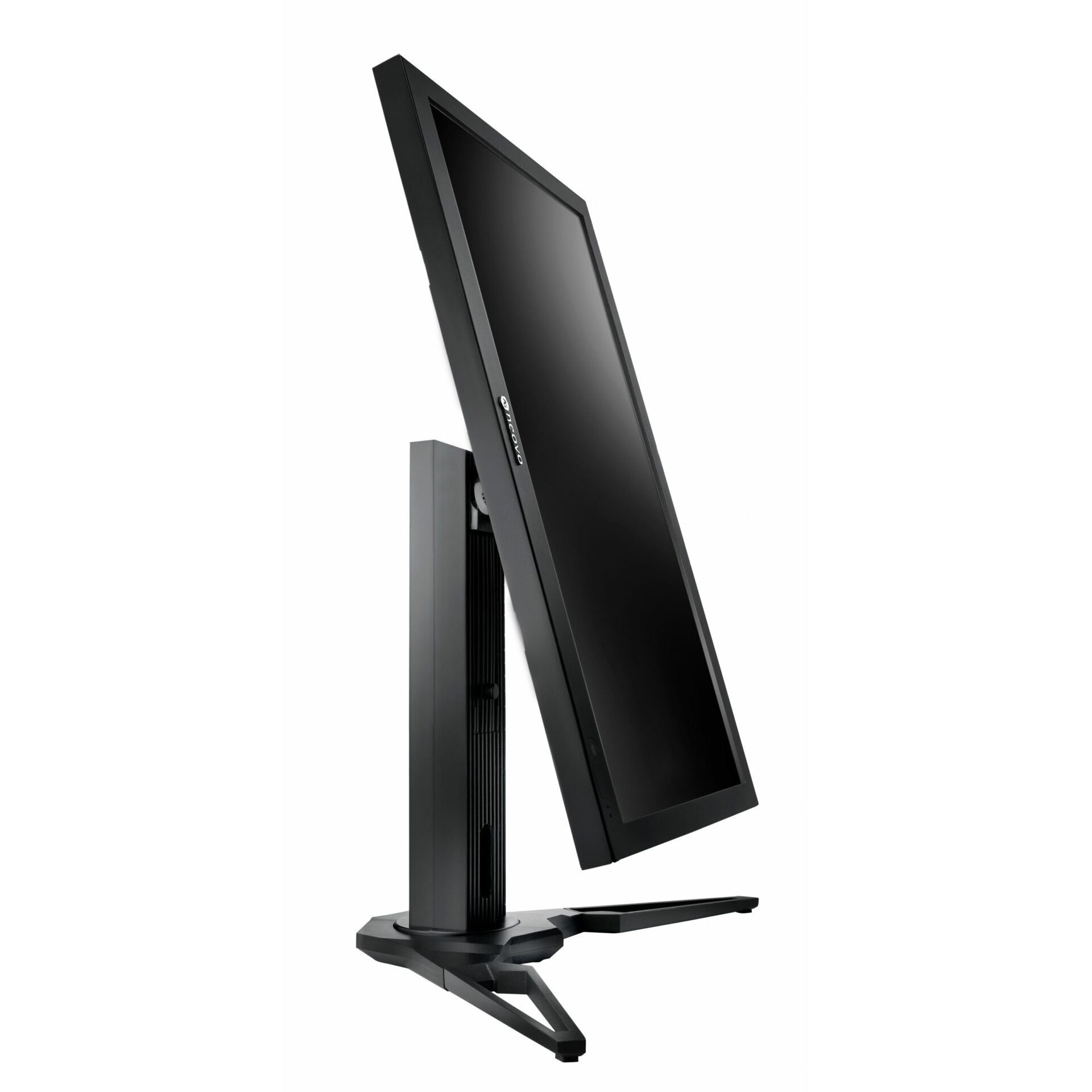

  • Tilt
  • 0° to 22°

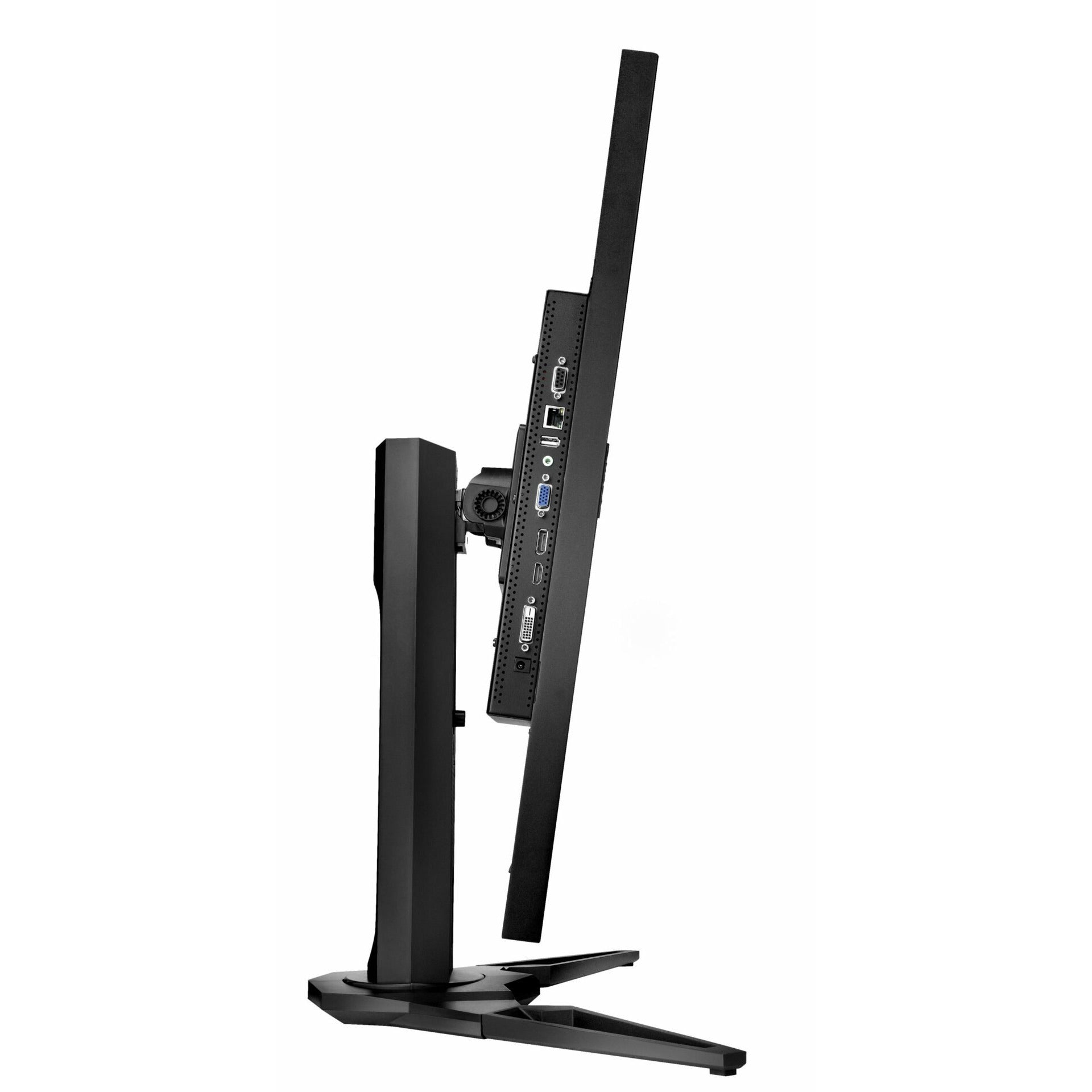

  • Pivot
  • 0° to 90°
  • Swivel
  • ± 45°
  • Height Adjustment
  • 100 mm
Security
  • Kensington Security Slot
  • Yes
Dimensions
  • Product with Base (W x H x D)
  • 681.0 x 565.5 x 270.0 mm (26.8" x 22.3" x 10.6")
  • Product w/o Base (W x H x D)
  • 681.0 x 405.0 x 59.8 mm (26.8" x 15.9" x 2.4")
  • Packaging (W x H x D)
  • 778.0 x 538.0 x 250.0 mm (30.6" x 21.2" x 9.8")
Weight
  • Product with Base
  • 13.3 kg (29.3 lb)
  • Product w/o Base
  • 10.4 kg (22.9 lb)
  • Packaging
  • 16.5 kg (36.4 lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • LVD
  • WEEE
  • RoHS
  • REACH
  • EAC
Accessories
  • Supplied
  • Batteries
  • HDMI Cable
  • Power Adaptor
  • Power Cord
  • Quick Start Guide
  • Remote Control
Optional Accessories
  • Ceiling Mount (Landscape only)
  • CMP-01 + LMK-02
  • CMP-01 + WMK-03
  • Wall Mount (Landscape only)
  • LMK-02
  • PMK-01
  • WMA-01
  • WMK-01
  • WMK-03
