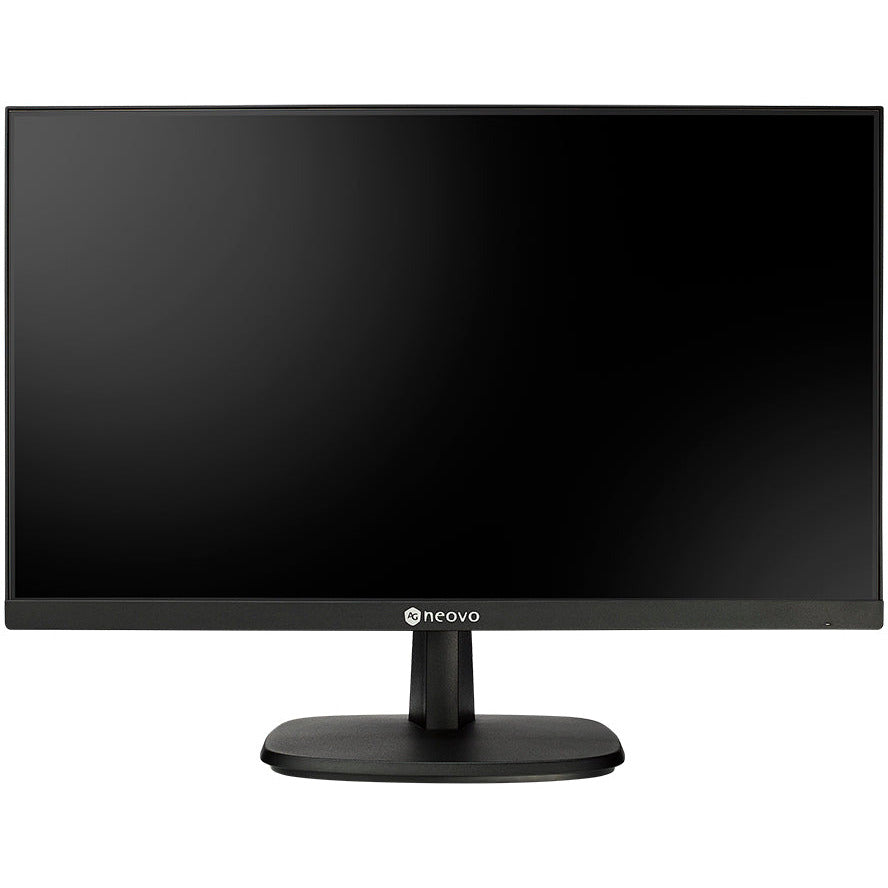

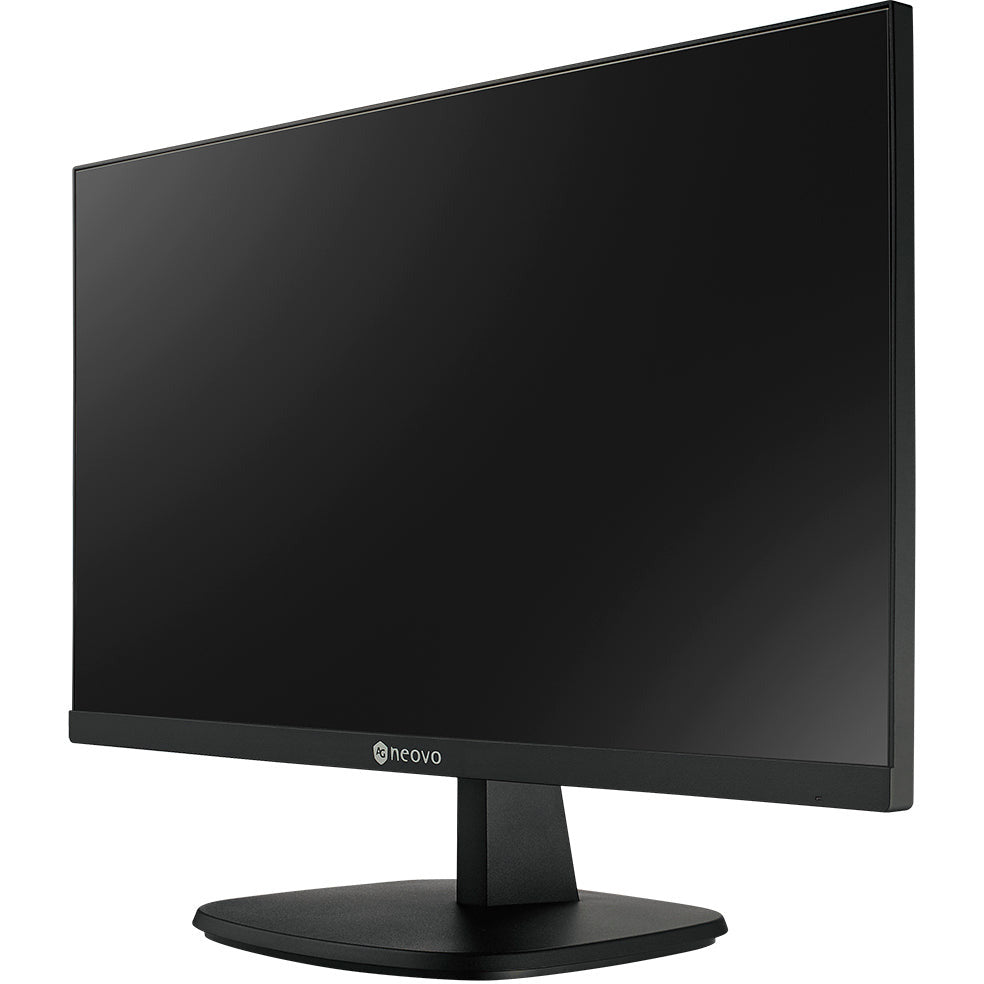

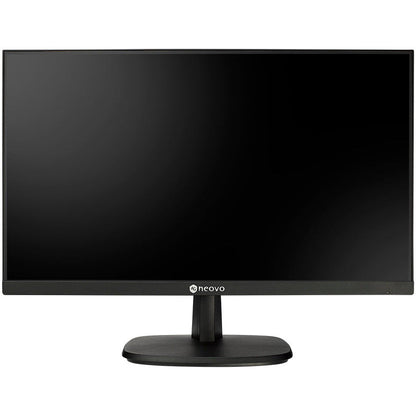

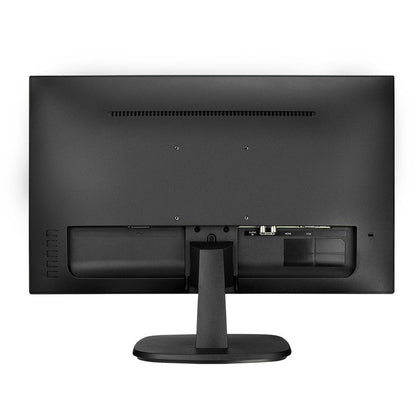

AG Neovo SC-2402 24-Inch 1080p Surveillance Monitor With BNC Connector

AG Neovo SC-2402 24-Inch 1080p Surveillance Monitor With BNC Connector

SKU:SC-2402

In stock

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out

Features:

  • Full HD 1920 x 1080 resolution
  • Versatile connectivity: VGA, HDMI, Composite (BNC) inputs
  • Composite (BNC) passive loop-through output port
  • Quick Image settings: CCTV Mode, Gamma Selection, Black-level Adjustment, Contrast Enhancer
  • Designed and developed for continuous 24/7 operation

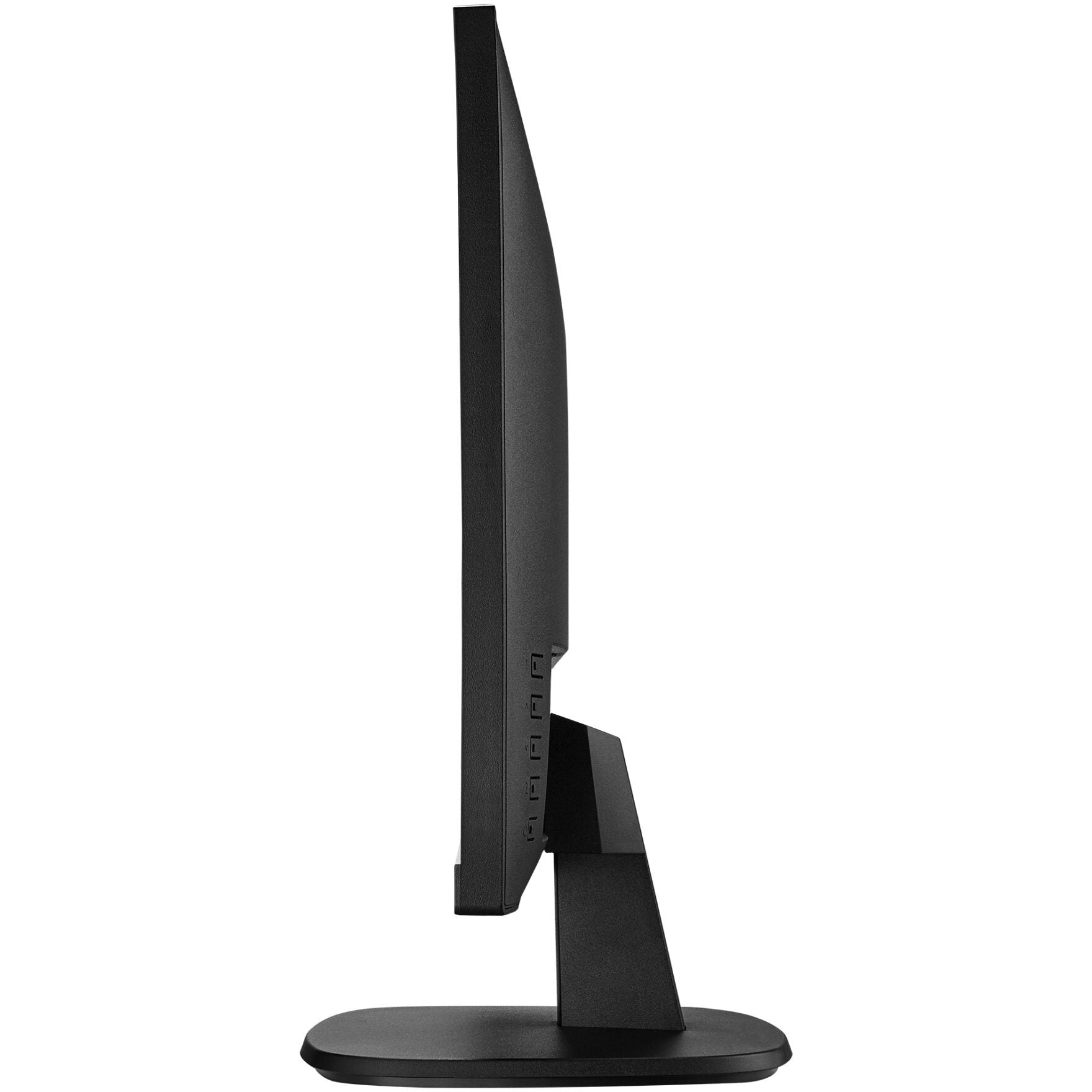

The SC-2402 24-inch surveillance monitor with BNC connector features 3-sided bezel-less specifically designed for security operators – especially those with a 24/7 operating multi-screen setup who are looking for efficient video monitoring. The SC-2402 provides value-added video enhancement controls that help create detailed images for low-light footage. Its optional monitor mounting solutions support single or multiple monitor setups. In terms of cost-to-performance, this model is the solution for productivity in modern operator workstations.

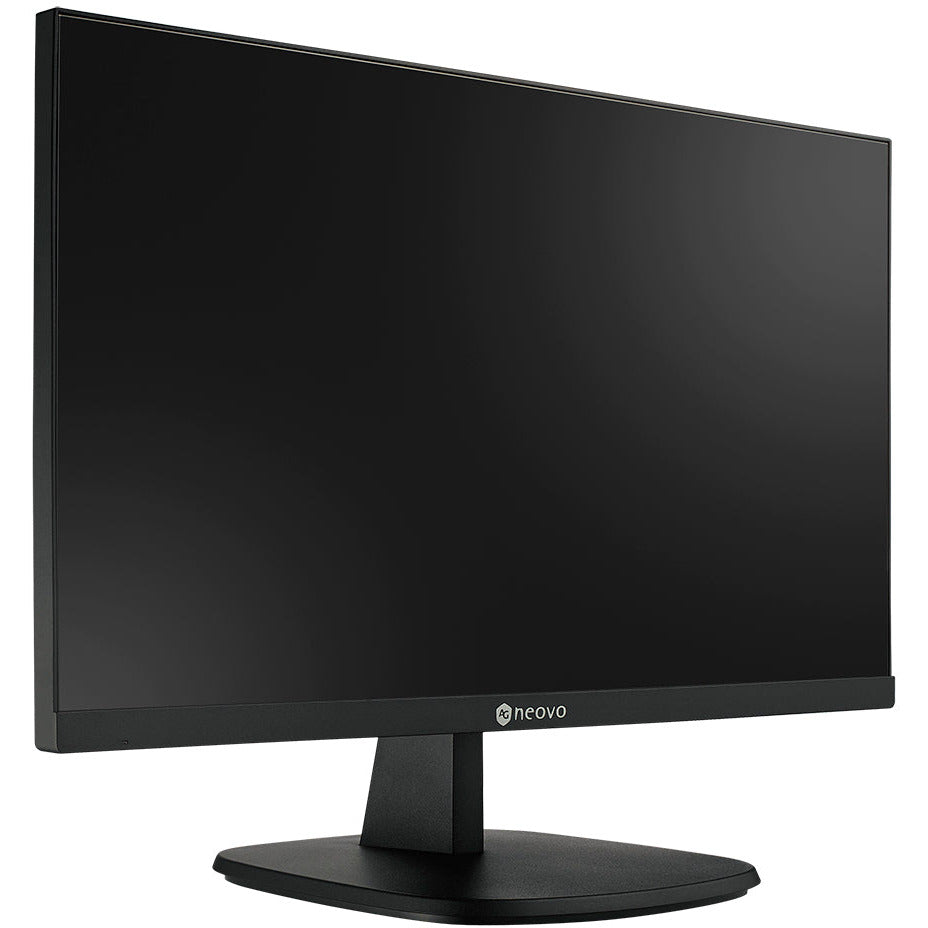

3-SIDED BEZEL LESS MONITOR INCREASE PRODUCTIVITY

The SC-2402 adopts a seamless 3-sided bezel-less design to create a productive work environment and reduce gaps between monitors. Perform rapid analysis, manage, and control video sources from all locations. Evolving situations require quick decisions, which seamless monitors can help with.


MULTIPLE MONITOR SETUPS MADE EASY

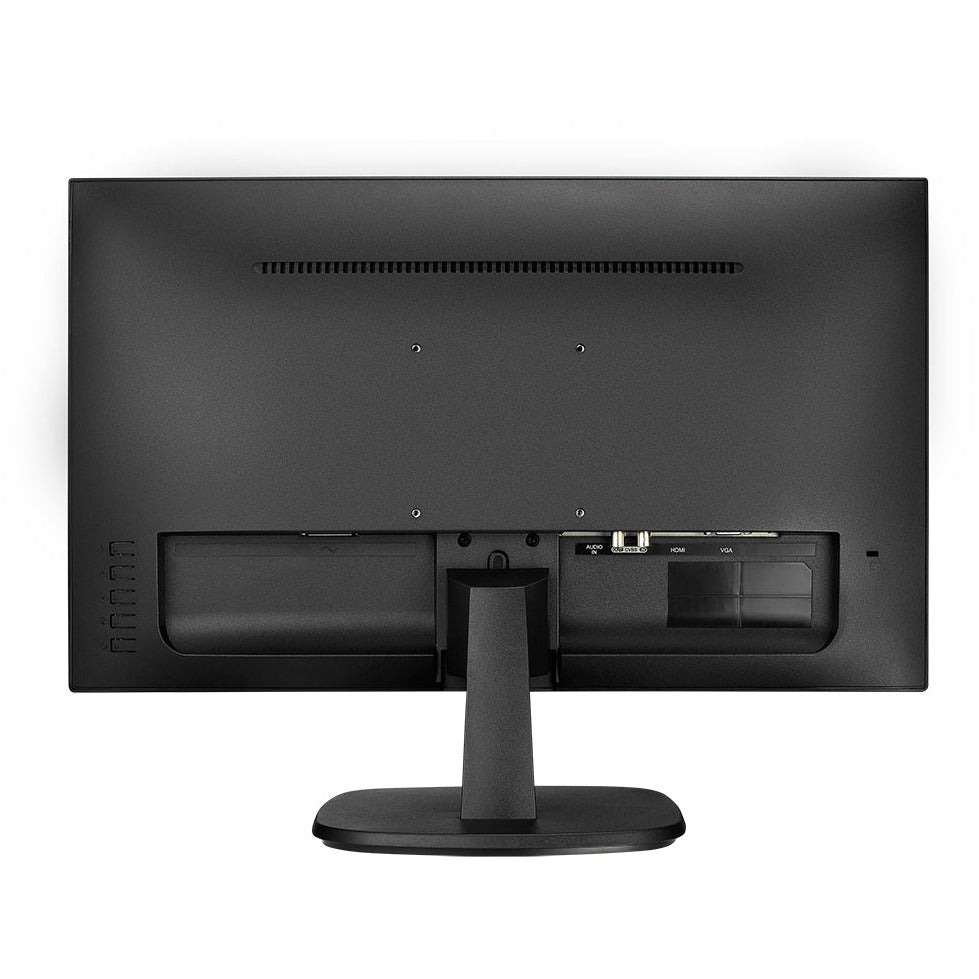

With VESA 100 x 100mm, the SC-2402 is compatible with AG Neovo’s mounting portfolio of desk and wall mounts. Whether you’re looking for a dual, quad, or more monitor set-up, AG Neovo is a one-stop-shop for creating ergonomic workstations in a control room.

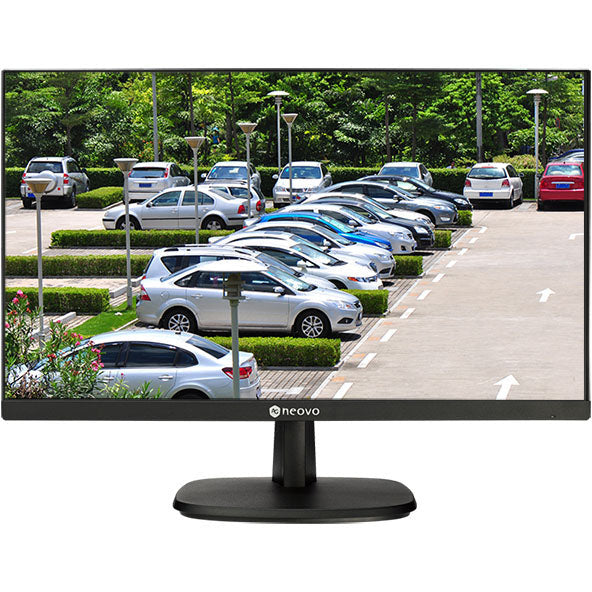

PERFECT MATCH TO CCTV IMAGES

There is a special pre-configured CCTV Mode that maximises image clarity in low-light footage. Quickly fine-tune your video footage with adjustments for sharpness, saturation, contrast, brightness, and more. Don’t waste time testing and re-adjusting constantly, this product already has it all figured out!


ENHANCED GAMMA SELECTION

Offering an enhanced gamma selection makes for amazing visual optimization. Improve the light, shadow, and colour balance quality of your videos with ease.


MISSING DETAILS IN DARK SCENES IS A THING OF THE PAST

More detail from black-level adjustment means improved visibility of dark images.


CONTRAST ENHANCER

By coming with a contrast enhancer, the surveillance monitor enables low-contrast images to become more clear and defined.


ADAPTABLE TO SURVEILLANCE ENVIRONMENT NEEDS

Tailor the display to your needs with on/off toggles for the blue screen. When there is no signal available, a blue screen will show that is ideally designed for dark and low-light environments.


VERSATILE CONNECTIVITY WITH BNC AND HDMI INPUTS

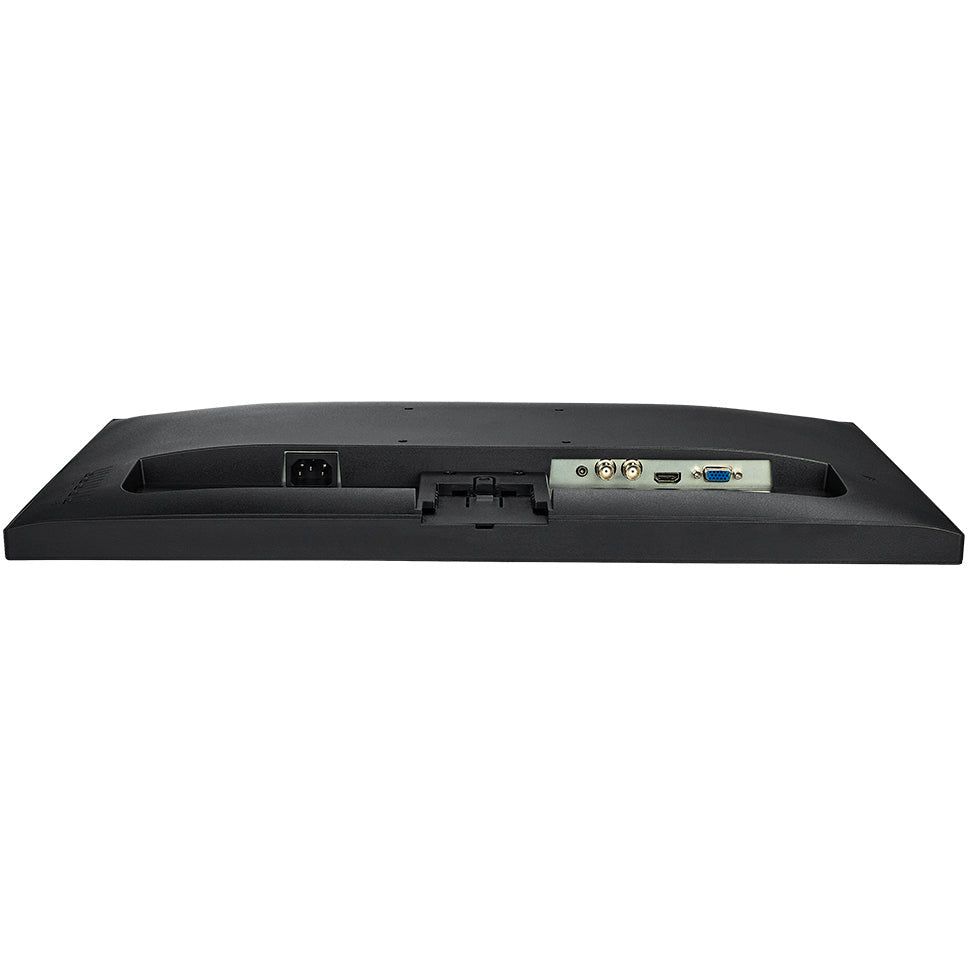

This 24-inch surveillance monitor with BNC Connector supports both analogue and digital video inputs. Easily connect to various video surveillance equipment with HDMI, VGA and BNC in/out ports. BNC port allows connecting CCTV cameras directly to the monitor. With this bezel less security monitor, there is no need for a DVR/converter to get straight to instant monitoring.

Specifications:

Panel
  • Panel Type
  • LED-Backlit TFT LCD
  • VA
  • Panel Size
  • 23.8"
  • Max. Resolution
  • FHD 1920 x 1080
  • Pixel Pitch
  • 0.275 mm
  • Brightness
  • 250 cd/m²
  • Contrast Ratio
  • 20,000,000:1 (DCR)
  • Viewing Angle (H/V)
  • 178°/178°
  • Display Colour
  • 16.7M
  • Response Time
  • 5 ms
  • Surface Treatment
  • Anti-Glare Treatment (Haze25%),3H Hard Coating
Frequency
  • Frequency (H)
  • 30 kHz-85 kHz
  • Frequency (V)
  • 48 Hz-75 Hz
Signal Input
  • HDMI
  • 1.4 x 1
  • VGA
  • 15-Pin D-Sub x 1
  • Composite
  • BNC x 1
Signal Output
  • Composite
  • BNC x 1
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Internal Speakers
  • 2W x 2
Power
  • Power Supply
  • Internal
  • Power Requirements
  • AC 100-240V
  • 50/60 Hz
  • On Mode
  • 15W (On)
  • Standby Mode
  • < 0.5W
  • Off Mode
  • < 0.3W
Operating Conditions
  • Temperature
  • 5°C-35°C (41°F-95°F)
  • Humidity
  • 20%-85% (non-condensing)
Storage Conditions
  • Temperature
  • -20°C-60°C (-4°F-140°F)
  • Humidity
  • 10%-90% (non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (100 x 100 mm)
Stand
  • Tilt
  • -5° to 20°
Security
  • Kensington Security Slot
  • Yes
Dimensions
  • Product with Base (W x H x D)
  • 540.1 x 408.3x 226.5 mm (21.3" x 16.1" x 8.9")
  • Product w/o Base (W x H x D)
  • 540.1 x 322.1 x 41.8 mm (21.3" x 12.7" x 1.7")
  • Packaging (W x H x D)
  • 606.0 x 480.0 x 108.0 mm (23.9" x 18.9"x 4.3")
Weight
  • Product with Base
  • 3.4 kg (7.5 lb)
  • Product w/o Base
  • 3.0 kg (6.6 lb)
  • Packaging
  • 4.8 kg (10.6 lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • LVD
  • WEEE
  • RoHS
  • REACH
  • UKCA
  • EAC
  • FCC
  • ICES-003
Accessories
  • Supplied
  • Audio Cable
  • Power Cord
  • Quick Start Guide
  • VGA Cable
Optional Accessories
  • Ceiling Mount (Landscape only)
  • CMP-01 + WMK-03
  • Wall Mount (Landscape only)
  • PMK-01
  • WMA-01
  • WMK-01
  • WMK-03
  • Desk mount (Landscape only)
  • DMC-01
  • DMC-02D
  • DMS-01D
  • ES-02
