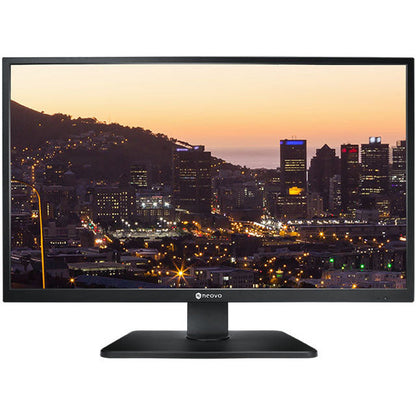

AG Neovo SC-32E 32-Inch 1080p Surveillance Display With BNC Output

AG Neovo SC-32E 32-Inch 1080p Surveillance Display With BNC Output

SC-32E

In stock

Login to see prices
Login to see prices Login to see prices
Sale Sold out

Features:

  • Full HD 1920 x 1080 resolution
  • Versatile connectivity: VGA, HDMI, Composite (BNC), and dual 2W speakers
  • Composite (BNC) passive loop-through output port
  • CCTV picture mode for maximum image detail and clarity in low light footage
  • Designed and developed for continuous 24/7 operation

The SC-32E surveillance display designed for 24/7 operation features Anti-Burn-in™ technology to prevent LCD burn-in effect from long-hour monitoring. This 32” 1080p display also includes video enhancement controls such as gamma curve selection, black-level adjustment, contrast enhancer and CCTV mode that help create richer images even under unfavourable lighting conditions from low light surveillance footage.

SUPPORT ANALOGUE CCTV CAMERA SYSTEMS

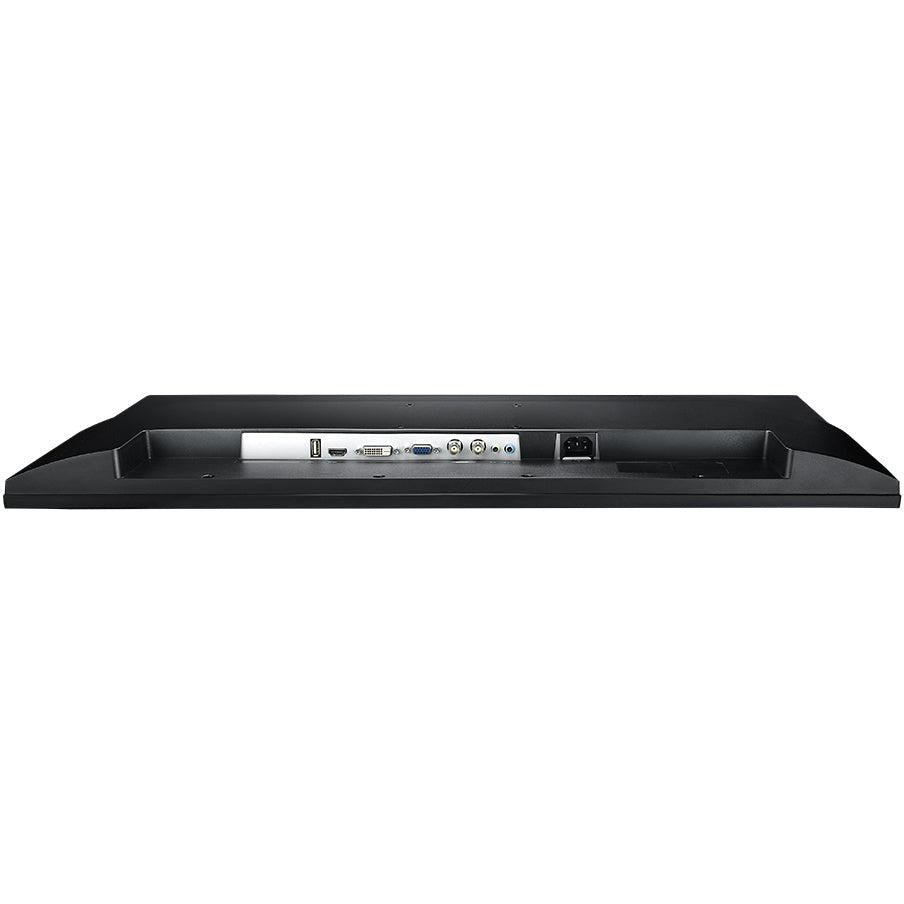

The SC-32E supports analogue and digital video inputs. Its BNC in/out ports enable video looping of security camera signals and DVRs.


CCTV MODE MAXIMISE VIDEO CAMERA IMAGES

A pre-configured CCTV mode provides to adjust the display’s video settings such as sharpness, colour temperature, and brightness to maximise image clarity, especially in low light surveillance footage at night.


NOT MISSING DETAILS IN DARK SCENES

Black-level adjustment allows displaying more details in dark images.

Specifications:

Panel
  • Panel Type
  • IPS
  • Panel Size
  • 31.5"
  • Max. Resolution
  • FHD 1920 x 1080
  • Pixel Pitch
  • 0.364 mm
  • Brightness
  • 350 cd/m²
  • Contrast Ratio
  • 20,000,000:1 (DCR)
  • Viewing Angle (H/V)
  • 178°/178°
  • Display Colour
  • 16.7M
  • Response Time
  • 5 ms
  • Surface Treatment
  • Anti-Glare Treatment (Haze 1%),3H Hard Coating
Frequency
  • Frequency (H)
  • 30 kHz-85 kHz
  • Frequency (V)
  • 48 Hz-75 Hz
Signal Input
  • HDMI
  • 1.4 x 1
  • DVI
  • 24-Pin DVI-D
  • VGA
  • 15-Pin D-Sub x 1
  • Composite
  • BNC x 1
Signal Output
  • Composite
  • BNC x 1
Other Connectivity
  • USB
  • 2.0 x1 (Service Port / Media Playback)
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Audio Out
  • Stereo Audio Jack (3.5 mm)
  • Internal Speakers
  • 3W x 2
Power
  • Power Supply
  • Internal
  • Power Requirements
  • AC 100-240V
  • 50/60 Hz
  • On Mode
  • 26W(On)
  • Standby Mode
  • < 0.5W
  • Off Mode
  • < 0.3W
Operating Conditions
  • Temperature
  • 5°C-35°C (41°F-95°F)
  • Humidity
  • 20%-85% (non-condensing)
Storage Conditions
  • Temperature
  • -20°C-60°C (-4°F-140°F)
  • Humidity
  • 5%-85% (non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (100 x 100 mm)
Stand
  • Tilt
Security
  • Kensington Security Slot
  • Yes
Dimensions
  • Product with Base (W x H x D)
  • 728.8 x 540.3 x 236.8 mm (28.7″ x 21.3″ x 9.3″)
  • Product w/o Base (W x H x D)
  • 728.8 x 433.1 x 51.4 mm (28.7" x 17.1" x 2.0")
  • Packaging (W x H x D)
  • 810.0 x 528.0 x 210.0 mm (31.9" x 20.9" x 8.3")
Weight
  • Product with Base
  • 8.1 kg (17.9 lb)
  • Product w/o Base
  • 5.6 kg (12.3 lb)
  • Packaging
  • 10.5 kg (23.1 lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • FCC
  • LVD
  • WEEE
  • RoHS
  • REACH
Accessories
  • Supplied
  • Audio Cable
  • Batteries
  • Power Cord
  • Quick Start Guide
  • Remote Control
  • VGA Cable
Optional Accessories
  • Ceiling Mount (Landscape only)
  • CMP-01 + LMK-02
  • CMP-01 + WMK-03
  • Wall Mount (Landscape only)
  • LMA-01
  • LMK-02
  • PMK-01
  • WMA-01
  • WMK-01
  • WMK-03
  • Desk mount (Landscape only)
  • DMC-01
  • ES-02
