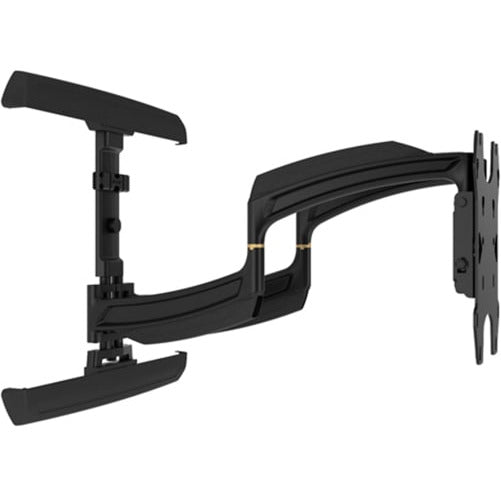

Chief Thin Swing Arm (Large)

Chief Thin Swing Arm (Large)

TS525TU

Low stock

Login to see prices
Login to see prices Login to see prices
Sale Sold out

A lightweight, low-profile full-motion wall display mount for TVs 42-75". Easily installs with one person by mounting the top rail and sliding on the assembly.

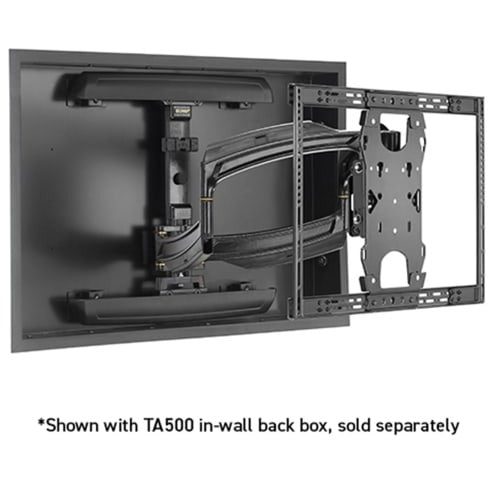

In-wall installation available when TA500 purchased with mount.
Dimensions & Measurements
Lateral Shift
40.6 cm (16 in)
Maximum Extension
63.5 cm (25 in)
Maximum Screen Thickness
3" (76mm)
Minimum Depth
5.1 cm (2 in)
Shipping Weight
25 kg (55 lbs)
Tilt
+0° / - 15°
Typical Screen Size
42" - 75" (1067mm - 1905mm)
Wall Stud Compatibility In
Dual Stud
Weight Capacity
56.7 kg (125 lbs)
Characteristics & Features
Adjustability
  • Extension
  • Height Adjustable
  • Lateral Shift
  • Micro-Adjustable
  • Swivel
  • Tilt
Application
Wall
Color
Black
Orientation
Landscape
Post-Installation Leveling Roll
Yes
Solution Type
Universal
TAA Compliant
No
VESA Mounting Pattern
100x100mm-800x400mm
Certifications & Warranties
Certifications
  • OSHPD
  • UL Listed
View full details
