AG Neovo TM-23 23-Inch 1080p Touch Screen Monitor
AG Neovo TM-23 23-Inch 1080p Touch Screen Monitor
SKU:TM-23
In stock
Couldn't load pickup availability
Features:
- Full HD 1920 x 1080 resolution
- Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
- 10-point projected capacitive touch technology
- Windows 10 ready – plug and play support for Windows 7/8/10
- Flexible dual-hinge stand design to maximise viewing comfort for multiple users
Utilizing projected capacitive (PCAP) 10 point multi-touch technology, the TM-23 23-inch touch screen monitor delivers a smooth and precise touch response. Compatibility with Windows® 7, 8 & 10 touch functions and versatile connectivity makes connecting with media sources and peripheral devices easy. The ergonomic monitor stand, a 178-degree wide viewing angle, and tilt flexibility ranging from –5 to 90 degrees guarantees user comfort, making the TM-23 an ideal choice for public access, such as information kiosks and self-check-in kiosks.
10 POINT MULTI-TOUCH MONITOR
The TM-23 PCAP touch screen monitor, with 10-point touch capability, offers a smooth and responsive touch experience. Designed with a flat surface and edge-to-edge glass overlay, the TM-23 gives an invitingly modern appeal that fits the professional environment.
ERGONOMIC MONITORS MAXIMISE USERS COMFORT
With an ergonomic monitor stand, the TM-23 touch screen provides height adjustability and a wide tilt range from –5° to 90° to optimise users’ ergonomic working position and productivity. Given a 178-degree wide viewing angle, it allows multiple users to view a single screen comfortably.

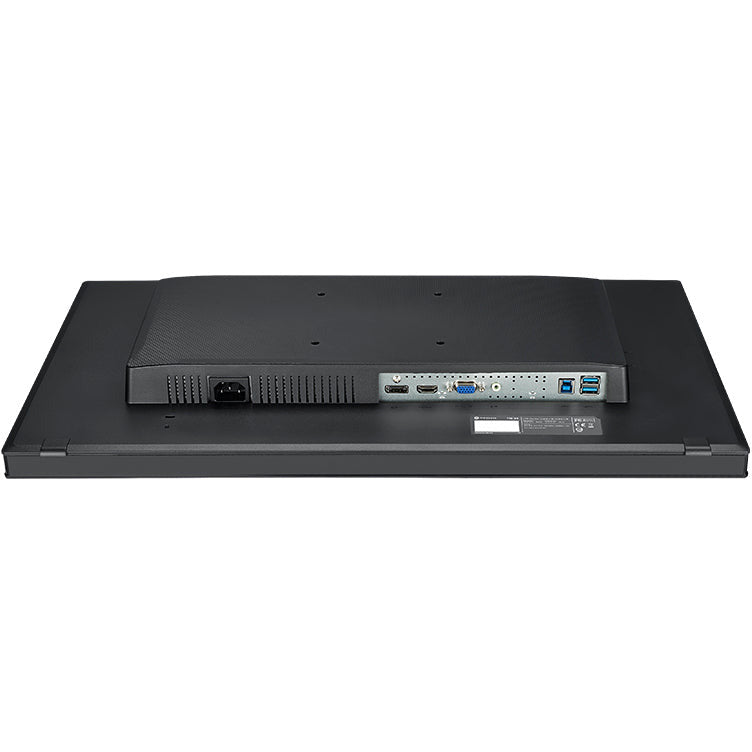

EASY SYSTEM INTEGRATION
Plug-and-play multi-touch capability for systems with Windows 7/8/10, versatile connectivity (DisplayPort, HDMI, VGA) and built-in speakers enable effortless system integration. The built-in USB Port (USB 3.0) also allows a touch monitor easy connect to peripheral devices.
Specifications:
Panel
- Panel Type
- IPS
- Panel Size
- 23.0"
- Max. Resolution
- FHD 1920 x 1080
- Pixel Pitch
- 0.265 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 20,000,000:1 (DCR)
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 16.7M
- Response Time
- 5 ms
Frequency
- Frequency (H)
- 30 kHz-83 kHz
- Frequency (V)
- 50 Hz-76 Hz
Signal Input
- DisplayPort
- x 1
- HDMI
- 1.3 x 1
- VGA
- 15-Pin D-Sub x 1
Other Connectivity
- USB
- USB HUB (3.0 x 4)
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Internal Speakers
- 2W x 2
Touch Screen
- Technology
- Projective Capacitive
- Positional Accuracy
- ± 1.0 mm
- Panel Interface
- USB (Type-B)
- Multi-touch Plug & Play
- 10-point touch Windows® 7、8、10、11
- Single Touch Support by Driver
- Windows XP
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 14W (On)
- Standby Mode
- < 0.7W
- Off Mode
- < 0.3W
Glass
- Thickness
- 2.4 mm (0.09")
- Transmission Rate
- > 90%
- Hardness
- > 7H
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 10%-85% (non-condensing)
Storage Conditions
- Temperature
- -25°C-55°C (-13°F-131°F)
- Humidity
- 5%-93% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (100 x 100 mm)
Stand
- Tilt
- -5° to 90°
- Height Adjustment
- 131.5-400.0 mm
Security
- Kensington Security Slot
- Yes
Dimensions
- Product with Base (W x H x D)
- 561.0 x 400.0 x 238.5 mm (22.1" x 15.7" x 9.4")
- Product w/o Base (W x H x D)
- 561.0 x 338.2 x 57.2 mm (22.1" x 13.4" x 2.3")
- Packaging (W x H x D)
- 632.0 x 448.0 x 186.0 mm (24.9" x 17.6" x 7.3")
Weight
- Product with Base
- 6.6 kg (14.6 lb)
- Product w/o Base
- 4.3 kg (9.5 lb)
- Packaging
- 8.7 kg (19.2 lb)
Regulation Approval
- Certifications & Compliance
- CE
- FCC
- LVD
- BSMI
- WEEE
- RoHS
- REACH
- EAC
- UKCA
Accessories
- Supplied
- Audio Cable
- CD
- HDMI Cable
- Power Cord
- USB Cable
- VGA Cable
- Warranty Card
Optional Accessories
- Wall Mount (Landscape only)
- PMK-01
- WMK-01
- WMK-03
