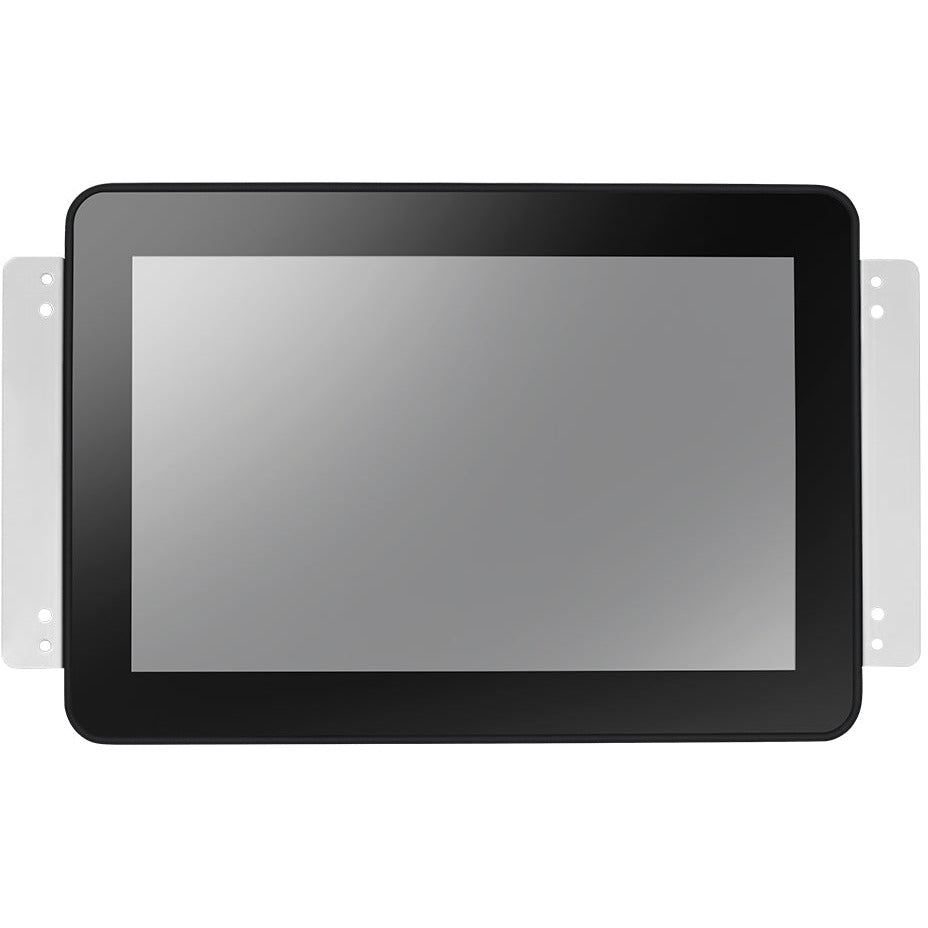

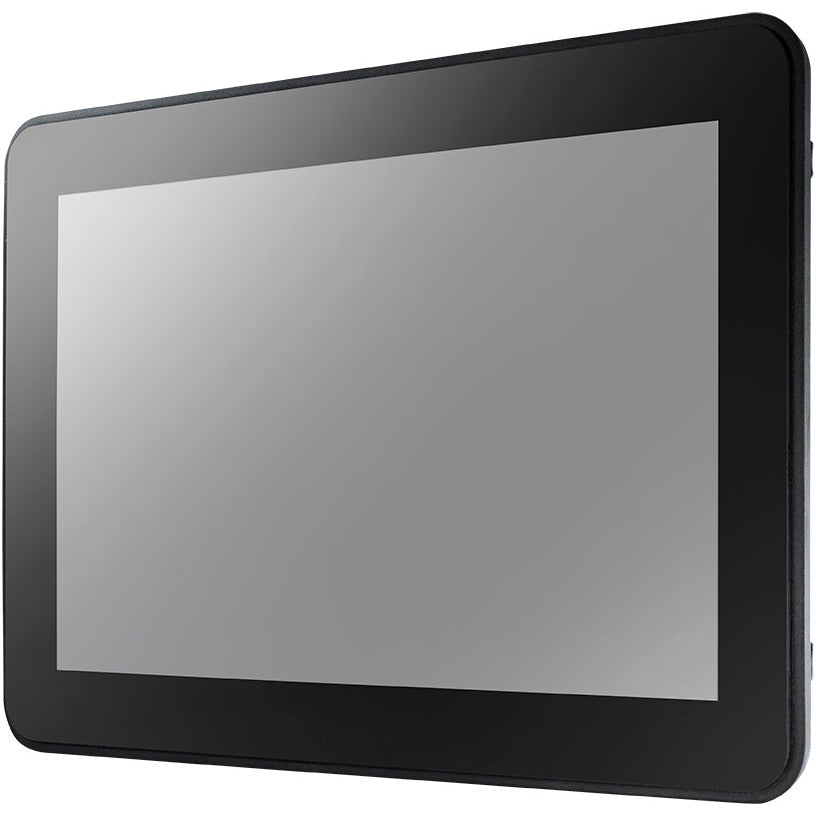

AG Neovo TX-10 10-Inch Touch Screen Monitor

AG Neovo TX-10 10-Inch Touch Screen Monitor

SKU:TX-10

Out of stock

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out

Features:

  • WXGA 1280 x 800 resolution with 16:10 aspect ratio
  • 10-point projected capacitive touch technology
  • Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
  • Included side mounting brackets for flexible installation
  • Landscape and Portrait for flexible display orientation

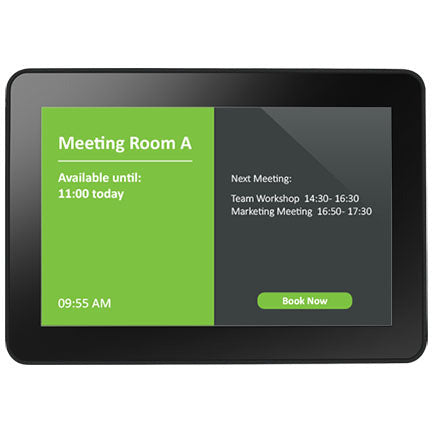

The TX-10 10-inch touch screen monitor brings the experience of a tablet into the form factor of a monitor. Its foam seal design supports seamless integration into kiosks and its front-side IP65 rating protects the screen from dust and water. External mounting brackets are provided for installation in various applications — conference room schedule display, self-service kiosks, in-store interactive signage or control panels. Flexibility in either landscape or portrait installation, the TX-10 touch screen is the perfect fit.

FUNCTIONAL AND RELIABLE FOR ROUND-THE-CLOCK USE

Using projected capacitive (PCAP) touch technology, the TX-10 touch screen has 10 point multi-touch capability, gives the user a higher precision, and brings the same touch experience as using a tablet or smartphone. And this functionality is backed by a high-impact resistant screen glass and a high reliability level for around-the-clock operations.


WATER AND DUST RESISTANT DESIGN

The front-side IP65 rating protects the touch screen from water and dust. The outer edge of the display is plastic resin bezels and a foam seal finish, ensuring a seamless, airtight fit and protection from dust invasion. Perfect for high-use applications like kiosks or control panels.


CABLE MANAGEMENT SYSTEM

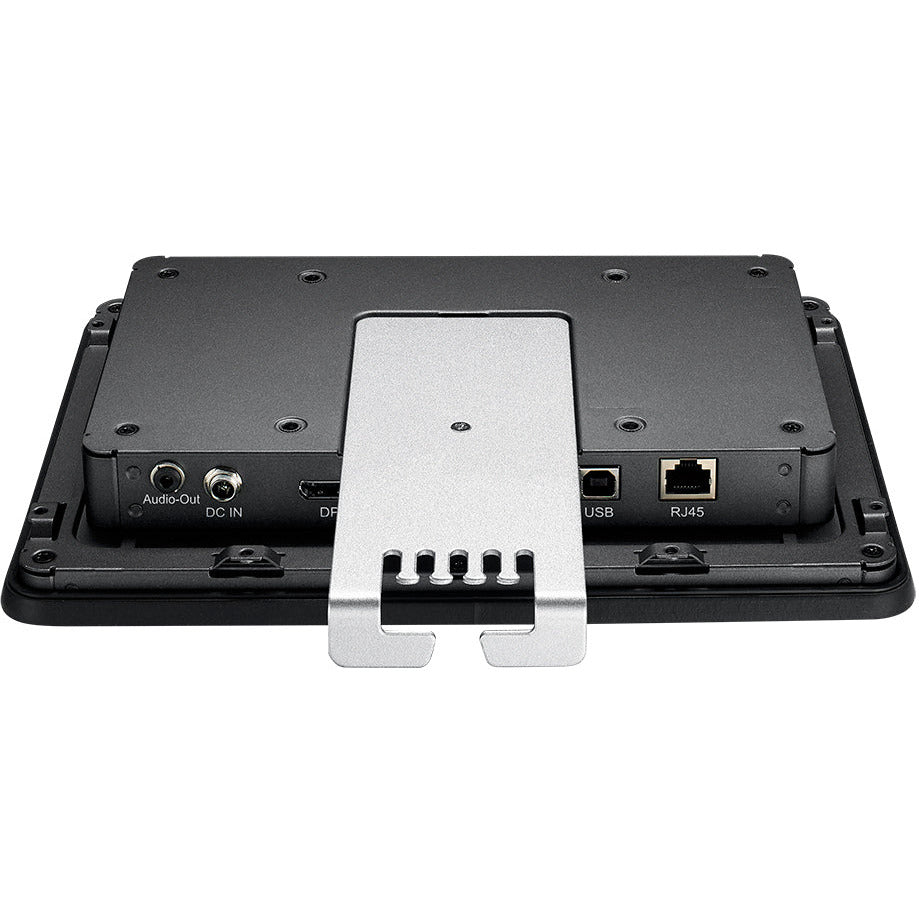

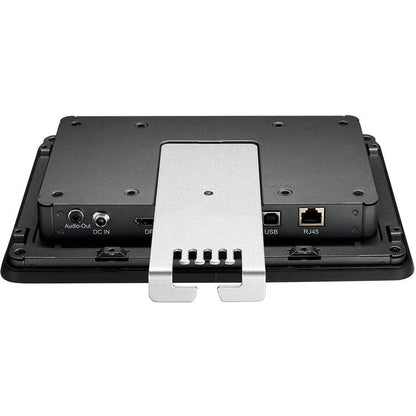

Cleanliness and orderliness are key in commercial and industrial settings. A lockable power adapter and cable organizer at the back end of the touch screen keep cables neat and in order, preventing loose, messy, or disconnected cords.


EASY SYSTEM INTEGRATION

Plug-and-play multi-touch capability for Windows 7/8/10 and versatile connectivity (DisplayPort, HDMI, VGA) enable effortless system integration and facilitate users to connect to various devices.

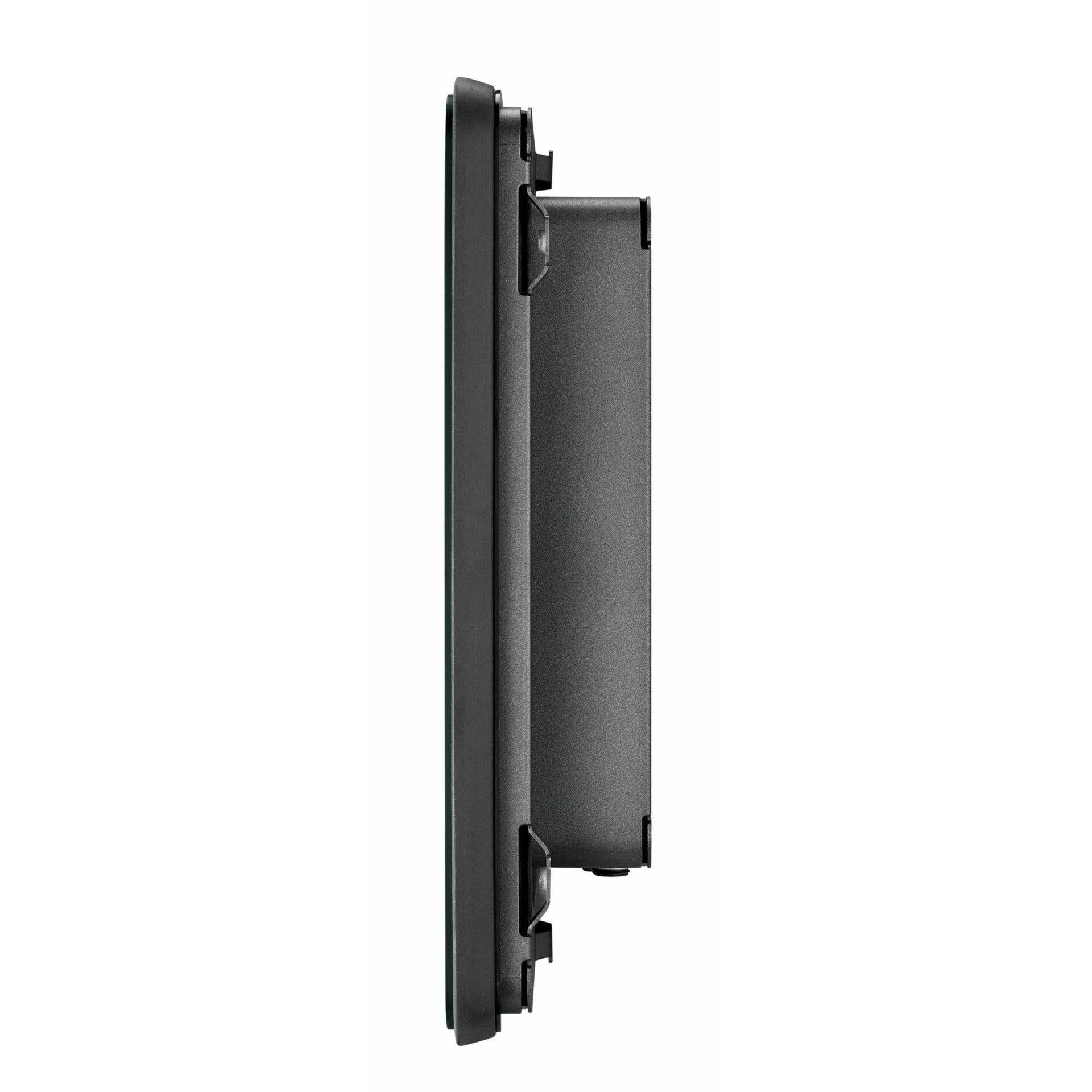

MOUNT WITH FLEXIBILITY

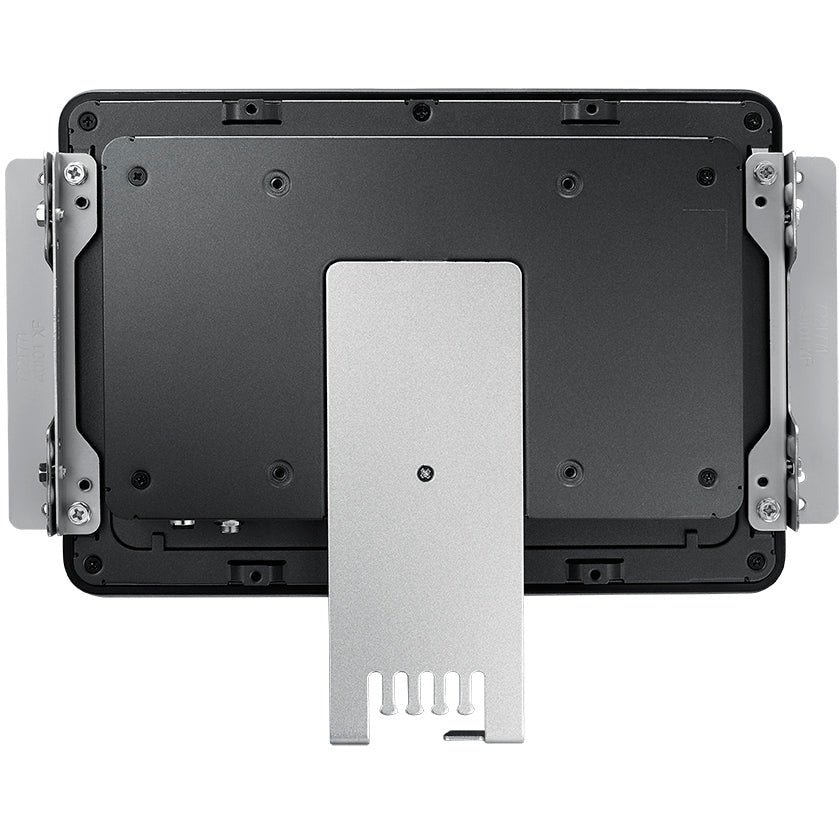

AG Neovo equipped this 10-inch touch screen monitor with external open frame brackets. This allows users to mount the screen in their unique environment and purpose—in either landscape or portrait orientation.

Specifications:

Panel
  • Panel Type
  • VA
  • Panel Size
  • 10.1"
  • Max. Resolution
  • 1280 x 800
  • Pixel Pitch
  • 0.169 mm
  • Brightness
  • 500 cd/m²
  • Contrast Ratio
  • 1300:1
  • Viewing Angle (H/V)
  • 170°/170°
  • Display Colour
  • 16.2M
  • Response Time
  • 5 ms
Frequency
  • Frequency (H)
  • 31 kHz-50 kHz
  • Frequency (V)
  • 56 Hz-60 Hz

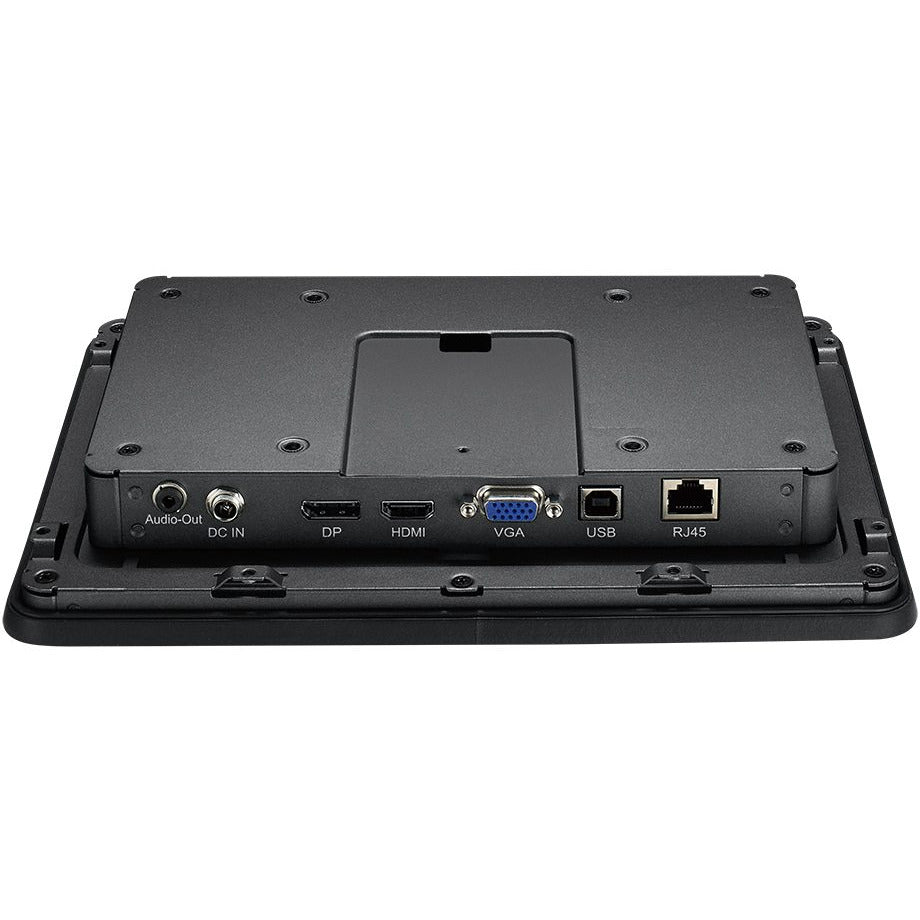

Signal Input
  • DisplayPort
  • x 1
  • HDMI
  • 1.3a x 1
  • VGA
  • 15-Pin D-Sub x 1
Audio
  • Audio Out
  • Stereo Audio Jack (3.5 mm)
Touch Screen
  • Technology
  • Projective Capacitive
  • Positional Accuracy
  • ±2.5 mm
  • Panel Interface
  • USB (Type-B)
  • Multi-touch Plug & Play
  • 10-point touch for Windows® 7、8、10、11
  • Single Touch Support by Driver
  • Windows VISTA/XP/2000/CE/XP Embedded、Mac OS 10.10-10.14
  • Multi-touch Support by Driver
  • 10-point touch for Linux、Android 2.3-4.x
Power
  • Power Supply
  • External
  • Power Requirements
  • DC 12V
  • 1.0A
  • On Mode
  • 8W (On)
  • Standby Mode
  • < 0.8W
  • Off Mode
  • < 0.3W
Glass
  • Thickness
  • 3.3 mm (0.13")
  • Reflection Rate
  • < 12%
  • Transmission Rate
  • > 85%
  • Hardness
  • > 7H
Operating Conditions
  • Temperature
  • 0°C to 50°C (32°F-122°F)
  • Humidity
  • 20%-80% (non-condensing)
Storage Conditions
  • Temperature
  • -20°C to 60°C (-4°F-144°F)
  • Humidity
  • 10%-90% (non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (100 x 100 mm)
Dimensions
  • Product w/o Base (W x H x D)
  • 260.7 x 183.4 x 39.4 mm (10.3” x 7.2” x 1.6”)
  • Packaging (W x H x D)
  • 370.0 x 325.0 x 160.0 mm (14.6” x 12.8” x 6.3”)
Weight
  • Product w/o Base
  • 1.4 kg (3.1 lb)
  • Packaging
  • 2.4 kg (5.3 lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • LVD
  • BSMI
  • RoHS
  • REACH
  • WEEE
  • EAC
  • UKCA
Accessories
  • Supplied
  • DisplayPort Cable
  • Power Adaptor
  • Power Cord
  • Quick Start Guide

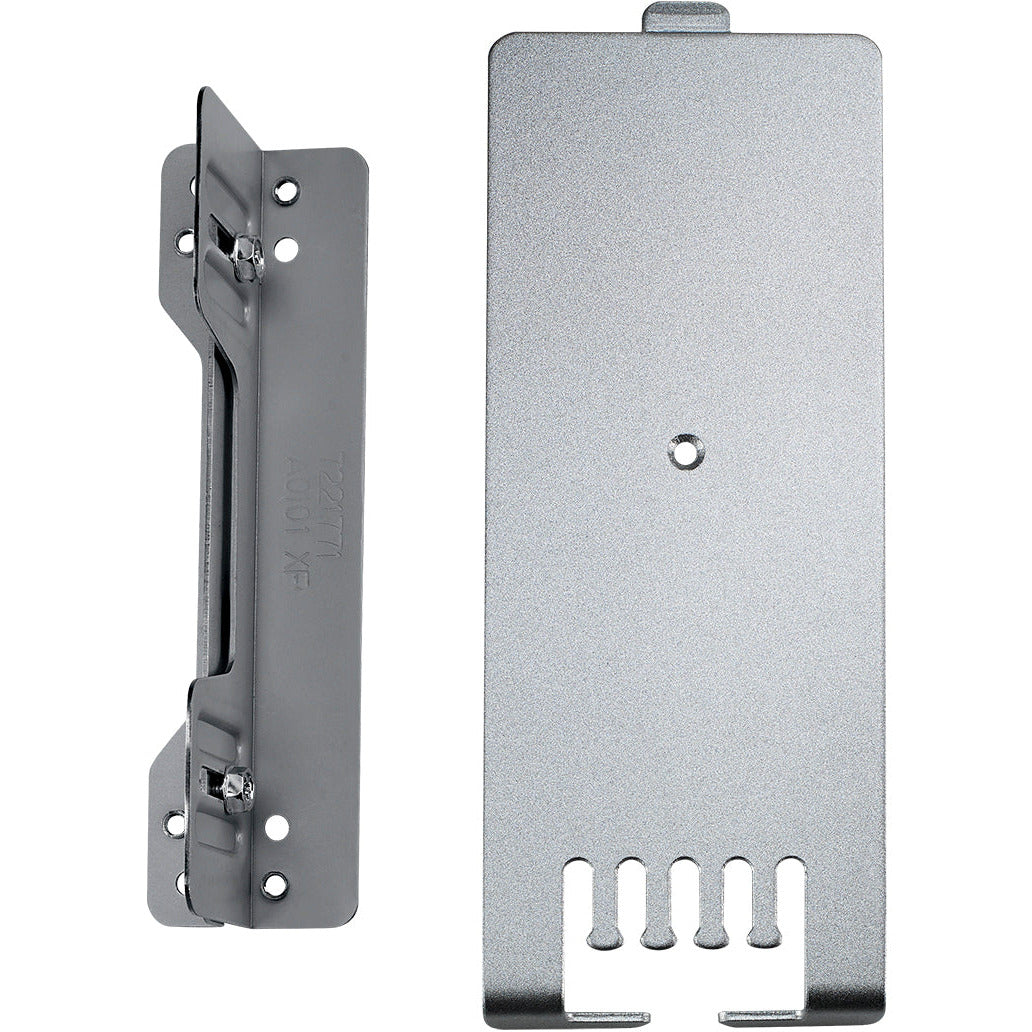

  • Side Bracket Package
  • USB Cable
  • VGA Cable

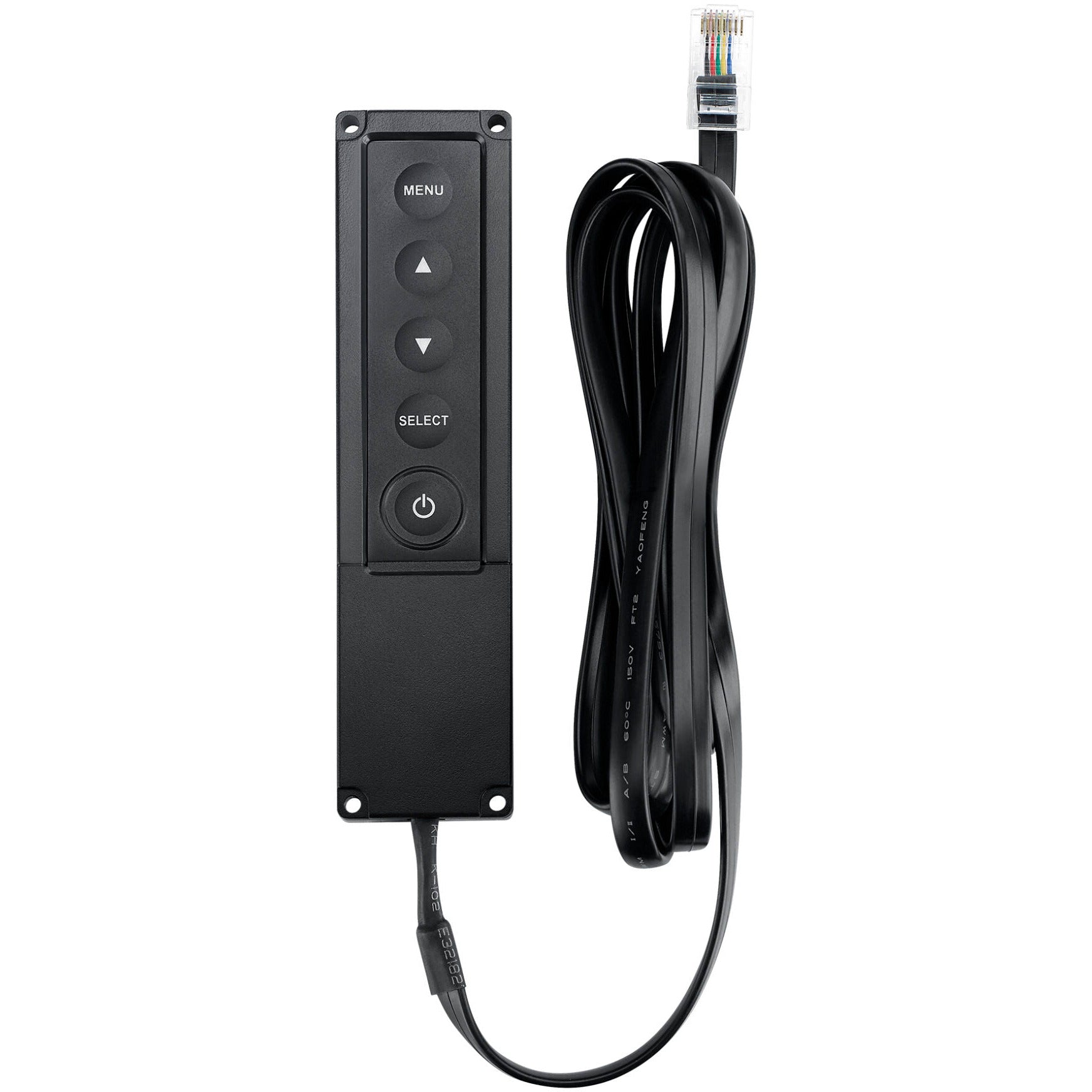

  • Wired OSD Controller
Optional Accessories
  • Wall Mount (Landscape only)
  • PMK-01
  • WMK-01
