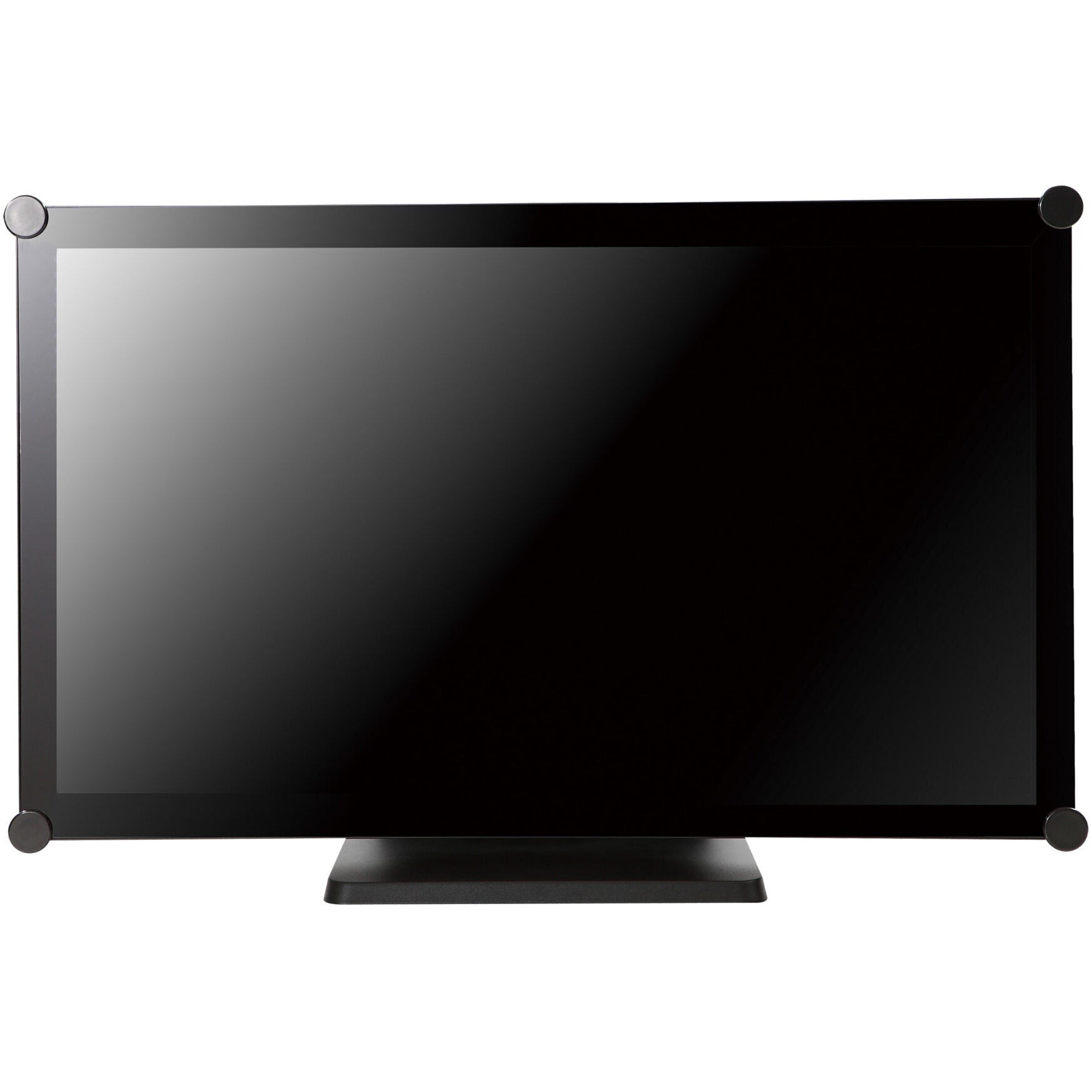

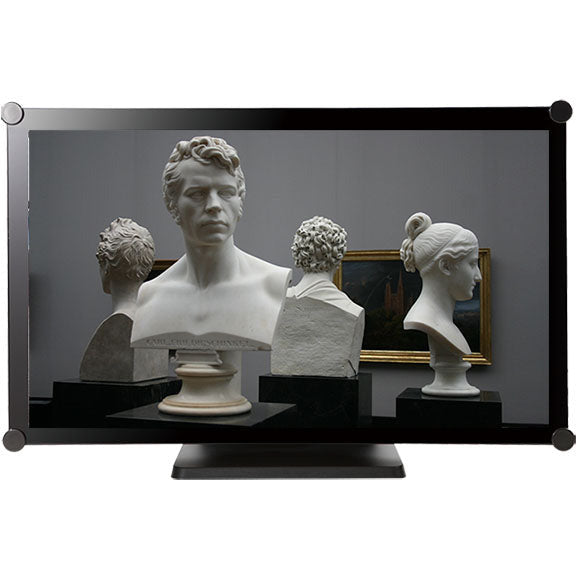

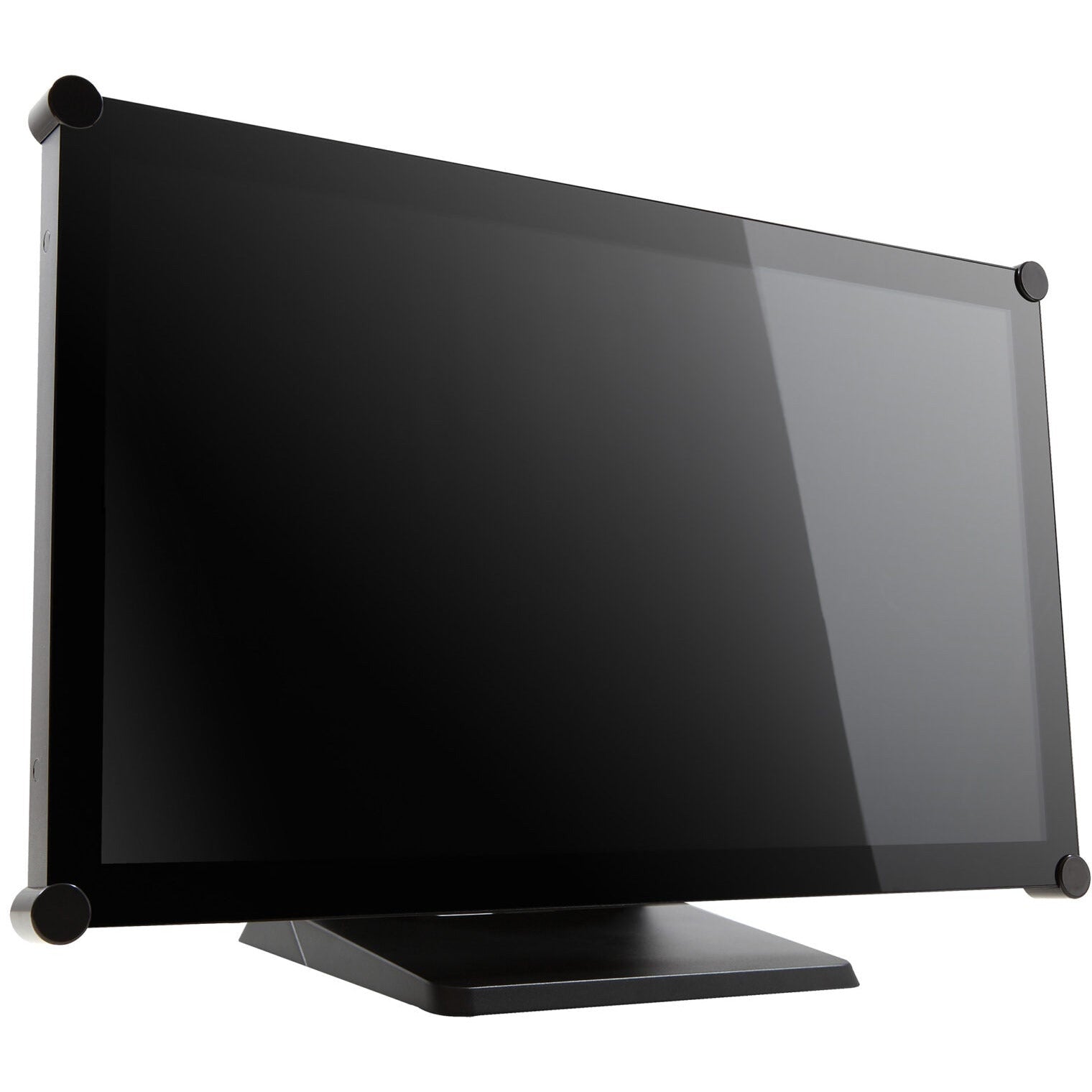

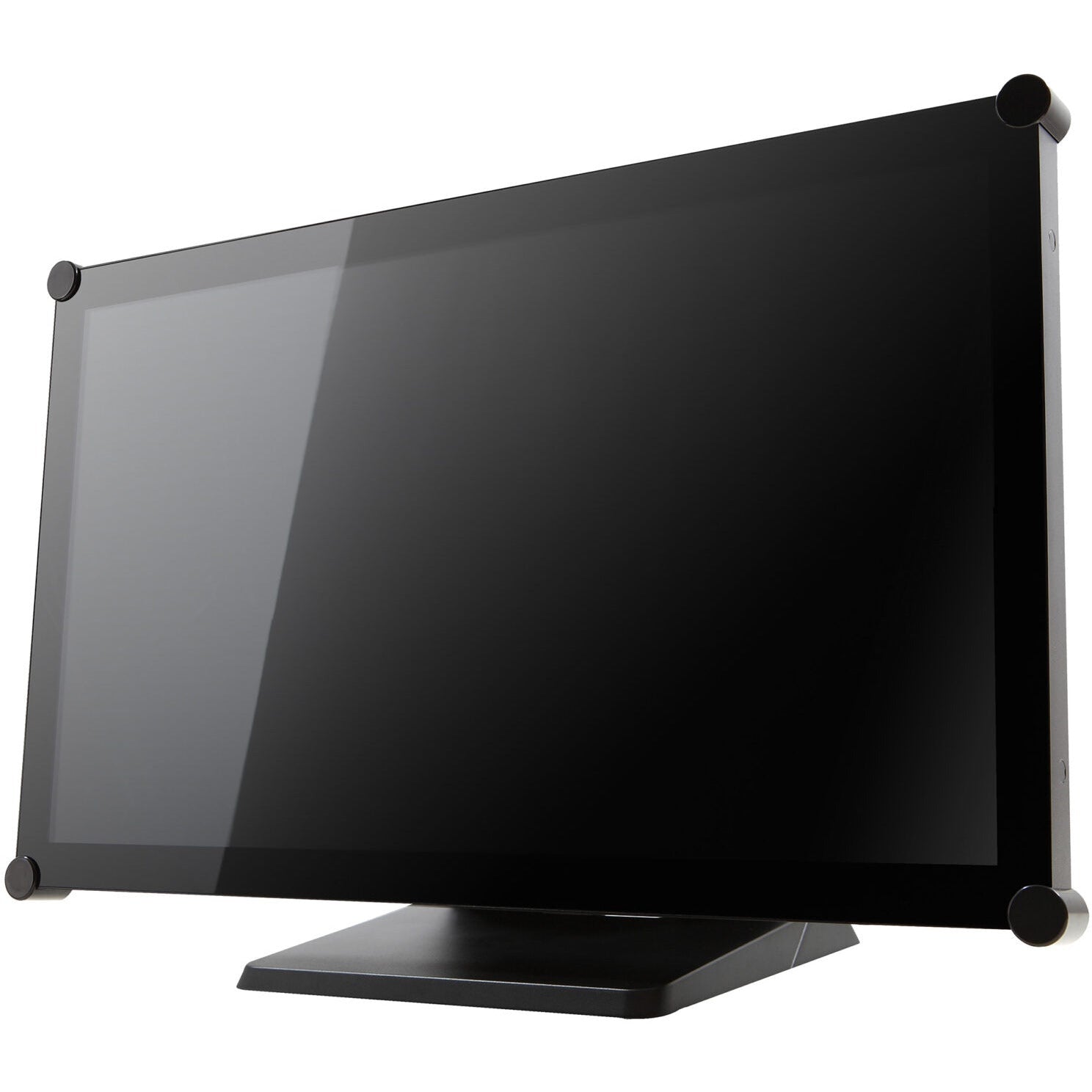

AG Neovo TX-2202A 22'' 10-Point Touch Screen Monitor

Name: AG Neovo TX-2202A 22'' 10-Point Touch Screen Monitor
Brand: AG Neovo
SKU: TX-2202A
Price: 598.75 EUR
Availability: OutOfStock

SKU:TX-2202A

Out of stock

~~Login to see prices~~ Login to see prices

Sale Sold out

Product variants

Quantity

Features:

FHD 1920 x 1080 resolutions
10-point projected capacitive touch technology
Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
Plug-and-play support for Windows 7/8/10/11, Linux 3.08, Android 3.08, Mac OS 10.11-10.14
Designed and developed for continuous 24/7 operation

The TX-2202A touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by contamination, offering 10-point multi-touch capability, giving an accurate and responsive touch experience, even responsiveness to latex gloves. Featuring DisplayPort, HDMI, VGA input connectivity, and dual speakers, the TX-2202A touch monitor is built for flexible use such as self-check-in, self-ordering, and information kiosk. The screen is complemented by the IP65 and IK08 rating, metal casing, and an edge-to-edge 7H tempered glass design, enhancing durability for continuous operation in public and high-traffic spaces.

10-POINT PCAP TOUCH SCREEN

The TX-2202A 22” 10-point touch screen monitor adopts PCAP touch technology with a 10-point multi-touch capability that is unaffected by contamination, giving a fast, accurate, and responsive touch experience. These seamless touch senses are identical to those used in smartphones and tablets, even responsive to latex gloves.

SEAMLESS INTEGRATION

Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choices of the operating system you use.

FRONT IP65 DUST AND WATER PROTECTION

This 22” 10-point touch screen monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.

DURABLE AND SCRATCH RESISTANT TOUCH SCREEN

For 24/7 operations in public settings, AG Neovo uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.

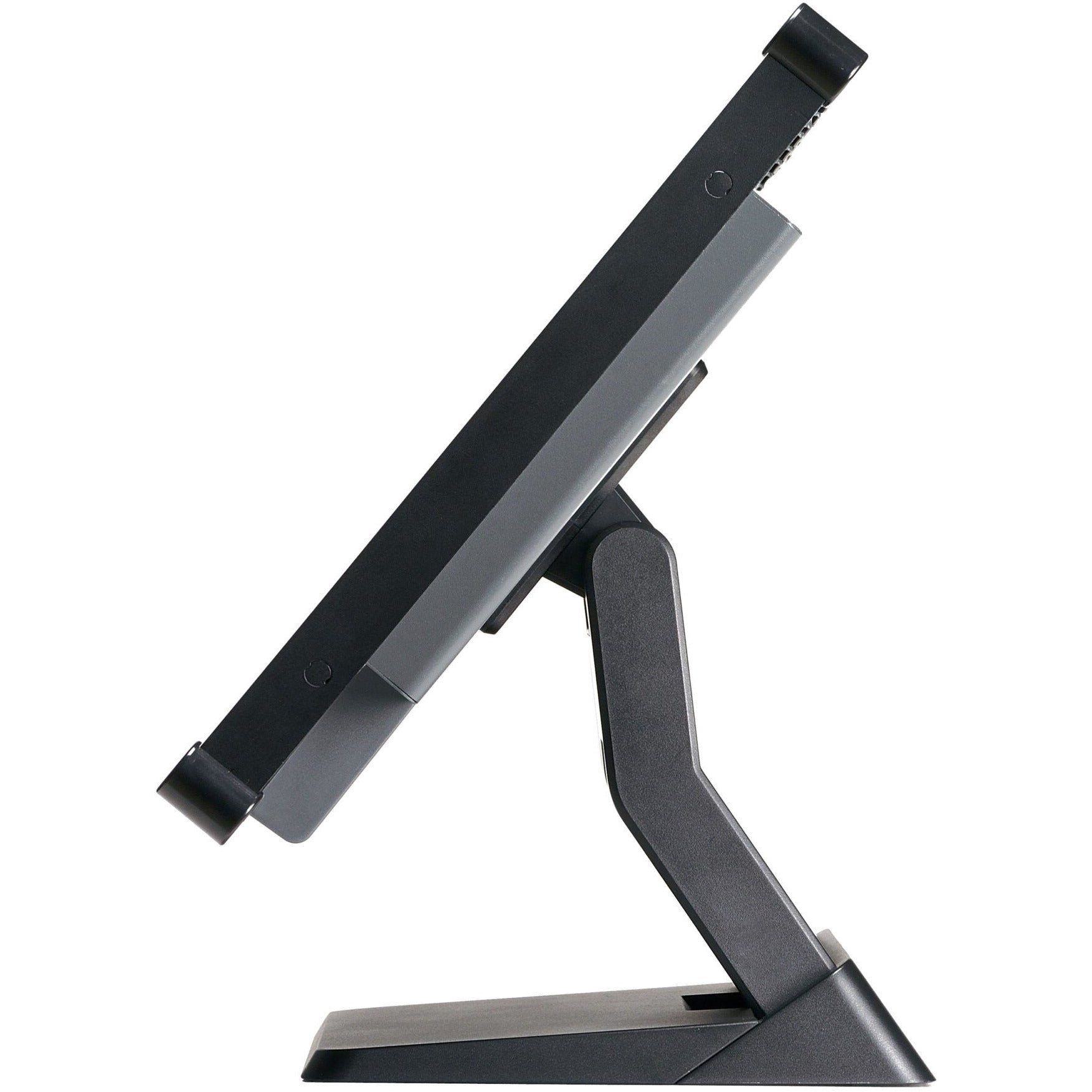

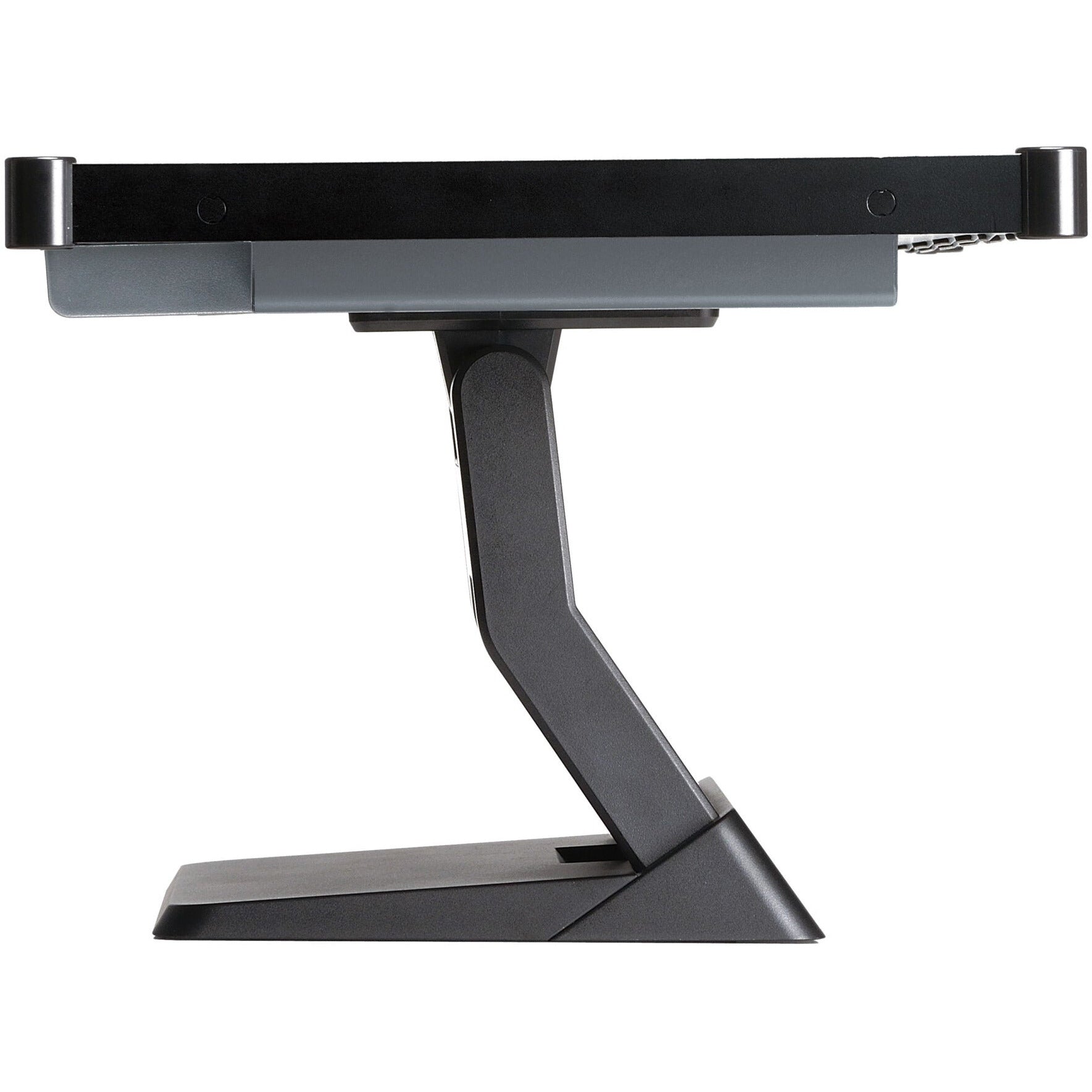

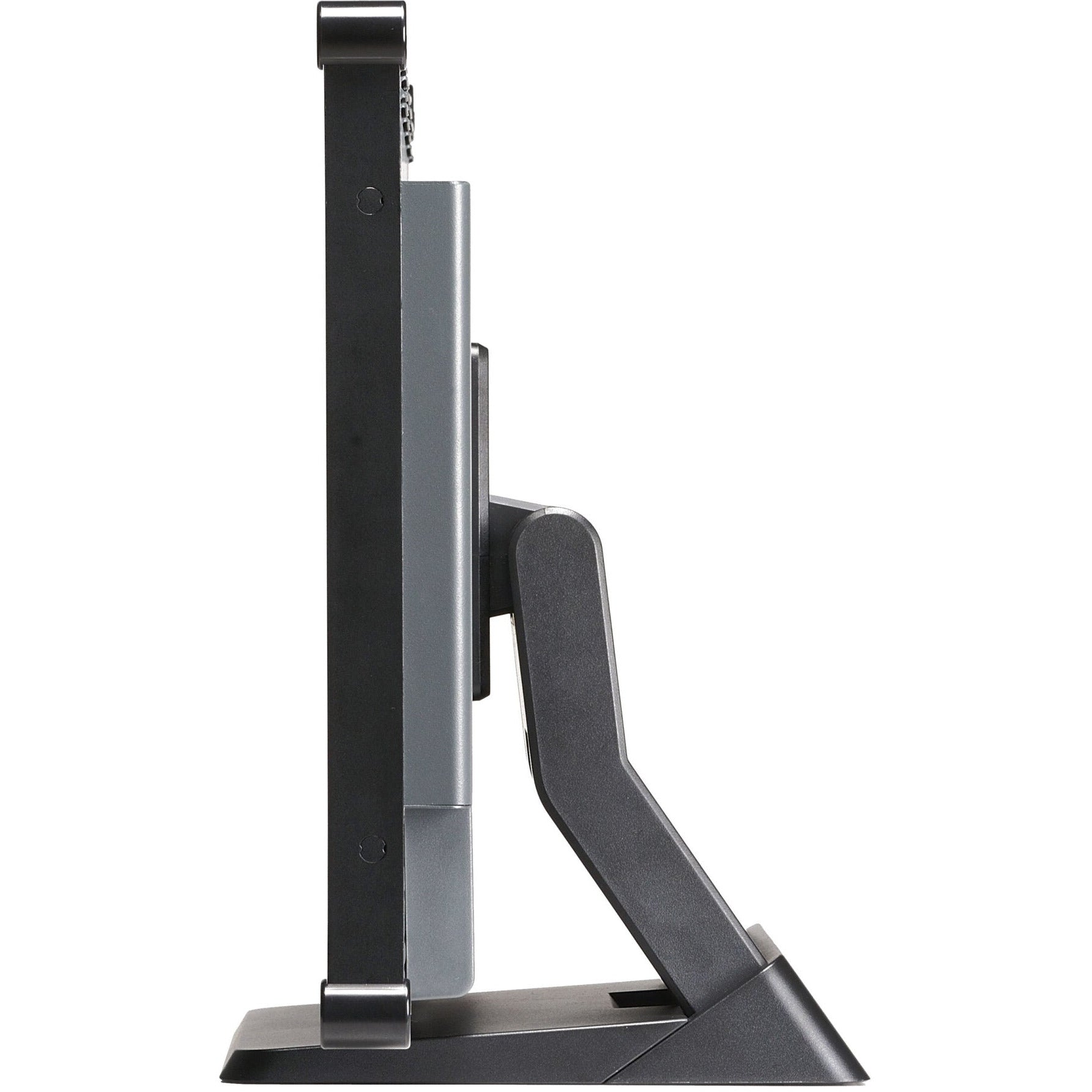

ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING

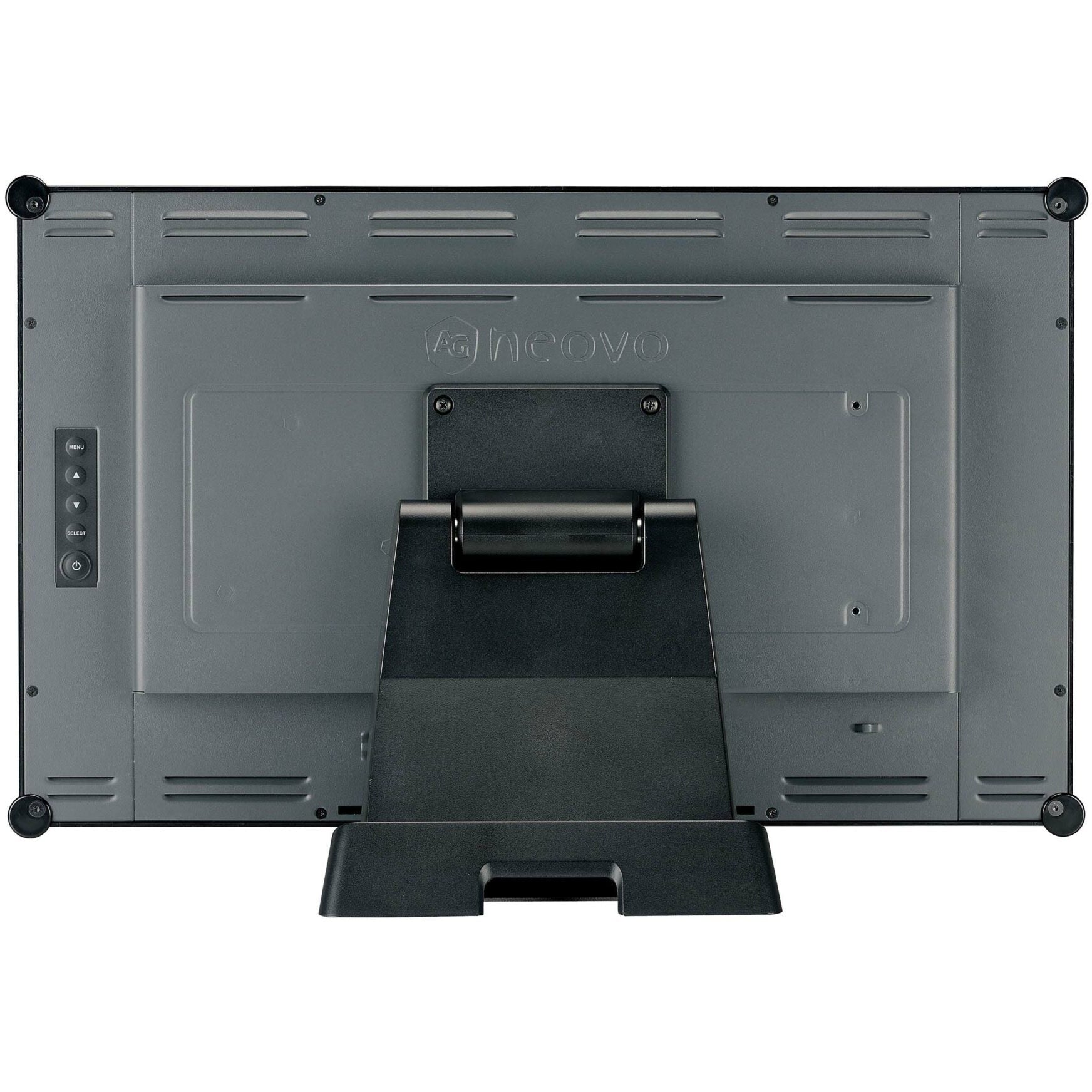

Thanks to VESA compatibility, the TX-2202A 22” 10-point touch screen monitor offers flexible mounting options, from desk mount to wall mount or attached to a monitor arm. The included ergonomic stand allows a huge -2 to 180 degrees of tilt adjustment, creating extra ergonomics when using. The display is 178-degrees wide viewing angles to provide consistent colour performance for better viewing.

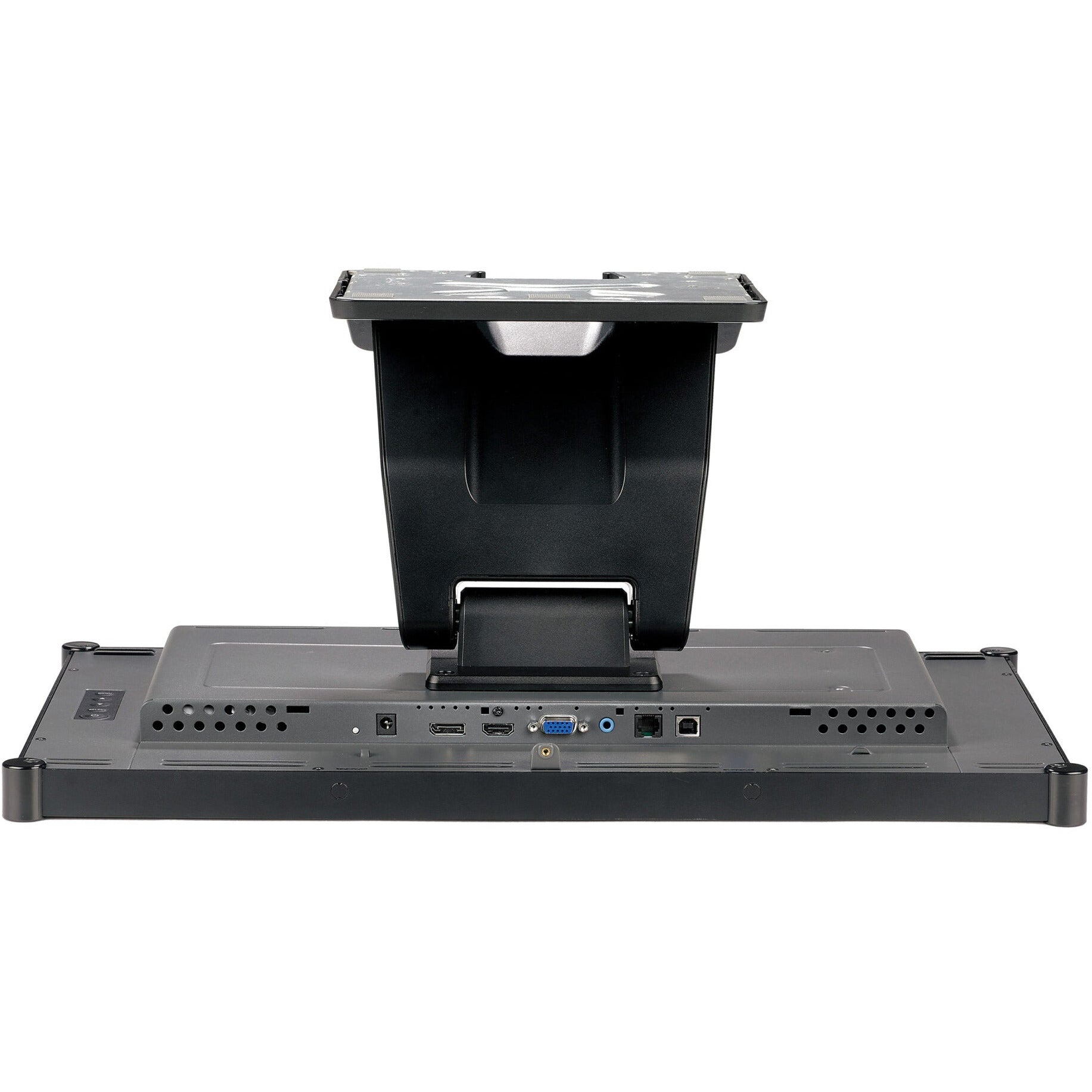

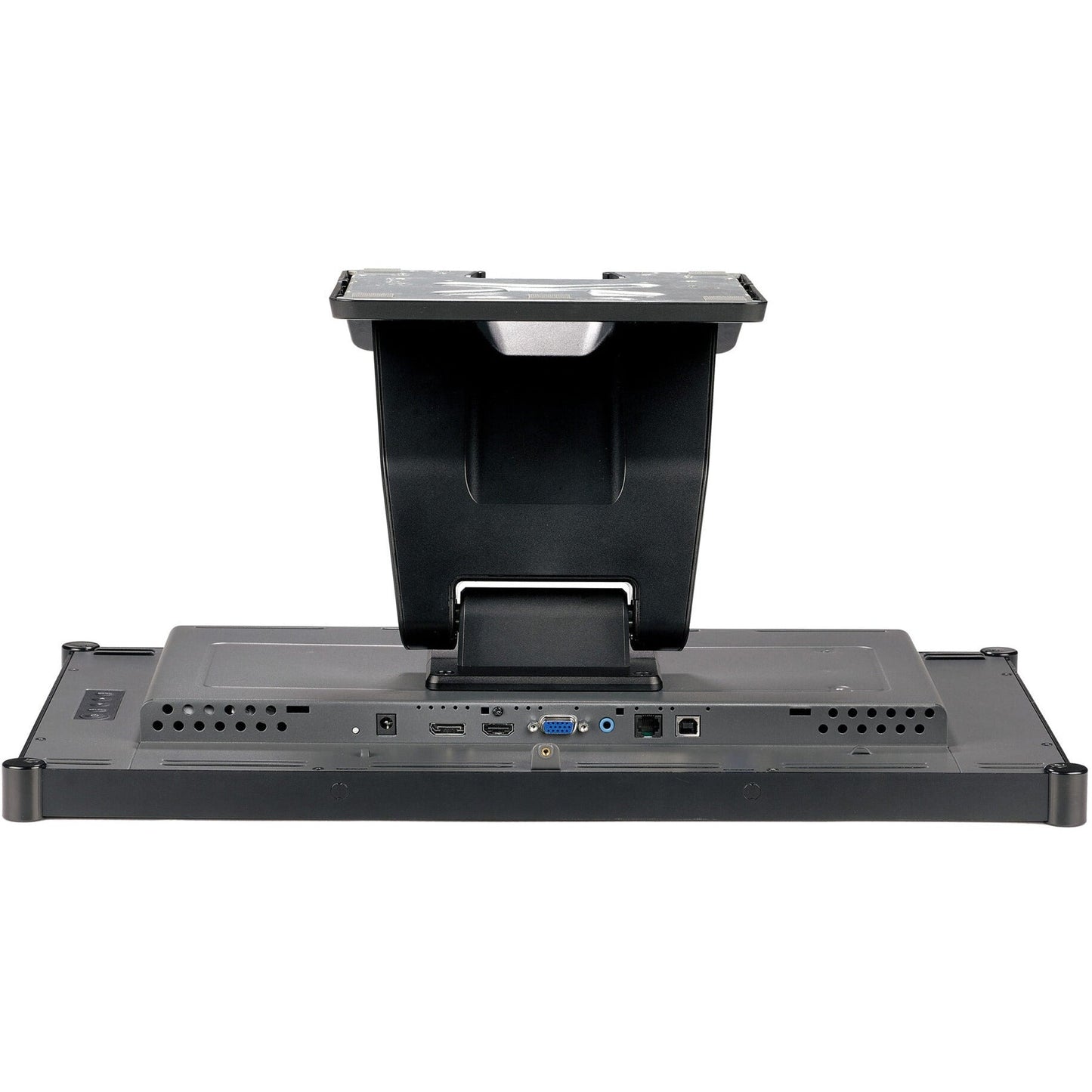

VERSATILE CONNECTIVITY

The TX-2202A provides maximum versatility and facilitates users to connect to their own devices, such as a high-performance PC or a media player, using the DisplayPort, HDMI or VGA inputs.

Specifications:

Panel

Panel Type
VA
Panel Size
21.5"
Max. Resolution
FHD 1920 x 1080
Pixel Pitch
0.248 mm
Brightness
250 cd/m²
Contrast Ratio
1000:1
Viewing Angle (H/V)
178°/178°
Display Colour
16.7M
Response Time
5 ms
Surface Treatment
Anti-Glare Treatment (Haze 25%),3H Hard Coating

Frequency

Frequency (H)
30 kHz-84 kHz
Frequency (V)
50 Hz-76 Hz

Signal Input

DisplayPort
x 1
HDMI
1.4 x 1
VGA
15-Pin D-Sub x 1

External Control

RJ11
Yes

Audio

Audio In
Stereo Audio Jack (3.5 mm)
Internal Speakers
2W x 2

Touch Screen

Technology
Projective Capacitive
Positional Accuracy
± 2.5 mm
Panel Interface
USB (Type-B)
Multi-touch Plug & Play
10-point touch for Windows® 7、8、10、11 Linux 3.08 or Later Android 3.08 or Later Mac OS 10.11-10.14
Single Touch Support by Driver
Windows VISTA/XP/2000/CE/XP Embedded
Multi-touch Support by Driver
Linux and Android 3.07 and older
