AG Neovo TX-3202 32-Inch Through-Glass Touch Screen Display
AG Neovo TX-3202 32-Inch Through-Glass Touch Screen Display
SKU:TX-3202
Out of stock
Features:
- 30-point projected capacitive touch technology
- Versatile connectivity: VGA, HDMI, and DisplayPort signal inputs
- Windows 10 ready – plug and play support for Windows 7/8/10
- Landscape and Portrait for flexible display orientation
- Designed and developed for continuous 24/7 operation
Display content easily and conveniently with the AG Neovo TX-3202 32-inch touch screen display. Its 30-point PCAP touch screen can be mounted behind a display window or encased in a kiosk allowing customers and visitors to browse information in their own time. The TX-3202 has an IP65 compliant front screen with an edge-to-edge tempered glass overly that enhances durability for 24/7 operation. The TX-3202 touch screen can be used in numerous ways. Use it as a self-service or information kiosk so your customers and visitors can find what they are looking for easily and independently. The screen can also be used in retail as an interactive window display to advertise products or as a digital POP display to attract attention to a product. It may also be used as a touch screen table so customers or visitors have the option to sit while interacting with the screen.
PREMIUM PCAP MULTI TOUCH SCREEN
With projected capacitive (PCAP) touch screen technology, the TX-3202 multi-touch screen can register up to 30 touchpoints simultaneously. Responses to touch are fast and accurate equalling the sensitivity of a mobile device. Your customers or visitors have the ability to scroll, swipe or zoom on the multi-touch display so they will feel perfectly comfortable using the same gestures they would on their smartphones.
THROUGH-GLASS INTERACTIVE TOUCH SCREEN TECHNOLOGY
For extra security or protection, the TX-3202 touch screen can be mounted behind a glass layer to create a through-glass experience. The through-glass mode can be applied to a store window, tabletop or glass sheet. Visitors can control the screen through up to 6 millimetres of glass on top of the touch screen, giving it the same functionality whether visitors are touching the screen or using it through the glass.
GLOVE-FRIENDLY TOUCH SCREENS
The TX-3202 interactive touch screen can be used with bare fingers or with gloves, including gloves made from cotton, latex or leather. This is especially convenient to customers and visitors who prefer to keep their gloves on because of cold weather or for personal and cleanliness preferences. The interactive screen also works with a stylus pen creating a wide range of options for customer and visitor interaction.
*Through-glass touch may not be supported with gloves.
EASY INTEGRATION
Specially designed holes on all sides of the touch screen display make mounting the screen easy, whether on a wall, tabletop or kiosk in landscape or portrait orientation. For safety and protection while mounting, the outer edge of the touch screen has a plastic resin bezel to protect against collisions during transportation and installation. Whether flush mounted or encased behind glass, our TX-3202 touch screens can seamlessly be integrated into any application.
IP65 DUST AND WATER PROTECTION
The TX-3202 IP65 compliant touch screen functions perfectly in high-use and high-traffic public locations, giving complete protection as it resists dust and liquid spills. Its edge-to-edge glass covers the entire display, making it a truly flat surface allowing for a sleek and modern appearance and easy cleaning.
CROSS-PLATFORM TOUCH CAPABILITY
The TX-3202 works seamlessly with many operating systems and is compatible with Windows, Linux, macOS, and certain Android versions. It also offers a plug-and-play touch screen for Windows 10.
DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
AG Neovo uses metal housing and 7H tempered glass displays for high durability and scratch resistance levels without compromising touch sensitivity for 24/7 operation in demanding public settings. The touch screen glass passed the UL60950 ball-drop test (IK08 rating) for high impact resistance.
VERSATILE CONNECTIVITY

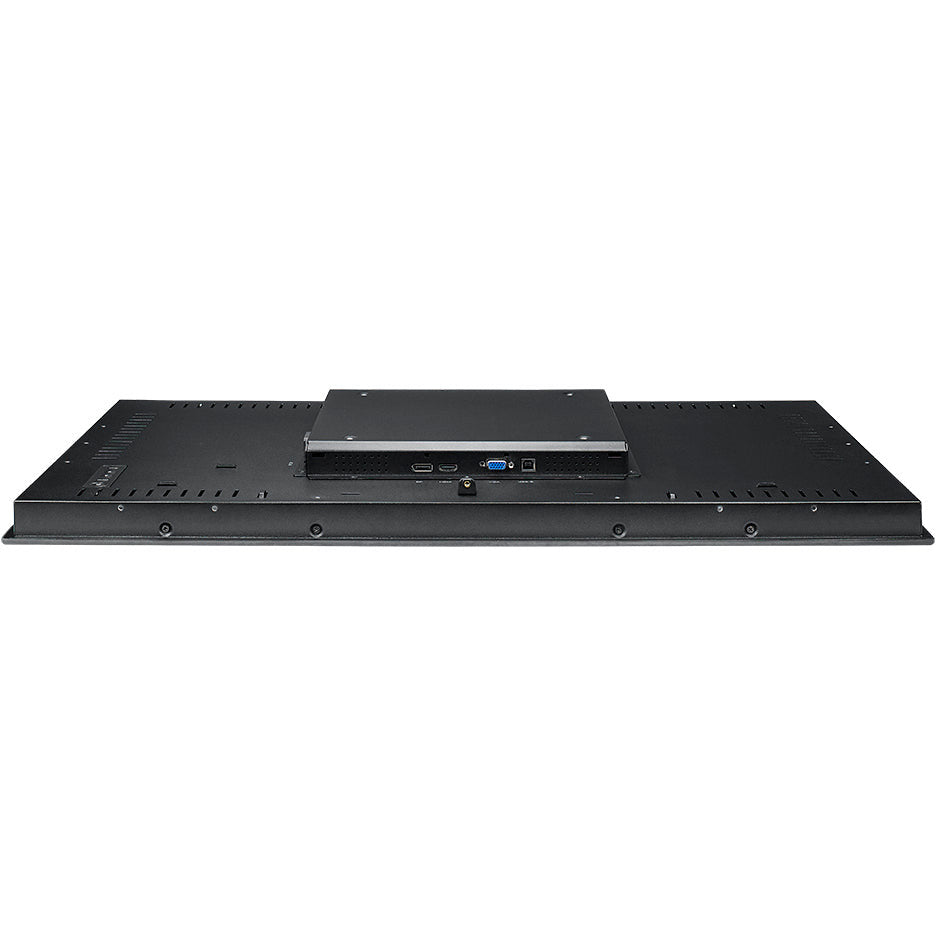

The TX-3202 displays provide analogue (VGA) and digital (DisplayPort and HDMI) interfaces allowing users to connect multiple devices and enhance their functionality. It has a protective cable cover that hides the connector and avoids cable clutter providing a refined appearance.
Specifications:
Panel
- Panel Type
- VA
- Panel Size
- 31.5"
- Max. Resolution
- FHD 1920 x 1080
- Pixel Pitch
- 0.3637 mm
- Brightness
- 500 cd/m²
- Contrast Ratio
- 3000:1
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 16.7M
- Response Time
- 5 ms
- Surface Treatment
- Anti-Glare Treatment (Haze 2%),3H Hard Coating
Frequency
- Frequency (H)
- 30 kHz-68 kHz
- Frequency (V)
- 47 Hz-63 Hz
Signal Input
- DisplayPort
- x 1
- HDMI
- 1.4 x 1
- VGA
- 15-Pin D-Sub x 1
Touch Screen
- Technology
- Projective Capacitive
- Positional Accuracy
- ± 2.5 mm
- Panel Interface
- USB (Type-B)
- Single Touch Support by Driver
- Windows VISTA/XP/2000/CE/XP Embedded、Mac OS 10.10-10.14
- Multi-touch Support by Driver
- Linux 2.6.36 later/3.x.x/4.x.x/5.x.x、 Android 2.3 upwards
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 27.5W (On)
- Standby Mode
- < 0.9W
- Off Mode
- < 0.3W
Glass
- Thickness
- 2.75 mm (0.10")
- Transmission Rate
- > 90%
- Hardness
- > 7H
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 20%-80% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 10%-90% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (200 x 200 mm)
Dimensions
- Product w/o Base (W x H x D)
- 742.4 x 436.8 x 61.2 mm (29.2” x 17.1” x 2.4”)
- Packaging (W x H x D)
- 890.0 x 630.0 x 155.0 mm (35.0" x 24.8" x 6.1")
Weight
- Product w/o Base
- 10.4 kg (22.8 lb)
- Packaging
- 12.9 kg (28.3 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- WEEE
- RoHS
- REACH
- EAC
- BSMI
Accessories
- Supplied
- DisplayPort Cable
- HDMI Cable
- Power Cord
- Quick Start Guide
- USB Cable
Optional Accessories
- Floor Mount
- FMC-02
- FMS-01
- FMS-02
- Wall Mount
- WMK-03
- Wall Mount (Landscape only)
- LMK-02
- Floor Mount (Landscape only)
- FMC-05B
- FWL-01B
- Desk mount (Landscape only)
- DTS-01
