Legrand AV

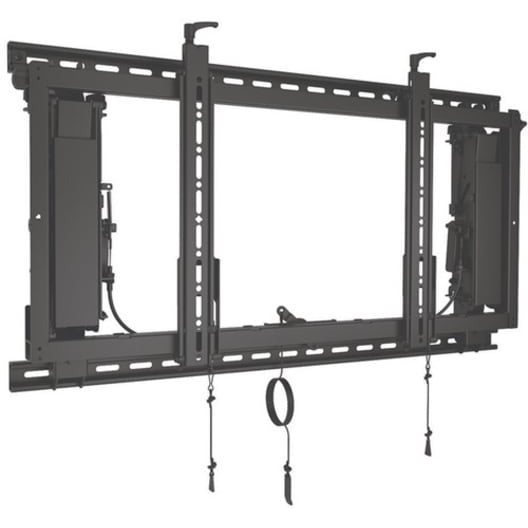

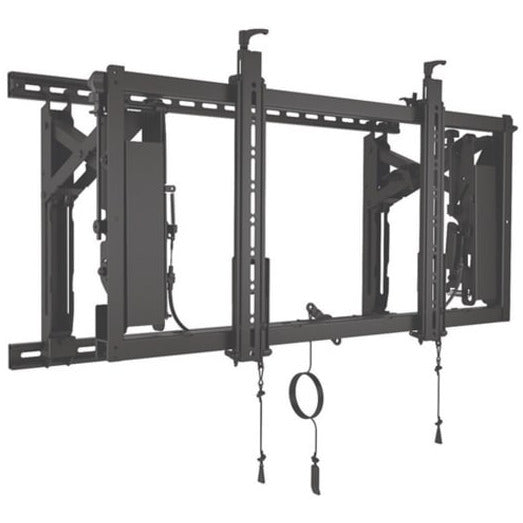

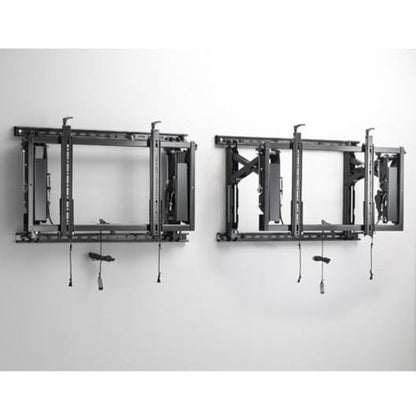

Chief VIDEO WALL LANDSCAPE MOUNTING SYSTEM WITH RAILS

Chief VIDEO WALL LANDSCAPE MOUNTING SYSTEM WITH RAILS

SKU:LVS1U

Low stock

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out

Chief's ConnexSys™ Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys™ Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

Dimensions & Measurements
Depth
10.2 cm (4 in)
Height
53.1 cm (20.9 in)
Minimum Depth
101.6 mm (4 in)
Shipping Weight
20 kg (44 lbs)
Tilt
  • + 4.0°
  • -2.5°
Typical Screen Size
42" - 80" (1067mm - 2032mm)
Weight Capacity
68 kg (150 lbs)
Width
90.2 cm (35.5 in)
Characteristics & Features
Adjustability

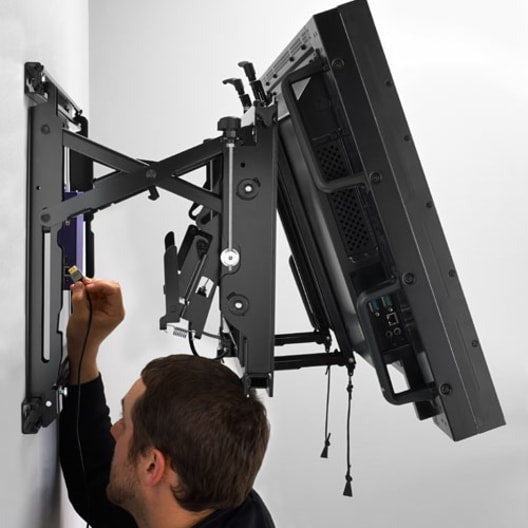

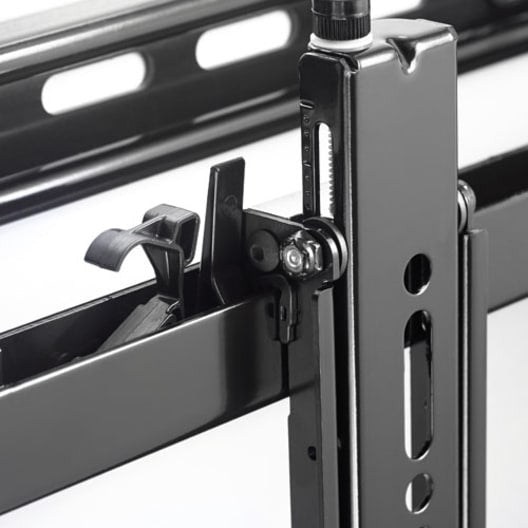

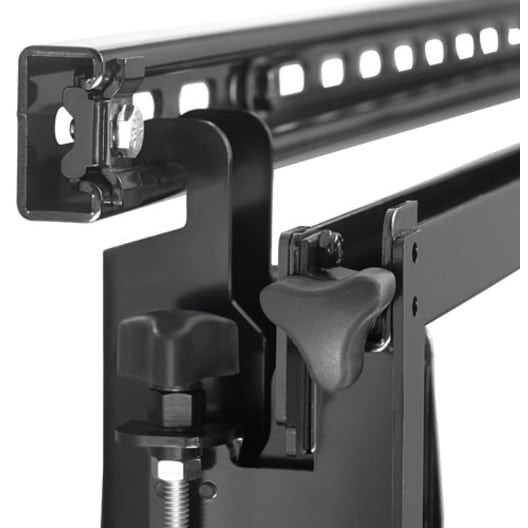

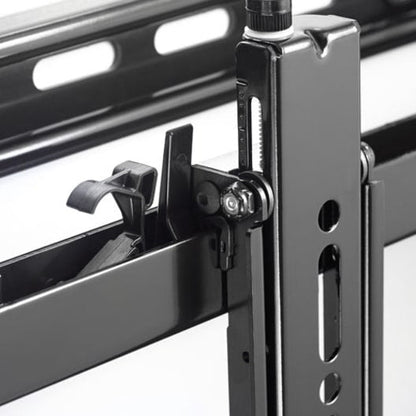

Extension, Micro-Adjustable, Height Adjustable, Lateral Shift
Application
Wall
Color
Black
Number of Displays
1
Orientation
Landscape
Solution Type
Universal
Special Features
Multi-Display
TAA Compliant
No
VESA Mounting Pattern
200 x 100 - 700 x 400 mm
With Rails
Yes
Certifications & Warranties
Certifications
  • OSHPD
  • UL Listed
