Vigilant Vision

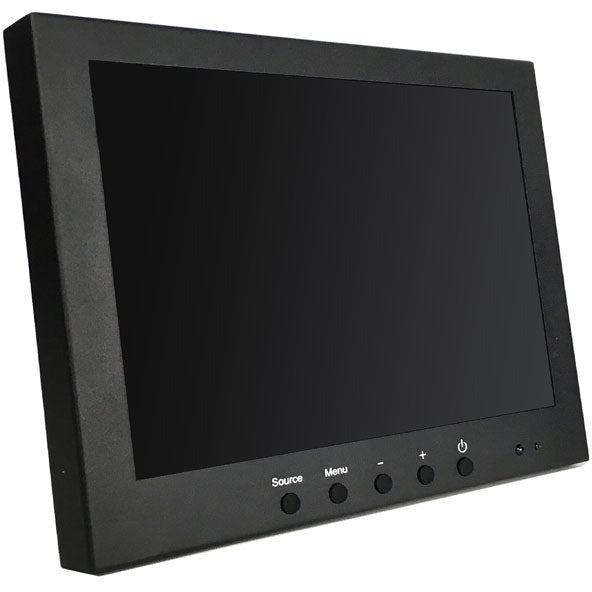

Vigilant Vision 10.1" LED Monitor. BNC In/Out, VGA, HDMI. Metal Case With Glass Front
Vigilant Vision 10.1" LED Monitor. BNC In/Out, VGA, HDMI. Metal Case With Glass Front
SKU:DSM10.1LED-WGF
Out of stock
Couldn't load pickup availability
SPECIFICATION
IN/OUT INTERFACE
POWER
| Panel Type | 10.1″ (16:9) LED Monitor Glass Fronted |
| Case Type | Metal |
| Maximum Resolution | 1280 (H) x 800 (V) |
| Active Display Area | 216.96 (H) × 135.60 (V) mm |
| Pixel Pitch | 0.169 (V) × 0.169 (H) mm |
| Bezel Thickness | L/R: 14.9 mm, T: 14.6mm, B: 26.2mm |
| Contrast Ratio | 800 : 1 Ratio |
| Brightness | 300 cd/ m² |
| Response Time | 12 m.sec (G to G) |
| Viewing Angle | 80/80/80/80 ° |
| Display Colours | 16.7 M |
| Video Synchronization | Yes |
| PC Compatibility | Yes |
| Aspect Ratio | 16 : 9 Ratio |
| VGA Auto Frequency correction | Yes |
| Speakers | Yes |
| Number of Speakers | 2 |
| Sound Demodulation | Stereo |
| Mute | Yes |
| Work Humidity | 0 % – 90 % |
| Work Temperature | 0 to +50 °C |
| Volume +/- Power On/Off | Yes |
| MTBF | 50,000 hrs |
IN/OUT INTERFACE
| Video Interface | VGA, HDMI, 1 x BNC in, 1 x BNC out, Audio |
| Audio Interface | 3.5mm Jackplug |
| Power Interface | DC In x 1 |
| Termination | 75 Ohms |
| Safety & EMC Certification | FCC, CE, ROHS-2, Reach, Weee |
| Vesa Standard Mount | 75 x 75 mm |
| Stand Type | Picture Frame |
| Colour | Black |
| Button Position | Front |
| Packing Dimension | 360mm x 320 mm x 90mm |
| NETT Weight | 1.3 Kgs |
| GROSS Weight | 1.75 Kgs |
POWER
- Power Supply: 12v 1AMP
- Power Consumption: <10 Watt
- Voltage: AC100-240V 50/60HZ
OSD CONTROLS
VIDEO-Picture, Brightness, Contrast, Colour, Sharpness, Tint, Colour Temp, Advance Control, Focus. AUDIO-Sound Mode, Balance, Bass, Treble, Virtual Surround, AVL. SETTING-Menu Language, Picture Format, Menu Timeout, Menu Transparency, Power On Status, Blue Screen, Colour System, Time Setup, System Reset
OSD LANGUAGE
English, French, German, Spanish, Italian, Russian, Portuguese, Polish, Arabic & Korean
ACCESSORIES
Power supply, Stand, Remote Control, User Guide, HDMI Cable
