Vigilant Vision

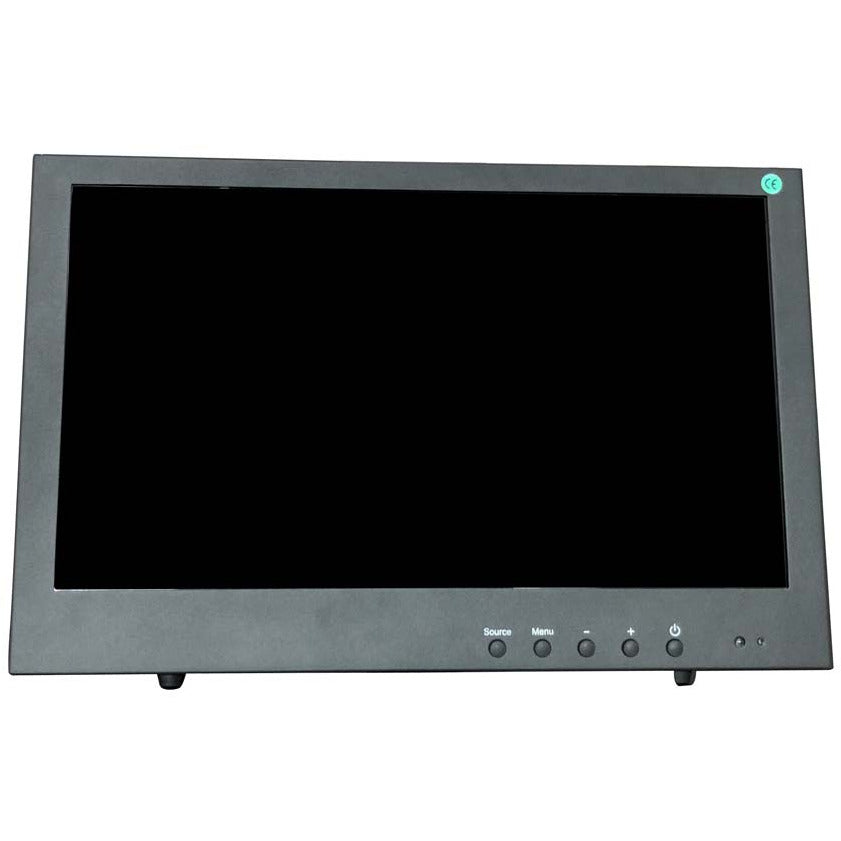

Vigilant Vision 15.6" LED 16:9 Monitor. 1080P, 1 x HDMI, 1 x VGA 1 x BNC in, 1 x BNC out. Remote Control

Vigilant Vision 15.6" LED 16:9 Monitor. 1080P, 1 x HDMI, 1 x VGA 1 x BNC in, 1 x BNC out. Remote Control

DSM156FHD-WGF

Out of stock

Login to see prices
Login to see prices Login to see prices
Sale Sold out

SPECIFICATION

Panel Type 15.6” (16:9) LED Monitor
Case Type Metal
Maximum Resolution 1920 (H) x 1080 (V)
MTBF 40,000 hrs
Active Display Area 344.16 (H) × 193.59 (V) mm
Pixel Pitch 179.25 (H) x 179.25 (V )mm
Bezel Thickness T: 15.4mm L/R: 19.7mm, B: 38.1mm
Contrast Ratio 800 : 1 Ratio
Brightness 250 cd/ m2
Response Time 10 + 15 m.sec (G to G)
Viewing Angle 85 / 85 U / D 85 / 85°
Display Colours 16.7 M
Video Synchronization Yes
PC Compatibility Yes
Aspect Ratio 16:9
VGA Auto Frequency correction Yes
Number of Speakers 2
Sound Demodulation Stereo
Mute Yes
Work Humidity 0% – 80%
Work Temperature 0 to +50 °C
Volume +/- Power On/Off Yes


IN/OUT INTERFACE

Video Interface VGA, HDMI, 1 x BNC in, 1 x BNC out, Audio
Audio Interface 3.5 mm Jackplug
Power Interface DC 2.1mm
Termination 75 Ohms (Automatic termination)
Safety & EMC Certification FCC ,CE, ROHS-2
Vesa Standard Mount 100mm x 100mm
Stand Type Picture Frame
Colour Black
Button Position Front
Packing Dimension 410mm x 410mm x 150mm
NET Weight 3.3 Kgs
GROSS Weight 4.0 Kgs


POWER

  • Power Supply: 12v 2 Amp
  • Power Consumption: < 15W

OSD CONTROLS

VIDEO-Picture, Brightness, Contrast, Color, Sharpness, Colour Temp, Advance Control, Focus, AUDIO-Sound Mode, Balance, Bass, Treble, Virtual Surround, AVL, Camera, SETTING-Menu Language, Picture Format, Menu Timeout, Menu Transparency, Power On status, Blue Screen System Reset

OSD LANGUAGE

English, French,German, Spanish, Italian, Russian, Portuguese, Polish, Arabic & Korean

ACCESSORIES

Power supply, Stand, Remote Control, User Guide, HDMI Cable

View full details
