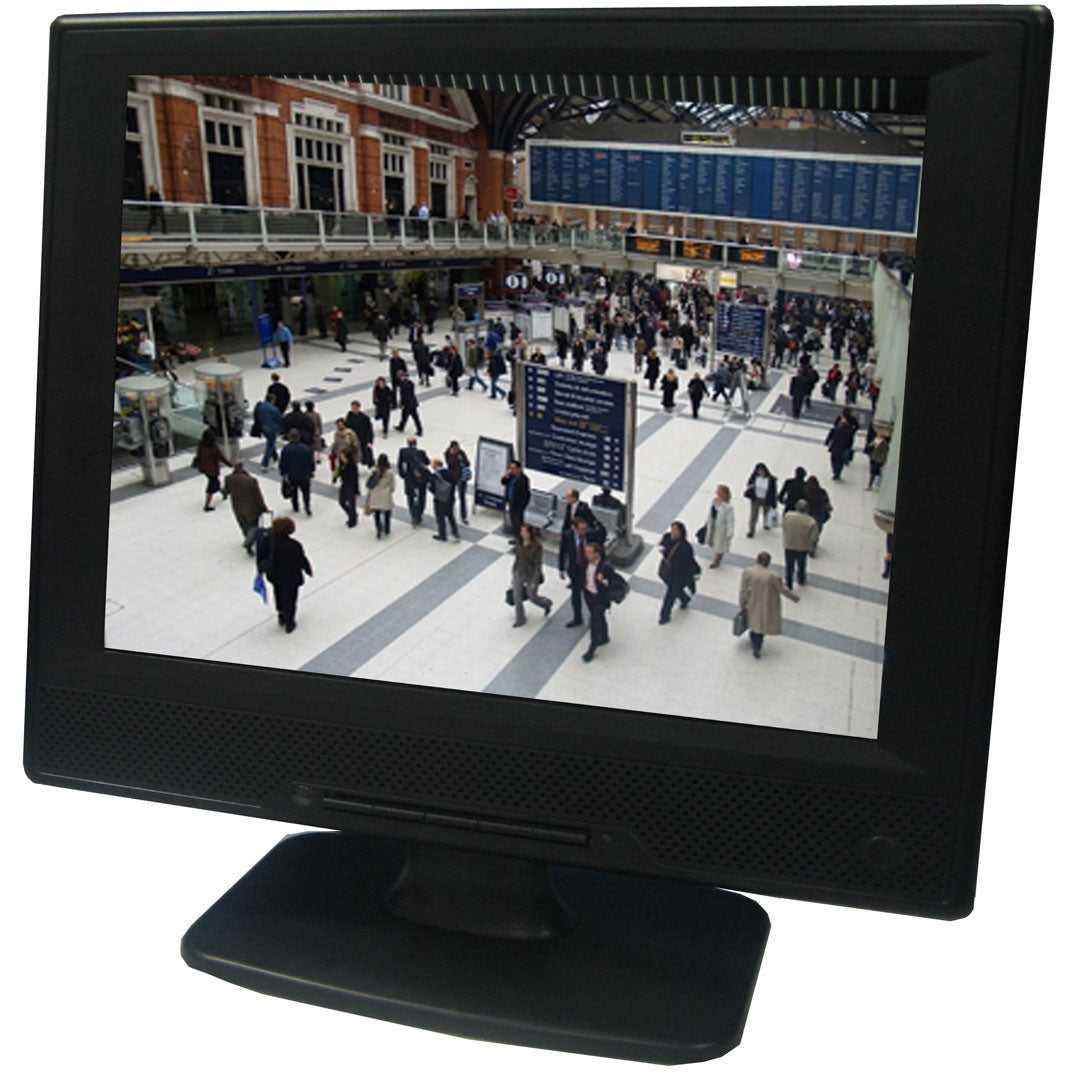

Vigilant Vision DSH10.4LED 10.4" LED Monitor

Vigilant Vision DSH10.4LED 10.4" LED Monitor

DSH10.4LED

Out of stock

Login to see prices
Login to see prices Login to see prices
Sale Sold out
SPECIFICATION

Panel Type 10.4” LED Monitor
Case Type Plastic
Maximum Resolution 1024 (H) x 768 (V)
Active Display Area 211.2 (W) x 158.4 (H) mm
Pixel Pitch 0.264 (H) x 0.264 (V) mm
Bezel Thickness Top (19mm) Bottom (44mm) Sides (29mm)
Contrast Ratio 500 : 1 Ratio
Brightness 400 cd/ m²
Response Time 8ms
Viewing Angle H: 160 V: 160
Display Colours 16.7 M
Video Synchronization TTL Positive or Negative
PC Compatible Frequency 30-80KHz(H) / 50-75Hz(V) Max. 800 x 600
Adjustable Colour Temperature 9300K / 6500K / 5800K / User
Video Compatibility Multi-Standard for NTSC / PAL
Aspect Ratio 4 : 3 Ratio
VGA Auto Frequency correction Yes
Speakers Multimedia Speakers
Number of Speakers Right x 1 Left x 1. 2.5W
Sound Demodulation Stereo. Audio
Mute Yes
Work Humidity 20 % – 70 %
Work Temperature -10 to 50 °C
Volume +/- Power On/Off Yes

IN/OUT INTERFACE

Video Interface HDMI x 1 VGA x 1 BNC x 1 In, BNC x 1 Out
Audio Interface Audio in x 1
Power Interface DC In x 1
Termination 75 Ohms (Automatic termination)
Safety & EMC Certification ROHS-2, CE, FCC, C-Tick, WEEE
Vesa Standard Mount 75 x 75 mm
Stand Type Desktop Bracket included / Wall Mount Optional
Colour Black
Button Position Front Centre
Packing Dimension 380 (W) x 340 (H) x 110 (D) mm
NET Weight 1.2 Kgs
GROSS Weight 1.8 Kgs

POWER
  • Power Supply: 12v 1AMP
  • Voltage: AC100 – 240V 50 / 60Hz
  • Power Consumption: < 12W in “ON”

OSD CONTROLS

Contrast, Brightness, H-Position, VPosition, Language, Saturation, Sharpness, Colour Temp.

OSD LANGUAGE

English, French, German, Spanish, Italian, Russian, Polish and Portuguese

ACCESSORIES

Power Supply / Desktop Bracket / Audio Lead / HDMI Cable / User’s Guide
