AG Neovo

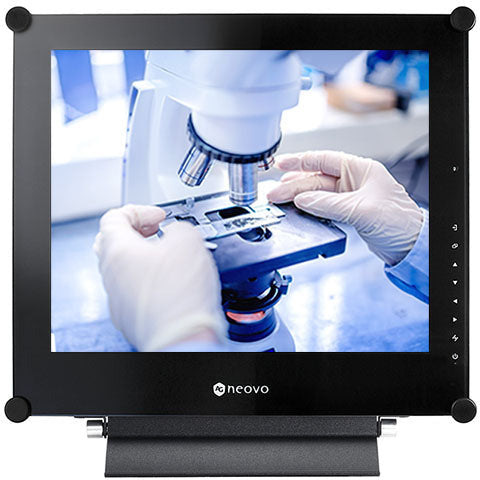

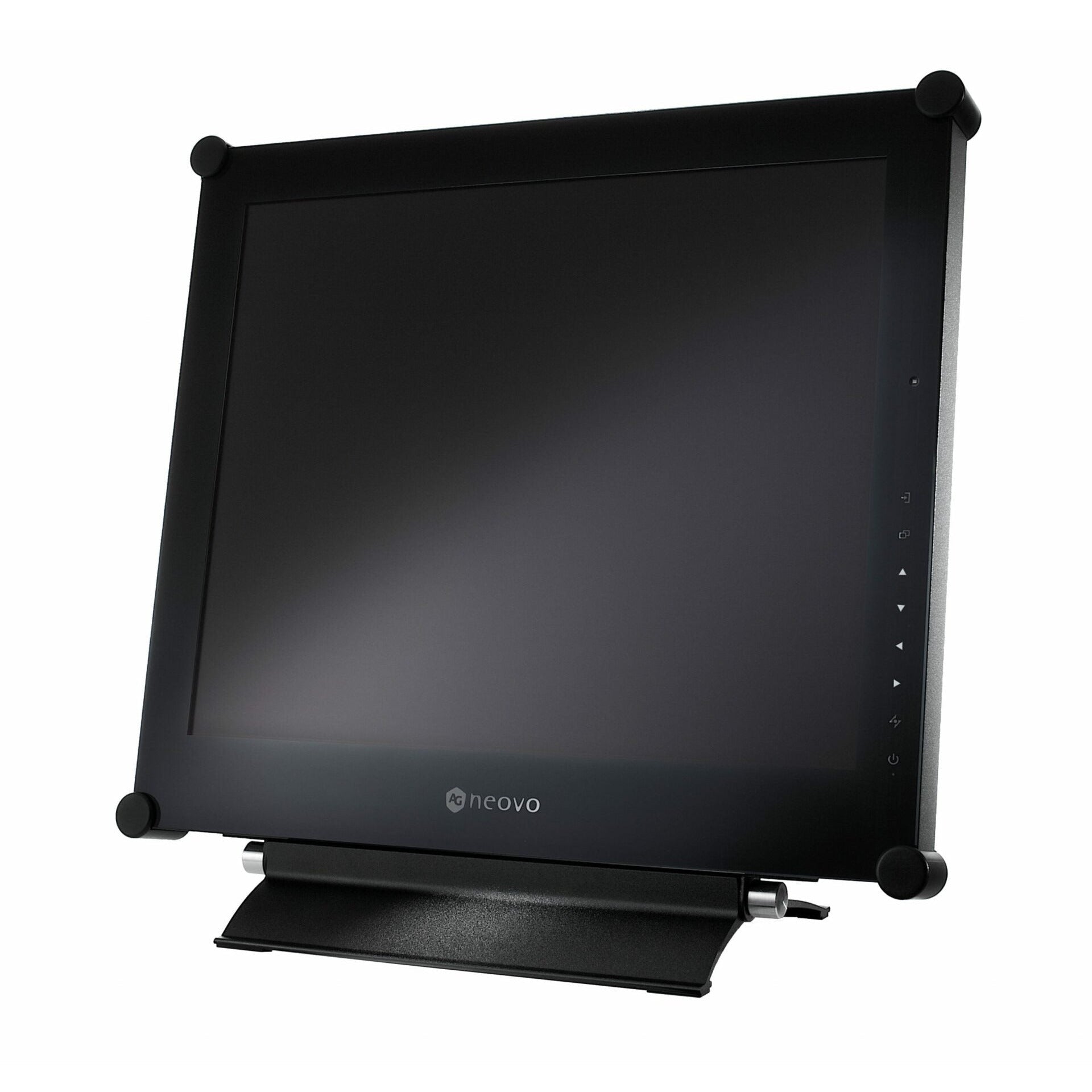

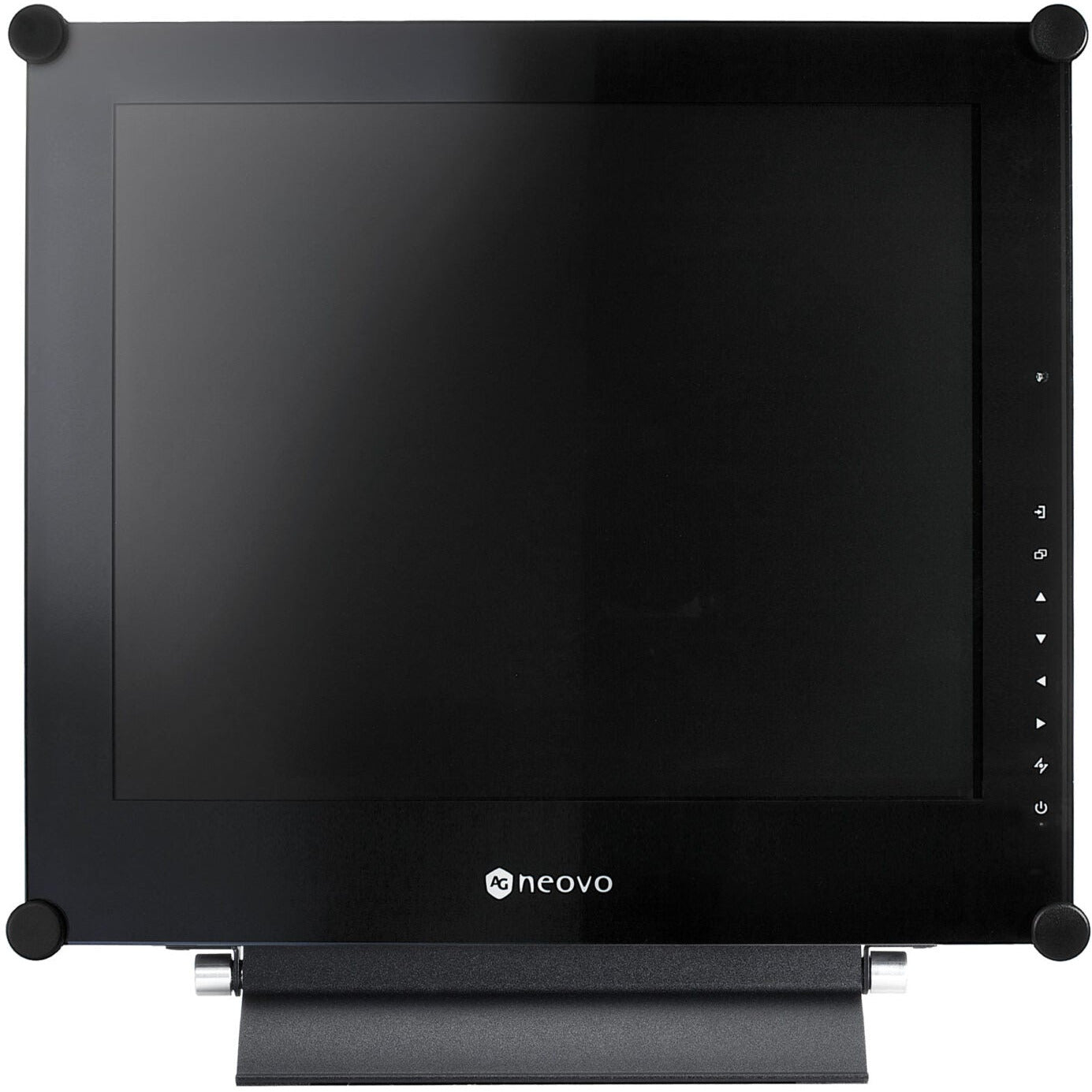

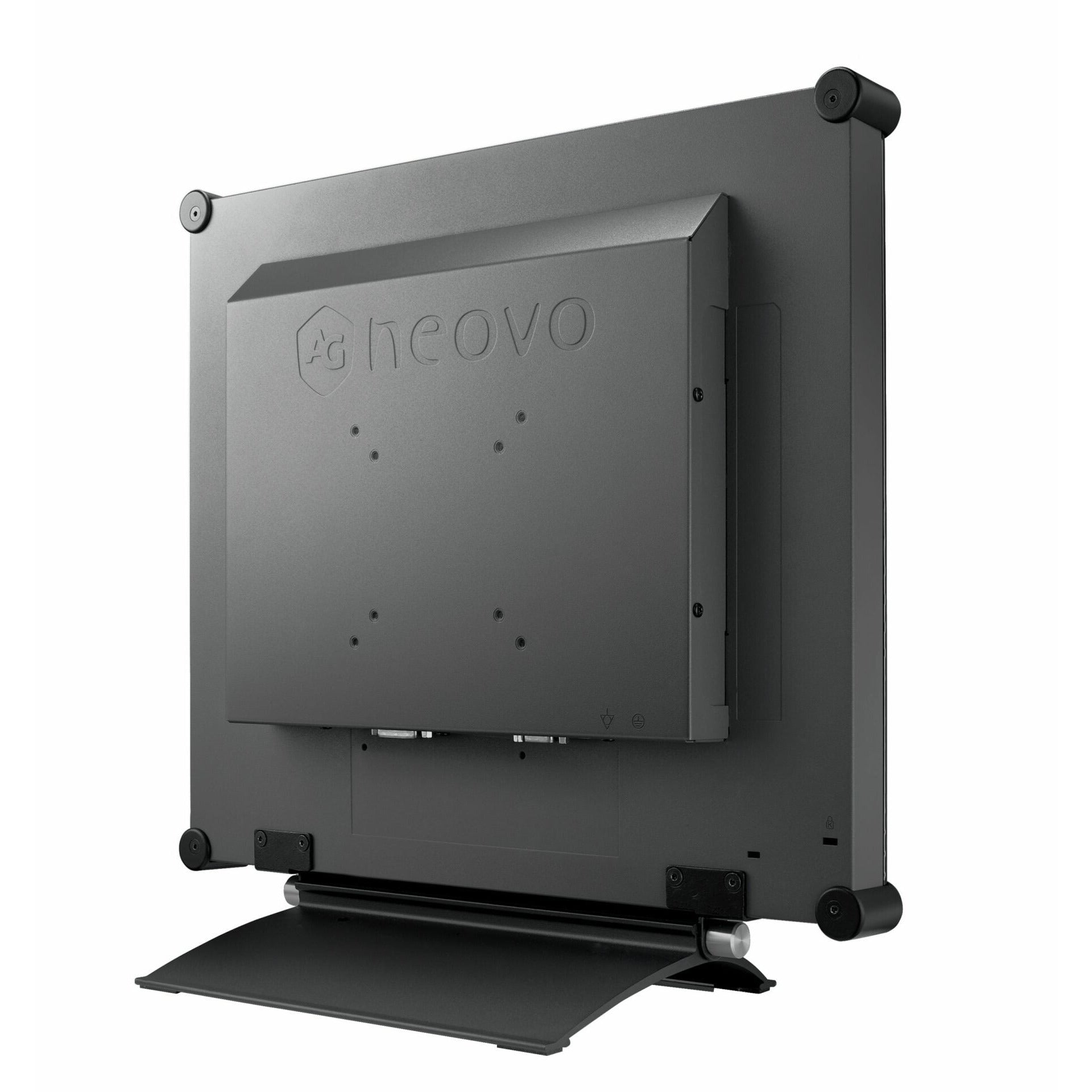

AG Neovo X-17E 17-Inch 5:4 Semi-Industrial Monitor With Metal Casing

AG Neovo X-17E 17-Inch 5:4 Semi-Industrial Monitor With Metal Casing

SKU:X-17E

In stock

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out

Features:

  • SXGA 1280 x 1024 resolution with 5:4 aspect ratio
  • Versatile connectivity: VGA, DVI, HDMI, DisplayPort, and dual 2W speakers
  • PiP/PbP functions enable multi-source viewing simultaneously
  • Anti-Burn-in technology prevents image ghosting
  • NeoV Optical Glass screen protects the display from scratches and other damages

The X-17E 5:4 semi-industrial monitor with the metal casing is designed for reliable 24/7 operation in demanding environments. With selectable gamma curves and versatile connectivity, this monitor provides an optimal visual experience with excellent colour, brightness, and contrast ratio. NeoV Optical Glass screen and corrosion-resistant metal casing shield it from scratches and chemical exposure which make it ideal for public, laboratory, and light industrial applications.

PROTECTIVE GLASS TO WITHSTAND CHEMICAL EXPOSURE

The NeoV Optical Glass attached to the X-17E screen is scratch-resistant with anti-acid and anti-alkali coating treatment and tough enough to withstand repeated cleaning.


DURABLE IN LIGHT INDUSTRIAL ENVIRONMENT

Its corrosion-resistant metal casing provides enhanced heat dissipation, making the X-17E semi-industrial monitor durable for demanding environments.


VERSATILITY, PRODUCTIVITY AND COMPATIBILITY

The X-17E allows viewing critical data and engaging multiple video sources with versatile connectivity, including DisplayPort, HDMI, DVI, and VGA. The PIP/PBP option allows for increased productivity and efficiency. Selectable aspect ratio and zoom functions provide compatibility with different video sources.


PATENTED ANTI-BURN-IN TECHNOLOGY

AG Neovo’s patented Anti-Burn-in technology tackles the LCD monitor burn-in effect, otherwise known as a ghost image on the screen. Burn-in images result in the polarisation of the liquid crystal material contained within the TFT LCD panel. The Anti-Burn-in technology prolongs the lifetime of AG Neovo monitors featuring this technology to secure user’s investment.


CONSISTENT DESIGN WITH A LONGER LIFETIME

Replacing AG Neovo semi-industrial monitors never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.


ENHANCED GAMMA CORRECTION

Selectable gamma curves visually optimise different kinds of images. The AG Neovo specialised image settings enhance colour, brightness, sharpness and contrast ratio, allowing the X-17E semi-industrial monitor with a metal casing to improve the light, shadows and colour balance of videos.

Specifications:

Panel
  • Panel Type
  • TN
  • Panel Size
  • 17.0"
  • Max. Resolution
  • SXGA 1280 x 1024
  • Pixel Pitch
  • 0.264 mm
  • Brightness
  • 250 cd/m²
  • Contrast Ratio
  • 20,000,000:1 (DCR)
  • Viewing Angle (H/V)
  • 170°/160°
  • Display Colour
  • 16.7M
  • Response Time
  • 3 ms
Frequency
  • Frequency (H)
  • 24 kHz-83 kHz
  • Frequency (V)
  • 50 Hz-75 Hz

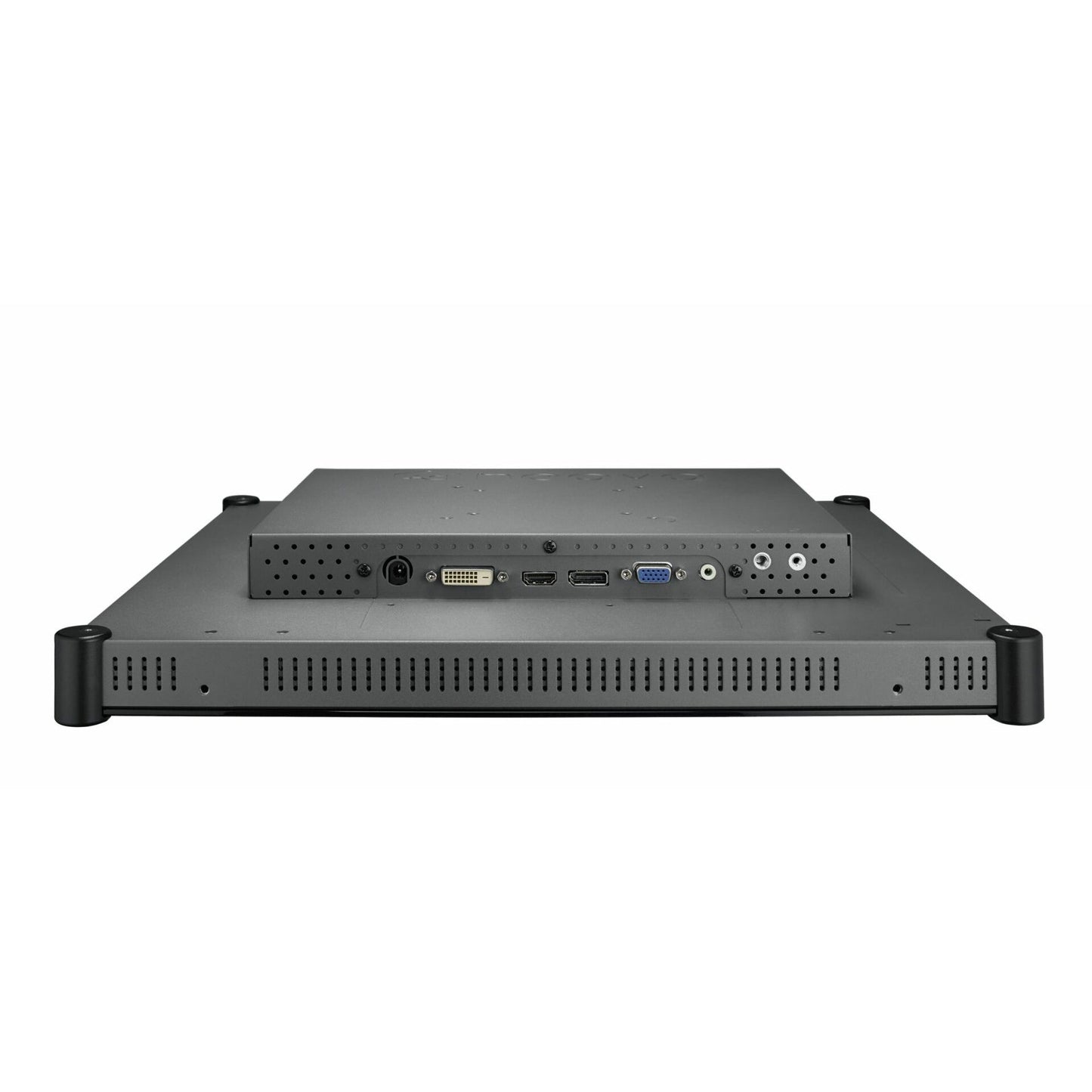

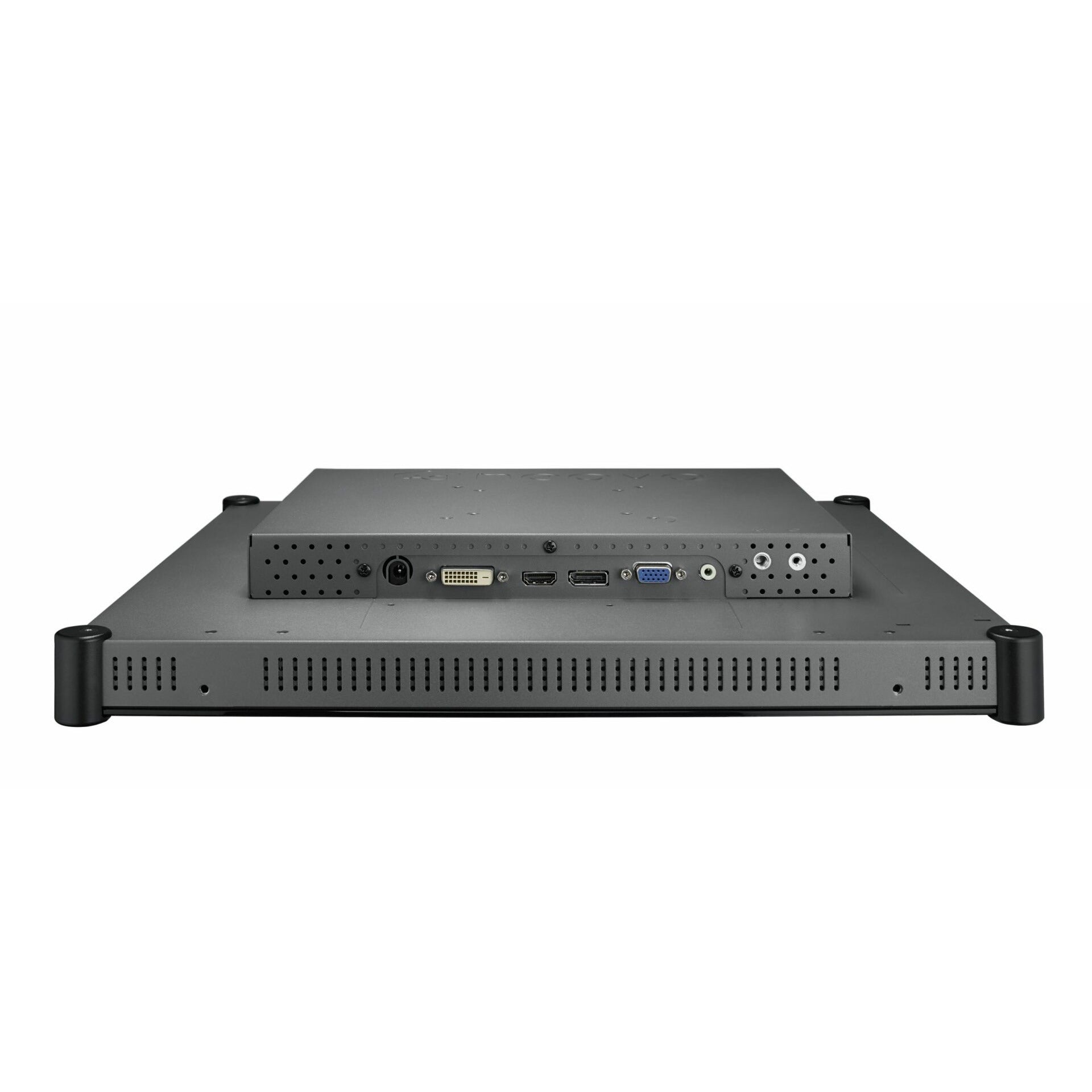

Signal Input
  • DisplayPort
  • x 1
  • HDMI
  • 1.4 x 1
  • DVI
  • 24-Pin DVI-D
  • VGA
  • 15-Pin D-Sub x 1
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Internal Speakers
  • 2W x 2
Power
  • Power Supply
  • External
  • Power Requirements
  • DC 12V
  • 1.58A
  • On Mode
  • 13W (On)
  • Standby Mode
  • < 0.5W
  • Off Mode
  • < 0.3W
Glass
  • Thickness
  • 3.0 mm (0.12")
  • Reflection Rate
  • < 1%
  • Transmission Rate
  • > 97%
  • Hardness
  • > 9H
Operating Conditions
  • Temperature
  • 0°C-40°C (32°F-104°F)
  • Humidity
  • 10%-90% (non-condensing)
Storage Conditions
  • Temperature
  • -20°C-60°C (-4°F-140°F)
  • Humidity
  • 5%-95% (non-condensing)

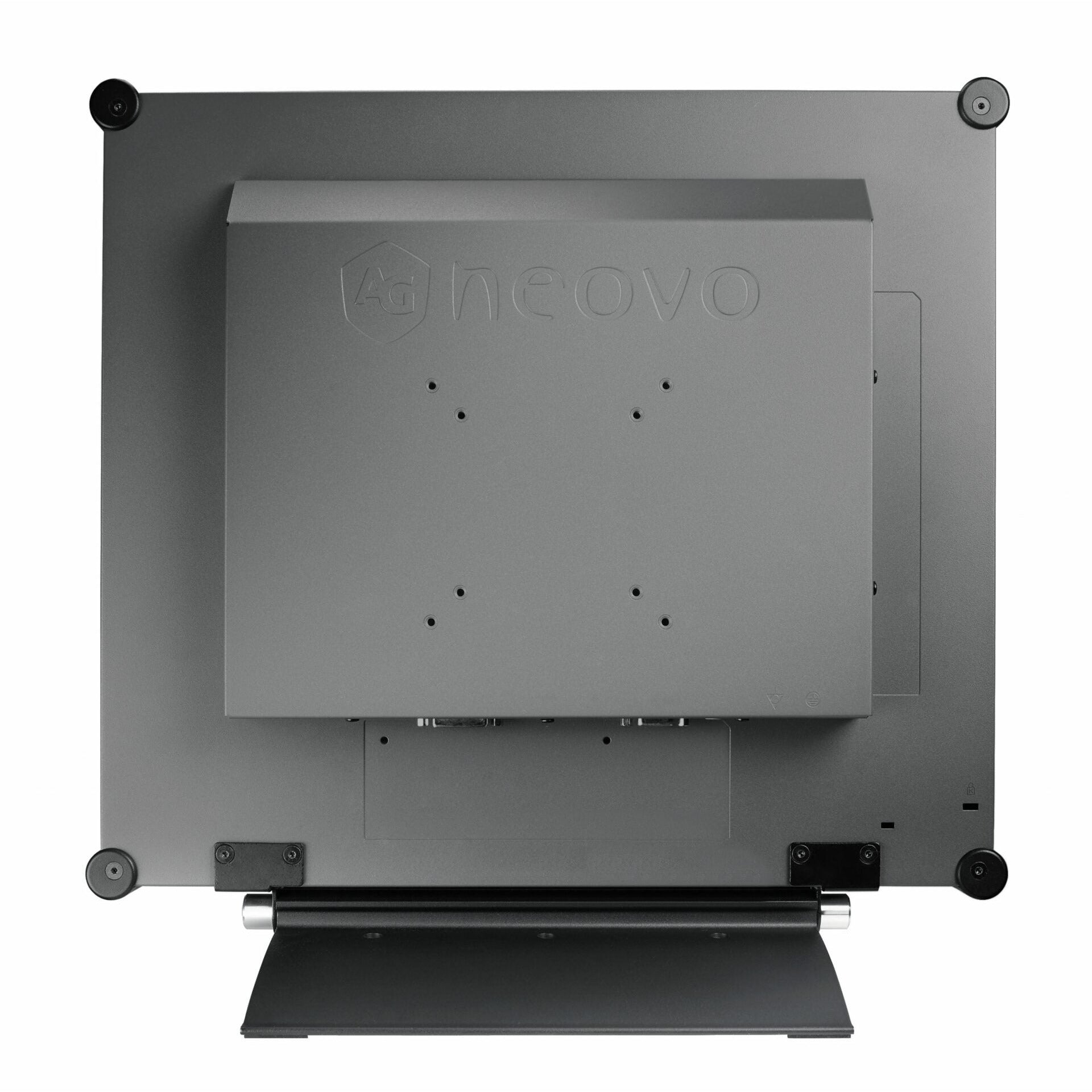

Mounting
  • VESA FPMPMI
  • Yes (100 x 100 mm & 75 x 75 mm)
Stand
  • Tilt
  • 0° to 22°
Security
  • Kensington Security Slot
  • Yes
Dimensions
  • Product with Base (W x H x D)
  • 409.4 x 398.2 x 175.0 mm (16.1" x 15.7" x 6.9")
  • Product w/o Base (W x H x D)
  • 409.4 x 361.9 x 64.5 mm (16.1" x 15.7" x 2.5")
  • Packaging (W x H x D)
  • 506.0 x 506.0 x 225.0 mm (19.9" x 19.9" x 8.9")
Weight
  • Product with Base
  • 6.0 kg (13.2 lb)
  • Product w/o Base
  • 5.2 kg (11.5 lb)
  • Packaging
  • 7.5 kg (16.5 lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • LVD
  • RoHS
  • WEEE
  • REACH
  • EAC
Accessories
  • Supplied
  • Audio Cable
  • Power Adaptor
  • Power Cord
  • Quick Start Guide
  • VGA Cable
Optional Accessories
  • Ceiling Mount (Landscape only)
  • CMP-01 + WMK-03
  • Wall Mount (Landscape only)
  • PMK-01
  • WMA-01
  • WMK-01
  • WMK-03
  • Desk mount (Landscape only)
  • DMC-01
  • DMC-02D
  • DMS-01D
  • ES-02
