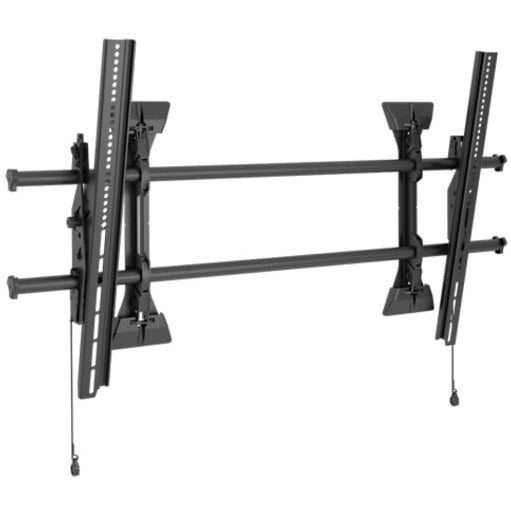

Chief X-Large Fusion Micro-Adjustable Tilt Fixed Wall Display Mount

Chief X-Large Fusion Micro-Adjustable Tilt Fixed Wall Display Mount

XTM1U

Low stock

Login to see prices
Login to see prices Login to see prices
Sale Sold out

Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.

Benefits included increased stability, fast installation, easy cable management and security.

The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Dimensions & Measurements
Depth
6.4 cm (2.5 in)
Height
62.2 cm (24.5 in)
Manual Height Adjustment
25.4 mm (1 in)
Max Screen Size
15.2 cm (6 in)
Maximum Screen Thickness
6" (152mm)
Minimum Depth
6.4 cm (2.5 in)
Shipping Weight
12.4 kg (27.2 lbs)
Tilt
+5° / -12°
Typical Screen Size
55-100" (1397mm - 2540mm)
Wall Stud Compatibility In
24" - 42" (610mm - 1067mm)
Weight Capacity
113.4 kg (250 lbs)
Width
108.6 cm (42.8 in)
Characteristics & Features
Adjustability
  • Height Adjustable
  • Lateral Shift
  • Micro-Adjustable
  • Tilt
Application
Wall
Color
Black
Number of Displays
1
Orientation
Landscape
Solution Type
Universal
TAA Compliant
No
VESA Mounting Pattern
100 x 100 mm - 1070 x 600 mm
Certifications & Warranties
Certifications
  • OSHPD
  • TUV
  • UL Listed
